Reference

ASME Standards We Supply Against

Every pipe, fitting and flange we stock is identified against a dimensional standard and a material specification. This page is a working reference — not a substitute for the official standard.

Gallery

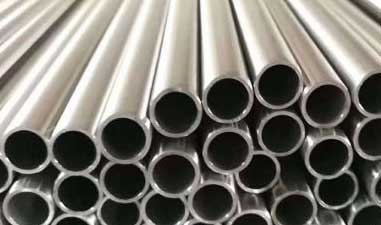

ASME B36.19 Pipe in Detail

Pipe Dimensions

B36.10M & B36.19M

The two dimensional standards behind every pipe size we quote.

ASME B36.10M

Welded and Seamless Wrought Steel Pipe

Dimensional standard covering outside diameter, wall thickness (schedule) and weight for carbon and alloy steel pipe, from NPS 1/8 to NPS 80.

ASME B36.19M

Stainless Steel Pipe

Companion standard to B36.10M for stainless steel pipe. Shares the same outside-diameter series and adds the 5S / 10S / 40S / 80S lighter-wall schedules common to stainless material.

Fittings & Flanges

B16-series standards

Governing dimensions, ratings and gasket compatibility for fittings and flanges.

ASME B16.5

Pipe Flanges and Flanged Fittings

Covers flange types, face finishes, and pressure–temperature ratings for Classes 150 to 2500, NPS 1/2 through NPS 24.

ASME B16.47

Large Diameter Steel Flanges

Extends flange coverage to large-bore piping, NPS 26 through NPS 60, Series A and B.

ASME B16.9

Factory-Made Wrought Buttwelding Fittings

Dimensional standard for buttweld elbows, tees, reducers, caps and stub ends manufactured to match pipe wall schedules.

ASME B16.11

Forged Fittings, Socket-Welding and Threaded

Covers forged socket-weld and threaded fittings — elbows, tees, couplings, unions — for smaller bore, higher-pressure piping.

ASME B16.20

Metallic Gaskets for Pipe Flanges

Specifies spiral-wound, ring-joint and other metallic gasket types used with B16.5 and B16.47 flanges.

Material Specifications

Paired ASTM specs

Dimensional standards define shape; these ASTM specifications define the material each part is made of.

ASTM A312 / A182

Stainless Steel Pipe & Forged Fittings/Flanges

Material specifications most often paired with B36.19M dimensions — A312 for seamless/welded pipe, A182 for forged flanges and fittings.

ASTM A358 / A778

Welded Austenitic Pipe

Electric-fusion-welded and lightly-worked stainless pipe specifications used for larger diameters and lower-pressure service.

ASTM A240

Stainless & Heat-Resisting Steel Plate, Sheet and Strip

The governing material specification for the flat stainless products we stock and supply.

ASTM A106 / A53

Carbon Steel Pipe for High-Temperature / General Service

The two most common carbon steel pipe specifications — A106 for seamless pipe in higher-temperature process service, A53 covering both welded and seamless for general piping.

ASTM A333

Seamless & Welded Steel Pipe for Low-Temperature Service

Covers pipe intended to stay tough and crack-resistant at sub-zero service temperatures, common in cryogenic and refrigeration lines.

ASTM A335

Seamless Ferritic Alloy Steel Pipe for High-Temperature Service

The specification behind our P5 / P9 / P11 / P22 / P91 alloy pipe grades, used across high-temperature process and power piping.

ASTM A213

Seamless Ferritic Alloy Steel Boiler & Heat-Exchanger Tube

The tube-form companion to A335 — covers our T9 / T11 / T22 / T91 alloy tube grades for boiler and heat-exchanger service.

ASTM A210

Seamless Carbon Steel Boiler & Superheater Tube

The carbon steel specification behind the boiler tube we stock, for medium and high-pressure boiler applications.

ASTM A999

General Requirements for Alloy & Stainless Steel Pipe

The umbrella specification setting common requirements — tolerances, testing, marking — that grade-specific pipe standards like A312 and A790 build on.

ASTM A790 / A928

Duplex & Super Duplex Stainless Pipe

Covers seamless and welded duplex/super duplex pipe — the material specification behind our Duplex 2205 and Super Duplex 2507 stock.

ASTM A409

Welded Large-Diameter Austenitic Steel Pipe

Covers large-diameter, lighter-wall austenitic stainless pipe for corrosive or high-temperature service.

ASTM A694

Carbon & Alloy Steel Forgings for Flanges, Fittings & Valves

Material specification for high-pressure transmission-service forgings, relevant to our flange and forged fitting range.

ASTM A984 / API 5L

Line Pipe

Governs black, plain-end steel line pipe for oil, gas and water transmission — the specification family behind our API 5L stock.

Quick Reference

Dimensions & pressure classes

NPS → Outside Diametermm, fixed by standard

NPS	DN	O.D. (mm)
1/2"	15	21.3
3/4"	20	26.7
1"	25	33.4
1 1/2"	40	48.3
2"	50	60.3
3"	80	88.9
4"	100	114.3
6"	150	168.3
8"	200	219.1
10"	250	273.0
12"	300	323.9

ASME B16.5 Pressure Classes

Class 150Class 300Class 600Class 900Class 1500Class 2500

Allowable working pressure for each class falls as design temperature rises, and varies by material group. For binding design figures, always confirm against the current edition of ASME B16.5 for your specific material and temperature.

This page is a working reference for procurement conversations. It is not a substitute for the current, official ASME/ASTM standard — always verify wall thickness, pressure rating and material grade against the governing standard and your engineer’s specification before ordering or fabrication.

Full Reference Tables

ASME B36.19 — Complete Dimensional & Weight Data

Specification summary, dimensions by NPS, allowable stress by temperature, and weight charts across the full size range.

›Overview

ASME B36.19 Pipe — Specification Summary

Field	Value
Grade	TP304, TP316/316L
Standard	ASTM A312/A358/A778, ASME B36.19M, ASME B36.10M
O.D.	1/4"
W.T.	SCH-5S, SCH-10S, SCH-80S, SCH-5, SCH-10, SCH-20, STD, XS
Manufacture Method	TIG or TIG + Plasma or Laser or Seamless
Application	Chemical & Petrochemical use etc.
Packing	Sea Worthy Bundle or Steel Create

›Dimensions

ASME B36.19 Dimensions — NPS 1/8″ to 1/2″

NPS	DN	O.D. (in / mm)	Schedule	Wall (in / mm)	Weight (lb/ft / kg/m)
1/8	6	0.405 / 10.3	5S	...	...
1/8	6	0.405 / 10.3	10S	0.049 / 1.24	0.19 / 0.28
1/8	6	0.405 / 10.3	40S	0.068 / 1.73	0.24 / 0.37
1/8	6	0.405 / 10.3	80S	0.095 / 2.41	0.31 / 0.47
1/4	8	0.540 / 13.7	5S	...	...
1/4	8	0.540 / 13.7	10S	0.065 / 1.65	0.33 / 0.49
1/4	8	0.540 / 13.7	40S	0.088 / 2.24	0.43 / 0.63
1/4	8	0.540 / 13.7	80S	0.119 / 3.02	0.54 / 0.80
3/8	10	0.675 / 17.1	5S	...	...
3/8	10	0.675 / 17.1	10S	0.065 / 1.65	0.42 / 0.63
3/8	10	0.675 / 17.1	40S	0.091 / 2.31	0.57 / 0.84
3/8	10	0.675 / 17.1	80S	0.126 / 3.20	0.74 / 1.10
1/2	15	0.840 / 21.3	5S	0.065 / 1.65	0.54 / 0.80
1/2	15	0.840 / 21.3	10S	0.083 / 2.11	0.67 / 1.00
1/2	15	0.840 / 21.3	40S	0.109 / 2.77	0.85 / 1.27

ASME B36.19 Wall Thickness & Weight — NPS 8″ to 14″

NPS / (DN)	Schedule	O.D. (in / mm)	Wall (in / mm)	Mass (lb/ft / kg/m)
8 / 200	5S	8.625 / 219.1	0.109 / 2.77 /	9.92 / 14.78
8 / 200	10S	8.625 / 219.1	0.148 / 3.76	13.41 / 19.97
8 / 200	40S	8.625 / 219.1	0.322 / 8.18	28.58 / 42.55
8 / 200	80S	8.625 / 219.1	0.500 / 12.70	43.43 / 64.64
10 / 250	5S	10.750 / 273.0	0.134 / 3.40	15.21 / 22.61
10 / 250	10S	10.750 / 273.0	0.165 / 4.19	18.67 / 27.78
10 / 250	40S	10.750 / 273.0	0.365 / 9.27	40.52 / 60.29
10 / 250	80S	10.750 / 273.0	0.500 / 12.70	54.79 / 81.53
12 / 300	5S	12.750 / 323.8	0.156 / 3.96	21.00 / 31.24
12 / 300	10S	12.750 / 323.8	0.180 / 4.57	24.19 / 35.98
12 / 300	40S	12.750 / 323.8	0.375 / 9.53	49.61 / 73.86
12 / 300	80S	12.750 / 323.8	0.500 / 12.70	65.48 / 97.44
14 / 350	5S	14.000 / 355.6	0.156 / 3.96	23.09 / 34.34
14 / 350	10S	14.000 / 355.6	0.188 / 4.78	27.76 / 41.36
14 / 350	40S	14.000 / 355.6	0.375 / 9.53	54.62 / 81.33

ASME B36.19 Schedule Reference — Wall Thickness & I.D. by Size

Scroll to see all columns →

Pipe Size (in)	O.D. (in)	Iron Pipe Size	Schedule No.	SS Schedule No.	Wall Thickness (in)	Inside Diameter (in)
1/8	0.405	. / STD / XS	. / 40 / 80	10S / 40S / 80S	0.049 / 0.068 / 0.095	0.307 / 0.269 / 0.215
1/4	0.540	. / STD / XS	. / 40 / 80	10S / 40S / 80S	0.065 / 0.088 / 0.119	0.410 / 0.364 / 0.302
3/8	0.675	. / STD / XS	. / 40 / 80	10S / 40S / 80S	0.065 / 0.091 / 0.126	0.545 / 0.493 / 0.423
1/2	0.840	. / . / STD / XS / . / XXS	. / . / 40 / 80 / 160 / .	5S / 10S / 40S / 80S / . / .	0.065 / 0.083 / 0.109 / 0.147 / 0.187 / 0.294	0.710 / 0.674 / 0.622 / 0.546 / 0.466 / 0.252
3/4	/ 1.050	. / . / STD / XS / . / XXS	. / . / 40 / 80 / 160 / .	5S / 10S / 40S / 80S / . / .	0.065 / 0.083 / 0.113 / 0.154 / 0.219 / 0.308	0.920 / 0.884 / 0.824 / 0.742 / 0.612 / 0.434
1	1.315	. / . / STD / XS / . / XXS	. / . / 40 / 80 / 160 / .	5S / 10S / 40S / 80S / . / .	0.065 / 0.109 / 0.133 / 0.179 / 0.250 / 0.358	1.185 / 1.097 / 1.049 / 0.957 / 0.815 / 0.599
1 1/4	1.660	. / . / STD / XS / . / XXS	. / . / 40 / 80 / 160 / .	5S / 10S / 40S / 80S / . / .	0.065 / 0.109 / 0.140 / 0.191 / 0.250 / 0.382	1.530 / 1.442 / 1.380 / 1.278 / 1.160 / 0.896
1 1/2	1.900	. / . / STD / XS / . / XXS	. / . / 40 / 80 / 160 / .	5S / 10S / 40S / 80S / . / .	0.065 / 0.109 / 0.145 / 0.200 / 0.281 / 0.400	1.770 / 1.682 / 1.610 / 1.500 / 1.338 / 1.100
2	2.375	. / . / STD / XS / . / XXS	. / . / 40 / 80 / 160 / .	5S / 10S / 40S / 80S / . / .	0.065 / 0.109 / 0.154 / 0.218 / 0.344 / 0.436	2.245 / 2.157 / 2.067 / 1.939 / 1.687 / 1.503
2 1/2	2.875	. / . / STD / XS / . / XXS	. / . / 40 / 80 / 160 / .	5S / 10S / 40S / 80S / . / .	0.083 / 0.120 / 0.203 / 0.276 / 0.375 / 0.552	2.709 / 2.635 / 2.469 / 2.323 / 2.125 / 1.771
3	3.500	. / . / STD / XS / . / XXS	. / . / 40 / 80 / 160 / .	5S / 10S / 40S / 80S / . / .	0.083 / 0.120 / 0.216 / 0.300 / 0.438 / 0.600	3.334 / 3.260 / 3.068 / 2.900 / 2.624 / 2.300
3 1/2	4.000	. / . / STD / XS	. / . / 40 / 80	5S / 10S / 40S / 80S	0.083 / 0.120 / 0.226 / 0.318	3.834 / 3.760 / 3.548 / 3.364
4	4.500	. / . / STD / XS / . / . / XXS	. / . / 40 / 80 / 120 / 160 / .	5S / 10S / 40S / 80S / . / . / .	0.083 / 0.120 / 0.237 / 0.337 / 0.438 / 0.531 / 0.674	4.334 / 4.260 / 4.026 / 3.826 / 3.624 / 3.438 / 3.152
5	5.563	. / . / STD / XS / . / . / XXS	. / . / 40 / 80 / 120 / 160 / .	5S / 10S / 40S / 80S / . / . / .	0.109 / 0.134 / 0.258 / 0.375 / 0.500 / 0.625 / 0.750	5.345 / 5.295 / 5.047 / 4.813 / 4.563 / 4.313 / 4.063
6	6.625	. / . / STD / XS / . / . / XXS	. / . / 40 / 80 / 120 / 160 / .	5S / 10S / 40S / 80S / . / . / .	0.109 / 0.134 / 0.280 / 0.432 / 0.562 / 0.718 / 0.864	6.407 / 6.357 / 6.065 / 5.761 / 5.501 / 5.189 / 4.897
8	8.625	. / . / . / . / STD / . / XS / . / . / . / XXS / .	. / . / 20 / 30 / 40 / 60 / 80 / 100 / 120 / 140 / . / 160	5S / 10S / . / . / 40S / . / 80S / . / . / . / . / .	0.109 / 0.148 / 0.250 / 0.277 / 0.322 / 0.406 / 0.500 / 0.594 / 0.719 / 0.812 / 0.875 / 0.906	8.407 / 8.329 / 8.125 / 8.071 / 7.981 / 7.813 / 7.625 / 7.437 / 7.187 / 7.001 / 6.875 / 6.813
10	10.750	. / . / . / . / STD / XS / . / . / . / . / .	. / . / 20 / 30 / 40 / 60 / 80 / 100 / 120 / 140 / 160	5S / 10S / . / . / 40S / 80S / . / . / . / . / .	0.134 / 0.165 / 0.250 / 0.307 / 0.365 / 0.500 / 0.594 / 0.719 / 0.844 / 1.000 / 1.125	10.482 / 10.420 / 10.250 / 10.136 / 10.020 / 9.750 / 9.562 / 9.312 / 9.062 / 8.750 / 8.500
12	12.75	. / . / . / . / STD / . / XS / . / . / . / . / . / .	. / . / 20 / 30 / . / 40 / . / 60 / 80 / 100 / 120 / 140 / 160	5S / 10S / . / . / 40S / . / 80S / . / . / . / . / . / .	0.156 / 0.180 / 0.25 / 0.330 / 0.375 / 0.406 / 0.500 / 0.562 / 0.688 / 0.844 / 1.000 / 1.125 / 1.312	12.438 / 12.390 / 12.250 / 12.090 / 12.000 / 11.938 / 11.750 / 11.626 / 11.374 / 11.062 / 10.750 / 10.500 / 10.126
14	14.00	. / . / . / . / STD / . / XS / . / . / . / . / . / ..	. / . / 10 / 20 / 30 / 40 / . / 60 / 80 / 100 / 120 / 140 / 160	5S / 10S / . / . / . / . / . / . / . / . / . / . / .	0.156 / 0.188 / 0.250 / 0.312 / 0.375 / 0.438 / 0.500 / 0.594 / 0.750 / 0.938 / 1.094 / 1.250 / 1.406	13.688 / 13.624 / 13.500 / 13.376 / 13.250 / 13.124 / 13.000 / 12.812 / 12.500 / 12.124 / 11.812 / 11.500 / 11.188
16	16.00	. / . / . / . / STD / XS / . / . / . / . / . / .	. / . / 10 / 20 / 30 / 40 / 60 / 80 / 100 / 120 / 140 / 160	5S / 10S / . / . / . / . / . / . / . / . / . / .	0.165 / 0.188 / 0.250 / 0.312 / 0.375 / 0.500 / 0.656 / 0.844 / 1.031 / 1.219 / 1.438 / 1.594	15.670 / 15.624 / 15.500 / 15.376 / 15.250 / 15.000 / 14.688 / 14.312 / 13.938 / 13.562 / 13.124 / 12.812
18	18.00	. / . / . / . / STD / . / XS / . / . / . / . / . / . / .	. / . / 10 / 20 / . / 30 / . / 40 / 60 / 80 / 100 / 120 / 140 / 160	5S / 10S / . / . / . / . / . / . / . / . / . / . / . / .	0.165 / 0.188 / 0.250 / 0.312 / 0.375 / 0.438 / 0.500 / 0.562 / 0.750 / 0.938 / 1.156 / 1.375 / 1.562 / 1.781	17.670 / 17.624 / 17.500 / 17.376 / 17.250 / 17.124 / 17.000 / 16.876 / 16.500 / 16.124 / 15.688 / 15.250 / 14.876 / 14.438

›Allowable Stress

ASME B36.19 Allowable Stress by Temperature (psi)

Scroll to see all columns →

Pipe Size (in)	Schedule	O.D. (in)	Wall Thickness (in)	100°F	200°F	300°F	400°F	500°F	600°F	650°F	700°F	750°F
1"	40	1.315	0.133	2205	2205	2205	2047	1902	1783	1743	1703	1664
1"	80	1.315	0.179	3061	3061	3061	2841	2640	2475	2420	2365	2310
1"	160	1.315	0.250	4493	4493	4493	4170	3874	3632	3552	3471	3390
1 1/2"	40	1.900	0.145	1629	1629	1629	1512	1404	1317	1287	1258	1229
1 1/2"	80	1.900	0.200	2303	2303	2303	2138	1986	1862	1821	1779	1738
1 1/2"	160	1.900	0.281	3362	3362	3362	3120	2899	2717	2657	2597	2536
2"	40	2.375	0.154	1371	1371	1371	1272	1182	1108	1083	1059	1034
2"	80	2.375	0.218	1985	1985	1985	1843	1712	1605	1569	1534	1498
2"	160	2.375	0.344	3283	3283	3283	3047	2831	2654	2595	2536	2477
3"	40	3.500	0.216	1301	1301	1301	1208	1122	1052	1028	1005	982
3"	80	3.500	0.300	1844	1844	1844	1712	1590	1491	1458	1425	1391
3"	160	3.500	0.438	2787	2787	2787	2587	2403	2253	2203	2153	2103
4"	40	4.500	0.237	1102	1102	1102	1023	950	891	871	851	831
4"	80	4.500	0.337	1596	1596	1596	1482	1377	1291	1262	1233	1204
4"	160	4.500	0.531	2611	2611	2611	2424	2552	2111	2064	2017	1970
5"	40	5.563	0.258	965	965	965	896	832	780	763	746	728
5"	80	5.563	0.375	1428	1428	1428	1325	1231	1154	1129	1103	1077
5"	160	5.563	0.625	2474	2474	2474	2296	2133	2000	1955	1911	1866
6"	40	6.625	0.280	877	877	877	814	756	709	693	677	661
6"	80	6.625	0.432	1379	1379	1379	1280	1189	1115	1090	1065	1040
6"	160	6.625	0.719	2382	2382	2382	2211	2054	1925	1883	1840	1797
8"	40	8.625	0.322	771	771	771	716	665	623	610	596	582
8"	80	8.625	0.500	1218	1218	1218	1131	1050	985	963	941	919
8"	160	8.625	0.906	2298	2298	2298	2133	1982	1858	1817	1775	1734
10"	40	10.750	0.365	699	699	699	649	603	565	553	540	528
10"	80	10.750	0.594	1159	1159	1159	1075	999	937	916	895	874
10"	160	10.750	1.125	2289	2289	2289	2124	1974	1850	1809	1768	1727

›Weight Charts

ASME B36.19 Pipe Weight (kg/m) — NPS ½″ to 2″

Scroll to see all columns →

Schedule	1/2"	3/4"	1"	1 1/4"	1 1/2"	2"
O.D. (mm)	21.3	26.7	33.4	42.2	48.3	60.3
Sch 5 PIPE WEIGHTS	0.80	1.03	1.29	1.65	1.90	2.39
Sch 10 PIPE WEIGHTS	1.00	1.28	2.09	2.69	3.11	3.93
Sch 20 PIPE WEIGHTS	...	...	...	...	...	...
Sch 30 PIPE WEIGHTS	1.12	1.44	2.18	2.87	3.53	4.48
STD PIPE WEIGHTS	1.27	1.69	2.50	3.39	4.05	5.44
Sch 40 PIPE WEIGHTS	1.27	1.69	2.50	3.39	4.05	5.44
Sch 60 PIPE WEIGHTS	...	...	...	...	...	...
XS PIPE WEIGHTS	1.62	2.20	3.24	4.47	5.41	7.48
Sch 80 PIPE WEIGHTS	1.62	2.20	3.24	4.47	5.41	7.48
Sch 100 PIPE WEIGHTS	...	...	...	...	...	...
Sch 120 PIPE WEIGHTS	...	...	...	...	...	...
Sch 140 PIPE WEIGHTS	...	...	...	...	...	...
XXS PIPE WEIGHTS	2.55	3.64	5.45	7.77	9.55	13.44
Sch 160 PIPE WEIGHTS	1.95	2.90	4.24	5.61	7.25	11.11

ASME B36.19 Pipe Weight (kg/m) — NPS 2½″ to 5″

Schedule	2 1/2"	3"	3 1/2"	4"	5"
O.D. (mm)	73	88.9	101.6	114.3	141.3
Sch 5	3.69	4.52	5.18	5.84	9.46
Sch 5S	...	...	...	5.84	9.46
Sch 10	5.26	6.46	7.41	8.37	11.56
Sch 10S				8.37	11.56
Sch 20	...	...	...	...	...
Sch 30	8.04	9.92	11.41	12.91	...
STD	8.63	11.29	13.57	16.08	21.77
Sch 40	8.63	11.29	13.57	16.08	21.77
Sch 40S	...	...	...	16.08	21.77
Sch 60	...	...	...	...	...
XS	11.41	15.27	18.64	22.32	30.97
Sch 80	11.41	15.27	18.64	22.32	30.97
Sch 80S	...	...	...	22.32	30.97
Sch 100	...	...	...	...	...
Sch 120	...	...	...	28.32	40.28
Sch 140	...	...	...	...	...
XXS	20.39	27.68	...	41.03	57.43
Sch 160	14.92	21.35	...	33.54	49.12

ASME B36.19 Pipe Weight (kg/m) — NPS 6″ to 12″

Schedule	6"	8"	10"	12"
O.D. (mm)	168.3	219	273	323.9
Sch 5	11.31	14.78	22.61	31.24
Sch 5S	11.31	14.78	22.61	31.24
Sch 10	13.83	29.97	27.79	35.98
Sch 10S	13.83	29.97	27.79	35.98
Sch 20	...	33.32	41.76	49.71
Sch 30	...	36.82	51.01	65.19
STD	28.26	42.55	60.29	73.86
Sch 40	28.26	42.55	60.29	79.71
Sch 40S	28.26	42.55	60.29	73.86
Sch 60	...	53.09	81.53	108.93
XS	42.56	64.64	81.53	97.44
Sch 80	42.56	64.64	95.98	132.05
Sch 80S	43.56	64.64	81.53	97.44
Sch 100	...	75.92	114.71	159.87
Sch 120	54.21	90.44	133.01	186.92
Sch 140	...	100.93	155.10	208.08
XXS	79.22	107.93	155.10	186.92
Sch 160	67.57	111.27	172.27	238.69

ASME B36.19 Pipe Weight (kg/m) — NPS 14″ to 18″

Schedule	14"	16"	18"
O.D. (mm)	355.6	406.04	457.2
Sch 5	34.34	41.56	46.79
Sch 5S	34.34	41.56	46.79
Sch 10	54.69	62.65	70.57
Sch 10S	41.36	47.34	53.31
Sch 20	67.91	77.83	87.71
Sch 30	81.33	93.27	122.38
STD	81.33	93.27	105.17
Sch 40	94.55	123.21	155.81
Sch 40S	81.33	93.27	...
Sch 60	126.72	160.13	205.75
XS	107.40	123.21	139.16
Sch 80	158.11	203.54	254.57
Sch 80S	107.40	123.21	...
Sch 100	194.98	245.57	309.64
Sch 120	224.66	286.66	363.58
Sch 140	253.58	333.21	408.28
XXS	...	...	...
Sch 160	281.72	365.38	459.39

Figures above are a working reference, not a substitute for the current, official ASME B36.19M standard. Always verify wall thickness, weight and allowable stress against the governing standard and your engineer’s specification before ordering or fabrication.

Contact

Send us the spec

Grade, form, size and quantity — that's all we need to confirm stock and quote. Reach us directly, or use the form below.

Enquiry FormReply same working day

Direct Contact

Head Office

Shop No. 5, Ravi Estate, Keval Kantha Road, Near Gujarat Bottling Road, Industrial Area, Rakhial, Ahmedabad, Gujarat – 380023, India

Phone / WhatsApp

+91 93240 06771

exportompmo@gmail.com

Working Hours

Monday – Saturday8:00 AM – 8:00 PM

SundayClosed
