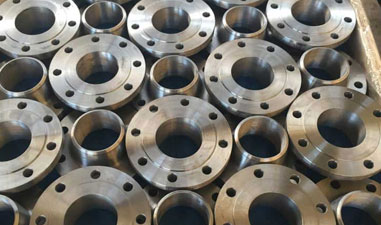

Inconel 600 Flanges
Manufacturer of Inconel 600 Flanges in India, Check Accurate Dimension of ASTM B564 UNS N06600 Blind Flanges at Factory Price, Buy Nickel 600 RTJ Flanges S Per ASME B16.5 Standards.
Nickel Alloys
Gallery
Inconel 600 Flanges in Detail
Specification
Features & Applications
UNS N06600 Weld Neck Flange Specific Heat
- 0.106 Btu/lb-°F
- 444 J/kg-°C

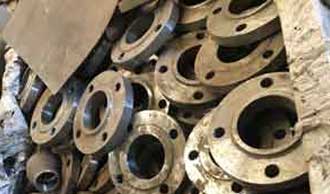

ASTM B564 UNS N06600 Socket Weld Flange Curie Temperature
- -192 °F
- -124 °C
ASTM B564 Inconel 600 Reducing Flange Density
- 8.47 g/cm3
- 0.306 lb/in.3
Inconel N06600 Reducing Flange Melting point
- 2470 - 2575 °F
- 1354 - 1413 °C
Inconel 2.4816 Lap Joint Flange Characteristics
- Strength and Stability
- Oxidation resistance
- Nitriding Resistance
- Nitriding Resistance
Inconel 6600 Plate Flanges Suitable for
- Sulfuric Acid
- Nitric Acid
- Organic Acid
- Seawater
Alloy Type
- Ni-Cr-Fe
Elongation
- 35 %
Ni Alloy 600 Pipe Flange Tensile Strength
- 515 MPa

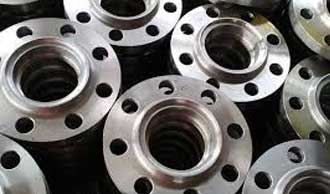

Inconel Alloy 600 Forged Flange Yield Strength
- 170 MPa
Inconel 600 Forged Steel Flanges Common Trade Name
- Inconel 600®
- Ferrochronin® 600
- Nickelvac® 600
UNS Number
- N06600
ASTM B564 N06600 Forged Pipe Flange Manufacturing Technique
- Forged
- Drilling
- Turning
- CNC machining
- Rolled
- Milling
Alloy 600 Blind Flange International Specifications
- BS 3072-3076
- DIN 17742
- DIN 17754
- DIN 17750
- TÜV 305
- AFNOR-NC 15 Fe
Inconel 600 Blind Flange Features
- Malleable
- High strength
- Precisely designed
- Excellent conductivity
- Corrosion resistant
- High strength
ASTM B564 UNS N06600 Blind Flanges Types
- Inconel 600 Raised Face Blind Flange
- Alloy 600 Forged Blind Flange
- Inconel N06600 Ring Type Joint Blind Flange
- ASME SB 564 N06600 Threaded Blind Flange
- Alloy 600 Flat Face Blind Flange

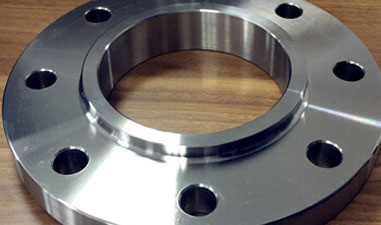

Inconel 600 Slip on Flanges Types
- ASTM B564 UNS N06600 Threaded Slip on Flange
- Inconel 6600 Flat Face Slip on Flange
- UNS N06600 Forged Slip on Flange
- DIN 2.4816 Ring Type Joint Slip on Flange
- ASTM B564 Inconel 600 Raised Face Slip on Flange
Other Types of Nickel Alloy 600 Flanges
- Alloy 600 Swivel Flange
- Inconel 600 High Hub Blind Flange
- ASTM B564 Inconel 600 Reducing Flange
- Inconel N06600 Anchor Flange
- UNS N06600 Ring Spacer Flange
- ASME SB 564 N06600 Spade Flange
- Alloy 600 Orifice Plate
- ASTM B564 UNS N06600 Expander Flange
Faces Types of Inconel Alloy 600 Nippolet Flanges
- Flat face
- Ring joint
- Raised face
- Lap joint
- Large and small tongue and groove
- Male and female
Inconel 2.4856 Weld Neck Flanges Types
- SB 564 UNS N06600 Raised Face Weld Neck Flange
- Inconel 600 Flat Face Weld Neck Flange
- Nickel Alloy 600 Ring Type Joint Weld Neck Flange
- Inconel 2.4816 Long Weld Neck Flange
ASTM B564 Inconel 600 Threaded Flanges ASME standards
- ASME B16.5
- ASME B16.36
- ASME B16.20
- ASME B16.47
Inconel Din 2.4816 Spectacle Blind Flanges finish
- Zinc Plated
- Concentric Serrated
- Serrated finish
- Spiral Serrated
- Mirror finish
- Smooth Finish
- Cold Water Finish
Nickel Alloy 600 Industrial Flanges Marking
- Manufacturers Name
- Material grade
- Face type
- Origin
- Sizes
- Standard
- Pressure class
WNR 2.4816 Long Weld Neck Flange Test Certificates
- Raw Materials Certificate
- Third Party Inspection
- MTC EN 10204 3.1/3.2
- 100% Radiography Test Report
ASTM B564 UNS N06600 BLRF Flanges Other standards
- Europe :NiCr15Fe
- OR : ЭП760
- Japan : NCF 600
- Russia : МНЖМц 28-2,5-1,5
- BS : NA 13
Available As
Nickel Alloy 600 Socket Weld FlangesInconel 6600 Weld Neck FlangesSB 564 UNS N06600 LWN FlangesInconel Alloy 600 Slip on FlangesNi Alloy 600 Blind FlangesDIN 2.4816 Backing FlangeInconel 2.4816 Lap Joint FlangesASTM B564 N06600 Threaded FlangesInconel 600 Reducing Flange
Technical Data
Full Specifications
›Dimensions & Weight
Dimensions of ASTM B564 Inconel 600 Lap Joint Flanges
Scroll to see all columns →
| Size in mm | col_2 | 15 | 25 | 40 | 65 | 90 | 125 | 200 | 300 | 400 | 500 | 600 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size in Inch | 1/2 | 1 | 1 1/2 | 2 1/2 | 3 1/2 | 5 | 8 | 12 | 16 | 20 | 24 | |
| OD | A | 90 | 110 | 125 | 180 | 215 | 255 | 345 | 485 | 595 | 700 | 815 |
| Lapped Thick. | C | 16 | 17 | 22 | 29 | 32 | 36 | 44 | 56 | 87 | 103 | 111 |
| Flange Thick. | B | 30 | 49 | 65 | 90 | 122 | 164 | 246 | 365 | 457 | 559 | 663 |
| Lapped ID | D | 22.9 | 34.9 | 50 | 75.4 | 104.1 | 144.4 | 222.2 | 328.2 | 411.2 | 514.4 | 616 |
| PCD | E | 60.3 | 79.4 | 98.4 | 139.7 | 177.8 | 215.9 | 298.5 | 431.8 | 539.8 | 635 | 749.3 |
| Lapped Radius | 3 | 3 | 6 | 8 | 11 | 11 | 13 | 13 | 13 | 13 | 13 | |
| Lapped Thick. | G | 11.2 | 14.3 | 17.5 | 22.3 | 23.9 | 23.9 | 28.6 | 31.8 | 36.6 | 42.9 | 47.9 |
| No of Bolts | 4 | 4 | 4 | 4 | 8 | 8 | 8 | 12 | 16 | 20 | 20 | |
| Machine Bolt Length | 50 | 55 | 65 | 75 | 75 | 85 | 90 | 100 | 115 | 140 | 150 | |
| Bolt Size UNC | 1/2 | 1/2 | 1/2 | 5/8 | 5/8 | 3/4 | 3/4 | 7/8 | 1 | 1 1/8 | 1 1/4 | |
| Hole Size | 5/8 | 5/8 | 5/8 | 3/4 | 3/4 | 7/8 | 7/8 | 1 | 1 1/8 | 1 1/4 | 1 3/8 | |
| RF Stud Length | 55 | 65 | 70 | 90 | 90 | 95 | 110 | 120 | 135 | 160 | 170 | |
| Weight in kg | 0.8 | 0.9 | 1.4 | 3.2 | 5 | 6.8 | 13.7 | 29 | 54 | 75 | 100 | |
| ISO Stud Size | M14 | M14 | M14 | M16 | M16 | M20 | M20 | M24 | M27 | M30 | M33 |
Weight Chart Of 15mm (1/2") Nickel 600 Flange
Scroll to see all columns →
| CLASS | 400 lb | 400 lb_2 | 400 lb_3 | 400 lb_4 | 400 lb_5 | 400 lb_6 | 400 lb_7 | 400 lb_8 | 400 lb_9 | 400 lb_10 | 400 lb_11 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Pipe Size | ½ | 1 | 1½ | 2½ | 3½ | 5 | 8 | 12 | 16 | 20 | 24 |
| Slip On | 2 | 3.5 | 6.5 | 12 | 21 | 31 | 67 | 130 | 253 | 378 | 539 |
| Threaded | 2 | 3.5 | 6.5 | 12 | 21 | 31 | 67 | 130 | 253 | 378 | 539 |
| Socket Weld | 2 | 3.5 | 6.5 | 12 | 21 | 31 | 67 | 130 | 253 | 378 | 539 |
| Lap Joint | 2 | 3.5 | 6.5 | 11 | 20 | 29 | 64 | 152 | 280 | 420 | 615 |
| Blind | 2 | 4 | 8 | 15 | 29 | 44 | 100 | 226 | 398 | 621 | 936 |
| Weld Neck | 3 | 4 | 8 | 14 | 26 | 43 | 89 | 175 | 295 | 445 | 640 |
›Material Properties

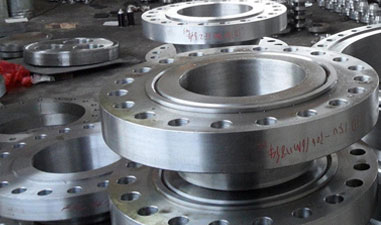

Mechanical Characteristics of Nickel 600 RTJ Flanges
| Element | Density | col_3 | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| Element | 8.47 g/cm3 | 310 MPa | Elongation | |
| Inconel 600 | Melting Point | Tensile Strength | 40 % | |
| Inconel 600 | 2580 °F / 1413 °C | 655 MPa | 40 % |
›Technical Data
Material Equivalent of Inconel 600 Weld Neck Flange
Scroll to see all columns →
| STANDARD | WERKSTOFF NR. | North America (UNS) | Japan | British Standard | Russia | France | Europe |
|---|---|---|---|---|---|---|---|
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
Pressure-Temperature Rating for 600 Alloy Forged Flanges
Scroll to see all columns →
| col_1 | col_2 | col_3 | col_4 | col_5 | col_6 | col_7 | col_8 |
|---|---|---|---|---|---|---|---|
| ANSI/ASME B16.34 | PRESSURE RATING CHART | PRESSURE RATING CHART | PRESSURE RATING CHART | PRESSURE RATING CHART | PRESSURE RATING CHART | PRESSURE RATING CHART | PRESSURE RATING CHART |
| Temperature °F | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
