Specification of EN 1092-1 Flanges

col_1	col_2
Size	1/2″ (15 NB) to 48″ (1200NB)
Standards	ANSI B16.47 Series A & B, ANSI B16.5, MSS SP44, ASA, API-605, AWWA, Custom Drawings.
Dimensions and Pressure Ratings	Table D, E, F, & H, ANSI, BS4504, MSS- SP-44, BS3293, PN6, 10, 16, 25, 64 BS10, DIN Standards
Pressure Ratings	PN6, PN10, PN16, PN25, PN40, PN64 etc.
Pressure class	150#, 300#, 600#, 1500#
Test	Hydrostatic testing machine, X-ray detector, Direct-reading Spectrograph, UI trasonic flaw detector, Magnetic particle detector
Flange Face Type Manufacturer	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Export to	Egypt, Ireland, Iran, Ukraine,Brazil, Indonesia, Korea, USA, Saudi Arabia, Spain, Dubai, Singapore, Canada, India, Oman, Thailand, Peru, etc
Coating/Surface Treatment	Oil Black Paint, Yellow Transparent, Anti-rust Paint, Zinc Plated, Cold and Hot Dip Galvanized.

Ashtapad Overseas can supply express delivery to here

col_1	col_2
EN 1092-1 PN100 Din Flange	Spain, Australia, Malaysia, Germany
EN 1092-1 Type 01 PN10 Flange	Malaysia, Turkey, Colombia, South Africa

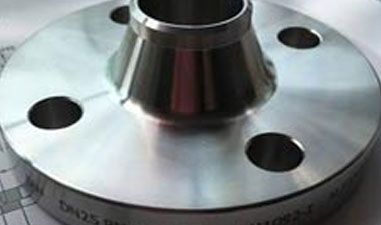

EN 1092-1 TYPE 11 PN16 WNRF FLANGE	Ellington -United States, Russia, NY 12203 (USA), Brazil
En 1092-1:2007 Welding Neck Flange	UK, United Arab Emirates (UAE), Philippines, Bahrain
EN 1092-1 Type 05 Blind Flange class 300	Malaysia, UK, South Korea, Bangladesh
en 1092-1 galvanized slip on ff flange	Thailand, UK, Malaysia, Indonesia
din en 1092-1 150 so rf flange pn16	Mexico, Malaysia, Taiwan, Thailand
EN1092-1 TYPE01 Europe Standard FLANGES	Malaysia, Dubai, Qatar, Nigeria
BS 1092-1 stainless steel type 01 plate flanges	Singapore, Hong Kong, Dammam -KSA, UAE
BLIND EN 1092-1 TYPE 05 PN16 flanges	Europe, Malaysia, Singapore, USA
DIN 1092-1:2007 Ring Joint Flange	Canada, Iran, Malaysia, Singapore
EN 1092-1 RF blind flange DN 300 12" PN25	Europe, Egypt, Sweden, Oman
EN1092-1:2007 TYPE05 BL FF flanges PN6	Philippines, Netherlands, Malaysia, Philippines
DIN 1092-1 type11 welding neck flanges pn16	United Kingdom -UK, Chile, China, South Africa
EN1092-1 type 05 blank flange PN16 DN300 10"	Canada, Italy, Japan, Saudi Arabia (KSA)
dn 200 en 1092-1 type 11 welding neck flanges	Belgium, Malaysia, Czechia, UAE
Threaded flange PN6 DIN 1092-1 / TYPE 13	Poland, Singapore, Romania, Kuwait
DIN-1092-1 Type 01-A Plate Flange 4 Inch PN10	Malaysia, Philippines, Europe, France
EN1092-1 TYPE 01 plate flanges for welding PN16	Singapore, Norway, Los Alamos -Mexico, Finland

›Dimensions & Weight

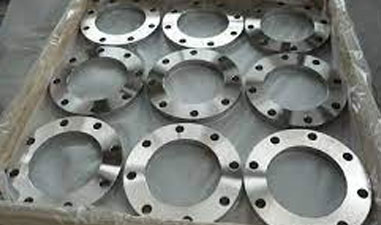

En 1092-1 Type 01 Pn6 Plate Flange Dimensions

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9
Flange DN	Pipe	Flange	Flange	Flange	Flange	Screws	Screws	Flange Weight
Flange DN	Pipe	d1	k	D	b	d2	Bolt holes	KG
15	21,3	22,0	55	80	12	11	4	0,401
20	26,9	27,5	65	90	14	11	4	0,590
25	33,7	34,5	75	100	14	11	4	0,716
32	42,4	43,5	90	120	16	14	4	1,153
40	48,3	49,5	100	130	16	14	4	1,344
50	60,3	61,5	110	140	16	14	4	1,478
65	76,1	77,5	130	160	16	14	4	1,850
80	88,9	90,5	150	190	18	18	4	2,944
100	114,3	116,0	170	210	18	18	4	3,247
125	139,7	141,5	200	240	20	18	8	4,301
150	168,3	170,5	225	265	20	18	8	4,741
200	219,1	221,5	280	320	22	18	8	6,862
250	273,0	276,5	335	375	24	18	12	8,893
300	323,9	327,5	395	440	24	22	12	11,880
350	355,6	359,5	445	490	26	22	12	16,788
400	406,4	411,0	495	540	28	22	16	19,781
450	457,0	462,0	550	595	30	22	16	24,495
500	508,0	513,5	600	645	30	22	20	26,307
600	610,0	616,5	705	755	32	26	20	34,702
700	711,0	714,2	810	860	40	26	24	52,441
800	813,0	815,8	920	975	44	30	24	71,262
900	914,0	917,4	1020	1075	48	30	24	86,269
1000	1016,0	1019,0	1120	1175	52	30	28	101,340
1200	1220,0	1224,0	1340	1405	60	33	32	162,638
1400	1420,0	1424,0	1560	1630	72	36	36	257,772
1600	1620,0	1624,0	1760	1830	80	36	40	324,382
1800	1820,0	1826,0	1970	2045	88	39	44	422,35
2000	2020,0	2026,0	2180	2265	96	42	48	555,18

En 1092-1 Pn10 Flange Dimensions

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9
Flange DN	Pipe	Flange	Flange	Flange	Flange	Screws	Screws	Flange Weight
Flange DN	Pipe	d1	k	D	b	d2	Bolt holes	KG
200	219,1	221,5	295	340	24	22	8	9,244
250	273,0	276,5	350	395	26	22	12	11,788
300	323,9	327,5	400	445	26	22	12	13,578
350	355,6	359,5	460	505	30	22	16	21,766
400	406,4	411,0	515	565	32	26	16	27,436
450	457,2	462,0	565	615	36	26	20	33,470
500	508,0	513,5	620	670	38	26	20	40,103
600	610,0	616,5	725	780	42	30	20	54,297
700	711,0	714,2	840	895	50	30	24	82,777
800	813,0	815,8	950	1015	56	33	24	116,534
900	914,0	917,4	1050	1115	62	33	28	141,425
1000	1016,0	1019,0	1160	1230	70	36	28	188,561
1200	1219,0	1224,0	1380	1455	83	39	32	290,884

Bs En 1092-1 Pn16 Flange Dimensions

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9
Flange DN	Pipe	Flange	Flange	Flange	Flange	Screws	Screws	Flange Weight
Flange DN	Pipe	d1	k	D	b	d2	Bolt holes	KG
10	17,2	18,0	60	90	14	14	4	0,602
15	21,3	22,0	65	95	14	14	4	0,668
20	26,9	27,5	75	105	16	14	4	0,933
25	33,7	34,5	85	115	16	14	4	1,106
32	42,4	43,5	100	140	18	18	4	1,816
40	48,3	49,5	110	150	18	18	4	2,075
50	60,3	61,5	125	165	20	18	4	2,723
65	76,1	77,5	145	185	20	18	4	3,310
80	88,9	90,5	160	200	20	18	8	3,592
100	114,3	116,0	180	220	22	18	8	4,375
125	139,7	141,5	210	250	22	18	8	5,394
150	168,3	170,5	240	285	24	22	8	7,123
200	219,1	221,5	295	340	26	22	12	9,705
250	273,0	276,5	355	405	29	26	12	14,164
300	323,9	327,5	410	460	32	26	12	18,928
350	355,6	359,0	470	520	35	26	16	28,118
400	406,4	411,0	525	580	38	30	16	35,754
450	457,0	462,0	585	640	42	30	20	45,992
500	508,0	513,5	650	715	46	33	20	63,832
600	610,0	616,5	770	840	55	36	20	101,285
700	711,0	714,2	840	910	63	36	24	111,103
800	813,0	815,8	950	1025	74	39	24	158,555
900	914,0	917,4	1050	1125	82	39	28	192,239
1000	1016,0	1019,0	1170	1255	90	42	28	269,554

En 1092-1 Pn25 Flanges Dimensions

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9
Flange DN	Pipe	Flange	Flange	Flange	Flange	Screws	Screws	Flange Weight
Flange DN	Pipe	d1	k	D	b	d2	Bolt holes	KG
15	21,3	22,0	65	95	14	14	4	0,668
20	26,9	27,5	75	105	16	14	4	0,933
25	33,7	34,5	85	115	16	14	4	1,106
32	42,4	43,5	100	140	18	18	4	1,816
40	48,3	49,5	110	150	18	18	4	2,075
50	60,3	61,5	125	165	20	18	4	2,723
65	76,1	77,5	145	185	22	18	8	3,465
80	88,9	90,5	160	200	24	18	8	4,310
100	114,3	116,0	190	235	26	22	8	6,056
125	139,7	141,5	220	270	28	26	8	8,170
150	168,3	170,5	250	300	30	26	8	10,238
200	219,1	221,5	310	360	32	26	12	14,245
250	273,0	276,5	370	425	35	30	12	20,087
300	323,9	327,5	430	485	38	30	16	26,526
350	355,6	359,5	490	555	42	33	16	41,656
400	406,4	411,0	550	620	48	36	16	57,456
450	457,0	462,0	600	670	54	36	20	69,548
500	508,0	513,5	660	730	58	36	20	86,736
600	610,0	616,5	770	845	68	39	20	126,866
700	711,2	714,0	875	960	85	42	24	193,031
800	812,8	816,0	990	1085	95	48	24	266,311

Flange En 1092-1 Pn 63 Dimensions

Scroll to see all columns →

DN	Mating dimensions	Mating dimensions_2	Mating dimensions_3	Mating dimensions_4	Mating dimensions_5	A	Bore Diam.	Bore Diam._2	Bore Diam._3	Flange Thick.	Flange Thick._2	Flange Thick._3	Flange Thick._4	E	F	G Maximum	Length	Length_2	Length_3	Neck / Diam.	Neck / Diam._2	Neck / Diam._3	R	S
DN	D	K	L	Bolting	Bolting	A	Bore Diam.	Bore Diam.	Bore Diam.	Flange Thick.	Flange Thick.	Flange Thick.	Flange Thick.	E	F	G Maximum	Length	Length	Length	Neck / Diam.	Neck / Diam.	Neck / Diam.	R	S
DN	D	K	L	No	Size	A	B1	B2	B3	C1	C2	C3	C4	E	F	G Maximum	H1	H2	H3	N1	N2	N3	R	S
DN	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange
DN	01, 05, 11, 12, 13, 21	01, 05, 11, 12, 13, 21	01, 05, 11, 12, 13, 21	01, 05, 11, 12, 13, 21	01, 05, 11, 12, 13, 21	11 / 21*	01 / 12	-	-	01	11 / 12 / 13	21	05	-	-	05	12 / 13	11	11	11	12 / 13	21	11 / 12 / 13 / 21	11
10	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones
15	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones
20	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones
25	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones
32	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones
40	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones	PN 63 Dimensiones
50	180	135	22	4	M20	60.3	61.5	-	-	26	26	26	26	-	-	-	36	62	10	82	90	90	6	2.9
65	205	160	22	8	M20	76.1	77.5	-	-	26	26	26	26	-	-	45	40	68	12	98	112	105	6	3.2
80	215	170	22	8	M20	88.9	90.5	-	-	30	28	28	28	-	-	60	44	72	12	112	125	122	8	3.6
100	250	200	26	8	M24	114.3	116	-	-	32	30	30	30	-	-	80	52	78	12	138	152	146	8	4
125	295	240	30	8	M27	139.7	141.5	-	-	34	34	34	34	-	-	105	56	88	12	168	185	177	8	4.5
150	345	280	33	8	M30	168.3	170.5	-	-	36	36	36	36	-	-	130	60	95	12	202	215	204	10	5.6
200	415	345	36	12	M33	219.1	221.5	-	-	46	42	42	42	-	-	180	-	110	16	256	-	264	10	7.1
250	470	400	36	12	M33	273	276.5	-	-	54	46	46	46	-	-	220	-	125	18	316	-	320	12	8.8
300	530	460	36	16	M33	323.9	327.5	-	-	62	52	52	52	-	-	270	-	140	18	372	-	378	12	11
350	600	525	39	16	M36	355.6	359.5	-	-	72	56	56	56	-	-	310	-	150	20	420	-	434	12	12.5
400	670	585	42	16	M39	406.4	411	-	-	78	60	60	60	-	-	360	-	160	20	475	-	490	12	14.2
500	800	705	48	20	M45	-	-	-	-	-	-	68	-	-	-	-	-	-	-	-	-	602	12	-
600	930	820	56	20	M52	-	-	-	-	-	-	76	-	-	-	-	-	-	-	-	-	714	15	-
700	1045	935	56	24	M52	-	-	-	-	-	-	84	-	-	-	-	-	-	-	-	-	826	15	-
800	1165	1050	62	24	M56	-	-	-	-	-	-	92	-	-	-	-	-	-	-	-	-	938	18	-
900	1285	1170	62	28	M56	-	-	-	-	-	-	98	-	-	-	-	-	-	-	-	-	1048	18	-
1000	1415	1290	70	28	M64	-	-	-	-	-	-	108	-	-	-	-	-	-	-	-	-	1162	18	-
1200	1665	1530	78	32	M72	-	-	-	-	-	-	126	-	-	-	-	-	-	-	-	-	1390	18	-

Din En 1092-1 Pn-100 Flange Dimensions Chart

Scroll to see all columns →

DN	Mating dimensions	Mating dimensions_2	Mating dimensions_3	Mating dimensions_4	Mating dimensions_5	A	Bore Diam.	Bore Diam._2	Bore Diam._3	Flange Thick.	Flange Thick._2	Flange Thick._3	Flange Thick._4	E	F	G Maximum	Length	Length_2	Length_3	Neck / Diam.	Neck / Diam._2	Neck / Diam._3	R	S
DN	D	K	L	Bolting	Bolting	A	Bore Diam.	Bore Diam.	Bore Diam.	Flange Thick.	Flange Thick.	Flange Thick.	Flange Thick.	E	F	G Maximum	Length	Length	Length	Neck / Diam.	Neck / Diam.	Neck / Diam.	R	S
DN	D	K	L	No	Size	A	B1	B2	B3	C1	C2	C3	C4	E	F	G Maximum	H1	H2	H3	N1	N2	N3	R	S
DN	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange	Type Flange
DN	01, 05, 11, 12, 21	01, 05, 11, 12, 21	01, 05, 11, 12, 21	01, 05, 11, 12, 21	01, 05, 11, 12, 21	11 / 21*	01 / 12	-	-	01	11 / 12 / 13	21	05	-	-	05	12 / 13	11	11	11	12 / 13	21	11 / 12 / 13 / 21	11
10	100	70	14	4	M12	17.2	18	-	-	20	20	20	20	-	-	-	28	45	6	32	40	40	4	1.8
15	105	75	14	4	M12	21.3	22	-	-	20	20	20	20	-	-	-	28	45	6	34	43	45	4	2
20	130	90	18	4	M16	26.9	27.5	-	-	22	22	22	22	-	-	-	30	48	8	42	52	50	4	2.6
25	140	100	18	4	M16	33.7	34.5	-	-	24	24	24	24	-	-	-	32	58	8	52	60	61	4	2.6
32	155	110	22	4	M20	42.4	43.5	-	-	24	24	26	24	-	-	-	32	60	8	62	68	68	6	2.9
40	170	125	22	4	M20	48.3	49.5	-	-	26	26	28	26	-	-	-	34	62	10	70	80	82	6	2.9
50	195	145	26	4	M24	60.3	61.3	-	-	28	28	30	28	-	-	-	36	68	10	90	95	96	6	3.2
65	220	170	26	8	M24	76.1	77.5	-	-	30	30	34	30	-	-	45	40	76	12	108	118	118	6	3.6
80	230	180	26	8	M24	88.9	90.5	-	-	34	32	36	32	-	-	60	44	78	12	120	130	128	8	4
100	265	210	30	8	M27	114.3	116	-	-	36	36	40	36	-	-	80	52	90	12	150	158	150	8	5
125	315	250	33	8	M30	139.7	141.5	-	-	42	40	40	40	-	-	105	56	105	12	180	188	185	8	6.3
150	355	290	33	12	M30	168.3	170.5	-	-	48	44	44	44	-	-	130	60	115	12	210	225	216	10	7.1
200	430	360	36	12	M33	219.1	221.5	-	-	60	52	52	52	-	-	180	-	130	16	278	-	278	10	10
250	505	430	39	12	M36	273	276.5	-	-	72	60	60	60	-	-	210	-	157	18	340	-	340	12	12.5
300	585	500	42	16	M39	323.9	327.5	-	-	84	68	68	68	-	-	260	-	170	18	400	-	407	12	14.2
350	655	560	48	16	M45	355.6	359.5	-	-	95	74	74	74	-	-	300	-	189	20	460	-	460	12	16
400	715	620	48	16	M45	406.4	411	-	-	406	-	78	-	-	-	-	-	-	-	-	-	518		-
500	870	760	56	20	M52	508	543.5	-	-	128	-	94	-	-	-	-	-	-	-	-	-	630		-

›Pressure Ratings

En 1092-1 Loose Flange Pressure Ratings

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9
				Temper.	Temper.
FLANGE TABLE	-10°C to 200°C	250°C	300°C	350°C	400°C	425°C	450°C	475°C
6	6	5.5	5	-	-	-	-	-
10	10	9	8	7	6	-	-	-
16	16	15	13	11	9	-	-	-
25	25	24	21	17	14	12	9	6
40	40	38	33	28	23	20	15	10
64	64	61	53	44	36	32	24	16
100	100	95	83	70	57	50	37	25
160	160	152	132	112	92	80	60	40

EN 1092-1 Flanges

Get a Price

Request a quote for this item

Specify the grade, size, quantity and governing standard, and we'll confirm stock and pricing — typically within the same working day.

Request a Quote for EN 1092-1 Flanges

Contact

Send us the spec

Grade, form, size and quantity — that's all we need to confirm stock and quote. Reach us directly, or use the form below.

Enquiry FormReply same working day

Direct Contact

Head Office

Shop No. 5, Ravi Estate, Keval Kantha Road, Near Gujarat Bottling Road, Industrial Area, Rakhial, Ahmedabad, Gujarat – 380023, India

Phone / WhatsApp

+91 93240 06771

exportompmo@gmail.com

Working Hours

Monday – Saturday8:00 AM – 8:00 PM

SundayClosed
