ASME B16.5 Plate Flanges Manufacturer in India

PED approved ASME B16.5 Plate Flanges Manufacturer in India, Purchase Stainless Steel Orifice Plate Flanges at Best price in Mumbai, Check Carbon Steel Awwa Class D Plate Flanges dimensions in mm

Types of Flanges

On This Page

ASME B16.5 Plate Flanges Spec Chart Awwa Class D Plate Flanges Pressure Ratings PN16 Plate Flange Dimension JIS Plate Flange Dimensions Chart JIS 10K Plate Flange Dimensions Table JIS 16K Plate Flange Dimensions Weight Chart of Stainless Steel Plate Flanges Class D Plate Flanges Material Applications of ASME B16.5 Plate Flanges

Gallery

ASME B16.5 Plate Flanges Manufacturer in India in Detail

Specification

Features & Applications

Applications of ASME B16.5 Plate Flanges

Food and Beverage Processing
Power Generation — condensers
Nuclear fueled power generation stations
Chemical and Petrochemical Processing
Condensers in fossil
Pulp and Paper Processing
Textiles with acid dyes

Technical Data

Full Specifications

›Technical Data

ASME B16.5 Plate Flanges Spec Chart

col_1	col_2
Size	1/2″ (15 NB) to 48″ (1200NB)
Pressure Ratings	PN6, PN10, PN16, PN25, PN40, PN64 etc.
Pressure class	150#, 300#, 600#, 1500#
Test	Hydrostatic testing machine, X-ray detector, Direct-reading Spectrograph, UI trasonic flaw detector, Magnetic particle detector
Standards	ANSI B16.47 Series A & B, ANSI B16.5, MSS SP44, ASA, API-605, AWWA, Custom Drawings.
Dimensions and Pressure Ratings	Table D, E, F, & H, ANSI, BS4504, MSS- SP-44, BS3293, PN6, 10, 16, 25, 64 BS10, DIN Standards
Flange Face Type Manufacturer	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Export to	USA, Saudi Arabia, Egypt, Korea, Spain, Dubai, Ireland, Iran, Ukraine,Brazil, Indonesia, Singapore, Canada, India, Oman, Thailand, Peru, etc
Coating/Surface Treatment	Oil Black Paint, Yellow Transparent, Anti-rust Paint, Zinc Plated, Cold and Hot Dip Galvanized.

Class D Plate Flanges Material

col_1	col_2
Stainless Steel	ASTM A182 Gr. 304, 304H, 310, 316, 309, 316L, 321, 317L, 347, 904L
Carbon Steel	High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80), ASTM A350 LF2 / ASME SA350, A105N, ASTM A105 / ASME SA105
Duplex Steel	ASTM A 182, ASME SA 182 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy	ASTM / ASME SB 564 UNS 4400 (MONEL 400 ), UNS 8825 INCONEL (825), UNS 2201 (NICKEL 201 ), UNS 2200 ( NICKEL 200 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 6601 ( INCONEL 601 ), UNS 6600 (INCONEL 600 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
Copper Nickel	Cupro Nickel 70/30 (C71500), Copper Nickel 90/10 (C70600 ), ASTM / ASME SB 62 / 151 / 61 / 152, UNS C71640
Alloy Steel	F11, F12, F5, F9, F22, F91

View what exactly we supply and where

col_1	col_2

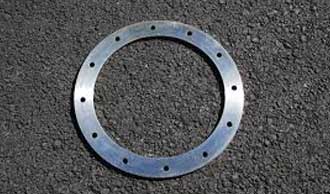

1/2" - 96" Stainless Steel Plate Flange	Belgium, Malaysia, Czechia, UAE
38" hastelloy c276 plate flange	Malaysia, Philippines, Europe, France
Alloy steel plate type forged threaded flange	Canada, Iran, Malaysia, Singapore
6 Hole Din Carbon Steel Plate Flange	Thailand, UK, Malaysia, Indonesia
ct20 steel plate flange	Singapore, Norway, Los Alamos -Mexico, Finland

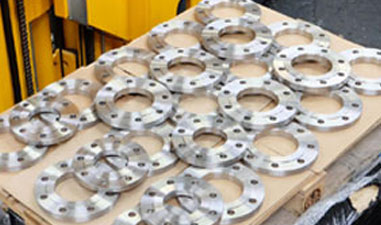

orifice plate flange	Malaysia, Dubai, Qatar, Nigeria
copper wall plate flange	Spain, Australia, Malaysia, Germany
class150 A105 Forged Plate Flange	United Kingdom -UK, Chile, China, South Africa
DIN PN16 12 inch plate flange	Europe, Egypt, Sweden, Oman
class 150 plate flange	Europe, Malaysia, Singapore, USA
copper flange plate	Poland, Singapore, Romania, Kuwait
aluminum plate flange	Malaysia, Turkey, Colombia, South Africa

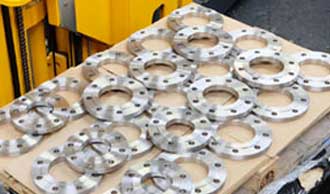

awwa plate flange	Philippines, Netherlands, Malaysia, Philippines
JIS 5k 40A Blind Plate Flanges	Canada, Italy, Japan, Saudi Arabia (KSA)
PN16 Steel plate cast flange	Malaysia, UK, South Korea, Bangladesh
347 Stainless steel Plate-type Flat Welding Flange	Singapore, Hong Kong, Dammam -KSA, UAE
pn16 plate flange	UK, United Arab Emirates (UAE), Philippines, Bahrain
class b plate flange	Ellington -United States, Russia, NY 12203 (USA), Brazil
brake backing plate flange	Mexico, Malaysia, Taiwan, Thailand

›Pressure Ratings

Awwa Class D Plate Flanges Pressure Ratings

Scroll to see all columns →

Temperature (F°)	150#	300#	400#	600#	900#	1500#	2500#
-20 to 100	285	740	985	1480	2220	3705	6170
200	260	680	905	1360	2035	3395	5655
300	230	655	870	1310	1965	3270	5450
400	200	635	845	1265	1900	3170	5280
500	170	605	805	1205	1810	3015	5025
600	140	570	755	1135	1705	2840	4730
650	125	550	730	1100	1650	2745	4575
700	110	530	710	1060	1590	2655	4425
750	95	505	675	1015	1520	2535	4230
800	80	410	550	825	1235	2055	3430
850	65	320	425	640	955	1595	2655
900	50	230	305	460	690	1150	1915
950	35	135	185	275	410	685	1145
1000	20	85	115	170	255	430	715

›Dimensions & Weight

PN16 Plate Flange Dimension

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9	col_10	col_11	col_12
Bore	Bore	Common Dimension	Common Dimension	Common Dimension	Raised Face	Raised Face	Drilling	Drilling	Drilling	Drilling	Approx. / Weight (Kg)
Nominal Bore	d1	D	t	K	d4	f	Number of Bolts	x	x	d2	DIN 2543
10	14	90	14	60	40	2	4	M12	(1/2")	14	0.63
10	17.2*	90	14	60	40	2	4	M12	(1/2")	14	0.63
15	20	95	14	65	45	2	4	M12	(1/2")	14	0.72
15	21.3*	95	14	65	45	2	4	M12	(1/2")	14	0.72
20	25	105	16	75	58	2	4	M12	(1/2")	14	1.01
20	26.9*	105	16	75	58	2	4	M12	(1/2")	14	1.01
25	30	115	16	85	68	2	4	M12	(1/2")	14	1.23
25	33.7*	115	16	85	68	2	4	M12	(1/2")	14	1.23
32	38	140	16	100	78	2	4	M16	(5/8")	18	1.80
32	42.4*	140	16	100	78	2	4	M16	(5/8")	18	1.80
40	44.5	150	16	110	88	3	4	M16	(5/8")	18	2.09
40	48.3*	150	16	110	88	3	4	M16	(5/8")	18	2.09
50	57	165	18	125	102	3	4	M16	(5/8")	18	2.88
50	60.3*	165	18	125	102	3	4	M16	(5/8")	18	2.88
65	76.1*	185	18	145	122	3	4	M16	(5/8")	18	3.66
80	88.9	200	20	160	138	3	8	M16	(5/8")	18	4.77
100	108	220	20	180	158	3	8	M16	(5/8")	18	5.65
100	114.3*	220	20	180	158	3	8	M16	(5/8")	18	5.65
125	133	250	22	210	188	3	8	M16	(5/8")	18	8.42
125	139.7*	250	22	210	188	3	8	M16	(5/8")	18	8.42
150	159	285	22	240	212	3	8	M20	(3/4")	23	10.4
150	168.3*	285	22	240	212	3	8	M20	(3/4")	23	10.4
200	216	340	24	295	268	3	12	M20	(3/4")	23	16.1
200	219.1*	340	24	295	268	3	12	M20	(3/4")	23	16.1
250	267	405	26	355	320	3	12	M24	(7/8")	27	24.9
250	273*	405	26	355	320	3	12	M24	(7/8")	27	24.9
300	318	460	28	410	378	4	12	M24	(7/8")	27	35.1
300	323.9*	460	28	410	378	4	12	M24	(7/8")	27	35.1
350	355.6*	520	30	470	438	4	16	M24	(7/8")	27	47.8
350	368	520	30	470	438	4	16	M24	(7/8")	27	47.8
400	406.4*	580	32	525	490	4	16	M27	(1")	30	63.5
400	419	580	32	525	490	4	16	M27	(1")	30	63.5
500	508*	715	36	650	610	4	20	M30	(1-1/8")	33	102.0
500		715	36	650	610	4	20	M30	(1-1/8")	33	102.0

JIS Plate Flange Dimensions Chart

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9	col_10	col_11	col_12	col_13	col_14	col_15	col_16	col_17	col_18	col_19	col_20	col_21	col_22	col_23
Pipe	Pipe	Pipe	Bo	Bo	D	D	t	t	T	T	G	G	f	r	H	H	X	X	C	C	Holes	Bolt Dia.
inch	mm	Pipe	Bo	Bo	D	D	t	t	T	T	G	G	f	r	H	H	X	X	C	C	Holes	Bolt Dia.
3/8	10	17.3	17.8	+0.5 / -0	75	+1.0 / -0	9	nbsp; +1.0 / -0		±1.0	42	±0.8	1			+2.0 / -0		+2.0 / -0	55	±0.5	4	12
1/2	15	21.7	22.2	+0.5 / -0	80	+1.0 / -0	9	nbsp; +1.0 / -0		±1.0	48	±0.8	1			+2.0 / -0		+2.0 / -0	60	±0.5	4	12
3/4	20	27.2	27.7	+0.5 / -0	85	+1.0 / -0	10	nbsp; +1.0 / -0		±1.0	52	±0.8	1			+2.0 / -0		+2.0 / -0	65	±0.5	4	12
1	25	34.0	34.5	+0.5 / -0	95	+1.0 / -0	10	nbsp; +1.0 / -0		±1.0	62	±0.8	1			+2.0 / -0		+2.0 / -0	75	±0.5	4	12
1-1/4	32	42.7	43.2	+0.5 / -0	115	+1.0 / -0	12	nbsp; +1.0 / -0		±1.0	72	±0.8	2			+2.0 / -0		+2.0 / -0	90	±0.5	4	15
1-1/2	40	48.6	49.1	+0.5 / -0	120	+1.0 / -0	12	nbsp; +1.0 / -0		±1.0	78	±0.8	2			+2.0 / -0		+2.0 / -0	95	±0.5	4	15
2	50	60.5	61.1	+0.5 / -0	130	+1.0 / -0	14	nbsp; +1.0 / -0		±1.0	88	±0.8	2			+2.0 / -0		+2.0 / -0	105	±0.5	4	15
2-1/2	65	76.3	77.1	+0.5 / -0	155	+1.0 / -0	14	nbsp; +1.0 / -0		±1.0	112	±0.8	2			+2.0 / -0		+2.0 / -0	130	±0.5	4	15
3	80	89.1	90.0	+0.5 / -0	180	+1.0 / -0	14	nbsp; +1.0 / -0		±1.0	125	±0.8	2			+2.0 / -0		+2.0 / -0	145	±0.5	4	19
3-1/2	90	101.6	102.6	+1.0 / -0	190	+1.0 / -0	14	nbsp; +1.0 / -0		±1.0	135	±0.8	2			+2.0 / -0		+2.0 / -0	155	±0.5	4	19
4	100	114.3	115.4	+1.0 / -0	200	+1.0 / -0	16	nbsp; +1.0 / -0		±1.0	145	±0.8	2			+2.0 / -0		+2.0 / -0	165	±0.5	8	19
5	125	139.8	141.2		235		16				180		2						200		8	19
6	150	165.2	166.6		265		18				210		2						230		8	19
7	175	190.7	192.1		300		18				235	±0.9	2						260	±0.6	8	23
8	200	216.3	218.0		320	+1.5 / -0	20				255	±0.9	2						280	±0.6	8	23
9	225	241.8	243.7		345	+1.5 / -0	20				280	±0.9	2						305	±0.6	12	23
10	250	267.4	269.5		385	+1.5 / -0	22	+1.5 / -0	32		320	±0.9	2	5	286		290		345	±0.6	12	23
12	300	318.5	321.0		430	+1.5 / -0	22	+1.5 / -0	34		365	±0.9	3	5	338		342		390	±0.6	12	23
14	350	355.6	358.1		480	+1.5 / -0	24	+1.5 / -0	36		405	±0.9	3	5	378		382		435	±0.6	12	25
16	400	406.4	409.0	+1.5 / -0	540	+1.5 / -0	24	+1.5 / -0	36		465	±0.9	3	5	432		436		495	±0.6	16	25
18	450	457.2	460.0	+1.5 / -0	605	+2.0 / -0	24	+1.5 / -0	40		525	±0.9	3	5	495		500		555	±0.8	16	25
20	500	508.0	511.0	+1.5 / -0	655	+2.0 / -0	24	+1.5 / -0	40		575	±0.9	3	5	546		552		605	±0.8	20	25
22	550	558.8	562.0	+1.5 / -0	720	+2.0 / -0	26	+1.5 / -0	42		630	±0.9	3	5	597		603		665	±0.8	20	27
24	600	609.6	613.0	+2.0 / -0	770	+2.0 / -0	26	+1.5 / -0	44		680	±1.0	3	5	648		654	+2.5 / -0	715	±0.8	20	27
26	650	660.4	664.0	+2.0 / -0	825	+2.0 / -0	26	+1.5 / -0	48		735	±1.0	3	5	702	+2.5 / -0	708	+2.5 / -0	770	±0.8	24	27
28	700	711.2	715.0	+2.0 / -0	875	+2.0 / -0	26	+1.5 / -0	48		785	±1.0	3	5	751	+2.5 / -0	758	+2.5 / -0	820	±0.8	24	27
30	750	762.0	766.0		945		28		52	±1.5	840		3	5	802		810		880		24	33
32	800	812.8	817.0	+2.5 / -0	995		28		52	±1.5	890		3	5	854	+3.0 / -0	862	+3.0 / -0	930		24	33
34	850	863.6	868.0	+2.5 / -0	1045	+2.5 / -0	28		54	±1.5	940		3	5	904	+3.0 / -0	912	+3.0 / -0	980	±1.0	24	33
36	900	914.4	919.0	+2.5 / -0	1095	+2.5 / -0	30		56	±1.5	990		3	5	956	+3.0 / -0	964	+3.0 / -0	1030	±1.0	24	33
40	1000	1016.0	1021.0	+3.0 / -0	1195	+2.5 / -0	32		60	±1.5	1090	±1.2	3	5	1058	+3.5 / -0	1066	+3.5 / -0	1130	±1.0	28	33
44	1100	1117.6	1123.0	+3.0 / -0	1305	+2.5 / -0	32			±1.5	1200	±1.2	3			+3.5 / -0		+3.5 / -0	1240	±1.0	28	33
48	1200	1219.2	1224.0	+3.0 / -0	1420	+2.5 / -0	34			±1.5	1305	±1.2	3			+3.5 / -0		+3.5 / -0	1350	±1.0	32	33
54	1350	1371.6	1377.0	+3.0 / -0	1575	+3.0 / -0	34			±1.5	1460	±1.2	3			+3.5 / -0		+3.5 / -0	1505	±1.5	32	33
60	1500	1524.0	1529.0	+3.0 / -0	1730	+3.0 / -0	36			±1.5	1615	±1.2	3			+3.5 / -0		+3.5 / -0	1660	±1.5	36	33

JIS 10K Plate Flange Dimensions Table

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9	col_10	col_11	col_12	col_13	col_14	col_15	col_16	col_17	col_18	col_19	col_20	col_21	col_22	col_23
Pipe	Pipe	Pipe	Bo	Bo	D	D	t	t	T	T	G	G	f	r	H	H	X	X	C	C	Holes	Bolt Dia.
inch	mm	Pipe	Bo	Bo	D	D	t	t	T	T	G	G	f	r	H	H	X	X	C	C	Holes	Bolt Dia.
3/8	10	17.3	17.8	+0.5 / -0	90	+1.0 / -0	12	+1.0 / -0		±1.0	48	±0.8	1			+1.5 / -0		+1.5 / -0	65	±0.5	4	15
1/2	15	21.7	22.2	+0.5 / -0	95	+1.0 / -0	12	+1.0 / -0		±1.0	52	±0.8	1			+1.5 / -0		+1.5 / -0	70	±0.5	4	15
3/4	20	27.2	27.7	+0.5 / -0	100	+1.0 / -0	14	+1.0 / -0		±1.0	58	±0.8	1			+1.5 / -0		+1.5 / -0	75	±0.5	4	15
1	25	34.0	34.5	+0.5 / -0	125	+1.0 / -0	14	+1.0 / -0		±1.0	70	±0.8	1			+1.5 / -0		+1.5 / -0	90	±0.5	4	19
1-1/4	32	42.7	43.2	+0.5 / -0	135	+1.0 / -0	16	+1.0 / -0		±1.0	80	±0.8	2			+1.5 / -0		+1.5 / -0	100	±0.5	4	19
1-1/2	40	48.6	49.1	+0.5 / -0	140	+1.0 / -0	16	+1.0 / -0		±1.0	85	±0.8	2			+1.5 / -0		+1.5 / -0	105	±0.5	4	19
2	50	60.5	61.1	+0.5 / -0	155	+1.0 / -0	16	+1.0 / -0		±1.0	100	±0.8	2			+1.5 / -0		+1.5 / -0	120	±0.5	4	19
2-1/2	65	76.3	77.1	+0.5 / -0	175	+1.0 / -0	18	+1.0 / -0		±1.0	120	±0.8	2			+1.5 / -0		+1.5 / -0	140	±0.5	4	19
3	80	89.1	90.0	+0.5 / -0	185	+1.0 / -0	18	+1.0 / -0		±1.0	130	±0.8	2			+1.5 / -0		+1.5 / -0	150	±0.5	8	19
3-1/2	90	101.6	102.6	+1.0 / -0	195	+1.0 / -0	18	+1.0 / -0		±1.0	140	±0.8	2			+1.5 / -0		+1.5 / -0	160	±0.5	8	19
4	100	114.3	115.4	+1.0 / -0	210	+1.0 / -0	18	+1.0 / -0		±1.0	155	±0.8	2			+1.5 / -0		+1.5 / -0	175	±0.5	8	19
5	125	139.8	141.2		250		20				185		2						210		8	23
6	150	165.2	166.6		280		22	+1.5 / -0			215		2						240		8	23
7	175	190.7	192.1		305	+1.5 / -0	22	+1.5 / -0	32		240	±0.9	2	6	208		212		265	±0.6	12	23
8	200	216.3	218.0		330	+1.5 / -0	22	+1.5 / -0	32		265	±0.9	2	6	234		238		290	±0.6	12	23
9	225	241.8	243.7		350	+1.5 / -0	22	+1.5 / -0	34		285	±0.9	2	6	260		264		310	±0.6	12	23
10	250	267.4	269.5		400	+1.5 / -0	24	+1.5 / -0	36		325	±0.9	2	6	288		292		355	±0.6	12	25
12	300	318.5	321.0		445	+1.5 / -0	24	+1.5 / -0	38		370	±0.9	3	6	340		346		400	±0.6	16	25
14	350	355.6	358.1		490	+1.5 / -0	26	+1.5 / -0	42		415	±0.9	3	6	380		386		445	±0.6	16	25
16	400	406.4	409.0	+1.5 / -0	560		28		44		475		3	6	436		442		510		16	27
18	450	457.2	460.0	+1.5 / -0	620	+2.0 / -0	30		48		530		3	6	496	+2.0 / -0	502	+2.0 / -0	565	±0.8	20	27
20	500	508.0	511.0	+1.5 / -0	675	+2.0 / -0	30		48		585		3	6	548	+2.0 / -0	554	+2.0 / -0	620	±0.8	20	27
22	550	558.8	562.0	+1.5 / -0	745	+2.0 / -0	32		52	±1.5	640		3	6	604	+2.0 / -0	610	+2.0 / -0	680	±0.8	20	33
24	600	609.6	613.0	+2.0 / -0	795	+2.0 / -0	32		52	±1.5	690	±1.0	3	6	656	+2.5 / -0	662	+2.5 / -0	730	±0.8	24	33
26	650	660.4	664.0	+2.0 / -0	845	+2.0 / -0	34		56	±1.5	740	±1.0	3	6	706	+2.5 / -0	712	+2.5 / -0	780	±0.8	24	33
28	700	711.2	715.0	+2.0 / -0	905	+2.0 / -0	34		58	±1.5	800	±1.0	3	6	762	+2.5 / -0	770	+2.5 / -0	840	±0.8	24	33
30	750	762.0	766.0	+2.0 / -0	970	+2.0 / -0	36		62	±1.5	855	±1.0	3	6	816	+2.5 / -0	824	+2.5 / -0	900	±0.8	24	33
32	800	812.8	817.0	+2.5 / -0	1020	+2.5 / -0	36		64	±1.5	905	±1.0	3	6	868	+3.0 / -0	876	+3.0 / -0	950	±0.8	28	33
34	850	863.6	868.0	+2.5 / -0	1070	+2.5 / -0	36		66	±1.5	955	±1.0	3	6	920	+3.0 / -0	928	+3.0 / -0	1000	±1.0	28	33
36	900	914.4	919.0	+2.5 / -0	1120	+2.5 / -0	38		70	±1.5	1005	±1.2	3	6	971	+3.0 / -0	979	+3.0 / -0	1050	±1.0	28	33
40	1000	1016.0	1021.0	+3.0 / -0	1235		40		74		1110		3	6	1073	+3.5 / -0	1081	+3.5 / -0	1160		28	39
44	1100	1117.6	1123.0	+3.0 / -0	1345		42		78		1220		3	8	1175	+3.5 / -0	1185	+3.5 / -0	1270		28	39
48	1200	1219.2	1224.0	+3.0 / -0	1465		44		82		1325		3	8	1278	+3.5 / -0	1290	+3.5 / -0	1380	±1.5	32	39
54	1350	1371.6	1377.0	+3.0 / -0	1630	+3.0 / -0	48		88		1480		3	8	1432	+3.5 / -0	1450	+3.5 / -0	1540	±1.5	36	45
60	1500	1524.0	1529.0	+3.0 / -0	1795	+3.0 / -0	50		90		1635		3	8	1585	+3.5 / -0	1600	+3.5 / -0	1700	±1.5	40	45

JIS 16K Plate Flange Dimensions

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9	col_10	col_11	col_12	col_13	col_14	col_15	col_16	col_17	col_18	col_19	col_20	col_21	col_22	col_23
Pipe	Pipe	Pipe	Bo	Bo	D	D	t	t	T	T	G	G	f	r	H	H	X	X	C	C	Holes	Bolt Dia.
inch	mm	Pipe	Bo	Bo	D	D	t	t	T	T	G	G	f	r	H	H	X	X	C	C	Holes	Bolt Dia.
3/8	10	17.3	17.8	+0.5 / -0	90	+1.0 / -0	12	+1.0	16	±1.0	48	±0.8	1	4	26	+1.0 / -0	28	+1.0 / -0	65	±0.5	4	15
1/2	15	21.7	22.2	+0.5 / -0	95	+1.0 / -0	12	+1.0	16	±1.0	52	±0.8	1	4	30	+1.0 / -0	32	+1.0 / -0	70	±0.5	4	15
3/4	20	27.2	27.7	+0.5 / -0	100	+1.0 / -0	14	+1.0	20	±1.0	58	±0.8	1	4	38	+1.0 / -0	42	+1.0 / -0	75	±0.5	4	15
1	25	34.0	34.5	+0.5 / -0	125	+1.0 / -0	14	+1.0	20	±1.0	70	±0.8	1	4	46	+1.0 / -0	50	+1.0 / -0	90	±0.5	4	19
1-1/4	32	42.7	43.2	+0.5 / -0	135	+1.0 / -0	16	+1.0	22	±1.0	80	±0.8	2	5	56	+1.0 / -0	60	+1.0 / -0	100	±0.5	4	19
1-1/2	40	48.6	49.1	+0.5 / -0	140	+1.0 / -0	16	+1.0	24	±1.0	85	±0.8	2	5	62	+1.0 / -0	66	+1.0 / -0	105	±0.5	4	19
2	50	60.5	61.1	+0.5 / -0	155	+1.0 / -0	16	+1.0	24	±1.0	100	±0.8	2	5	76	+1.0 / -0	80	+1.0 / -0	120	±0.5	8	19
2-1/2	65	76.3	77.1	+0.5 / -0	175	+1.0 / -0	18	+1.0	26	±1.0	120	±0.8	2	5	94	+1.0 / -0	98	+1.0 / -0	140	±0.5	8	19
3	80	89.1	90.0		200		20		28		135		2	6	108		112		160		8	23
3-1/2	90	101.6	102.6	+1.0 / -0	210		20		30		145		2	6	120		124		170		8	23
4	100	114.3	115.4	+1.0 / -0	225		22	+1.5 / -0	34		160		2	6	134		138		185		8	23
5	125	139.8	141.2	+1.0 / -0	270		22	+1.5 / -0	34		195		2	6	164		170		225		8	25
6	150	165.2	166.6	+1.0 / -0	305	+1.5 / -0	24	+1.5 / -0	38		230	±0.9	2	6	196		202		260	±0.6	12	25
7	175	190.7	192.1	+1.0 / -0	325	+1.5 / -0	26	+1.5 / -0	40		250	±0.9	2	6	216		222	+1.5 / -0	280	±0.6	12	25
8	200	216.3	218.0	+1.0 / -0	350	+1.5 / -0	26	+1.5 / -0	40		275	±0.9	2	6	244	+1.5 / -0	252	+1.5 / -0	305	±0.6	12	25
9	225	241.8	243.7	+1.0 / -0	385	+1.5 / -0	26	+1.5 / -0	40		325	±0.9	2	6	266	+1.5 / -0	272	+1.5 / -0	335	±0.6	12	27
10	250	267.4	269.5	+1.0 / -0	430	+1.5 / -0	28	+1.5 / -0	44		345	±0.9	2	6	304	+1.5 / -0	312	+1.5 / -0	380	±0.6	12	27
12	300	318.5	321.0	+1.0 / -0	480	+1.5 / -0	30	+1.5 / -0	48		395	±0.9	3	8	354	+1.5 / -0	364	+1.5 / -0	430	±0.6	16	27
14	350	355.6	358.1		540		34		52	±1.5	440		3	8	398		408		480		16	33
16	400	406.4	409.0	+1.5 / -0	605	+2.0 / -0	38		60	±1.5	495		3	10	446		456	+2.0 / -0	540		16	33
18	450	457.2	460.0	+1.5 / -0	675	+2.0 / -0	40		64	±1.5	560		3	10	504	+2.0 / -0	514	+2.0 / -0	605	±0.8	20	33
20	500	508.0	511.0	+1.5 / -0	730	+2.0 / -0	42		68	±1.5	615		3	10	558	+2.0 / -0	568	+2.0 / -0	660	±0.8	20	33
22	550	558.8	562.0	+1.5 / -0	795	+2.0 / -0	44		70	±1.5	670	±1.0	3	10	612	+2.0 / -0	622	+2.0 / -0	720	±0.8	20	39
24	600	609.6	613.0	+2.0 / -0	845	+2.0 / -0	46		74	±1.5	720	±1.0	3	10	666	+2.5 / -0	676	+2.5 / -0	770	±0.8	24	39
26	650	660.4	664.0	+2.0 / -0	895	+2.0 / -0	48		77	±1.5	770	±1.0	5	10	704	+2.5 / -0	726	+2.5 / -0	820	±0.8	24	39
28	700	711.2	715.0	+2.0 / -0	960	+2.0 / -0	50		80	±1.5	820	±1.0	5	10	754	+2.5 / -0	776	+2.5 / -0	875	±0.8	24	42
30	750	762.0	766.0	+2.0 / -0	1020	+2.5 / -0	52	+2.0 / -0	83	±1.5	880	±1.0	5	10	806	+2.5 / -0	832	+2.5 / -0	935	±0.8	24	42
32	800	812.8	817.0	+2.5 / -0	1085	+2.5 / -0	54	+2.0 / -0	86	±1.5	930	±1.0	5	10	865	+3.0 / -0	885	+3.0 / -0	990	±1.0	24	48
34	850	863.6	868.0	+2.5 / -0	1135	+2.5 / -0	56	+2.0 / -0	89	±1.5	980	±1.0	5	10	916	+3.0 / -0	936	+3.0 / -0	1040	±1.0	24	48
36	900	914.4	919.0	+2.5 / -0	1185	+2.5 / -0	58	+2.0 / -0	93	±1.5	1030	±1.2	5	10	968	+3.0 / -0	986	+3.0 / -0	1090	±1.0	28	48
40	1000	1016.0	1021.0	+3.0 / -0	1320		62		99		1140		5	12	1070	+3.5 / -0	1098	+3.5 / -0	1210		28	56
44	1100	1117.6	1123.0	+3.0 / -0	1420		66		105	±2.0	1240		5	12	1180	+3.5 / -0	1200	+3.5 / -0	1310		32	56
48	1200	1219.2	1225.0	+3.0 / -0	1530	+3.0 / -0	70		112	±2.0	1350		5	12	1282	+3.5 / -0	1302	+3.5 / -0	1420	±1.5	32	56
52	1300	1320.8	1326.0	+3.0 / -0	1645	+3.0 / -0	74			±2.0	1450		5			+3.5 / -0		+3.5 / -0	1530	±1.5	32	62
54	1350	1371.6	1377.0	+3.0 / -0	1700	+3.0 / -0	76			±2.0	1510		5			+3.5 / -0		+3.5 / -0	1590	±1.5	32	62
56	1400	1422.4	1428.0	+3.0 / -0	1755	+3.0 / -0	78			±2.0	1560		5			+3.5 / -0		+3.5 / -0	1640	±1.5	36	62
60	1500	1524.0	1529.0	+3.0 / -0	1865	+3.0 / -0	80			±2.0	1670		5			+3.5 / -0		+3.5 / -0	1750	±1.5	36	62

Weight Chart of Stainless Steel Plate Flanges

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9	col_10
Nominal Pipe Size	Diameter of Pipe	Diameter of Pipe	Flange Dimension	Flange Dimension	Flange Dimension	Nuts & Bolts	Nuts & Bolts	Nuts & Bolts	Approx. Flange Weight
Nominal Pipe Size	Diameter of Pipe	Diameter of Pipe	Flange I.D	Flange Diameter	Thickness of Flange	Diameter of Bolt Circle	Number of Holes	Diameter of Bolt Holes	Approx. Flange Weight
DN	ISO	DIN	d5	D	b	k		d2	KG /PCS
10	–	14	14.5	90	14	60	4	14	0.61
10	17.2	–	17.7	90	14	60	4	14	0.6
26.9	–	27.6	105	16	75	4	14	0.94
15	–	20	21	95	14	65	4	14	0.67
15	21.3	–	22	95	14	65	4	14	0.67
25	–	30	31	115	16	85	4	14	1.13
25	33.7	–	34.4	115	16	85	4	14	1.11
48.3	–	49	150	16	110	4	18	1.85
32	–	38	39	140	16	100	4	18	1.66
32	42.4	–	43.1	140	16	100	4	18	1.62
50	–	57	58.1	165	18	125	4	18	2.5
50	60.3	–	61.1	165	18	125	4	18	2.46
65	76.1	–	77.1	185	18	145	4	18	2.99
80	88.9	–	90.3	200	20	160	8	18	3.61
139.7	–	141.6	250	22	210	8	18	5.41
100	–	108	109.6	220	20	180	8	18	4.17
100	114.3	–	115.9	220	20	180	8	18	3.99
150	–	159	161.1	285	22	240	8	22	6.97
150	168.3	–	170.5	285	22	240	8	22	6.55
175	193.7	–	196.1	315	24	270	8	22	8.42
200	219.1	–	221.8	340	24	295	8	22	9.28
–	368	372.2	505	28	460	16	22	18.77
250	–	267	270.2	395	26	350	12	22	12.36
250	273	–	276.2	395	26	350	12	22	11.85
300	323.9	–	327.6	445	26	400	12	22	13.61
400	406.4	–	411	565	32	515	18	26	27.52
400	–	419	423.7	565	32	515	18	26	35.43
450	457	–	462.3	615	38	565	20	26	35.11
500	508	–	613.6	670	38	620	20	26	40.2
600	610	–	615.5	780	40	725	20	26	51.87

ASME B16.5 Plate Flanges Manufacturer in India

Get a Price

Request a quote for this item

Specify the grade, size, quantity and governing standard, and we'll confirm stock and pricing — typically within the same working day.

Request a Quote for ASME B16.5 Plate Flanges Manufacturer in India

Contact

Send us the spec

Grade, form, size and quantity — that's all we need to confirm stock and quote. Reach us directly, or use the form below.

Enquiry FormReply same working day

Direct Contact

Head Office

Shop No. 5, Ravi Estate, Keval Kantha Road, Near Gujarat Bottling Road, Industrial Area, Rakhial, Ahmedabad, Gujarat – 380023, India

Phone / WhatsApp

+91 93240 06771

exportompmo@gmail.com

Working Hours

Monday – Saturday8:00 AM – 8:00 PM

SundayClosed
