API 5L Grade B Pipe

A global API 5L Grade B Pipe supplier in India, We stock schedule 40 5l Gr B PSL2 Seamless Pipe pipe at best price ex Mumbai. Leading Manufacturer of API 5l grade b psl 1 Welded/ ERW Pipe

API 5L

On This Page

API 5L Grade B Pipe Spec Chart API 5l grade b line pipe weight chart API 5l grade b psl 2 ERW Pipe yield strength API 5l grade b pipe sizes Dimensions of API 5L Grade B Carbon Steel Seamless Pipe sch 80 Grade B pipe Chemical Structure Mechanical Properties Chart of API 5L Grade b PSL1 pipe Equivalent Material of API 5L Gr B pipe Api 5l Grade B Pipe Pressure Rating API 5L Grade B Line Pipe Tolerance

Gallery

API 5L Grade B Pipe in Detail

Technical Data

Full Specifications

›Technical Data

API 5L Grade B Pipe Spec Chart

Standard	API 5L
Sizes	Np Size 1/2" to Size 48 " O.D. / WT - Sch 10 to 160, XS, STD, XXS.
Type	Seamless / ERW / Welded / Fabricated / CDW
End	Bevel, Screwed, Plain, Threaded
Other stockist	USL, ISMT, Lontrin, TNRS, JSL, MSL, BAO, SMTM, and Wuxi
Thickness	Schedule 40, 80, 160, XS, XXS
Product Specification Level	API 5L Product Specification Level 2 / API 5L Product Specification Level 1
Length	Single Random, Double Random, Any Size upto 12 Meters
Export to	Canada, Thailand, Singapore, Iran, Spain, Indonesia, Korea, India, Saudi Arabia, Egypt, Ireland, Brazil, Oman, Dubai, Ukraine, USA, Peru, etc
Service	AROSand BlastingTar EpoxyHeat TreatmentAnnealed3LPEBendingGalvanizingMachining etc.
Test Methods	Guided-bend testHydrostatic testBend testFlattening test

API 5l grade b psl 2 ERW Pipe yield strength

Pipe Grade	Tensile Properties - Grade B Pipe Body of SMLS and Welded Pipes PSL 1	Tensile Properties - Grade B Pipe Body of SMLS and Welded Pipes PSL 1_2	Tensile Properties - Grade B Pipe Body of SMLS and Welded Pipes PSL 1_3	Seam of Welded Pipe
Pipe Grade	Yield Strength a / Rt0,5 PSI Min	Tensile Strength a / Rm PSI Min	Elongation / (in 2in Af % min)	Tensile Strength b / Rm PSI Min
Grade A	30,500	48,600	c	48,600
Grade B	35,500	60,200	c	60,200
Grade X42	42,100	60,200	c	60,200
Grade X46	46,400	63,100	c	63,100
Grade X52	52,200	66,700	c	66,700
Grade X56	56,600	71,100	c	71,100
Grade X60	60,200	75,400	c	75,400
Grade X65	65,300	77,500	c	77,500
Grade X70	70,300	82,700	c	82,700

API 5l grade b pipe sizes

Pipe OD / milimeter	Pipe WT / milimeter	in.	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97

Equivalent Material of API 5L Gr B pipe

Standard	SEAMLESS	WELDED	Other standards
API 5L Gr B PSL1 Equivalent	EN 10216-1 P265	EN 10217-1 P265	BS 3601 430
API 5L Grade B PSL2 Equivalent	EN 10216-1 P265	EN 10217-1 P265	BS 3601 430

We Export our Product on Time? check our supply Network

col_1	col_2
api 5l grade b ssaw spiral steel Pipes	Malaysia, Thailand, Germany, Czechia
API 5L grade b seamless steel pipe for oil and gas pipeline	Singapore, Canada, Malaysia, Philippines
API 5L Grade B hot rolled seamless carbon steel Pipes NPS 4	UAE, Malaysia, Europe, United Kingdom -UK
API 5L GR.B seamless tube Natural gas	Thailand, Europe, France, Qatar
ASME B36.10 5L Grade B CS Welded Pipe 114.3 x 8.56mm	Brazil, Kuwait, Saudi Arabia (KSA), South Africa
API 5L PSL1 GRADE B 3/4"-24" Seamless Steel Pipes	Malaysia, NY 12203 (USA), South Korea, Singapore
api 5l grade b 100mm diameter steel Pipes	Finland, Bangladesh, USA, Malaysia
API 5L Gr.B PSL1 SSAW Pipe	Malaysia, Romania, Japan, Europe
GR. B API 5L 30 Inch Black Pipes	Dubai, Russia, Malaysia, Netherlands
CS Pipes 5l Grade B Erw Black	Belgium, Philippines, Indonesia, Dammam -KSA
API 5L grade B sch40 seamless steel pipes	Malaysia, Norway, Turkey, United Arab Emirates (UAE)
2In SCH 40 5L Grade B PLS2 Seamless Pipes	Philippines, Los Alamos -Mexico, Taiwan, Malaysia
nps 44" api 5l spiral tubing grade b ssaw	UAE, Hong Kong, Malaysia, Oman
API 5L Grade B 12 inch hot dipped galvanized Pipes	UK, Mexico, Spain, Egypt
API 5L grade B sch10 steel pipes	Nigeria, UK, Australia, Philippines
API 5L Grade B sch 160 carbon steel seamless pipe	Ellington -United States, Poland, Canada, UK
API 5L GR.B 3PE COATING seamless Pipes	China, Malaysia, Colombia, Sweden
5L GrB carbon steel seamless pipes	Singapore, Singapore, South Africa, Bahrain

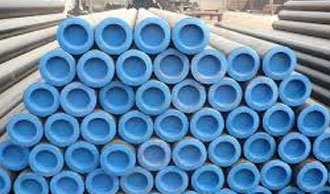

14Inch SCH10 API 5L Grade B PSL1 Line Pipes	Singapore, Iran, Italy, Chile

›Dimensions & Weight

API 5l grade b line pipe weight chart

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
NPS	Outside Diameter	Outside Diameter	Wall Thickness	Wall Thickness		Weight	Weight
NPS	in	mm	in	mm	Sched	kg/Mtr	Lb/ft
1/2″	0.840	21	0.109	2.769	40 STD	1.268	0.851
			0.147	3.734	80 STD	1.621	1.088
3/4″	1.050	27	0.113	2.870	40 STD	1.684	1.131
			0.154	3.912	80 STD	2.195	1.474
1″	1.315	33	0.133	3.378	40 STD	2.501	1.679
			0.179	4.547	80 STD	3.325	2.172
1 1/4″	1.660	42	0.140	3.556	40 STD	3.385	2.273
			0.191	4.851	80 STD	4.464	2.997
1 1/2″	1.900	48	0.145	3.683	40 STD	4.048	2.718
			0.200	5.080	80 STD	5.409	3.361
2″	2.375	60	0.154	3.912	40 STD	5.441	3.653
			0.218	5.537	80 STD	7.480	5.022
2 1/2″	2.875	73	0.203	5.516	40 STD	8.629	5.793
			0.276	7.010	80 STD	11.411	7.661
3″	3.500	89	0.216	5.486	40 STD	11.284	7.576
			0.300	7.620	80 STD	15.272	10.253
4″	4.500	114	0.237	6.020		16.073	10.790
			0.337	8.560		22.318	14.983
6″	6.625	168	0.188	4.775		19.252	12.924
			0.203	5.516		20.739	13.923
			0.219	5.563		22.318	14.983
			0.250	6.350		25.354	17.021
			0.280	7.112	40 STD	58.263	18.974
			0.312	7.925		31.334	21.036
			0.375	9.525		37.285	25.031
			0.432	10.973	80 XHY	42.561	28.573
			0.500	12.700		48.719	32.708
8″	8.625	219	0.188	4.775		25.233	16.940
			0.203	5.156		27.198	18.259
			0.219	5.563		29.286	19.661
			0.250	6.350	20	33.308	22.361
			0.277	7.036	30	36.786	24.696
			0.322	8.179	40	42.352	28.554
			0.375	9.525		49.216	33.041
			0.406	10.312	60	53.085	35.638
			0.500	12.700	80 XHY	64.627	43.388
10″	10.750	273	0.188	4.775		31.588	21.207
			0.219	5.563		36.689	24.631
			0.250	6.350	20	41.759	28.035
			0.307	7.798	30	51.002	34.240
			0.344	8.738		56.946	38.231
			0.365	9.271	40 STD	63.301	40.483
			0.438	11.125		71.852	48.238
			0.500	12.700	60 XHY	81.530	54.735
			0.594	15.088	80	95.969	64.429
12″	12.750	324	0.188	4.775		37.570	25.222
			0.219	5.563		43.657	29.309
			0.250	6.350		49.713	33.375
			0.281	7.137		55.739	37.420
			0.312	7.925		61.735	41.445
			0.375	9.525		73.824	49.562
			0.406	10.312		79.727	53.525
			0.500	12.700		97.438	65.415
			0.562	14.275		108.966	73.154
14″	14.000	356	0.188	4.775		41.308	27.732
			0.219	5.563		48.012	32.233
			0.250	6.350	20	54.685	36.713
			0.281	7.137		61.327	41.172
			0.312	7.925		67.939	45.611
			0.375	9.525	STD	81.281	54.568
			0.438	11.125	40	94.498	63.441
			0.500	12.700	XHY	107.381	72.090
			0.625	15.875		132.983	89.278
16”	16.000	406	0.188	4.775		47.290	21.748
			0.219	5.563		54.980	36.910
			0.250	6.350	10	62.639	42.053
			0.281	7.137		70.268	47.174
			0.312	7.925	20	77.866	52.275
			0.344	8.738		85.677	57.519
			0.375	9.525	30STD	93.213	62.578
			0.438	11.125		108.433	72.797
			0.500	12.700	40XHY	123.289	82.770
18″	18.000	457	0.219	5.563		61.948	41.588
			0.250	6.350		70.593	47.393
			0.281	7.137		79.208	53.176
			0.312	7.925	20	87.792	58.939
			0.375	9.525	STD	105.144	70.588
			0.438	11.125	30	122.369	82.152
			0.500	12.700	XHY	139.198	93.450
			0.562	14.275	40	155.904	104.666
			0.625	15.875		172.754	115.978
20″	20.000	508	0.250	6.350		78.547	52.733
			0.282	7.163		88.458	59.386
			0.312	7.925		97.719	65.604
			0.375	9.525	20 STD	117.075	78.598
			0.438	11.125		136.305	91.508
			0.500	12.700	30 XHY	155.106	104.130
			0.594	15.088	40	183.378	123.110
			0.625	15.875		192.640	129.328
			0.688	17.475		211.368	141.901
24″	24.000	610	0.250	6.350		94.456	63.413
			0.281	7.137		106.029	71.183
			0.312	7.925		117.573	18.932
			0.375	9.525	20 STD	140.938	64.618
			0.438	11.125		164.176	110.219
			0.500	12.700	XHY	186.923	125.490
			0.625	15.875		232.410	156.028
			0.688	17.475	40	255.148	171.293
			0.750	19.050		277.401	186.233
30″	30.000	762	0.250	6.350		118.318	79.433
			0.281	7.137		132.851	89.189
			0.312	7.925	10	147.353	98.925
			0.375	9.525	STD	176.731	118.648
			0.438	11.125		205.983	138.286
			0.500	12.700	20 XHY	234.647	157.530
			0.625	15.875	30	292.066	196.078
			0.688	17.475		320.817	215.380
			0.750	19.050		348.988	234.293
36″	36.000	914	0.250	6.350		142.180	95.453
			0.281	7.137		159.672	107.196
			0.312	7.925	10	177.133	118.918
			0.375	9.525	STD	215.525	142.678
			0.438	11.125		247.790	166.353
			0.500	12.700	20 XHY	282.372	198.570
			0.625	15.875		351.723	236.128
			0.688	17.475		386.487	259.467
			0.750	19.050		420.576	282.353
42″	42.000	1067	0.312	7.925		206.914	138.911
			0.375	9.525	STD	248.319	166.708
			0.500	12.700	XHY	33.097	221.610
			0.750	19.050		492.163	330.413
48″	48.000	1219	0.375	9.525	STD	284.112	190.738
			0.438	11.125		331.404	222.487
			0.500	12.700	XHY	377.822	253.650
			0.750	19.050		563.750	378.473
			0.875	22.225		655.969	440.383

Dimensions of API 5L Grade B Carbon Steel Seamless Pipe

Scroll to see all columns →

NB	DN	OD (inches)	Pipe Schedule	Pipe Schedule_2	Pipe Schedule_3	Pipe Schedule_4	Pipe Schedule_5	Pipe Schedule_6	Pipe Schedule_7	Pipe Schedule_8	Pipe Schedule_9	Pipe Schedule_10
NB	DN	OD (inches)	SCH 5	SCH 10	SCH / 20	SCH 30	SCH 40	SCH 60	SCH 80	SCH 100	SCH 120	SCH 160
3/4"	20	1.05	0.065	0.11	x	0.095	0.113	x	x	0.17	x	0.219
1"	25	1.315	0.065	0.11	x	0.114	0.133	x	x	0.2	x	0.25
1.1/2"	40	1.9	0.065	0.11	x	0.125	0.145	x	x	0.225	x	0.281
2"	50	2.375	0.065	0.12	x	x	0.154	x	x	0.25	x	0.344
2.1/2"	65	2.875	0.083	0.12	x	x	0.203	x	x	0.3	x	0.375
3"	80	3.5	0.083	0.12	x	x	0.216	x	x	0.35	x	0.438
4"	100	4.5	0.083	0.12	x	x	0.237	x	x	0.437	x	0.531
5"	125	5.563	0.109	0.12	x	x	0.258	x	x	0.5	x	0.625
6"	150	6.625	0.109	0.13	x	x	0.28	x	x	0.562	x	0.719
8"	200	8.625	0.109	0.15	0.25	0.277	0.322	0.406	0.593	0.718	0.812	0.906
10"	250	10.75	0.134	0.17	0.25	0.307	0.365	0.5	0.718	0.843	1.0	1.125
12"	300	12.75	0.165	0.18	0.25	0.33	0.406	0.5	0.843	1.0	1.125	1.312

›Material Properties

sch 80 Grade B pipe Chemical Structure

Scroll to see all columns →

PSL1 API 5L Grade B Pipe Chemical Composition	PSL1 API 5L Grade B Pipe Chemical Composition_2	PSL1 API 5L Grade B Pipe Chemical Composition_3	PSL1 API 5L Grade B Pipe Chemical Composition_4	PSL2	PSL2_2	PSL2_3	PSL2_4	PSL2_5
Grade	C (Max.)	Mn (Max.)	P (Max.)	S (Max.)	C (Max.)	Mn (Max.)	P (Max.)	S (Max.)
A	0.22	0.90	0.03	0.03	0.22	1.20	0.025	0.015
B	0.26	1.20	0.03	0.03	0.22	1.30	0.025	0.015
X42	0.26	1.30	0.03	0.03	0.22	1.40	0.025	0.015
X46	0.26	1.40	0.03	0.03	0.22	1.40	0.025	0.015
X52	0.26	1.40	0.03	0.03	0.22	1.40	0.025	0.015
X56	0.26	1.40	0.03	0.03	0.22	1.40	0.025	0.015
X60	0.26	1.40	0.03	0.03	0.22	1.45	0.025	0.015
X65	0.26	1.45	0.03	0.03	0.22	1.65	0.025	0.015
X70	0.26	1.65	0.03	0.03	0.22	1.85	0.025	0.015

Mechanical Properties Chart of API 5L Grade b PSL1 pipe

OD Tolerance	OD Tolerance_2	WT Tolerance	WT Tolerance_2	WT Tolerance_3	WT Tolerance_4
OD Tolerance	OD Tolerance	A, B	A, B	X42 ~ X70	X42 ~ X70
D<60.3mm	+0.41/-0.40mm	D<73mm	+20%/-12.5%	D<73mm	+15%/-12.5%
D>=60.3mm	+0.75/-0.40mm	D>=73mm	+15%/-12.5%	D>=73mm	+15%/-12.5%

›Pressure Ratings

Api 5l Grade B Pipe Pressure Rating

Scroll to see all columns →

Nominal Size / (mm) /	Schedule no.	Schedule no._2	Wall Thickness / (mm) /	Temperature (°C)	Temperature (°C)_2	Temperature (°C)_3	Temperature (°C)_4	Temperature (°C)_5	Temperature (°C)_6	Temperature (°C)_7	Temperature (°C)_8
Nominal Size / (mm) /	Schedule no.	Schedule no.	Wall Thickness / (mm) /	-29 - 38	205	260	350	370	400	4301)	450
Nominal Size / (mm) /	Schedule no.	Schedule no.	Wall Thickness / (mm) /	Maximum Allowable Stress (MPa)	Maximum Allowable Stress (MPa)	Maximum Allowable Stress (MPa)	Maximum Allowable Stress (MPa)	Maximum Allowable Stress (MPa)	Maximum Allowable Stress (MPa)	Maximum Allowable Stress (MPa)	Maximum Allowable Stress (MPa)
Nominal Size / (mm) /	Schedule no.	Schedule no.	Wall Thickness / (mm) /	137.8	137.8	130.2	117.1	115.7	89.6	74.4	59.9
15	STD	40	2.77	34416	34416	32528	29255	28910	22372	18589	14972
15	XS	80	3.73	48092	48092	45466	40878	40396	31260	25969	20918
15		160	4.78	62830	62830	59378	53404	52777	40837	33929	27333
15	XXS		7.47	98245	98245	92836	83507	82522	63857	53053	42739
20	STD	40	2.87	28070	28070	26526	23860	23578	18245	15158	12209
20	XS	80	3.91	39418	39418	37247	33506	33106	25617	21283	17142
20		160	5.56	58152	58152	54955	49429	48843	37799	31398	25293
20	XXS		7.82	83107	83107	78539	70643	69809	54024	44881	36152
25	STD	40	3.38	26251	26251	24804	22310	22048	17060	14173	11417
25	XS	80	4.55	36283	36283	34285	30862	30474	23584	19595	15785
25		160	6.35	52481	52481	49594	44606	44082	34112	28339	22827
25	XXS		9.09	77030	77030	72793	65476	64704	50070	41595	33506
32	STD	40	3.56	21614	21614	20421	18369	18155	14049	11672	9404
32	XS	80	4.85	30178	30178	28518	25651	25348	19616	16295	13125
32		160	6.35	40596	40596	38364	34505	34099	26389	21924	17659
32	XXS		9.70	64601	64601	61045	54906	54266	41988	34884	28097
40	STD	40	3.68	19444	19444	18375	16529	16329	12636	10550	8454
40	XS	80	5.08	27402	27402	25900	23295	23019	17811	14800	11919
40		160	7.14	39738	39738	37599	33816	33416	25858	21483	17308
40	XXS		10.16	58779	58799	55547	49966	49374	38205	31742	25569
50	STD	40	3.91	16378	16378	15468	13925	13759	10645	8847	7124
50	XS	80	5.54	23653	23653	22351	20105	19871	15378	12774	10287
50		160	8.74	38866	38866	36731	33037	32652	25266	20987	16908
50	XXS		11.07	50793	50793	48003	43173	42670	33017	27429	22096
65	STD	40	5.16	17914	17914	16929	15227	15048	11644	9674	7793
65	XS	80	7.01	24818	24818	23447	21097	20849	16129	13401	10797
65		160	9.53	34615	34615	32714	29420	29076	22503	18693	15055
65	XXS		14.02	53081	53081	50159	45116	44585	34498	28662	23088
80	STD	40	5.49	15558	15558	14969	13222	13063	10108	8399	6766
80	XS	80	7.62	21986	21968	20780	18693	18472	14290	11871	9563
80		160	11.13	33079	33079	31253	28111	27780	21497	17859	14386
80	XXS		15.24	46976	46976	44392	39928	39459	30536	25369	20436
100	STD	40	6.02	13187	13187	12464	11210	11079	8571	7124	5739
100	XS	80	8.56	19058	19058	18010	16198	16012	12388	12094	8289
100		120	11.13	25190	25190	23805	21407	21159	16371	13601	10995
100		160	13.49	31019	31019	29310	26368	26058	20160	16750	13208
100	XXS		17.12	40348	40348	38129	34298	33892	26230	21786	17549
125	STD	40	6.55	11561	11561	10921	9825	9708	7510	6243	5038
125	XS	80	9.53	17060	17060	16122	14503	14331	11093	9212	7421
125		120	12.70	23130	23130	21855	19657	19430	15034	12492	10059
125		160	15.88	29407	29407	27787	24997	24701	19113	15881	12795
125	XXS		19.05	35897	35897	33926	30516	30158	23337	19388	15620
150	STD	40	7.11	10550	10550	9928	8924	8819	6828	5370	4568
150	XS	80	10.97	16474	16474	15571	14007	13842	10707	8895	7165
150		120	14.27	21745	21745	20553	18448	18265	14138	11747	9460
150	XXS	160	18.26	28325	28325	26768	24074	23784	18410	15296	12319
200		20	6.35	7138	7138	6745	6063	5994	4637	3852	3100
200		30	7.04	7924	7924	7489	6732	6656	5147	4279	3445
200	STD	40	8.18	9246	9246	8737	7855	7765	6008	4995	4024
200		60	10.31	11741	11741	11093	9977	9860	7627	6339	5105
200	XS	80	12.70	14572	14572	13766	12388	12237	9474	7868	6338
200		100	15.09	17452	17452	16488	14834	14655	11341	9426	7593
200		120	18.26	21345	21345	20174	18148	17935	13876	11527	9288
200		140	20.62	24308	24308	22971	20656	20415	15799	13125	10569
200	XXS		22.23	26334	26334	24877	22386	22124	17115	14221	11458
200		160	23.01	27340	27340	25838	23240	22964	17769	14765	11892
250		20	6.35	5698	5698	5388	4844	4789	3707	3080	2480
250		30	7.8	7028	7028	6642	5974	5905	4568	3796	3059
250	STD	40	9.27	8385	8385	7923	7131	7048	5450	4527	3652
250	XS	60	12.7	11596	11596	10955	9853	9736	7538	6263	5043
250		80	15.09	13863	13863	13098	11781	11644	9012	7483	6028
250		100	18.26	16922	16922	15992	14386	14214	10996	9136	7359
250		120	21.44	20036	20036	18934	17032	16825	13022	10817	8716
250	XXS	140	25.4	23998	23998	16474	20394	20153	15599	12960	10438
250		160	28.58	27229	27229	25734	23143	22875	17700	14703	11844
300		20	6.35	4795	4795	4534	4072	4024	3114	2591	2088
300		30	8.38	6359	6359	6008	5402	5540	4134	3431	2763
300	STD		9.53	7241	7241	6842	6153	6084	4706	3914	3149
300		40	10.31	7854	7854	7421	6676	6601	5015	4244	3417
300	XS		12.70	9722	9722	9191	8268	8165	6318	5250	4230
300		60	14.27	10969	10969	10363	9322	9212	7131	5925	4768
300		80	17.48	13525	13525	12850	11492	11362	8792	7303	5884
300		100	21.44	16736	16736	15819	14227	14062	10879	9040	7283
300	XXS	120	25.4	20015	20015	18913	17011	16811	13008	10804	8702
300		140	28.58	22682	22682	21435	19278	19051	14744	12244	9866
300		160	33.32	26740	26740	25273	22730	22461	17383	14441	11630
350		10	6.35	4361	4361	4120	3707	3665	2831	2356	1895
350		20	7.92	5457	5457	5161	4644	4589	3548	2949	2377
350	STD	30	9.53	6580	6580	6222	5595	5533	4279	3555	2866
350		40	11.13	7717	7717	7310	6559	6477	5016	4168	3355
350	XS		12.70	8833	8833	8351	7510	7421	5739	4768	3845
350		60	15.09	10541	10541	9963	8964	8861	6855	5691	4589
350		80	19.05	13421	13421	12684	11410	11272	9723	7248	5836
350		100	23.83	16949	16949	16019	14407	14242	11017	9157	7372
350		120	27.79	19933	19933	18837	16943	16743	12960	10762	8675
350		140	31.75	22964	22964	21703	19519	19292	14931	12402	9990
350		160	35.71	26051	26051	24618	22144	21883	16936	14069	11334
400		10	6.35	3810	3810	3603	3238	3197	2474	2060	1660
400		20	7.92	4768	4768	4507	4051	4004	3100	2577	2074
400	STD	30	9.53	5746	5746	5429	4885	4830	3734	3100	2501
400	XS	40	12.70	7703	7703	7283	6545	6470	5009	4126	3349
400		60	16.66	10176	10176	9618	8654	8550	6614	5498	4430
400		80	21.44	13208	13208	12478	11224	11093	8585	7131	5746
400		100	26.19	16274	16274	15378	13835	13670	10576	8785	7076
400		120	30.96	19409	19409	18341	16481	16302	12616	10480	8440
400		140	36.53	23130	23130	21855	19657	19430	15034	12492	10059
400		160	40.49	25824	25824	24404	21952	21697	16784	13945	11238
450		10	6.35	3383	3383	3197	2873	2839	2198	1826	1474
450		20	7.92	4230	4230	3996	3597	3555	2749	2287	1839
450	STD		9.53	5099	5099	4816	4334	4286	3314	2756	2219
450	XS	30	11.13	5967	5967	5643	5071	5016	3879	3225	2598
450			12.70	6835	6835	6456	5808	5739	4437	3686	2969
450		40	14.27	7696	7696	7276	6545	6463	5002	4155	3349
450		60	19.05	10349	10349	9784	8799	8695	6725	5588	4499
450		80	23.83	13043	13043	12326	11086	10955	8475	7042	5670
450		100	29.36	16219	16219	15323	13787	13622	10542	8757	7055
450		120	34.93	19464	19464	18389	16543	16350	12650	10507	8468
450		140	39.67	22282	22282	21056	18941	18713	11483	12030	9694
450		160	45.24	25638	25638	24225	21793	21531	16660	13842	11155
500		10	6.35	3038	3038	2873	2574	2556	1977	1640	1323
500	STD	20	9.53	4582	4582	4327	3893	3852	2976	2474	1991
500	XS	30	12.70	6139	6139	5801	5216	5154	3989	3314	2666
500		40	15.09	7317	7317	6911	6215	6146	4754	3948	3183
500		60	20.62	10080	10080	9522	8564	8468	6552	5443	4382
500		80	26.19	12898	12898	12188	10962	10831	8385	6966	5608
500		100	32.54	16171	16171	15287	13746	13580	10514	8730	7035
500		120	38.10	19085	19085	18037	16226	16033	12409	10307	8302
500		140	44.45	22475	22475	21242	19106	18879	14614	12140	9777
500		160	50.01	25450	25450	24094	21675	21421	16577	13766	11093
600		10	6.35	2529	2529	2391	2150	2129	1647	1364	1102
600	STD	20	9.53	3810	3810	3603	3238	3197	2474	2060	1660
600	XS		12.70	5097	5097	4816	4334	4286	3314	2756	2219
600		30	14.27	5739	5739	5423	4878	4823	3734	3100	2494
600		40	17.48	7055	7055	6670	5994	5925	4589	3810	3066
600		60	24.61	10018	10018	9467	8516	8420	6511	5409	4361
600		80	30.96	12691	12691	12002	10783	10659	8254	6856	5519
600		100	38.89	16102	16102	15220	13690	10528	10466	8695	7007
600		120	46.02	19223	19223	18168	16336	16150	12491	10383	8364
600		140	52.37	22048	22048	20835	18741	18520	14331	11906	9591
600		160	59.54	25279	25279	23888	21489	21235	16433	13649	10996
600

›Tolerances

API 5L Grade B Line Pipe Tolerance

OD Tolerance	OD Tolerance_2	WT Tolerance	WT Tolerance_2	WT Tolerance_3	WT Tolerance_4
OD Tolerance	OD Tolerance	A, B	A, B	X42 ~ X70	X42 ~ X70
D<60.3milimeter	+0.41/-0.40milimeter	D<73milimeter	+20%/-12.5%	D<73milimeter	+15%/-12.5%
D>=60.3milimeter	+0.75/-0.40milimeter	D>=73milimeter	+15%/-12.5%	D>=73milimeter	+15%/-12.5%

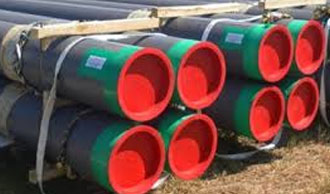

API 5L Grade B Pipe

Get a Price

Request a quote for this item

Specify the grade, size, quantity and governing standard, and we'll confirm stock and pricing — typically within the same working day.

Request a Quote for API 5L Grade B Pipe

Contact

Send us the spec

Grade, form, size and quantity — that's all we need to confirm stock and quote. Reach us directly, or use the form below.

Enquiry FormReply same working day

Direct Contact

Head Office

Shop No. 5, Ravi Estate, Keval Kantha Road, Near Gujarat Bottling Road, Industrial Area, Rakhial, Ahmedabad, Gujarat – 380023, India

Phone / WhatsApp

+91 93240 06771

exportompmo@gmail.com

Working Hours

Monday – Saturday8:00 AM – 8:00 PM

SundayClosed
