API 5L X65 Pipe
API 5L X65 Seamless Pipe manufacturer in India, Check L450 X65 PSL1 ERW Pipe Size. API 5l x65 carbon steel PSL2 Welded Pipe Supplier in mumbai
On This Page
Gallery
API 5L X65 Pipe in Detail
Technical Data
Full Specifications
›Technical Data
Standard Specification of API 5L X65 Seamless Pipe
| Standard | API 5L |
|---|---|
| Sizes | Np Size 1/2" to Size 48 " O.D. / WT - Sch 10 to 160, XS, STD, XXS. |
| Length | Single Random, Double Random, Any Size upto 12 Meters |
| End | Bevel, Screwed, Plain, Threaded |
| Type | Seamless / ERW / Welded / Fabricated / CDW |
| Product Specification Level | API 5L Product Specification Level 2 / API 5L Product Specification Level 1 |
| Other stockist | USL, ISMT, Lontrin, TNRS, JSL, MSL, BAO, SMTM, and Wuxi |
| Export to | Canada, Thailand, Iran, Spain, Singapore, India, Egypt, Ireland, Brazil, Oman, Indonesia, Korea, Dubai, Saudi Arabia, Ukraine, USA, Peru, etc |
| Service | ARO Sand Blasting Tar Epoxy Heat Treatment Annealed 3LPE Bending Galvanizing Machining etc. |
| Thickness | Schedule 40, 80, 160, XS, XXS |
| Test Methods | Guided-bend test Hydrostatic test Bend test Flattening test |

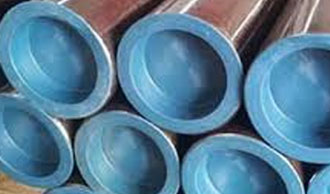

API 5l grade x65 psl2 SAW Pipe Schedule Chart
Scroll to see all columns →
| NPS / (in) | Outside Diameter / (in) | API 5L X65 Pipe Schedule | API 5L X65 Pipe Schedule_2 | API 5L X65 Pipe Schedule_3 | API 5L X65 Pipe Schedule_4 | API 5L X65 Pipe Schedule_5 | API 5L X65 Pipe Schedule_6 | API 5L X65 Pipe Schedule_7 | API 5L X65 Pipe Schedule_8 | API 5L X65 Pipe Schedule_9 | API 5L X65 Pipe Schedule_10 | API 5L X65 Pipe Schedule_11 | API 5L X65 Pipe Schedule_12 | API 5L X65 Pipe Schedule_13 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NPS / (in) | Outside Diameter / (in) | SCH 10 | SCH 20 | SCH 30 | SCH STD | SCH 40 | SCH 60 | SCH XS | SCH 80 | SCH 100 | SCH 120 | SCH 140 | SCH 160 | SCH XXS |
| NPS / (in) | Outside Diameter / (in) | Wall Thickness (in) | Wall Thickness (in) | Wall Thickness (in) | Wall Thickness (in) | Wall Thickness (in) | Wall Thickness (in) | Wall Thickness (in) | Wall Thickness (in) | Wall Thickness (in) | Wall Thickness (in) | Wall Thickness (in) | Wall Thickness (in) | Wall Thickness (in) |
| 1/8 | 0.405 | 0.068 | 0.068 | 0.095 | 0.095 | |||||||||
| 1/4 | 0.540 | 0.088 | 0.088 | 0.119 | 0.119 | |||||||||
| 3/8 | 0.675 | 0.091 | 0.091 | 0.126 | 0.126 | |||||||||
| 1/2 | 0.840 | 0.109 | 0.109 | 0.147 | 0.147 | 0.187 | 0.294 | |||||||
| 3/4 | 1.050 | 0.113 | 0.113 | 0.154 | 0.154 | 0.219 | 0.308 | |||||||
| 1 | 1.315 | 0.133 | 0.133 | 0.179 | 0.179 | 0.250 | 0.358 | |||||||
| 1 1/4 | 1.660 | 0.140 | 0.140 | 0.191 | 0.191 | 0.250 | 0.382 | |||||||
| 1 1/2 | 1.900 | 0.145 | 0.145 | 0.200 | 0.200 | 0.281 | 0.400 | |||||||
| 2 | 2.375 | 0.154 | 0.154 | 0.218 | 0.218 | 0.344 | 0.436 | |||||||
| 2 1/2 | 2.875 | 0.203 | 0.203 | 0.276 | 0.276 | 0.375 | 0.552 | |||||||
| 3 | 3.500 | 0.216 | 0.216 | 0.300 | 0.300 | 0.438 | 0.600 | |||||||
| 3 1/2 | 4.000 | 0.226 | 0.226 | 0.318 | 0.318 | |||||||||
| 4 | 4.500 | 0.237 | 0.237 | 0.337 | 0.337 | 0.438 | 0.531 | 0.674 | ||||||
| 5 | 5.563 | 0.258 | 0.258 | 0.375 | 0.375 | 0.500 | 0.625 | 0.750 | ||||||
| 6 | 6.625 | 0.280 | 0.280 | 0.432 | 0.432 | 0.562 | 0.719 | 0.864 | ||||||
| 8 | 8.625 | 0.250 | 0.277 | 0.322 | 0.322 | 0.406 | 0.500 | 0.500 | 0.594 | 0.719 | 0.812 | 0.906 | 0.875 | |
| 10 | 10.750 | 0.250 | 0.307 | 0.365 | 0.365 | 0.500 | 0.500 | 0.594 | 0.719 | 0.844 | 1.000 | 1.125 | 1.000 | |
| 12 | 12.750 | 0.250 | 0.330 | 0.375 | 0.406 | 0.562 | 0.500 | 0.688 | 0.844 | 1.000 | 1.125 | 1.312 | 1.000 | |
| 14 | 14.000 | 0.250 | 0.312 | 0.375 | 0.375 | 0.438 | 0.594 | 0.500 | 0.750 | 0.938 | 1.094 | 1.250 | 1.406 | |
| 16 | 16.000 | 0.250 | 0.312 | 0.375 | 0.375 | 0.500 | 0.656 | 0.500 | 0.844 | 1.031 | 1.219 | 1.438 | 1.594 | |
| 18 | 18.000 | 0.250 | 0.312 | 0.438 | 0.375 | 0.562 | 0.750 | 0.500 | 0.938 | 1.156 | 1.375 | 1.562 | 1.781 | |
| 20 | 20.000 | 0.250 | 0.375 | 0.500 | 0.375 | 0.594 | 0.812 | 0.500 | 1.031 | 1.281 | 1.500 | 1.750 | 1.969 | |
| 22 | 22.000 | 0.250 | 0.375 | 0.500 | 0.375 | 0.875 | 0.500 | 1.125 | 1.375 | 1.625 | 1.875 | 2.125 | ||
| 24 | 24.000 | 0.250 | 0.375 | 0.562 | 0.375 | 0.688 | 0.969 | 0.500 | 1.219 | 1.531 | 1.812 | 2.062 | 2.344 | |
| 30 | 30.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.500 | ||||||||
| 32 | 32.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.688 | ||||||||
| 34 | 34.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.688 | ||||||||
| 36 | 36.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.750 | ||||||||
| 42 | 42.000 | 0.500 | 0.625 | 0.375 | 0.750 |
API 5l x65 DSAW pipes Standards
| API 5L PSL 2 X65 Seamless Carbon Steel |
|---|
| Sizes: Out Diameter: 73-630mm, Wall Thickness: 6-35mm / Standard: API 5L / Application: For gas, water, transportation in Petroleum and natural gas industries |
| API 5L X65 Tube for Structural Purposes |
| Sizes: Out Diameter: 1-1/4"-16", Wall Thickness: 0.109"-0.562" / Standard: ASTM A53, ASTM A106, ASTM A500/501-98, ASTM A519-98, JIS G3441-1994, JIS G3444-1994, BS EN 10210-1 / Application: Used in the general structure and the mechanism, including construction, machinery, transportation |
| API 5L X65 Boiler Pipe |
| Sizes: Out Diameter: 6.0mm-114.0mm, Wall Thickness: 1.0mm-15.0mm / Standard: GB3087-1999, ASTM A179, ASTM A106, JIS G3454 / Application: Used for manufacturing superheated pipelines, the steam pipe, boiling water tube, flue tube, small flue tube, etc. |
| API 5L X65 Seamless Steel Tubes for Liquid Service |
| Sizes: Out Diameter: 19.05-168.3mm, Wall Thickness: 2.31-14.27mm / Standard: GB/T8163-1999, ASTM A53-98, JIS G3452-1998, JIS G3454-1998, ASTM A106, DIN 1629-1984 / Application: For conveying of petroleum, gas and other fluids |
| API 5L X65 Line Pipe |
| Sizes: Out Diameter: 73-630mm, Wall Thickness: 6-35mm / Standard: API 5L / Application: For gas, water, transportation in Petroleum and natural gas industries |
| API 5L X65 Drill Pipe |
| Sizes: Out Diameter: 2-7/8"-6-5/8", Wall Thickness: up to 0.813" / Standard: API 5D / Application: For well drilling |
| API 5L X65 Petroleum Cracking Tube |
| Sizes: Out Diameter: 1.315"- 20", Wall Thickness: 0.133"-0.500" / Standard: GB9948-1988 / Application: For manufacturing of furnace tubes, heat exchangers and pipelines in refineries |
API 5l x65 psl2 ERW Pipe Allowable Stress
| col_1 | col_2 | col_3 | col_4 | col_5 |
|---|---|---|---|---|
| Grade | Tensile Properties / | Elongation | Yield Properties / | Yield to Tensile / |
| min. (KSI) | % | min. (KSI) | Ratio (max) | |
| API 5L X65 | 77 | 18 | 65 | 0.93 |
Material Equivalent of API 5L X65 Pipe
| ASTM API 5L | Specification for line Pipes | Specification for line Pipes_2 |
|---|---|---|
| Material Grade | PSL1 | L450 or x65 |
| Material Grade | PSL2 | L450Q or X65Q / L450M or X65M |
Check Our Material Dispatch In The Following Countries
| col_1 | col_2 |
|---|---|
| api 5l x65 psl1 pipe for oil and gas pipeline | Singapore, Italy, Chile, Iran |
| API 5l X65 20 inch LSAW Weld Carbon Steel Pipes | China, Colombia, Sweden, Malaysia |
| pipe api 5l gr x65 psl 2 seamless | Malaysia, Germany, Czechia, Thailand |
| Api 5L Gr X65 psl 2 seamless Pipes | Belgium, Indonesia, Dammam -KSA, Philippines |
| API 5L X65 PSL2 4 Inch 3LPE/3LPP Steel Tube | Singapore, South Africa, Bahrain, Singapore |
| api 5l x65 schedule 40 pipes | Brazil, Saudi Arabia (KSA), South Africa, Kuwait |
| x65 large diameter spiral welded steel Pipes | UAE, Europe, United Kingdom -UK, Malaysia |
| api 5l x65 psl1 pipe diameter 1500mm | UAE, Malaysia, Oman, Hong Kong |
| api 5l X65 welded carbon steel Pipes | Malaysia, Japan, Europe, Romania |
| PIPE 12" SCH STD API 5L X65 | Finland, USA, Malaysia, Bangladesh |
| api 5l gr x65 psl 2 seamless steel Pipes | Malaysia, Turkey, United Arab Emirates (UAE), Norway |
| API 5L X65 PSL2 34" LSAW Steel Pipe | UK, Spain, Egypt, Mexico |
| X65 Psl2 Carbon Steel Seamless Line Pipe | Philippines, Taiwan, Malaysia, Los Alamos -Mexico |
| ASME B36.10.DIN. API 5L X65 PLS2 Pipe | Dubai, Malaysia, Netherlands, Russia |
| X65 1000mm diameter large diameter steel oil Pipes | Thailand, France, Qatar, Europe |
| API 5L X65 PSL2 Pipe 48 Inch SCHXS 12 Meters length | Malaysia, South Korea, Singapore, NY 12203 (USA) |
| 26 Inch API 5L X65 PSL1 Steel Pipe | Nigeria, Australia, Philippines, UK |
| API 5L PSL1 PSL2 X65 3PE/3LPE Water Pipe | Ellington -United States, Canada, UK, Poland |
| 170mm diameter oval steel pipe api 5l x65 | Singapore, Malaysia, Philippines, Canada |
›Pressure Ratings

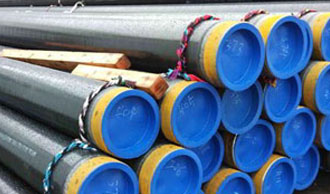

Schedule 40 x65 line pipe Pressure Rating
Scroll to see all columns →
| Nominal Size / (mm) | Schedule no. | Schedule no._2 | Wall Thickness / (mm) | Temperature (oC) | Temperature (oC)_2 | Temperature (oC)_3 | Temperature (oC)_4 | Temperature (oC)_5 | Temperature (oC)_6 | Temperature (oC)_7 | Temperature (oC)_8 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size / (mm) | Schedule no. | Schedule no. | Wall Thickness / (mm) | -29 – 38 | 205 | 260 | 350 | 370 | 400 | 4301) | 450 |
| Nominal Size / (mm) | Schedule no. | Schedule no. | Wall Thickness / (mm) | Maximum Allowable Stress (MPa) | Maximum Allowable Stress (MPa) | Maximum Allowable Stress (MPa) | Maximum Allowable Stress (MPa) | Maximum Allowable Stress (MPa) | Maximum Allowable Stress (MPa) | Maximum Allowable Stress (MPa) | Maximum Allowable Stress (MPa) |
| Nominal Size / (mm) | Schedule no. | Schedule no. | Wall Thickness / (mm) | 137.8 | 137.8 | 130.2 | 117.1 | 115.7 | 89.6 | 74.4 | 59.9 |
| 15 | STD | 40 | 2.77 | 34416 | 34416 | 32528 | 29255 | 28910 | 22372 | 18589 | 14972 |
| 15 | XS | 80 | 3.73 | 48092 | 48092 | 45466 | 40878 | 40396 | 31260 | 25969 | 20918 |
| 15 | 160 | 4.78 | 62830 | 62830 | 59378 | 53404 | 52777 | 40837 | 33929 | 27333 | |
| 15 | XXS | 7.47 | 98245 | 98245 | 92836 | 83507 | 82522 | 63857 | 53053 | 42739 | |
| 20 | STD | 40 | 2.87 | 28070 | 28070 | 26526 | 23860 | 23578 | 18245 | 15158 | 12209 |
| 20 | XS | 80 | 3.91 | 39418 | 39418 | 37247 | 33506 | 33106 | 25617 | 21283 | 17142 |
| 20 | 160 | 5.56 | 58152 | 58152 | 54955 | 49429 | 48843 | 37799 | 31398 | 25293 | |
| 20 | XXS | 7.82 | 83107 | 83107 | 78539 | 70643 | 69809 | 54024 | 44881 | 36152 | |
| 25 | STD | 40 | 3.38 | 26251 | 26251 | 24804 | 22310 | 22048 | 17060 | 14173 | 11417 |
| 25 | XS | 80 | 4.55 | 36283 | 36283 | 34285 | 30862 | 30474 | 23584 | 19595 | 15785 |
| 25 | 160 | 6.35 | 52481 | 52481 | 49594 | 44606 | 44082 | 34112 | 28339 | 22827 | |
| 25 | XXS | 9.09 | 77030 | 77030 | 72793 | 65476 | 64704 | 50070 | 41595 | 33506 | |
| 32 | STD | 40 | 3.56 | 21614 | 21614 | 20421 | 18369 | 18155 | 14049 | 11672 | 9404 |
| 32 | XS | 80 | 4.85 | 30178 | 30178 | 28518 | 25651 | 25348 | 19616 | 16295 | 13125 |
| 32 | 160 | 6.35 | 40596 | 40596 | 38364 | 34505 | 34099 | 26389 | 21924 | 17659 | |
| 32 | XXS | 9.70 | 64601 | 64601 | 61045 | 54906 | 54266 | 41988 | 34884 | 28097 | |
| 40 | STD | 40 | 3.68 | 19444 | 19444 | 18375 | 16529 | 16329 | 12636 | 10550 | 8454 |
| 40 | XS | 80 | 5.08 | 27402 | 27402 | 25900 | 23295 | 23019 | 17811 | 14800 | 11919 |
| 40 | 160 | 7.14 | 39738 | 39738 | 37599 | 33816 | 33416 | 25858 | 21483 | 17308 | |
| 40 | XXS | 10.16 | 58779 | 58799 | 55547 | 49966 | 49374 | 38205 | 31742 | 25569 | |
| 50 | STD | 40 | 3.91 | 16378 | 16378 | 15468 | 13925 | 13759 | 10645 | 8847 | 7124 |
| 50 | XS | 80 | 5.54 | 23653 | 23653 | 22351 | 20105 | 19871 | 15378 | 12774 | 10287 |
| 50 | 160 | 8.74 | 38866 | 38866 | 36731 | 33037 | 32652 | 25266 | 20987 | 16908 | |
| 50 | XXS | 11.07 | 50793 | 50793 | 48003 | 43173 | 42670 | 33017 | 27429 | 22096 | |
| 65 | STD | 40 | 5.16 | 17914 | 17914 | 16929 | 15227 | 15048 | 11644 | 9674 | 7793 |
| 65 | XS | 80 | 7.01 | 24818 | 24818 | 23447 | 21097 | 20849 | 16129 | 13401 | 10797 |
| 65 | 160 | 9.53 | 34615 | 34615 | 32714 | 29420 | 29076 | 22503 | 18693 | 15055 | |
| 65 | XXS | 14.02 | 53081 | 53081 | 50159 | 45116 | 44585 | 34498 | 28662 | 23088 | |
| 80 | STD | 40 | 5.49 | 15558 | 15558 | 14969 | 13222 | 13063 | 10108 | 8399 | 6766 |
| 80 | XS | 80 | 7.62 | 21986 | 21968 | 20780 | 18693 | 18472 | 14290 | 11871 | 9563 |
| 80 | 160 | 11.13 | 33079 | 33079 | 31253 | 28111 | 27780 | 21497 | 17859 | 14386 | |
| 80 | XXS | 15.24 | 46976 | 46976 | 44392 | 39928 | 39459 | 30536 | 25369 | 20436 | |
| 100 | STD | 40 | 6.02 | 13187 | 13187 | 12464 | 11210 | 11079 | 8571 | 7124 | 5739 |
| 100 | XS | 80 | 8.56 | 19058 | 19058 | 18010 | 16198 | 16012 | 12388 | 12094 | 8289 |
| 100 | 120 | 11.13 | 25190 | 25190 | 23805 | 21407 | 21159 | 16371 | 13601 | 10995 | |
| 100 | 160 | 13.49 | 31019 | 31019 | 29310 | 26368 | 26058 | 20160 | 16750 | 13208 | |
| 100 | XXS | 17.12 | 40348 | 40348 | 38129 | 34298 | 33892 | 26230 | 21786 | 17549 | |
| 125 | STD | 40 | 6.55 | 11561 | 11561 | 10921 | 9825 | 9708 | 7510 | 6243 | 5038 |
| 125 | XS | 80 | 9.53 | 17060 | 17060 | 16122 | 14503 | 14331 | 11093 | 9212 | 7421 |
| 125 | 120 | 12.70 | 23130 | 23130 | 21855 | 19657 | 19430 | 15034 | 12492 | 10059 | |
| 125 | 160 | 15.88 | 29407 | 29407 | 27787 | 24997 | 24701 | 19113 | 15881 | 12795 | |
| 125 | XXS | 19.05 | 35897 | 35897 | 33926 | 30516 | 30158 | 23337 | 19388 | 15620 | |
| 150 | STD | 40 | 7.11 | 10550 | 10550 | 9928 | 8924 | 8819 | 6828 | 5370 | 4568 |
| 150 | XS | 80 | 10.97 | 16474 | 16474 | 15571 | 14007 | 13842 | 10707 | 8895 | 7165 |
| 150 | 120 | 14.27 | 21745 | 21745 | 20553 | 18448 | 18265 | 14138 | 11747 | 9460 | |
| 150 | XXS | 160 | 18.26 | 28325 | 28325 | 26768 | 24074 | 23784 | 18410 | 15296 | 12319 |
| 200 | 20 | 6.35 | 7138 | 7138 | 6745 | 6063 | 5994 | 4637 | 3852 | 3100 | |
| 200 | 30 | 7.04 | 7924 | 7924 | 7489 | 6732 | 6656 | 5147 | 4279 | 3445 | |
| 200 | STD | 40 | 8.18 | 9246 | 9246 | 8737 | 7855 | 7765 | 6008 | 4995 | 4024 |
| 200 | 60 | 10.31 | 11741 | 11741 | 11093 | 9977 | 9860 | 7627 | 6339 | 5105 | |
| 200 | XS | 80 | 12.70 | 14572 | 14572 | 13766 | 12388 | 12237 | 9474 | 7868 | 6338 |
| 200 | 100 | 15.09 | 17452 | 17452 | 16488 | 14834 | 14655 | 11341 | 9426 | 7593 | |
| 200 | 120 | 18.26 | 21345 | 21345 | 20174 | 18148 | 17935 | 13876 | 11527 | 9288 | |
| 200 | 140 | 20.62 | 24308 | 24308 | 22971 | 20656 | 20415 | 15799 | 13125 | 10569 | |
| 200 | XXS | 22.23 | 26334 | 26334 | 24877 | 22386 | 22124 | 17115 | 14221 | 11458 | |
| 200 | 160 | 23.01 | 27340 | 27340 | 25838 | 23240 | 22964 | 17769 | 14765 | 11892 | |
| 250 | 20 | 6.35 | 5698 | 5698 | 5388 | 4844 | 4789 | 3707 | 3080 | 2480 | |
| 250 | 30 | 7.8 | 7028 | 7028 | 6642 | 5974 | 5905 | 4568 | 3796 | 3059 | |
| 250 | STD | 40 | 9.27 | 8385 | 8385 | 7923 | 7131 | 7048 | 5450 | 4527 | 3652 |
| 250 | XS | 60 | 12.7 | 11596 | 11596 | 10955 | 9853 | 9736 | 7538 | 6263 | 5043 |
| 250 | 80 | 15.09 | 13863 | 13863 | 13098 | 11781 | 11644 | 9012 | 7483 | 6028 | |
| 250 | 100 | 18.26 | 16922 | 16922 | 15992 | 14386 | 14214 | 10996 | 9136 | 7359 | |
| 250 | 120 | 21.44 | 20036 | 20036 | 18934 | 17032 | 16825 | 13022 | 10817 | 8716 | |
| 250 | XXS | 140 | 25.4 | 23998 | 23998 | 16474 | 20394 | 20153 | 15599 | 12960 | 10438 |
| 250 | 160 | 28.58 | 27229 | 27229 | 25734 | 23143 | 22875 | 17700 | 14703 | 11844 | |
| 300 | 20 | 6.35 | 4795 | 4795 | 4534 | 4072 | 4024 | 3114 | 2591 | 2088 | |
| 300 | 30 | 8.38 | 6359 | 6359 | 6008 | 5402 | 5540 | 4134 | 3431 | 2763 | |
| 300 | STD | 9.53 | 7241 | 7241 | 6842 | 6153 | 6084 | 4706 | 3914 | 3149 | |
| 300 | 40 | 10.31 | 7854 | 7854 | 7421 | 6676 | 6601 | 5015 | 4244 | 3417 | |
| 300 | XS | 12.70 | 9722 | 9722 | 9191 | 8268 | 8165 | 6318 | 5250 | 4230 | |
| 300 | 60 | 14.27 | 10969 | 10969 | 10363 | 9322 | 9212 | 7131 | 5925 | 4768 | |
| 300 | 80 | 17.48 | 13525 | 13525 | 12850 | 11492 | 11362 | 8792 | 7303 | 5884 | |
| 300 | 100 | 21.44 | 16736 | 16736 | 15819 | 14227 | 14062 | 10879 | 9040 | 7283 | |
| 300 | XXS | 120 | 25.4 | 20015 | 20015 | 18913 | 17011 | 16811 | 13008 | 10804 | 8702 |
| 300 | 140 | 28.58 | 22682 | 22682 | 21435 | 19278 | 19051 | 14744 | 12244 | 9866 | |
| 300 | 160 | 33.32 | 26740 | 26740 | 25273 | 22730 | 22461 | 17383 | 14441 | 11630 | |
| 350 | 10 | 6.35 | 4361 | 4361 | 4120 | 3707 | 3665 | 2831 | 2356 | 1895 | |
| 350 | 20 | 7.92 | 5457 | 5457 | 5161 | 4644 | 4589 | 3548 | 2949 | 2377 | |
| 350 | STD | 30 | 9.53 | 6580 | 6580 | 6222 | 5595 | 5533 | 4279 | 3555 | 2866 |
| 350 | 40 | 11.13 | 7717 | 7717 | 7310 | 6559 | 6477 | 5016 | 4168 | 3355 | |
| 350 | XS | 12.70 | 8833 | 8833 | 8351 | 7510 | 7421 | 5739 | 4768 | 3845 | |
| 350 | 60 | 15.09 | 10541 | 10541 | 9963 | 8964 | 8861 | 6855 | 5691 | 4589 | |
| 350 | 80 | 19.05 | 13421 | 13421 | 12684 | 11410 | 11272 | 9723 | 7248 | 5836 | |
| 350 | 100 | 23.83 | 16949 | 16949 | 16019 | 14407 | 14242 | 11017 | 9157 | 7372 | |
| 350 | 120 | 27.79 | 19933 | 19933 | 18837 | 16943 | 16743 | 12960 | 10762 | 8675 | |
| 350 | 140 | 31.75 | 22964 | 22964 | 21703 | 19519 | 19292 | 14931 | 12402 | 9990 | |
| 350 | 160 | 35.71 | 26051 | 26051 | 24618 | 22144 | 21883 | 16936 | 14069 | 11334 | |
| 400 | 10 | 6.35 | 3810 | 3810 | 3603 | 3238 | 3197 | 2474 | 2060 | 1660 | |
| 400 | 20 | 7.92 | 4768 | 4768 | 4507 | 4051 | 4004 | 3100 | 2577 | 2074 | |
| 400 | STD | 30 | 9.53 | 5746 | 5746 | 5429 | 4885 | 4830 | 3734 | 3100 | 2501 |
| 400 | XS | 40 | 12.70 | 7703 | 7703 | 7283 | 6545 | 6470 | 5009 | 4126 | 3349 |
| 400 | 60 | 16.66 | 10176 | 10176 | 9618 | 8654 | 8550 | 6614 | 5498 | 4430 | |
| 400 | 80 | 21.44 | 13208 | 13208 | 12478 | 11224 | 11093 | 8585 | 7131 | 5746 | |
| 400 | 100 | 26.19 | 16274 | 16274 | 15378 | 13835 | 13670 | 10576 | 8785 | 7076 | |
| 400 | 120 | 30.96 | 19409 | 19409 | 18341 | 16481 | 16302 | 12616 | 10480 | 8440 | |
| 400 | 140 | 36.53 | 23130 | 23130 | 21855 | 19657 | 19430 | 15034 | 12492 | 10059 | |
| 400 | 160 | 40.49 | 25824 | 25824 | 24404 | 21952 | 21697 | 16784 | 13945 | 11238 | |
| 450 | 10 | 6.35 | 3383 | 3383 | 3197 | 2873 | 2839 | 2198 | 1826 | 1474 | |
| 450 | 20 | 7.92 | 4230 | 4230 | 3996 | 3597 | 3555 | 2749 | 2287 | 1839 | |
| 450 | STD | 9.53 | 5099 | 5099 | 4816 | 4334 | 4286 | 3314 | 2756 | 2219 | |
| 450 | XS | 30 | 11.13 | 5967 | 5967 | 5643 | 5071 | 5016 | 3879 | 3225 | 2598 |
| 450 | 12.70 | 6835 | 6835 | 6456 | 5808 | 5739 | 4437 | 3686 | 2969 | ||
| 450 | 40 | 14.27 | 7696 | 7696 | 7276 | 6545 | 6463 | 5002 | 4155 | 3349 | |
| 450 | 60 | 19.05 | 10349 | 10349 | 9784 | 8799 | 8695 | 6725 | 5588 | 4499 | |
| 450 | 80 | 23.83 | 13043 | 13043 | 12326 | 11086 | 10955 | 8475 | 7042 | 5670 | |
| 450 | 100 | 29.36 | 16219 | 16219 | 15323 | 13787 | 13622 | 10542 | 8757 | 7055 | |
| 450 | 120 | 34.93 | 19464 | 19464 | 18389 | 16543 | 16350 | 12650 | 10507 | 8468 | |
| 450 | 140 | 39.67 | 22282 | 22282 | 21056 | 18941 | 18713 | 11483 | 12030 | 9694 | |
| 450 | 160 | 45.24 | 25638 | 25638 | 24225 | 21793 | 21531 | 16660 | 13842 | 11155 | |
| 500 | 10 | 6.35 | 3038 | 3038 | 2873 | 2574 | 2556 | 1977 | 1640 | 1323 | |
| 500 | STD | 20 | 9.53 | 4582 | 4582 | 4327 | 3893 | 3852 | 2976 | 2474 | 1991 |
| 500 | XS | 30 | 12.70 | 6139 | 6139 | 5801 | 5216 | 5154 | 3989 | 3314 | 2666 |
| 500 | 40 | 15.09 | 7317 | 7317 | 6911 | 6215 | 6146 | 4754 | 3948 | 3183 | |
| 500 | 60 | 20.62 | 10080 | 10080 | 9522 | 8564 | 8468 | 6552 | 5443 | 4382 | |
| 500 | 80 | 26.19 | 12898 | 12898 | 12188 | 10962 | 10831 | 8385 | 6966 | 5608 | |
| 500 | 100 | 32.54 | 16171 | 16171 | 15287 | 13746 | 13580 | 10514 | 8730 | 7035 | |
| 500 | 120 | 38.10 | 19085 | 19085 | 18037 | 16226 | 16033 | 12409 | 10307 | 8302 | |
| 500 | 140 | 44.45 | 22475 | 22475 | 21242 | 19106 | 18879 | 14614 | 12140 | 9777 | |
| 500 | 160 | 50.01 | 25450 | 25450 | 24094 | 21675 | 21421 | 16577 | 13766 | 11093 | |
| 600 | 10 | 6.35 | 2529 | 2529 | 2391 | 2150 | 2129 | 1647 | 1364 | 1102 | |
| 600 | STD | 20 | 9.53 | 3810 | 3810 | 3603 | 3238 | 3197 | 2474 | 2060 | 1660 |
| 600 | XS | 12.70 | 5097 | 5097 | 4816 | 4334 | 4286 | 3314 | 2756 | 2219 | |
| 600 | 30 | 14.27 | 5739 | 5739 | 5423 | 4878 | 4823 | 3734 | 3100 | 2494 | |
| 600 | 40 | 17.48 | 7055 | 7055 | 6670 | 5994 | 5925 | 4589 | 3810 | 3066 | |
| 600 | 60 | 24.61 | 10018 | 10018 | 9467 | 8516 | 8420 | 6511 | 5409 | 4361 | |
| 600 | 80 | 30.96 | 12691 | 12691 | 12002 | 10783 | 10659 | 8254 | 6856 | 5519 | |
| 600 | 100 | 38.89 | 16102 | 16102 | 15220 | 13690 | 10528 | 10466 | 8695 | 7007 | |
| 600 | 120 | 46.02 | 19223 | 19223 | 18168 | 16336 | 16150 | 12491 | 10383 | 8364 | |
| 600 | 140 | 52.37 | 22048 | 22048 | 20835 | 18741 | 18520 | 14331 | 11906 | 9591 | |
| 600 | 160 | 59.54 | 25279 | 25279 | 23888 | 21489 | 21235 | 16433 | 13649 | 10996 |
›Dimensions & Weight
Dimension Tolerance of API 5L X65 Pipe
| API 5L X65 Pipes types | API 5L X65 Pipes Size (mm) | API 5L X65 Pipes Size (mm)_2 | Tolerances |
|---|---|---|---|
| Hot rolled API 5L X65 Seamless Pipes | OD | <50 | ±0.50mm |
| Hot rolled API 5L X65 Seamless Pipes | OD | ≥50 | ±1% |
| Hot rolled API 5L X65 Seamless Pipes | WT | <4 | ±12.5% |
| Hot rolled API 5L X65 Seamless Pipes | WT | ≥4~20 | +15%, -12.5% |
| Hot rolled API 5L X65 Seamless Pipes | WT | >20 | ±12.5% |
| Cold drawn API 5L X65 Seamless Pipes | OD | 6~10 | ±0.20mm |
| Cold drawn API 5L X65 Seamless Pipes | OD | 10~30 | ±0.40mm |
| Cold drawn API 5L X65 Seamless Pipes | OD | 30~50 | ±0.45 |
| Cold drawn API 5L X65 Seamless Pipes | OD | >50 | ±1% |
| Cold drawn API 5L X65 Seamless Pipes | WT | <1 | ±0.15mm |
| Cold drawn API 5L X65 Seamless Pipes | WT | >1~3 | + 15%, – 10% |
| Cold drawn API 5L X65 Seamless Pipes | WT | >3 | + 12.5%, – 10% |
›Material Properties
Chemical Equation of API 5l x65 material
Scroll to see all columns →
| Grade | Composition, % | Composition, %_2 | Composition, %_3 | Composition, %_4 | Composition, %_5 | Composition, %_6 | Composition, %_7 | Composition, %_8 |
|---|---|---|---|---|---|---|---|---|
| Grade | C max | Mn max | P | P | S max | V max | Nb max | Ti max |
| Grade | C max | Mn max | min | max | S max | V max | Nb max | Ti max |
| B | 0.28 | 1.2 | – | 0.03 | 0.03 | c.d | c,d | d |
| X65 | 0.28 | 1.4 | – | 0.03 | 0.03 | f | f | f |
Mechanical Characteristics of x65 seamless pipe
Scroll to see all columns →
| Grade | Yield Strength Mpa | Yield Strength Mpa_2 | Tensile Strength Mpa | Tensile Strength Mpa_2 | Raito | Elongation |
|---|---|---|---|---|---|---|
| min | max | min | max | max | min | |
| BN | 245 | 450 | 415 | 655 | 0.93 | f |
| BQ | 245 | 450 | 415 | 655 | 0.93 | f |
| X65Q | 450 | 600 | 535 | 760 | 0.93 | f |

Get a Price
Request a quote for this item
Specify the grade, size, quantity and governing standard, and we'll confirm stock and pricing — typically within the same working day.
Contact
Send us the spec
Grade, form, size and quantity — that's all we need to confirm stock and quote. Reach us directly, or use the form below.
Head Office
Shop No. 5, Ravi Estate, Keval Kantha Road, Near Gujarat Bottling Road, Industrial Area, Rakhial, Ahmedabad, Gujarat – 380023, India
Phone / WhatsApp
+91 93240 06771Working Hours
Monday – Saturday8:00 AM – 8:00 PM
SundayClosed
