ASTM A106 Grade B Pipe
ASTM A106 Grade B Pipe Supplier in India, Check SA 106 Gr. B Seamless Pipe Size. View Dimensions and sizes of Schedule 40 A 106 Grade .B IBR Pipes. Refer Price List of CS A106 GR.B Welded Pipe
Carbon Steel
On This Page
ASTM A106 Grade B Pipe SpecificationA106 Steel Pipes Weight ChartSA 106 Gr B Welded Pipes Outside DiameterSCH 40 SA 106 GR.B Welded Pipes Wall ThicknessASTM A106 Gr B Sch 40 Line Pipe pressure ratingASTM A106 grade b Pipe schedule chart & sizesTesting Requirements of A 106 GR.B PipePermissible Variations in Outside Diameter of Carbon Steel A106 PipeAstm A106 Grade B Chemical CompositionSA106 Grade B Mechanical PropertiesA106 Grade B Equivalent
Gallery
ASTM A106 Grade B Pipe in Detail
Technical Data
Full Specifications
›Technical Data
ASTM A106 Grade B Pipe Specification
| col_1 | col_2 |
|---|---|
| Standards | ASTM, ASME and API |
| Schedules | Schedule 40, 80, 160, XS, XXS |
| Thickness | 3-12mm |
| Type | ERW / Seamless / Fabricated / Welded / CDW |
| Tolerance | Cold drawn: +/-0.1mm Cold rolled: +/-0.05mm |
| Size | 1/2” NB to 36” NB |
| Form | Round, Hydraulic Etc |
| Craft | Cold rolled and Cold drawn |
| End | Plain End, Beveled End, Treaded |
| Length | Minimum 3 Meters, Maximum 18 Meters |
| Export to | Saudi Arabia, Oman, Thailand, Egypt, Singapore, Indonesia, Korea, Iran, Spain, Canada, India, Dubai, Ireland, Brazil, Ukraine, USA, Peru, etc |
| Additional Testing | NACE TM0177, NACE MR0175, NACE TM0284, SSC TEST, HIC TEST, H2 SERVICE, IBR, etc. |
SA 106 Gr B Welded Pipes Outside Diameter
| col_1 | col_2 | col_3 | col_4 | col_5 |
|---|---|---|---|---|
| NPS [DN Designator] | Over | Over | Under | Under |
| NPS [DN Designator] | in. | mm | in. | mm |
| 1/8 to 1-1/2 [6 to 40], incl | 1/64 (0.015) | 0.4 | 1/64 (0.015) | 0.4 |
| Over 1-1/2 to 4 [40 to 100], incl | 1/32 (0.031) | 0.8 | 1/32 (0.031) | 0.8 |
| Over 4 to 8 [100 to 200], incl | 1/16 (0.062) | 1.6 | 1/32 (0.031) | 0.8 |
| Over 8 to 18 [200 to 450], incl | 3/32 (0.093) | 2.4 | 1/32 (0.031) | 0.8 |
| Over 18 to 26 [450 to 650], incl | 1/8 (0.125) | 3.2 | 1/32 (0.031) | 0.8 |
| Over 26 to 34 [650 to 859], incl | 5/32 (0.156) | 4.0 | 1/32 (0.031) | 0.8 |
| Over 34 to 48 [850 to 1200], incl | 3/16 (0.187) | 4.8 | 1/32 (0.031) | 0.8 |

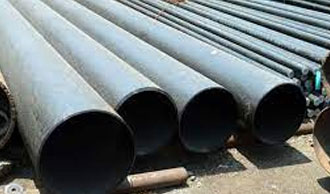

SCH 40 SA 106 GR.B Welded Pipes Wall Thickness
| Out diameter | Wall thickness | Length |
|---|---|---|
| 1/2" NB - 60" NB | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Custom |
| 1/2" NB - 24" NB | As per requirement | Custom |
| 1/2" NB - 24" NB | As per requirement | Custom |
| 16" NB - 100" NB | As per requirement | Custom |
ASTM A106 grade b Pipe schedule chart & sizes
Scroll to see all columns →
| NB | Size | OD | 40S | 5S | 10S | S10 | S20 | S40 | S60 | XS/80S | S80 | S100 | S120 | S140 | S160 | XXS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NB | Size | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| 1/8” | 10.29 | 1.2 | 1.73 | 2.41 | ||||||||||||
| 1/4” | 13.72 | 1.7 | 2.24 | 3.02 | ||||||||||||
| 3/8” | 17.15 | 1.7 | 2.31 | 3.2 | ||||||||||||
| 15 | 1/2” | 21.34 | 2.8 | 1.7 | 2.1 | 2.77 | 3.73 | 3.73 | 4.78 | 7.47 | ||||||
| 20 | 3/4” | 26.67 | 2.9 | 1.7 | 2.1 | 2.87 | 3.91 | 3.91 | 5.56 | 7.82 | ||||||
| 25 | 1” | 33.4 | 3.4 | 1.7 | 2.8 | 3.38 | 4.55 | 4.55 | 6.35 | 9.09 | ||||||
| 32 | 1 1/4” | 42.16 | 3.6 | 1.7 | 2.8 | 3.56 | 4.85 | 4.85 | 6.35 | 9.7 | ||||||
| 40 | 1 1/2” | 48.26 | 3.7 | 1.7 | 2.8 | 3.68 | 5.08 | 5.08 | 7.14 | 10.2 | ||||||
| 50 | 2” | 60.33 | 3.9 | 1.7 | 2.8 | 3.91 | 5.54 | 5.54 | 9.74 | 11.1 | ||||||
| 65 | 2 1/2” | 73.03 | 5.2 | 2.1 | 3.1 | 5.16 | 7.01 | 7.01 | 9.53 | 14 | ||||||
| 80 | 3” | 88.9 | 5.5 | 2.1 | 3.1 | 5.49 | 7.62 | 7.62 | 11.1 | 15.2 | ||||||
| 90 | 3 1/2” | 101.6 | 5.7 | 2.1 | 3.1 | 5.74 | 8.08 | 8.08 | ||||||||
| 100 | 4” | 114.3 | 6 | 2.1 | 3.1 | 6.02 | 8.56 | 8.56 | 11.1 | 13.5 | 17.1 | |||||
| 125 | 5” | 141.3 | 6.6 | 2.8 | 3.4 | 6.55 | 9.53 | 9.53 | 12.7 | 15.9 | 19.1 | |||||
| 150 | 6” | 168.3 | 7.1 | 2.8 | 3.4 | 7.11 | 10.97 | 11 | 14.3 | 18.3 | 22 | |||||
| 200 | 8” | 219.1 | 8.2 | 2.8 | 3.8 | 6.4 | 8.18 | 10.3 | 12.7 | 12.7 | 15.1 | 19.3 | 20.6 | 23 | 22.2 | |
| 250 | 10” | 273.1 | 9.3 | 3.4 | 4.2 | 6.4 | 9.27 | 12.7 | 12.7 | 15.1 | 19.3 | 21.4 | 25.4 | 28.6 | 25.4 | |
| 300 | 12” | 323.9 | 9.5 | 4 | 4.6 | 6.4 | 10.3 | 14.3 | 12.7 | 17.5 | 21.4 | 25.4 | 28.6 | 33.3 | 25.4 | |
| 350 | 14” | 355.6 | 9.5 | 4 | 4.8 | 6.4 | 7.9 | 11.1 | 15.1 | 12.7 | 19.1 | 23.8 | 27.8 | 31.8 | 35.7 | |
| 400 | 16” | 406.4 | 9.5 | 4.2 | 4.8 | 6.4 | 7.9 | 12.7 | 16.7 | 12.7 | 21.4 | 26.2 | 31 | 36.5 | 40.5 | |
| 450 | 18” | 457.2 | 9.5 | 4.2 | 4.8 | 6.4 | 7.9 | 14.3 | 19.1 | 12.7 | 23.8 | 29.4 | 34.9 | 39.7 | 45.2 | |
| 500 | 20” | 508 | 9.5 | 4.8 | 5.5 | 6.4 | 9.5 | 15.1 | 20.6 | 12.7 | 26.2 | 32.5 | 38.1 | 44.5 | 50 | |
| 550 | 22” | 558.8 | 9.5 | 4.8 | 5.5 | 6.4 | 9.5 | 22.2 | 12.7 | 28.6 | 34.9 | 41.3 | 47.6 | 54 | ||
| 600 | 24” | 609.6 | 9.5 | 5.5 | 6.4 | 6.4 | 9.5 | 17.5 | 24.6 | 12.7 | 31 | 38.9 | 46 | 52.4 | 59.5 | |
| 650 | 26” | 660.4 | 9.5 | 7.9 | 13 | 12.7 | ||||||||||
| 700 | 28” | 711.2 | 9.5 | 7.9 | 13 | 12.7 | ||||||||||
| 750 | 30” | 762 | 9.5 | 6.4 | 7.9 | 7.9 | 13 | 12.7 | ||||||||
| 800 | 32” | 812.8 | 9.5 | 7.9 | 13 | 17.5 | 12.7 | |||||||||
| 850 | 34” | 863.6 | 9.5 | 7.9 | 13 | 17.5 | 12.7 | |||||||||
| 900 | 36” | 914.4 | 9.5 | 7.9 | 13 | 19.1 | 12.7 |
Permissible Variations in Outside Diameter of Carbon Steel A106 Pipe
| col_1 | col_2 | col_3 | col_4 | col_5 |
|---|---|---|---|---|
| NPS [DN Designator] | Over | Over | Under | Under |
| NPS [DN Designator] | in. | mm | in. | mm |
| 1/8 to 1-1/2 [6 to 40], incl | 1/64 (0.015) | 0.4 | 1/64 (0.015) | 0.4 |
| Over 1-1/2 to 4 [40 to 100], incl | 1/32 (0.031) | 0.8 | 1/32 (0.031) | 0.8 |
| Over 4 to 8 [100 to 200], incl | 1/16 (0.062) | 1.6 | 1/32 (0.031) | 0.8 |
| Over 8 to 18 [200 to 450], incl | 3/32 (0.093) | 2.4 | 1/32 (0.031) | 0.8 |
| Over 18 to 26 [450 to 650], incl | 1/8 (0.125) | 3.2 | 1/32 (0.031) | 0.8 |
| Over 26 to 34 [650 to 859], incl | 5/32 (0.156) | 4.0 | 1/32 (0.031) | 0.8 |
| Over 34 to 48 [850 to 1200], incl | 3/16 (0.187) | 4.8 | 1/32 (0.031) | 0.8 |
A106 Grade B Equivalent
| col_1 | Former | Former_2 | New | New_2 |
|---|---|---|---|---|
| Execution | Standard | Material | Standard | Material |
| Seamless | ASTM A106 | GRADE B | EN 10216-2 | P265GH |
If You Searching A Supplier From These Places Check Our Supplies Below
| col_1 | col_2 |
|---|---|
| ASTM A106 GRADE B 3/4"-24" Seamless Steel pipe | South Africa, Singapore, Bahrain, Singapore |
| ASTM A106 grade b seamless steel pipe for oil and gas | South Korea, NY 12203 (USA), Singapore, Malaysia |
| ASTM A106 Grade B Sch40 Black Iron Steel Pipe | Europe, Malaysia, United Kingdom -UK, UAE |
| ASTM A53 grade b straight seam ERW black steel pipe | Saudi Arabia (KSA), Kuwait, South Africa, Brazil |
| ASTM A106 Grade B SCH40 Carbon Steel Seamless Pipe For Oil Pipeline | Australia, UK, Philippines, Nigeria |
| ASTM A106 grade B sch40 seamless steel pipes | Indonesia, Philippines, Dammam -KSA, Belgium |
| A106 Grade. B Large outer Diameter Seamless Steel Pipe | France, Europe, Qatar, Thailand |
| ASTM A106 Grade B Seamless Pipe 1/2inch to 24 inch SCh 40 SCH 80 SCH 120 | Malaysia, Russia, Netherlands, Dubai |
| ASTM A106 GR.B 3PE COATING seamless steel pipe | Malaysia, Hong Kong, Oman, UAE |
| ASTM A106 grade B sch 40 grooved ends Pipe | USA, Bangladesh, Malaysia, Finland |
| ASTM A106 grade B 24 inch seamless steel pipe | Japan, Romania, Europe, Malaysia |
| ASTM A106 Grade B hot rolled seamless carbon steel pipe NPS 4 | Malaysia, Canada, Philippines, Singapore |
| Astm A106 Grade B Seamless Pipe 1/2 Inch To 24 Inch Sch 40 | Taiwan, Los Alamos -Mexico, Malaysia, Philippines |
| A106 Grade B 26 Inch Sch40 Carbon Seamless Steel Pipe | Spain, Mexico, Egypt, UK |
| ASTM A106 Grade B Seamless Schedule 40 pipes length of 12 meter | Canada, Poland, UK, Ellington -the United States |
| Sch40 A106 Gr.B Pipe Seamless Pipe | Italy, Iran, Chile, Singapore |

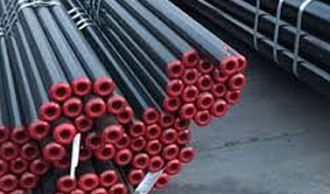

| ASTM A106 Grade B Sch120 Hot Rolled Seamless Steel pipe | Turkey, Norway, United Arab Emirates (UAE), Malaysia |
| ASTM A106 grade b seamless pipe 3 inch black | Colombia, Malaysia, Sweden, China |
| 10" SCH80 6M length Seamless steel pipe ASTM A106 Grade B | Germany, Thailand, Czechia, Malaysia |
›Dimensions & Weight
A106 Steel Pipes Weight Chart
Scroll to see all columns →
| Size | Other Diameter | I.D. | WT | Standard to XXHY | Weight | Section Modulus | Schedule / # | Gallon |
|---|---|---|---|---|---|---|---|---|
| 1/2 | 0.84 | 0.622 | 0.109 | STD | 0.85 | .0407 | 40 | .0158 |
| 0.546 | 0.147 | XHY | 1.09 | .0478 | 80 | .0122 | ||
| 0.464 | 0.188 | 1.31 | .0528 | 160 | .0088 | |||
| 3/4 | 1.05 | 0.824 | 0.113 | STD | 1.13 | .0705 | 40 | .0277 |
| 0.742 | 0.154 | XHY | 1.48 | .0853 | 80 | .0225 | ||
| 0.612 | 0.219 | 1.95 | .1006 | 160 | .0153 | |||
| 1 | 1.315 | 1.049 | 0.133 | STD | 1.68 | .1328 | 40 | .0449 |
| 0.957 | 0.179 | XHY | 2.17 | .1606 | 80 | .0374 | ||
| 0.815 | 0.250 | 2.85 | .1904 | 160 | .0271 | |||
| 1 1/4 | 1.66 | 1.380 | 0.140 | STD | 2.27 | .2346 | 40 | .0777 |
| 1.278 | 0.191 | XHY | 3.00 | .2913 | 80 | .0666 | ||
| 1.160 | 0.250 | 3.77 | .3421 | 160 | .0549 | |||
| 1 1/2 | 1.90 | 1.610 | 0.145 | STD | 2.72 | .3262 | 40 | .1058 |
| 1.500 | 0.200 | XHY | 3.63 | .4118 | 80 | .0918 | ||
| 1.338 | 0.281 | 4.86 | .5079 | 160 | .0730 | |||
| 2 | 2.375 | 2.157 | 0.109 | 2.64 | .4205 | 10 | .1898 | |
| 2.067 | 0.154 | STD | 3.66 | .5606 | 40 | .1743 | ||
| 1.939 | 0.218 | XHY | 5.03 | .7309 | 80 | .1534 | ||
| 1.875 | 0.250 | 5.68 | .8045 | .1434 | ||||
| 1.813 | 0.281 | 6.29 | .8666 | .1344 | ||||
| 1.687 | 0.344 | 7.47 | .9806 | 160 | .1161 | |||
| 2 1/2 | 2.875 | 2.635 | 0.120 | 3.53 | .6870 | 10 | .2833 | |
| 2.469 | 0.203 | STD. | 5.80 | 1.0640 | 40 | .2487 | ||
| 2.443 | 0.216 | 6.14 | 1.1169 | .2435 | ||||
| 2.375 | 0.250 | 7.02 | 1.2468 | .2301 | ||||
| 2.323 | 0.276 | XHY | 7.67 | 1.3386 | 80 | .2202 | ||
| 2.125 | 0.375 | 10.02 | 1.6371 | 160 | .1842 | |||
| 3 | 3.50 | 3.260 | 0.120 | 4.34 | 1.0411 | .4336 | ||
| 3.188 | 0.156 | 5.58 | 1.3122 | .4147 | ||||
| 3.156 | 0.172 | 6.12 | 1.4265 | .4064 | ||||
| 3.124 | 0.188 | 6.66 | 1.5342 | .3984 | ||||
| 3.068 | 0.216 | STD. | 7.58 | 1.7241 | 40 | .3840 | ||
| 3.000 | 0.250 | 8.69 | 1.9372 | .3672 | ||||
| 2.938 | 0.281 | 9.67 | 2.1207 | .3521 | ||||
| 2.900 | 0.300 | XHY | 10.26 | 2.2253 | 80 | .3431 | ||
| 2.624 | 0.438 | 14.34 | 2.8774 | 160 | .2811 | |||
| 3 1/2 | 4.0 | 3.760 | 0.120 | 4.98 | 1.3776 | 10 | .5768 | |
| 3.548 | 0.226 | STD. | 9.12 | 2.3939 | 140 | .5136 | ||
| 3.500 | 0.250 | 10.02 | 2.6001 | .4998 | ||||
| 3.438 | 0.281 | 11.17 | 2.8562 | .4821 | ||||
| 3.364 | 0.318 | XHY | 12.52 | 3.1400 | 80 | .4617 | ||
| 4 | 4.5 | 4.260 | 0.120 | 5.62 | 1.7612 | 10 | .7404 | |
| 4.188 | 0.156 | 7.24 | 2.2354 | .7156 | ||||
| 4.124 | 0.188 | 8.67 | 2.6296 | .6942 | ||||
| 4.094 | 0.203 | 9.32 | 2.8173 | .6838 | ||||
| 4.062 | 0.219 | 10.02 | 3.0184 | .6725 | ||||
| 4.026 | 0.237 | STD. | 10.80 | 3.2145 | 40 | .6613 | ||
| 4.000 | 0.250 | 11.36 | 3.3611 | .6528 | ||||
| 3.938 | 0.281 | 12.67 | 3.7021 | 60 | .6326 | |||
| 3.876 | 0.312 | 13.97 | 4.0273 | .6126 | ||||
| 3.826 | 0.337 | XHY | 15.00 | 4.2713 | 80 | .5972 | ||
| 3.624 | 0.438 | 19.02 | 5.1790 | 120 | .5361 | |||
| 3.438 | 0.531 | 22.53 | 5.8997 | 160 | .4822 | |||
| 5 | 5.563 | 5.187 | 0.188 | 10.80 | 4.1161 | 1.0979 | ||
| 5.125 | 0.219 | 12.51 | 4.7279 | 1.0716 | ||||
| 5.047 | 0.258 | STD. | 14.63 | 5.4500 | 40 | 1.0391 | ||
| 5.001 | 0.281 | 15.87 | 5.8644 | 1.0204 | ||||
| 4.939 | 0.312 | 17.51 | 6.4074 | .99647 | ||||
| 4.875 | 0.344 | 19.19 | 6.9358 | .9696 | ||||
| 4.813 | 0.375 | XHY | 20.80 | 7.4300 | 80 | .9449 | ||
| 4.563 | 0.500 | 27.06 | 9.2534 | 120 | .8495 | |||
| 4.313 | 0.625 | 32.99 | 10.7976 | 160 | .7590 | |||
| 6 | 6.625 | 6.407 | 0.109 | 7.59 | 3.5769 | 5 | 1.6748 | |
| 6.357 | 0.134 | 9.30 | 4.3475 | 10 | 1.6488 | |||
| 6.313 | 0.156 | 10.79 | 5.0107 | 1.6260 | ||||
| 6.249 | 0.188 | 12.94 | 5.9351 | 1.5937 | ||||
| 6.219 | 0.203 | 13.94 | 6.3804 | 1.5780 | ||||
| 6.187 | 0.219 | 15.00 | 6.8261 | 1.5620 | ||||
| 6.125 | 0.250 | 17.04 | 7.6905 | 1.5306 | ||||
| 6.065 | 0.280 | STD. | 18.99 | 8.4958 | 40 | 1.5008 | ||
| 6.001 | 0.312 | 21.06 | 9.3416 | 1.4688 | ||||
| 5.937 | 0.344 | 23.10 | 10.111 | 1.4391 | ||||
| 5.875 | 0.375 | 25.05 | 10.893 | 1.4082 | ||||
| 5.761 | 0.432 | XHY | 28.60 | 12.224 | 80 | 1.3541 | ||
| 5.625 | 0.500 | 32.74 | 13.711 | 1.2909 | ||||
| 5.501 | 0.562 | 36.43 | 14.9806 | 120 | 1.2346 | |||
| 5.375 | 0.625 | 40.09 | 16.1821 | 1.1787 | ||||
| 5.187 | 0.719 | 45.39 | 17.8243 | 160 | 1.0977 | |||
| 4.897 | 0.864 | XXHY | 53.21 | 20.025 | .9784 | |||
| 4.625 | 1.000 | 60.13 | 21.7719 | .8727 | ||||
| 4.375 | 1.125 | 66.14 | 23.1237 | .7809 |
›Pressure Ratings
ASTM A106 Gr B Sch 40 Line Pipe pressure rating
Scroll to see all columns →
| NPS | Outside Diameter | Schedule | Schedule_2 | Schedule_3 | Schedule_4 | Schedule_5 | Schedule_6 | Schedule_7 | Schedule_8 | Schedule_9 | Schedule_10 | Schedule_11 | Schedule_12 | Schedule_13 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | 10 | 20 | 30 | STD | 40 | 60 | XS | 80 | 100 | 120 | 140 | 160 | XXS |
| 1/4 | 0.54 | 7985 | 7985 | 10798 | 10798 | |||||||||
| 3/8 | 0.675 | 6606 | 6606 | 9147 | 9147 | |||||||||
| 1/2 | 0.84 | 6358 | 6358 | 8575 | 8575 | 10908 | 17150 | |||||||
| 3/4 | 1.05 | 5273 | 5273 | 7187 | 7187 | 10220 | 14373 | |||||||
| 1 | 1.315 | 4956 | 4956 | 6670 | 6670 | 9316 | 13340 | |||||||
| 1 1/4 | 1.66 | 4133 | 4133 | 5638 | 5638 | 7380 | 11276 | |||||||
| 1 1/2 | 1.9 | 3739 | 3739 | 5158 | 5158 | 7247 | 10316 | |||||||
| 2 | 2.375 | 3177 | 3177 | 4498 | 4498 | 7097 | 8995 | |||||||
| 2 1/2 | 2.875 | 3460 | 3460 | 4704 | 4704 | 6391 | 9408 | |||||||
| 3 | 3.5 | 3024 | 3024 | 4200 | 4200 | 6132 | 8400 | |||||||
| 3 1/2 | 4 | 2769 | 2769 | 3896 | 3896 | |||||||||
| 4 | 4.5 | 2581 | 2581 | 3670 | 3670 | 4769 | 5782 | 7339 | ||||||
| 5 | 5.563 | 2273 | 2273 | 3303 | 3303 | 4404 | 5505 | 6606 | ||||||
| 6 | 6.625 | 2071 | 2071 | 3195 | 3195 | 4157 | 5318 | 6390 | ||||||
| 8 | 8.625 | 1420 | 1574 | 1829 | 1829 | 2307 | 2841 | 2841 | 3375 | 4085 | 4613 | 5147 | 4971 | |
| 10 | 10.75 | 1140 | 1399 | 1664 | 1664 | 2279 | 2279 | 2708 | 3277 | 3847 | 4558 | 5128 | 4558 | |
| 12 | 12.75 | 961 | 1268 | 1441 | 1560 | 2160 | 1922 | 2644 | 3244 | 3843 | 4324 | 5042 | 3843 | |
| 14 | 14 | 875 | 1092 | 1313 | 1313 | 1533 | 2079 | 1750 | 2625 | 3283 | 3829 | 4375 | 4921 | |
| 16 | 16 | 766 | 956 | 1148 | 1148 | 1531 | 2009 | 1531 | 2585 | 3157 | 3733 | 4404 | 4882 | |
| 18 | 18 | 681 | 849 | 1192 | 1021 | 1530 | 2042 | 1361 | 2553 | 3147 | 3743 | 4252 | 4848 | |
| 20 | 20 | 613 | 919 | 1225 | 919 | 1455 | 1989 | 1225 | 2526 | 3138 | 3675 | 4288 | 4824 | |
| 22 | 22 | 557 | 835 | 1114 | 835 | 1949 | 1114 | 2506 | 3063 | 3619 | 4176 | 4733 | ||
| 24 | 24 | 510 | 766 | 1147 | 766 | 1405 | 1978 | 1021 | 2489 | 3126 | 3700 | 4210 | 4786 | |
| 30 | 30 | 510 | 817 | 1021 | 613 | 817 | ||||||||
| 32 | 32 | 478 | 766 | 957 | 574 | 1054 | ||||||||
| 34 | 34 | 450 | 721 | 901 | 540 | 992 | ||||||||
| 36 | 36 | 425 | 681 | 851 | 510 | 1021 | ||||||||
| 42 | 42 | 583 | 729 | 438 | 875 |
›Standards & Compliance
Testing Requirements of A 106 GR.B Pipe
| col_1 | col_2 | col_3 |
|---|---|---|
| NPS | On One Length from Each Lot of | |
| Tensile Test | 5 and smaller | <= 400 |
| 6 and larger | <= 200 | |
| Bending Test | 2 and smaller | <= 400 |
| Flattening Test | 2 through 5 | <= 400 |
| 6 and over | <= 200 |
›Material Properties
Astm A106 Grade B Chemical Composition
| col_1 | col_2 | col_3 | col_4 |
|---|---|---|---|
| Grade A | Grade B | Grade C | |
| Carbon max. % | 0.25 | 0.30* | 0.35* |
| *Manganese % | 0.27 to 0.93 | *0.29 to 1.06 | *0.29 to 1.06 |
| Phosphorous, max. % | 0.035 | 0.035 | 0.035 |
| Sulfur, max. % | 0.035 | 0.035 | 0.035 |
| Silicon, min.% | 0.10 | 0.10 | 0.10 |
| Chrome, max. % | 0.40 | 0.40 | 0.40 |
| Copper, max. % | 0.40 | 0.40 | 0.40 |
| Molybdenum, max. % | 0.15 | 0.15 | 0.15 |
| Nickel, max. % | 0.40 | 0.40 | 0.40 |
| Vanadium, max.% | 0.08 | 0.08 | 0.08 |
SA106 Grade B Mechanical Properties
| col_1 | Grade A | Grade B | Grade C |
|---|---|---|---|
| Tensile Strength, min., psi | 48,000 | 60,000 | 70,000 |
| Yield Strength, min., psi | 30,000 | 35,000 | 40,000 |
ASTM A106 Grade B Pipe
Get a Price
Request a quote for this item
Specify the grade, size, quantity and governing standard, and we'll confirm stock and pricing — typically within the same working day.
Contact
Send us the spec
Grade, form, size and quantity — that's all we need to confirm stock and quote. Reach us directly, or use the form below.
Enquiry FormReply same working day
Direct Contact
Head Office
Shop No. 5, Ravi Estate, Keval Kantha Road, Near Gujarat Bottling Road, Industrial Area, Rakhial, Ahmedabad, Gujarat – 380023, India
Phone / WhatsApp
+91 93240 06771Working Hours
Monday – Saturday8:00 AM – 8:00 PM
SundayClosed
