ASTM A53 Grade B Pipe

Largest ASTM A53 Grade B Pipe Manufacturer In India. Stock Of Sch 40 SA53 Gr B Seamless Pipe. Check ASTM A53 type s grade b Welded Pipe Price. View Sizes of carbon steel a53 grade b Pipe

Carbon Steel

On This Page

ASTM A53 Grade B Pipe Specifications ASTM A53 Grade B Black Steel Pipe Dimension Standard Avalaibale length of Sch 40 SA53 Gr B Seamless Pipe ASTM A53 Grade B ERW Pipes Schedule Chart Outside Diameter of SA53 Gr.B pipes Pressure Rating of carbon steel pipe astm a53 grade b Astm A53 Grade B Type E Pipe Tensile Strength Testing Requirements of Steel A53 Grade B Seamless Pipe Hot Forming And Heat Treatment of ASTM A53 Schedule 40 pipe Composition Chart of Schedule 80 Sa53 Grade B Pipe Mechanical Characteristics of CS A53 gr b Pipe Physical Properties of Carbon Steel A53 Welded Pipe

Gallery

ASTM A53 Grade B Pipe in Detail

Technical Data

Full Specifications

›Technical Data

ASTM A53 Grade B Pipe Specifications

col_1	col_2
Standards	ASTM, ASME and API
Type	ERW / Seamless / Fabricated / Welded / CDW
Schedules	Schedule 40, 80, 160, XS, XXS
Size	1/2” NB to 36” NB
Form	Round, Hydraulic Etc
Craft	Cold rolled and Cold drawn
Thickness	3-12mm
Tolerance	Cold drawn: +/-0.1mm Cold rolled: +/-0.05mm
Export to	Brazil, Saudi Arabia, Singapore, Indonesia, Korea, Iran, Spain, Canada, India, Dubai, Ireland, Oman, Thailand, Egypt, Ukraine, USA, Peru, etc
End	Plain End, Beveled End, Treaded
Length	Minimum 3 Meters, Maximum 18 Meters
Additional Testing	NACE TM0177, NACE MR0175, NACE TM0284, SSC TEST, HIC TEST, H2 SERVICE, IBR, etc.

Avalaibale length of Sch 40 SA53 Gr B Seamless Pipe

col_1	col_2
	Single Random — 16′ – 22′. 5% may be jointers. If Plain Ends — 5% may be 12′ – 16′.
	Double Random — Shortest Length 22′, minimum average for order 35′.
Extra Strong and Double Extra Strong	Extra Strong and Double Extra Strong
	Single Random — 12′ -22′. 5% may be 6′ – 12′.
	Double Random (XS and lighter) — Shortest Length 22′, minimum average for order 35′.
	Lengths longer than single random with wall thicknesses heavier than XS subject to negotiation.

ASTM A53 Grade B ERW Pipes Schedule Chart

Scroll to see all columns →

NB	OD	Size	40S	5S	10S	S10	S20	S60	S40	S80	XS/80S	S120	S100	S160	S140	XXS
	13.72	1/4			1.7				2.24	3.02
	17.15	3/8			1.7				2.31	3.2
20	26.67	3/4	2.9	1.7	2.1				2.87	3.91	3.91			5.56		7.82
25	33.4	1	3.4	1.7	2.8				3.38	4.55	4.55			6.35		9.09
32	42.16	1 1/4	3.6	1.7	2.8				3.56	4.85	4.85			6.35		9.7
40	48.26	1 1/2	3.7	1.7	2.8				3.68	5.08	5.08			7.14		10.2
50	60.33	2	3.9	1.7	2.8				3.91	5.54	5.54			9.74		11.1
65	73.03	2 1/2	5.2	2.1	3.1				5.16	7.01	7.01			9.53		14
90	101.6	3 1/2	5.7	2.1	3.1				5.74	8.08	8.08
100	114.3	4	6	2.1	3.1				6.02	8.56	8.56	11.1		13.5		17.1
150	168.3	6	7.1	2.8	3.4				7.11	11	10.97	14.3		18.3		22
300	323.9	12	9.5	4	4.6		6.4	14.3	10.3	17.5	12.7	25.4	21.4	33.3	28.6	25.4
350	355.6	14	9.5	4	4.8	6.4	7.9	15.1	11.1	19.1	12.7	27.8	23.8	35.7	31.8
450	457.2	18	9.5	4.2	4.8	6.4	7.9	19.1	14.3	23.8	12.7	34.9	29.4	45.2	39.7
500	508	20	9.5	4.8	5.5	6.4	9.5	20.6	15.1	26.2	12.7	38.1	32.5	50	44.5
600	609.6	24	9.5	5.5	6.4	6.4	9.5	24.6	17.5	31	12.7	46	38.9	59.5	52.4
650	660.4	26	9.5			7.9	13				12.7
750	762	30	9.5	6.4	7.9	7.9	13				12.7
800	812.8	32	9.5			7.9	13		17.5		12.7
900	914.4	36	9.5			7.9	13		19.1		12.7

Outside Diameter of SA53 Gr.B pipes

For NPS 1 1/2 and Smaller Sizes	For NPS 1 1/2 and Smaller Sizes_2	For NPS 2 and Larger Sizes	For NPS 2 and Larger Sizes_2
1/64"	1/32" under	1% over	1%under

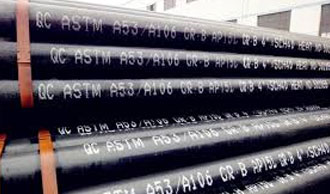

Astm A53 Grade B Type E Pipe Tensile Strength

Grade	Tensile Strength
A53 Gr.B /	415

Physical Properties of Carbon Steel A53 Welded Pipe

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
Density at 20 °C / Kg/dm³	Modulus of elasticity kN/mm² at	Modulus of elasticity kN/mm² at	Modulus of elasticity kN/mm² at	Modulus of elasticity kN/mm² at	Thermal conductivity at 20 C° / W/m K	Spec. thermal capacity at 20 C° / J/kg K	Spec. electrical resistivity at 20 °C / Ω mm²/m
Density at 20 °C / Kg/dm³	20 C°	300 C°	400 C°	450 C°	Thermal conductivity at 20 C° / W/m K	Spec. thermal capacity at 20 C° / J/kg K	Spec. electrical resistivity at 20 °C / Ω mm²/m
7,85	210	192	184	179	51	461	0,20

Check Our Material Dispatch In The Following Countries

col_1	col_2
Hot rolled steel pipe Astm a53	Taiwan, Los Alamos -Mexico, Malaysia, Philippines
ASTM A53 grade b seamless steel pipe for oil and gas	Malaysia, Canada, Philippines, Singapore
ASTM A53 grade b straight seam ERW black steel pipe	Colombia, Malaysia, Sweden, China
ASTM A53 Grade B SCH40 black painting 3 inch	Malaysia, Russia, Netherlands, Dubai
astm a53 b grade 25 x 25 mm galvanized black square steel pipe	Spain, Mexico, Egypt, UK
ASTM A53 Grade B 12 inch hot dipped galvanized pipe	Saudi Arabia (KSA), Kuwait, South Africa, Brazil
ASTM A53 Grade B Schedule 40 Seamless Black Steel Pipe	Canada, Poland, UK, Ellington -the United States
ASTM A53 DN600 SCH 80S Pipe	USA, Bangladesh, Malaysia, Finland
ASTM A53 SCH 40 Grade B GI Pipe	Italy, Iran, Chile, Singapore
14 inch A53 Grade b Erw Pipes	Malaysia, Hong Kong, Oman, UAE
ASME B36.10 ASTM A53 Grade B 28 Inch Large Diameter LSAW Welded Steel Pipe	Germany, Thailand, Czechia, Malaysia
16mm a53 grade b line pipe	Turkey, Norway, United Arab Emirates (UAE), Malaysia
SA53 grade seamless steel pipe for oil and gas	Europe, Malaysia, United Kingdom -UK, UAE
ASME B36.10M BE SMLS SCH30 ASTM a53 GR.B	Indonesia, Philippines, Dammam -KSA, Belgium
1/8" - 24" ansi b36.10 a53 gr .b sch40 pipe	Australia, UK, Philippines, Nigeria
Pipe ASTM A53 Grade B SAW	Japan, Romania, Europe, Malaysia
A53 grb 2 inches galvanized carbon weld steel pipe	South Korea, NY 12203 (USA), Singapore, Malaysia
ASTM A53 gr.b schedule 60 erw pipe	South Africa, Singapore, Bahrain, Singapore
ASTM A53 Grade B 3/4inch 25mm galvanized steel pipes	France, Europe, Qatar, Thailand

›Dimensions & Weight

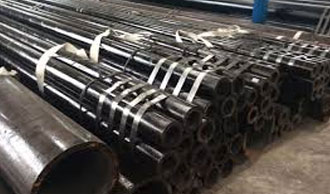

ASTM A53 Grade B Black Steel Pipe Dimension Standard

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7
NPS Designator	DN Designator	Outside Diameter	Inside Diameter	Wall Thickness	Nominal Weight (Mass) per unit Length	Nominal Weight (Mass) per unit Length
NPS Designator	DN Designator	(mm)	(mm)	(mm)	Plain End (kg/m)	Threads & Couplings (kg/m
1/8″	6	10.3	6.8	1.73	0.37	0.37
1/4″	8	13.7	9.2	2.24	0.63	0.63
3/8″	10	17.1	12.5	2.31	0.84	0.84
1/2″	15	21.3	15.8	2.77	1.27	1.27
3/4″	20	26.7	20.9	2.87	1.69	1.69
1″	25	33.4	26.6	3.38	2.5	2.5
1-1/4″	32	42.2	35.1	3.56	3.39	3.4
1-1/2″	40	48.3	40.9	3.68	4.05	4.04
2″	50	60.3	52.5	3.91	5.44	5.46
2-1/2″	65	73	62.7	5.16	8.63	8.67
3″	80	88.9	77.9	5.49	11.29	11.35
3-1/2″	90	101.6	90.1	5.74	13.57	13.71
4″	100	114.3	102.3	6.02	16.07	16.23
5″	125	141.3	158.2	6.55	21.77	22.07
6″	150	168.3	154.1	7.11	28.26	28.58
8″	200	219.1	202.7	8.18	42.55	43.73
10″	250	273	254.5	9.27	60.29	63.36
12″	300	323.8	304.8	9.52	73.78	76.21

›Pressure Ratings

Pressure Rating of carbon steel pipe astm a53 grade b

Scroll to see all columns →

Nominal Size / (inches)	Pipe Outside Diameter / OD / (inches)	Schedule Number or weight	Wall Thickness / – t – / (inches)	Inside Diameter / – d – / (inches)	Working Pressure ASTM A53 B to 400°F	Working Pressure ASTM A53 B to 400°F_2	Working Pressure ASTM A53 B to 400°F_3
Nominal Size / (inches)	Pipe Outside Diameter / OD / (inches)	Schedule Number or weight	Wall Thickness / – t – / (inches)	Inside Diameter / – d – / (inches)	Manu- / facturing Process	Joint Type	psig
1/4	0.540	40ST	0.088	0.364	CW1)	T	188
1/4	0.540	80XS	0.119	0.302	CW	T	871
3/8	0.675	40ST	0.091	0.493	CW	T	203
3/8	0.675	80XS	0.126	0.423	CW	T	820
1/2	0.840	40ST	0.109	0.622	CW	T	214
1/2	0.840	80XS	0.147	0.546	CW	T	753
3/4	1.050	40ST	0.113	0.824	CW	T	217
3/4	1.050	80XS	0.154	0.742	CW	T	681
1	1.315	40ST	0.133	1.049	CW	T	226
1	1.315	80XS	0.179	0.957	CW	T	642
1 1/4	1.660	40ST	0.140	1.380	CW	T	229
1 1/4	1.660	80XS	0.191	1.278	CW	T	594
1 1/2	1.900	40ST	0.145	1.610	CW	T	231
1 1/2	1.900	80XS	0.200	1.500	CW	T	576
2	2.375	40ST	0.154	2.067	CW	T	230
2	2.375	80XS	0.218	1.939	CW	T	551
2 1/2	2.875	40ST	0.203	2.469	CW	W	533
2 1/2	2.875	80XS	0.276	2.323	CW	W	835
3	3.500	40ST	0.216	3.068	CW	W	482
3	3.500	80XS	0.300	2.900	CW	W	767
4	4.500	40ST	0.237	4.026	CW	W	430
4	4.500	80XS	0.337	3.826	CW	W	695
6	6.625	40ST	0.280	6.065	ERW2)	W	696
6	6.625	80XS	0.432	5.761	ERW	W	1209
8	8.625	30	0.277	8.071	ERW	W	526
8	8.625	40ST	0.322	7.981	ERW	W	643
8	8.625	80XS	0.500	7.625	ERW	W	1106
10	10.75	30	0.307	10.136	ERW	W	485
10	10.75	40ST	0.365	10.020	ERW	W	606
10	10.75	XS	0.500	9.750	ERW	W	887
10	10.75	80	0.593	9.564	ERW	W	1081
12	12.75	30	0.330	12.090	ERW	W	449
12	12.75	ST	0.375	12.000	ERW	W	528
12	12.75	40	0.406	11.938	ERW	W	583
12	12.75	XS	0.500	11.750	ERW	W	748
12	12.75	80	0.687	11.376	ERW	W	1076
14	14.00	30ST	0.375	13.250	ERW	W	481
14	14.00	40	0.437	13.126	ERW	W	580
14	14.00	XS	0.500	13.000	ERW	W	681
14	14.00	80	0.750	12.500	ERW	W	1081
16	16.00	30ST	0.375	15.250	ERW	W	421
16	16.00	40XS	0.500	15.000	ERW	W	596
18	18.00	ST	0.375	17.250	ERW	W	374
18	18.00	30	0.437	17.126	ERW	W	451
18	18.00	XS	0.500	17.000	ERW	W	530
18	18.00	40	0.562	16.876	ERW	W	607
20	20.00	20ST	0.375	19.250	ERW	W	337
20	20.00	30XS	0.500	19.000	ERW	W	477
20	20.00	40	0.593	18.814	ERW	W	581

›Standards & Compliance

Testing Requirements of Steel A53 Grade B Seamless Pipe

col_1	col_2	col_3
Test	ASTM A53 Grade A	ASTM A53 Grade B
Yield	30,000 psi	35,000 psi
Tensile	48,000 psi	60,000 psi
Elongation	Determined by formula	Determined by formula

›Finishes & Forms

Hot Forming And Heat Treatment of ASTM A53 Schedule 40 pipe

col_1	col_2	col_3	col_4	col_5
Hot forming	Hot forming	Heat treatment	Heat treatment	Heat treatment
Temperature °C	Type of cooling	Normalizing 1)	Stress-relieving anneal 2)	Type of cooling
1100 – 950	Air	890 – 950 °C	600 – 650 °C	Air

›Material Properties

Composition Chart of Schedule 80 Sa53 Grade B Pipe

Scroll to see all columns →

A53 Gr.B /	C	Mn	P	S	Cu	Ni	Cr	Mo	V
A53 Gr.B /	0.3	1.2	0.05	0.045	0.4	0.4	0.4	0.15	0.08

Mechanical Characteristics of CS A53 gr b Pipe

Grade	Yield Strength	Tensile Strength
A53 Gr.B /	240	415
