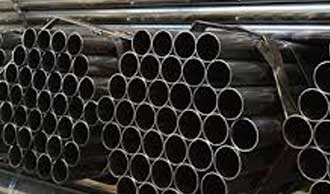

Black Steel Pipe
We deal in Black Steel Pipes which is used in various industry, check Schedule 40 Mild Steel Black Pipe Dimensions, Largest Supplier of Black Stainless Steel Pipes, Check Price List of Ssp Black Steel Pipes
Gallery
Black Steel Pipe in Detail
Specification
Features & Applications
Applications of Ssp Black Steel Pipes
- Industrial Water Lines, Plant Piping
- Agriculture and Irrigation
- Galvanized Steel Fencings
- Road Barriers
- Parking Barriers
- Temporary Fencings
- Steel Gates & Windows
Technical Data
Full Specifications
›Finishes & Forms
Specification Format of Black Steel Pipes
| col_1 | col_2 |
|---|---|
| Finish | Black (Coated) |
| Nominal Pipe Size | 1/4" |
| Schedule | SCH 40 |
| Export to | Brazil, Thailand, Dubai, Iran, Spain, Canada, Ireland, Egypt, Saudi Arabia, Singapore, Indonesia, Ukraine, Korea, Oman, India, USA, Peru, etc |
| Length | 21' |
| Metal | Steel |
| Type | Pipe |
| Features | High Strength, Corrosion Resistant, High Toughness and Deformability |
›Dimensions & Weight
Ms Erw Black Steel Pipes Dimensions
Scroll to see all columns →
| col_1 | col_2 | col_3 | col_4 | col_5 | col_6 | col_7 | col_8 | col_9 | col_10 |
|---|---|---|---|---|---|---|---|---|---|
| Nominal Bore | Nominal Bore | Outside Diameter | Outside Diameter | Light (A-Class) Thickness Weight | Light (A-Class) Thickness Weight | Medium (B-Class) Thickness Weight | Medium (B-Class) Thickness Weight | Heavy (C-Class) Thickness Weight | Heavy (C-Class) Thickness Weight |
| Inch | mm | Inch | mm | mm | kg/mtr | mm | kg/mtr | mm | kg/mtr |
| 1/8″ | 3 mm | 0.406 | 10.32 | 1.80 | 0.361 | 2.00 | 2.65 | 0.493 | |
| 1/4″ | 6 mm | 0.532 | 13.49 | 1.80 | 0.517 | 2.35 | 0.407 | 2.90 | 0.769 |
| 3/8″ | 10 mm | 0.872 | 17.10 | 1.80 | 0.674 | 2.35 | 0.852 | 2.90 | 1.02 |
| 1/2″ | 15 mm | 0.844 | 21.43 | 2.00 | 0.952 | 2.65 | 1.122 | 3.25 | 1.45 |
| 3/4″ | 20 mm | 1.094 | 27.20 | 2.35 | 1.410 | 2.65 | 1.580 | 3.25 | 1.90 |
| 1″ | 25 mm | 1.312 | 33.80 | 2.65 | 2.010 | 3.25 | 2.440 | 4.05 | 2.97 |
| 1.1/4″ | 32 mm | 1.656 | 42.90 | 2.65 | 2.580 | 3.25 | 3.140 | 4.05 | 3.84 |
| 1.1/2″ | 40 mm | 1.906 | 48.40 | 2.90 | 3.250 | 3.25 | 3.610 | 4.05 | 4.43 |
| 2″ | 50 mm | 2.375 | 60.30 | 2.90 | 4.110 | 3.65 | 5.100 | 4.47 | 6.17 |
| 2.1/2″ | 65 mm | 3.004 | 76.20 | 3.25 | 5.840 | 3.65 | 6.610 | 4.47 | 7.90 |
| 3″ | 80 mm | 3.500 | 88.90 | 3.25 | 6.810 | 4.05 | 8.470 | 4.85 | 10.1 |
| 4″ | 100 mm | 4.500 | 114.30 | 3.65 | 9.890 | 4.50 | 12.10 | 5.40 | 14.4 |
| 5″ | 125 mm | 5.500 | 139.70 | – | – | 4.85 | 16.20 | 5.40 | 17.8 |
| 6″ | 150 mm | 6.500 | 165.10 | – | – | 4.85 | 19.20 | 5.40 | 21.2 |
Dimension Table of Big Diameter Galvanised Black Steel Pipes
Scroll to see all columns →
| col_1 | col_2 | col_3 | col_4 | col_5 | col_6 | col_7 | col_8 | col_9 |
|---|---|---|---|---|---|---|---|---|
| Wall Thickness | NominalBore 7″ NB 193.7 mm OD | NominalBore 8″ NB 219.1 mm OD | NominalBore 10″ NB 273 mm OD | NominalBore 12″ NB 323.7 mm OD | NominalBore 14″ NB 355.6 mm OD | NominalBore 16″ NB 406.4 mm OD | NominalBore 18″ NB 457mm OD | NominalBore 20″ NB 508 mm OD |
| mm | Kg/mtr | Kg/mtr | Kg/mtr | Kg/mtr | Kg/mtr | Kg/mtr | Kg/mtr | Kg/mtr |
| 4.85 | 22.59 | 25.62 | 32.07 | 38.13 | – | – | – | – |
| 5.20 | 24.17 | 27.43 | 34.34 | 40.85 | – | – | – | – |
| 5.60 | 26.00 | 29.28 | 36.93 | 43.93 | 48.11 | – | – | |
| 6.00 | 27.88 | 31.53 | 39.50 | 47.02 | 51.49 | 61.00 | 69.00 | – |
| 6.35 | 29.34 | 33.28 | 41.73 | 49.67 | 54.43 | 62.35 | 70.50 | 78.50 |
| 7.01 | 32.77 | 36.76 | 46.43 | 55.45 | 61.82 | 69.04 | – | – |
| 7.94 | – | 41.00 | 50.95 | 61.85 | 67.98 | 77.94 | 87.80 | – |
| 8.18 | – | 42.56 | 53.42 | 65.12 | – | – | – | – |
| 9.53 | – | 51.50 | 60.24 | 73.75 | 81.21 | 93.13 | 105.00 | 117.00 |
| 12.70 | – | – | – | – | 107.28 | 123.30 | 139.00 | 155.00 |
›Tolerances
Schedule 40 Mild Steel Black Pipes Tolerance
| col_1 | col_2 | col_3 |
|---|---|---|
| (1) | Butt welded Light tubes | +Not limited / – 8 percent |
| Medium and Heavy tubes | + Not Limited / – 10 percent | |
| (2) | Seamless Tubes | +Not Limited / – 12.5 percent |
