Drill Pipe

Established in 2010 as Drill Pipe manufacturer in India, Large inventory of horizontal directional boring pipe at best price. View Weight Chart & Sizes of Cast Iron/ Copper Drill Casing Pipe

Carbon Steel

On This Page

Specification List of Drill Pipe Length Range of S135 Drill Pipe Drill Gas Pipe classification Drill Cast Iron Soil Pipe Grade Specifications API Connection Sizes & Thread Types Drill Pipe Pressure Rating

Gallery

Drill Pipe in Detail

Technical Data

Full Specifications

›Technical Data

Specification List of Drill Pipe

Outer Dimensions	4.0mm – 60.0mm
size	5.0 - 1219.2 mm
Swg & Bwg	10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
Schedule	SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Export to	Ireland, Brazil, Thailand, Egypt, Oman, Dubai, Singapore, Indonesia, Ukraine, Korea, Iran, India, Saudi Arabia, Spain, Canada, USA, Peru, etc
Length	Single Random, Double Random, Standard & Cut length Pipe
Finish	Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc
Form	are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc.
Types	Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW
End	Plain End, Beveled End, Treaded Pipe, Screwed ends
Value Added Service	Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc.
manufacturing Technique	Cold drawn, hot drawn, bright annealed, solid solution, hot extruding
Test Certificate	Manufacturer Test Certificate / Laboratory Test Certificate from Govt. Approved Lab. / Under Third Party Inspection

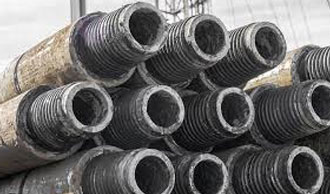

Length Range of S135 Drill Pipe

Range	Length, ft
1	18-22
2	27-30
3	38-45

Drill Gas Pipe classification

col_1	col_2	col_3	col_4	col_5	col_6
5”	19.5	Grade ”E”	XH	NC50	Premium
tube OD	Nominal Weight	Minimum Yield strength	Upset Tool Joint	Connection thread	Drill Pipe Classification (wear)l

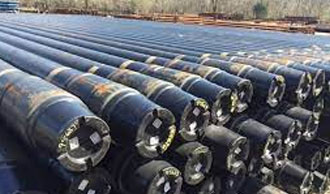

Drill Cast Iron Soil Pipe Grade Specifications

API Drill Pipe Grade	Minimum Yield Strength (psi)	Minimum Tensile Strength (psi)
E-75	75,000	100,000
X-95	95,000	105,000
G-105	105,000	115,000
S-135	135,000	145,000

API Connection Sizes & Thread Types

Scroll to see all columns →

DrillPipe Size (in)	Nom. Wt. (lb/ft)	Upset/ Grade	Connection	(W) Adjusted wt (lb/ft)	Standard OD	DrillPipe Size (in) ID
2-3/8	4.85	EU-E	NC26	5.16	3-3/8	1-3/4
		EU	OH	4.89	3-1/8	2
		EU	SLH90	4.97	3-1/4	2
		EU	WO	5.06	3-3/8	2
	6.65	EU-E	NC26	6.92	3-3/8	1-3/4
		EU	OH	6.83	3-1/4	1-3/4
		IU	PAC	6.71	2-7/8	1-3/8
		EU	SLH90	6.73	3-1/4	2
		EU-X	NC26	7.01	3-3/8	1-3/4
		EU	SLH90	6.89	3-1/4	1-13/16
		EU-G	NC26	7.01	3-3/8	1-3/4
		EU	SLH90	6.89	3-1/4	1-13/16
2-7/8	6.85	EU-E	NC31	7.36	4-1/8	2-1/8
		EU	OH	6.85	3-3/4	2-7/16
		EU	SLH90	6.96	3-7/8	2-7/16
		EU	WO	7.19	4-1/8	2-7/16
	10.40	EU-E	NC31	10.76	4-1/8	2-1/8
		EU	OH	10.51	3-7/8	2-5/32
		IU	PAC	10.15	3-1/8	1-1/2
		EU	SLH90	10.51	3-7/8	2-5/32
		IU	XH	10.99	4-1/4	1-7/8
		IU	NC26	10.28	3-3/8	1-3/4
		EU-X	NC31	10.96	4-1/8	2
		EU	SLH90	10.84	4	2
		EU-G	NC31	10.96	4-1/8	2
		EU	SLH90	10.84	4	2
		EU-S	NC31	11.38	4-3/8	1-5/8
		EU	SLH90	11.12	4-1/8	1-5/8
3-1/2	9.50	EU-E	NC38	10.44	4-3/4	2-11/16
		EU	OH	9.89	4-1/2	3
		EU	SLH90	10.05	4-5/8	3
		EU	WO	10.20	4-3/4	3
	13.30	EU-E	H90	14.41	5-1/4	2-3/4
		EU	NC38	13.77	4-3/4	2-11/16
		EU	OH	13.77	4-3/4	2-11/16
		IU	NC31	13.40	4-1/8	2-1/8
		EU	XH	13.94	4-3/4	2-7/16
		EU-X	H90	14.63	5-1/4	2-3/4
		EU	NC38	14.41	5	2-9/16
		EU	SLH90	14.07	4-3/4	2-9/16
		EU-G	NC38 (IF)	14.49	5	2-7/16
		EU	SLH90	14.07	4-3/4	2-9/16
		EU-S	NC38	14.69	5	2-1/8
		EU	SLH90	14.69	5	2-1/8
		EU	NC40	15.04	5-3/8	2-7/16
	15.50	EU-E	NC38	16.39	5	2-9/16
		EU-X	NC38	16.69	5	2-7/16
		EU-G	NC38	16.88	5	2-1/8
		EU	NC40	16.96	5-1/4	2-9/16
		EU-S	NC38	16.88	5	2-1/8
			NC40	17.56	5-1/2	2-1/4
4	11.85	IU-E	H90	13.07	5-1/2	2-13/16
		EU	NC46	13.51	6	3-1/4
		EU	OH	12.10	5-1/4	3-15/32
		EU	WO	12.91	5-3/4	3-7/16
	14.00	IU-E	NC40	15.06	5-1/4	2-13/16
		IU	H90	15.41	5-1/2	2-13/16
		EU	NC46	15.85	6	3-1/4
		EU	OH	15.03	5-1/2	3-1/4
		IU	SH	14.37	4-5/8	2-9/16
		IU-X	NC40	15.30	5-1/4	2-11/16
		IU	H90	15.55	5-1/2	2-13/16
		EU	NC46	16.14	6	3-1/4
		IU-G	NC40	15.90	5-1/2	2-7/16
		IU	H90	15.55	5-1/2	2-13/16
		EU	NC46	16.14	6	3-1/4
		IU-S	NC40	16.18	5-1/2	2
		IU	H90	15.55	5-1/2	2-13/16
		EU	NC46	16.38	6	3
	15.70	IU-E	NC40	16.81	5-1/4	2-11/16
		IU	H90	17.07	5-1/2	2-13/16
		EU	NC46	17.51	6	3-1/4
		IU-X	NC40	17.55	5-1/2	2-7/16
		IU	H90	17.17	5-1/2	2-13/16
		EU	NC46	17.75	6	3-1/4
		IU-G	NC40	17.55	5-1/2	2-7/16
		IU	H90	17.17	5-1/2	2-13/16
		EU	NC46	17.75	6	3-1/4
		EU-S	NC46	18.03	6	3
4-1/2	13.75	IU-E	H90	15.21	6	3-1/4
		EU	NC50	14.93	6-3/8	3-3/4
		EU	OH	14.06	5-3/4	3-31/32
		EU	WO	14.79	6-1/8	3-7/8
	16.60	IEU-E	FH	18.14	6	3
		IEU	H90	17.81	6	3-1/4
		EU	NC50	17.98	6-3/8	3-3/4
		EU	OH	17.10	5-7/8	3-3/4
		IEU	NC38	16.79	5	2-11/16
		IEU	NC46	18.37	6-1/4	3-1/4
		IEU-X	FH	18.62	6	3
		IEU	H90	18.39	6	3-1/4
		EU	NC50	18.34	6-3/8	3-3/4
		IEU	NC46	18.88	6-1/4	3
		IEU-G	FH	18.62	6	3
		IEU	H90	18.39	6	3-1/4
		EU	NC50	18.34	6-3/8	3-3/4
		IEU	NC46	18.88	6-1/4	3
		IEU-S	FH	19.28	6-1/4	2-1/2
		IEU	H90	18.42	6	3
		EU	NC50	18.61	6-3/8	3-1/2
		IEU	NC46	19.09	6-1/4	2-3/4
4-1/2	20.00	IEU-E	FH	21.63	6	3
		IEU	H90	21.63	6	3
		EU	NC50	21.62	6-3/8	3-5/8
		IEU	NC46	22.09	6-1/4	3
		IEU-X	FH	22.29	6	2-1/2
		IEU	H90	21.79	6	3-1/4
		EU	NC50	22.13	6-3/8	3-1/2
		IEU	NC46	22.56	6-1/4	2-3/4
		IEU-G	FH	22.29	6	2-1/2
		IEU	H90	21.90	6	3
		EU	NC50	22.13	6-3/8	3-1/2
		IEU	NC46	22.75	6-1/4	2-1/2
		EU-S	NC50	23.22	6-5/8	3
		IEU	NC46	22.93	6-1/4	2-1/4
	22.82	EU-E	NC50	24.07	6-3/8	3-5/8
		IEU	NC46	24.59	6-1/4	3
		IEU-X	FH	25.43	6-1/4	2-1/4
		EU	NC50	24.58	6-3/8	3-1/2
		IEU	NC46	25.06	6-1/4	2-3/4
		EU-G	NC50	25.13	6-1/2	3-1/4
			NC46	25.25	6-1/4	2-1/2
		EU-S	NC50	25.83	6-5/8	2-3/4
5	19.50	IEU-E	5-1/2 FH	22.26	7	3-3/4
			NC50	20.89	6-5/8	3-3/4
		IEU-X	5-1/2 FH	22.46	7	3-3/4
			H90	22.08	6-1/2	3-1/4
			NC50	21.44	6-5/8	3-1/2
		IEU-G	5-1/2 FH	22.46	7	3-3/4
			H90	22.32	6-1/2	3
			NC50	21.92	6-5/8	3-1/4
		IEU-S	5-1/2 FH	23.40	7-1/4	3-1/2
			NC50	22.60	6-5/8	2-3/4
	25.60	IEU-E	5-1/2 FH	28.26	7	3-1/2
			NC50	26.89	6-3/8	3-1/2
		IEU-X	5-1/2 FH	28.45	7	3-1/2
			NC50	27.86	6-1/2	3
		IEU-G	5-1/2 FH	29.01	7-1/4	3-1/2
			NC50	28.32	6-5/8	2-3/4
		IEU-S	NC50	28.78	6-3/4	2-1/2
			5-1/2 FH	29.35	7-1/4	3-1/4
5-1/2	21.90	IEU-E	FH	23.77	7	4
		IEU-X	FH	24.37	7	3-3/4
			H90	24.64	7	3-1/2
		IEU-G	FH	25.21	7-1/4	3-1/2
		IEU-S	FH	26.33	7-1/2	3
	24.70	IEU-E	FH	26.33	7	4
		IEU-X	FH	27.76	7-1/4	3-1/2
		IEU-G	FH	27.76	7-1/4	3-1/2
		IEU-S	FH	28.87	7-1/2	3
6-5/8	25.20	IEU-E	FH	27.30	8	5

We are Exporting to following Places

col_1	col_2
hole water well mining DTH drill pipe	China, United Kingdom -UK, South Africa, Chile
API DTH Drilling pipe for mining	Philippines, UK, Bahrain, United Arab Emirates (UAE)
heavy weight drill pipe oilfield	Malaysia, Philippines, Philippines, Netherlands
DTH water well drill rod pipe 76mm for mining drilling	Sweden, Europe, Oman, Egypt
Geological drill pipe	Malaysia, Spain, Germany, Australia
4m Mining Water Well Drilling Drill Pipe	Singapore, Europe, USA, Malaysia
drill iron pipe	Japan, Canada, Saudi Arabia (KSA), Italy
127mm Drill Rod Pipes	Colombia, Malaysia, South Africa, Turkey
oil drill stem pipe	Taiwan, Mexico, Thailand, Malaysia

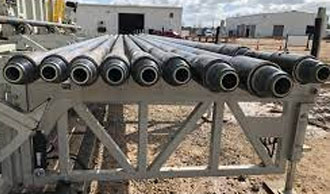

drill galvanized pipe	South Korea, Malaysia, Bangladesh, UK
102mm DTH Hammer Drill Rod	Romania, Poland, Kuwait, Singapore
API water well drill pipe	Malaysia, Canada, Singapore, Iran
2 3/8'' Water Well Drill Pipe	Los Alamos -Mexico, Singapore, Finland, Norway
horizontal directional drilling hdpe pipe	NY 12203 (USA), Ellington -United States, Brazil, Russia
OD 76mm 3m long water well drill pipe	Dammam -KSA, Singapore, UAE, Hong Kong
3-1/2 inch DP drill pipe	Qatar, Malaysia, Nigeria, Dubai
drill cast iron pipe	Czechia, Belgium, UAE, Malaysia
42mm geological round drill rod /drill pipe 1m	Malaysia, Thailand, Indonesia, UK
2" 50mm water well drill pipe	Europe, Malaysia, France, Philippines

›Pressure Ratings

Drill Pipe Pressure Rating

API Drill Pipe Grade	Minimum Yield Strength (psi)	Minimum Tensile Strength (psi)
E-75	75,000	100,000
X-95	95,000	105,000
G-105	105,000	115,000
S-135	135,000	145,000
