Sour service Pipe

Sour service Pipe Suppliers in India, Manufacturers of Sour services steel line pipe, Check Sour Service Drill Pipe price. View Dimensions of ISO 15156 Nace MR0175 Steel Pipes

Carbon Steel

On This Page

Specification List of Sour service Pipe Material Chart of Erw Pipe Sour Service Sour Service Drill Pipes Inspection Frequency Chemical Structure of Sour services steel pipe Mechanical Behaviour of sour service drill pipe Hardness Tests of Sour service Pipe

Gallery

Sour service Pipe in Detail

Technical Data

Full Specifications

›Technical Data

Specification List of Sour service Pipe

col_1	col_2
Finish	Black (Coated)
Nominal Pipe Size	1/4"
Schedule	SCH 40
Length	21'
Metal	Steel
Type	Pipe
Features	High Strength, Corrosion Resistant, High Toughness and Deformability

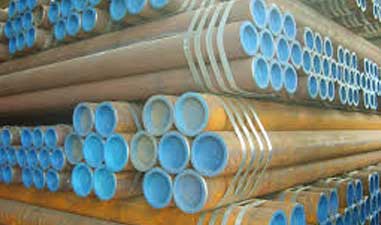

Material Chart of Erw Pipe Sour Service

col_1	col_2	col_3	col_4	col_5	col_6
No.	Grade	Specification	Specification	Specification	Executive Standard
No.	Grade	Outer Diameter /mm	Wall Thickness /mm	Economical Length/m	Executive Standard
1	BNS PSL2 / X42NS PSL2 / X46NS PSL2 / X52NS PSL2	10 ~ 127	1 ~ 20	6 ~ 12.0	API 5L Line Pipe Standard
1	BNS PSL2 / X42NS PSL2 / X46NS PSL2 / X52NS PSL2	42 ~ 114.3	3.5 ~ 8	6 ~ 12.2	API 5L Line Pipe Standard
1	BNS PSL2 / X42NS PSL2 / X46NS PSL2 / X52NS PSL2	60 ~ 114.3	8 ~ 12	6 ~ 12.2	API 5L Line Pipe Standard
1	BNS PSL2 / X42NS PSL2 / X46NS PSL2 / X52NS PSL2	114.3 ~ 180	3.8 ~ 14	6 ~ 12.2	API 5L Line Pipe Standard
1	BNS PSL2 / X42NS PSL2 / X46NS PSL2 / X52NS PSL2	114.3 ~ 180	14 ~ 22	6 ~ 12.2	API 5L Line Pipe Standard
1	BNS PSL2 / X42NS PSL2 / X46NS PSL2 / X52NS PSL2	68 ~ 232	10 ~ 20	6 ~ 12.2	API 5L Line Pipe Standard
1	BNS PSL2 / X42NS PSL2 / X46NS PSL2 / X52NS PSL2	76 ~ 254	20 ~ 55	6 ~ 12.2	API 5L Line Pipe Standard
1	BNS PSL2 / X42NS PSL2 / X46NS PSL2 / X52NS PSL2	140 ~ 368	6 ~ 14	6 ~ 12.2	API 5L Line Pipe Standard
1	BNS PSL2 / X42NS PSL2 / X46NS PSL2 / X52NS PSL2	140 ~ 368	14 ~ 42	6 ~ 12.2	API 5L Line Pipe Standard
1	BNS PSL2 / X42NS PSL2 / X46NS PSL2 / X52NS PSL2	318 ~ 720	14 ~ 120	4 ~ 12.5	API 5L Line Pipe Standard
2	BQS PSL2 / X42QS PSL2	42 ~ 114.3	3.5 ~ 12	6 ~ 12.2	API 5L Line Pipe Standard
2	BQS PSL2 / X42QS PSL2	114.3 ~ 180	3.8 ~ 22	6 ~ 12.2	API 5L Line Pipe Standard
2	BQS PSL2 / X42QS PSL2	68 ~ 254	10 ~ 30	6 ~ 12.2	API 5L Line Pipe Standard
2	BQS PSL2 / X42QS PSL2	140 ~ 368	6 ~ 30	6 ~ 12.2	API 5L Line Pipe Standard
2	BQS PSL2 / X42QS PSL2	318 ~ 720	14 ~ 30	4 ~ 12.5	API 5L Line Pipe Standard
3	X46QS PSL2 / X52QS PSL2 / X56QS PSL2 / X60QS PSL2	42 ~ 114.3	3.5 ~ 12	6 ~ 12.2	API 5L Line Pipe Standard
3	X46QS PSL2 / X52QS PSL2 / X56QS PSL2 / X60QS PSL2	114.3 ~ 180	3.8 ~ 22	6 ~ 12.2	API 5L Line Pipe Standard
3	X46QS PSL2 / X52QS PSL2 / X56QS PSL2 / X60QS PSL2	68 ~ 254	10 ~ 30	6 ~ 12.2	API 5L Line Pipe Standard
3	X46QS PSL2 / X52QS PSL2 / X56QS PSL2 / X60QS PSL2	140 ~ 368	6 ~ 30	6 ~ 12.2	API 5L Line Pipe Standard
3	X46QS PSL2 / X52QS PSL2 / X56QS PSL2 / X60QS PSL2	318 ~ 720	14 ~ 30	4 ~ 12.5	API 5L Line Pipe Standard
4	X65QS PSL2 / X70QS PSL2	42 ~ 114.3	3.5 ~ 12	6 ~ 12.2	API 5L Line Pipe Standard
4	X65QS PSL2 / X70QS PSL2	114.3 ~ 180	3.8 ~ 22	6 ~ 12.2	API 5L Line Pipe Standard
4	X65QS PSL2 / X70QS PSL2	68 ~ 254	10 ~ 25	6 ~ 12.2	API 5L Line Pipe Standard
4	X65QS PSL2 / X70QS PSL2	140 ~ 368	6 ~ 25	6 ~ 12.2	API 5L Line Pipe Standard
4	X65QS PSL2 / X70QS PSL2	318 ~ 720	14 ~ 25	4 ~ 12.5	API 5L Line Pipe Standard

Hardness Tests of Sour service Pipe

col_1	col_2	col_3	col_4
Type of pipe	Sample location	Number, orientation and location of test pieces per sample a	Number, orientation and location of test pieces per sample a
Type of pipe	Sample location	Specified outside diameter / D / mm (in)	Specified outside diameter / D / mm (in)
Type of pipe	Sample location	< 508 (20.000)	≥ 508 (20.000)
SMLS b (see Figure 5 a )	pipe body	1T	1T
SAWL (see Figure 5 b )	seam weld	1W	1W c
SAWH (see Figure 5 c )	seam weld	1W	1W
SAWH (see Figure 5 c )	strip/plate end weld	1WS	1WS
HFW (see Figure 5 b )	seam weld	1W	1W

›Standards & Compliance

Sour Service Drill Pipes Inspection Frequency

col_1	col_2	col_3
Type of inspection	Type of pipe	Frequency of inspection
Hardness testing of Pipes with / D < 508 mm (20.000 in)	SMLS,HFW, SAWL, or SAWH	Once per test unit of not more than 100 lengths of Pipes with the same cold-expansion ratio a
Hardness testing of Pipes with / D ≥ 508 mm (20.000 in)	SMLS,HFW, SAWL, or SAWH	Once per test unit of not more than 50 lengths of Pipes with the same cold-expansion ratio a
Hardness testing of hard spots in welded Pipes	HFW, SAWL, or SAWH	Each hard spot found on the internal or external surface of the Pipes
if agreed, hardness testing of the longitudinal or helical-seam weld of welded Pipes	HFW, SAWL, or SAWH	As specified in the purchase order
pipe diameter and out-of-roundness for Pipes with / D ≤ 168,3 mm (6.625 in)	SMLS,HFW, SAWL, or SAWH	Once per test unit of not more than 100 lengths of Pipes
pipe diameter and out-of-roundness for Pipes with / D> 168,3 mm (6.625 in)	SMLS,HFW, SAWL, or SAWH	Once per test unit of not more than 20 lengths of Pipes
Non-destructive inspection	SMLS,HFW, SAWL, or SAWH	In accordance with Annex K
HIC test	SMLS,HFW, SAWL, or SAWH	One test for each of the first three heats applied; thereafter, one test for each test unit of not more than ten heats of steel
if agreed, SSC test	SMLS,HFW, SAWL, or SAWH	One test for each pipe provided for manufacturing procedure qualification

›Material Properties

Chemical Structure of Sour services steel pipe

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9	col_10	col_11	col_12
Steel grade	Mass fraction, based upon heat and product analyses / % / maximum	Mass fraction, based upon heat and product analyses / % / maximum	Mass fraction, based upon heat and product analyses / % / maximum	Mass fraction, based upon heat and product analyses / % / maximum	Mass fraction, based upon heat and product analyses / % / maximum	Mass fraction, based upon heat and product analyses / % / maximum	Mass fraction, based upon heat and product analyses / % / maximum	Mass fraction, based upon heat and product analyses / % / maximum	Mass fraction, based upon heat and product analyses / % / maximum	Carbon / equivalent a / % / maximum	Carbon / equivalent a / % / maximum
Steel grade	C b	Si	Mn b	P	S	V	Nb	Ti	Other c, d	CE llw	CE pcm
SMLS and welded pipes	SMLS and welded pipes	SMLS and welded pipes	SMLS and welded pipes	SMLS and welded pipes	SMLS and welded pipes	SMLS and welded pipes	SMLS and welded pipes	SMLS and welded pipes	SMLS and welded pipes	SMLS and welded pipes	SMLS and welded pipes
L245NS or BNS	0,14	0,40	1,35	0,020	0,003 e	f	f	0,04	g	0,36	0,19 h
L290NS or X42NS	o,14	0,40	1,35	0,020	0,003 e	0,05	0,05	0,04	-	0,36	0,19 h
L320NS or X46NS	0,14	0,40	1,40	0,020	0,003 e	0,07	0,05	0,04	g	0,38	0,20 h
L360NS or X52NS	0,16	0,45	1,65	0,020	0,003 e	0,10	0,05	0,04	g	0,43	0,22 h
L245QS or BQS	0,14	0,40	1,35	0,020	0,003 e	0,04	0,04	0,04	-	0,34	0,19 h
L 290QS or X42QS	0,14	0,40	1,35	0,020	0,003 e	0,04	0,04	0,04	-	0,34	0,19 h
L320QS or X46QS	0,15	0,45	1,40	0,020	0,003 e	0,05	0,05	0,04	-	0,36	0,20 h
L360QS or X52QS	0,16	0,45	1,65	0,020	0,003 e	0,07	0,05	0,04	g	0,39	0,20 h
L390QS or X56QS	0,16	0,45	1,65	0,020	0,003 e	0,07	0,05	0,04	g	0,40	0,21 h
L415QS or X60QS	0,16	0,45	1,65	0,020	0,003 e	0,08	0,05	0,04	g,i,k	0,41	0,22 h
L450QS or X65QS	0,16	0,45	1,65	0,020	0,003 e	0,09	0,05	0,06	g,i,k	0,42	0,22 h
L485QS or X70QS	0,16	0,45	1,65	0,020	0,003 e	0,09	0,05	0,06	g,i,k	0,42	0,22 h
welded pipe	welded pipe	welded pipe	welded pipe	welded pipe	welded pipe	welded pipe	welded pipe	welded pipe	welded pipe	welded pipe	welded pipe
L245MS or BMS	0,10	0,40	1,25	0,020	0,002 e	0,04	0,04	0,04	-	-	0,19
L290MS or X42MS	0,10	0,40	1,25	0,020	0,002 e	0,04	0,04	0,04	-	-	0,19
L320MS or X46 MS	0,10	0,45	1,35	0,020	0,002 e	0,05	0,05	0,04	-	-	0,20
L360MS or X52 MS	0,10	0,45	1,45	0,020	0,002 e	0,05	0,06	0,04	-	-	0,20
L390MS or X56 MS	0,10	0,45	1,45	0,020	0,002 e	0,06	0,08	0,04	g	-	0,21
L415MS or X60 MS	0,10	0,45	1,45	0,020	0,002 e	0,08	0,08	0,06	g,i	-	0,21
L450MS or X65MS	0,10	0,45	1,60	0,020	0,002 e	0,10	0,08	0,06	g,i,j	-	0,22
L485MS or X70 MS	0,10	0,45	1,60	0,020	0,002 e	0,10	0,08	0,06	g,i,j	-	0,22

Mechanical Behaviour of sour service drill pipe

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
Pipe steel grade	Pipe body of SMLS and welded pipes	Pipe body of SMLS and welded pipes	Pipe body of SMLS and welded pipes	Pipe body of SMLS and welded pipes	Pipe body of SMLS and welded pipes	Pipe body of SMLS and welded pipes	Weld seam of HFW and SAW pipes
Pipe steel grade	Yield strength a / / Rto,5 / Mpa (psi) / /	Yield strength a / / Rto,5 / Mpa (psi) / /	Tensile strength a / / Rm / Mpa (psi) /	Tensile strength a / / Rm / Mpa (psi) /	Ratio b / / Rto,5/Rm / /	Elongation on 50 mm / or 2 in / Af / %	Tensile strength c / / Rm / Mpa (psi)
Pipe steel grade	minimum	maximum	minimum	maximum	maximum	minimum	minimum
L245NS or BNS / L245QS or BQS / L245MS or BMS	245 / (35 500)	450 d / (65 300) d	415 / (60 200)	760 / (110 200)	0,93	e	415 / (60 200)
L290NS or X42NS / L290QS or X42QS / L290MS or X42MS	290 / (42 100)	495 / (71 800)	415 / (60 200)	760 / (110 200)	0,93	e	415 / (60 200)
L320NS or X46NS / L320QS or X46QS / L320MS or X46MS	320 / (46 400)	525 / (76 100)	435 / (63 100)	760 / (110 200)	0,93	e	435 / (63 100)
L360NS or X52NS / L360QS or X52QS / L360MS or X52MS	/ 360 / (52 200)	530 / (76 900)	460 / (66 700)	760 / (110 200)	0,93	e	460 / (66 700)
L390QS or X56QS / L390MS or X56MS	390 / (56 600)	545 / (79 000)	490 / (71 100)	760 / (110 200)	0,93	e	490 / (71 100)
L415QS or X60QS / L415MS or X60MS	415 / (60 200)	565 / (81 900)	520 / (75 400)	760 / (110 200)	0,93	e	520 / (75 400)
L450QS or X65QS / L450MS or X65MS	450 / (65 300)	600 / (87 000)	535 / (77 600)	760 / (110 200)	0,93	e	535 / (77 600)
L485MS or X70MS	485 / (70 300)	635 / (92 100)	570 / (82 700)	760 / (110 200)	0,93	e	570 / (82 700
