Copper Nickel Pipe

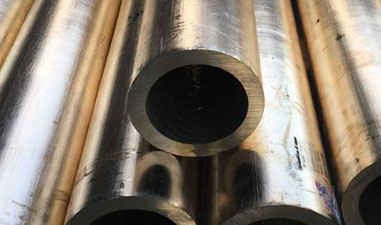

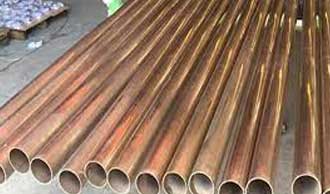

Top quality EFAB approved Copper Nickel Pipe manufacturer, buy Cuni 70/30 Seamless Tube, Cupro Nickel 90/10 Welded Pipe various sizes at factory price. Refer Sizes and Price List of 70/30 cuni tubing

Copper Nickel

On This Page

Specification List of Copper Nickel Pipe Chemical Structure of Copper Nickel Tubing Mechanical Analysis of Cuni Pipe Material Equivalent of Cupro Nickel Pipe Copper Nickel 90/10 Pipes Pressure Ratings 70/30 Copper Alloy Pipe Sizes

Gallery

Copper Nickel Pipe in Detail

Technical Data

Full Specifications

›Technical Data

Specification List of Copper Nickel Pipe

Welded Tube Size	6.35 mm OD To 152 mm OD
Pipe Form	Hollow, Rectangular, Hydraulic, Round, Square, Straight Pipes Etc.
Pipe/ Tube Length	Single Random, Double Random & Cut Length.
Pipe/ Tube Schedule	SCH10, SCH40, SCH5, STD, SCH80, SCH160
Pipe Finish	Polished, BA (Bright & Annealed), AP (Annealed & Pickled), MF
EFW Pipe size	5.0 mm - 1219.2 mm
Export to	Thailand, Singapore, Iran, Spain, Canada, Indonesia, Korea, India, Saudi Arabia, Egypt, Ireland, Brazil, Oman, Dubai, Ukraine, USA, Peru, etc
End	Beveled End, Plain End, Treaded.
Swg & Bwg	10 Swg., 16 Swg., 12 Swg., 14 Swg., 18 Swg., 20 Swg.
Marking	All Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Material Test Certificates (MTC)	Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
Tubing wall thickness	0.020" –0.220", (special wall thicknesses available)
Marking	All tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Tube Type	ERW, EFW, Welded, Seamless, Fabricated
Finish	Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
Tube Form	Rectangular, Boiler, Hydraulic, Round, Coil, Square, Straight or ‘U’ bent Tubes, Hollow, LSAW Tubes Etc.
Application	Gas Tube, Fluid Tube, Oil Tube, Boiler and Heat exchanger

Material Equivalent of Cupro Nickel Pipe

col_1	col_2	col_3
STANDARD	WERKSTOFF NR.	UNS
Cupro Nickel 90/10	2.0872	C70600
Cupro Nickel 70/30	2.0882	C71500

70/30 Copper Alloy Pipe Sizes

OD / mm	WT / mm	in.	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97

›Material Properties

Chemical Structure of Copper Nickel Tubing

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7
Grade	Cu	Mn	Pb	Ni	Fe	Zn
Cupro Nickel 90/10	88.6 min	1.0 max	0.05 max	9-11 max	1.8 max	1 max
Cupro Nickel 70/30	65 min	1.0 max	0.05 max	29-33 max	0.4-1.0 max	1 max

Mechanical Analysis of Cuni Pipe

col_1	col_2	col_3	col_4	col_5
Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
0.323 lb/in3 at 68 F	2260 F	50000 psi	20000 psi	30 %
0.323 lb/in3 at 68 F	2260 F	50000 psi	20000 psi	30 %

›Pressure Ratings

Copper Nickel 90/10 Pipes Pressure Ratings

Scroll to see all columns →

Pipes O.D. / in.	Wall Thickness of 90/10 Pipe (inches)	Wall Thickness of 90/10 Pipe (inches)_2	Wall Thickness of 90/10 Pipe (inches)_3	Wall Thickness of 90/10 Pipe (inches)_4	Wall Thickness of 90/10 Pipe (inches)_5	Wall Thickness of 90/10 Pipe (inches)_6	Wall Thickness of 90/10 Pipe (inches)_7	Wall Thickness of 90/10 Pipe (inches)_8	Wall Thickness of 90/10 Pipe (inches)_9	Wall Thickness of 90/10 Pipe (inches)_10
Pipes O.D. / in.	.028	.030	.035	.049	.065	.083	.095	.109	.120	0.134
Pipes O.D. / in.	Working Pressure (psig)	Working Pressure (psig)	Working Pressure (psig)	Working Pressure (psig)	Working Pressure (psig)	Working Pressure (psig)	Working Pressure (psig)	Working Pressure (psig)	Working Pressure (psig)	Working Pressure (psig)
1/8	2700	3000	3600
3/16	1800	1900	2300	3400
1/4	1300	1400	1600	2700	3500
5/16			1300	2200	2700
3/8			1000	1600	2200
1/2			800	1100	1600	2100
5/8				900	1200	1600	1900
3/4				700	1000	1300	1500	1800
7/8				600	800	1100	1300	1500
1				500	700	900	1100	1300	1500
1 1/8					600	800	1000	1100	1300	1400
