Duplex 2205 Pipe

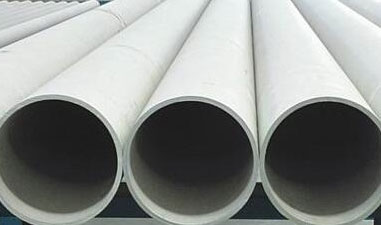

Leading Supplier of Duplex 2205 Pipe, ASTM A790 UNS S31803 Seamless/ Welded Tube Stockist, View Duplex Steel Pipe Price Per Kg in India & SAF 2205 Boiler/ Heat Exchanger Tubing Size & Dimensions

Duplex & Super Duplex

On This Page

Specification List of Duplex 2205 Pipe Chemical Structure of SAF 2205 Boiler Tube Mechanical Analysis of 2205 Duplex Stainless Steel Round Pipe Material Equivalent of Alloy 2205 Seamless Tubing Wall Thickness of Duplex Steel Pipes 2205 Duplex Stainless Pipe Schedule Chart Weight Chart of Duplex 2205 Pipe Duplex 2205 Seamless Pipe Sizes Pressure Rating of Duplex 2205 Pipe Outer diameter and Wall Thickness of SAF 2205 Tube Product standards of 2205 Duplex Stainless Steel Tube Duplex 2205 Pipe Physical Properties

Gallery

Duplex 2205 Pipe in Detail

Technical Data

Full Specifications

›Technical Data

Specification List of Duplex 2205 Pipe

ASTM / ASME Standards	ASTM A790 / ASME SA790
Pipe Form	Hollow, Rectangular, Hydraulic, Round, Square, Straight Pipes Etc.
Pipe/ Tube Length	Single Random, Double Random & Cut Length.
Pipe/ Tube Schedule	SCH10, SCH40, SCH5, STD, SCH80, SCH160
Pipe Finish	Polished, BA (Bright & Annealed), AP (Annealed & Pickled), MF
EFW Pipe size	5.0 mm - 1219.2 mm
End	Beveled End, Plain End, Treaded.
Welded Tube Size	6.35 mm OD To 152 mm OD
Swg & Bwg	10 Swg., 16 Swg., 12 Swg., 14 Swg., 18 Swg., 20 Swg.
Marking	All Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Material Test Certificates (MTC)	Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
Tubing wall thickness	0.020" –0.220", (special wall thicknesses available)
Marking	All tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Tube Type	ERW, EFW, Welded, Seamless, Fabricated
Finish	Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF

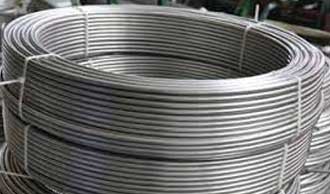

Tube Form	Rectangular, Boiler, Hydraulic, Round, Coil, Square, Straight or ‘U’ bent Tubes, Hollow, LSAW Tubes Etc.
Application	Gas Tube, Fluid Tube, Oil Tube, Boiler and Heat exchanger

Material Equivalent of Alloy 2205 Seamless Tubing

col_1	col_2	col_3
STANDARD	UNS	WERKSTOFF NR.
Duplex S31803	S31803	1.4462

Wall Thickness of Duplex Steel Pipes

Types	Out diameter	Wall thickness	Length
NB Sizes (in stock)	1/8” ~ 8”	SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160	Upto 6 Meters

2205 Duplex Stainless Pipe Schedule Chart

1/8" IPS(.405"O. D.)	3 1/2" IPS( 4.000"O. D.)
SCH 40, 80	SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.)	4" IPS(4.500"O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.)	5" IPS( 5.563"O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.)	6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.)	8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.)	10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.)	12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.)	14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.)	16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.)	18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH

Duplex 2205 Seamless Pipe Sizes

OD / mm	WT / mm	in.	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97

Outer diameter and Wall Thickness of SAF 2205 Tube

Types	Out diameter	Wall thickness	Length
NB Sizes (in stock)	1/8” ~ 8”	SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160	Upto 6 Meters
Duplex 2205 Seamless Tube (Custom Sizes)	5.0mm ~ 203.2mm	As per requirement	Upto 6 Meters
Duplex 2205 Welded Tube (in Stock + Custom Sizes)	5.0mm ~ 1219.2mm	1.0 ~ 15.0 mm	Upto 6 Meters

Product standards of 2205 Duplex Stainless Steel Tube

col_1	col_2
Seamless tube:	EN 10216-5, NFA 49-217
Seamless and welded tube:	ASTM A789

Duplex 2205 Pipe Physical Properties

col_1	Density lbm/in3	Electrical Resistivity mW•in	Thermal Conductivity (BTU/hr•ft•°F)	Heat Capacity BTU/lbm•°F	Electrical Resistivity (in x 10-6)
at 68°F	0.278	27.6	8.7	0.112	33.5
at 212°F		26.1	9.2	0.119	35.4
at 392°F		25.4	9.8	0.127	37.4
at 572°F		24.9	10.4	0.134	39.4

Look Where We Sale and What

col_1	col_2
SCH40 Seamless 2205 Duplex Stainless Steel Pipe	Finland, Malaysia, Dubai, USA
Seamless Welded steel tube 2205	Philippines, Kuwait, South Africa, Taiwan
ASME SA789 2205 Duplex Stainless Steel Tube	Singapore, Europe, Qatar, Malaysia
2205 18mm stainless steel tube	China, Bangladesh, Malaysia, Colombia

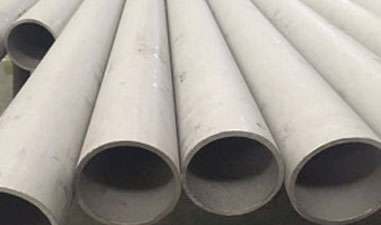

1 inch Duplex 2205 Welded Stainless Steel Pipe	Nigeria, Canada, Ellington -United States, Australia
1.4462 steel 22 cr duplex stainless steel pipe	Malaysia, Singapore, Bahrain, South Korea
40mm 2205 Stainless Steel Pipes	United Arab Emirates (UAE), Romania, Europe, Norway

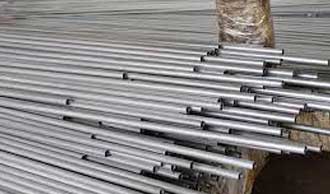

Od 0.375 Inch X 0.049 Inch Duplex 2205 Capillary Tubing	UK, Philippines, Dammam -KSA, Poland
30mm diameter 22Cr Duplex steel pipe	Netherlands, Malaysia, Sweden, Russia, Brazil
Duplex 2205 Tube Hot Rolled Od 4" 114mm	Belgium, UK, Philippines, Indonesia
12 In. Schedule 10 Duplex Steel Welded Pipe	Malaysia, Turkey, Malaysia, Germany
1-1/2 In. Schedule 10 Duplex 2205 Welded Pipe	Singapore, Europe, UAE, South Africa
2205 Steel Grade Seamless Duplex Tube	Chile, Canada, Philippines, Iran
S31803/2205 big diameter duplex stainless steel pipe	UAE, Italy, Singapore, Malaysia
Sa 789 Alloy 2205 4 Inch Tube	Brazil, Spain, UK, Saudi Arabia (KSA)
ASME B36.19.Duplex Steel 2205 Stainless Steel Pipes	United Kingdom -UK, NY 12203 (USA), Singapore, Malaysia
Duplex Stainless Steel 2205 Heat Exchanger Tubes	Thailand, Hong Kong, Oman, France
Duplex SS 2205 seamless pipe DN 50 DN 32	Malaysia, Thailand, Czechia, Japan
2205 duplex stainless steel pipe for heat exchanger	Egypt, Los Alamos -Mexico, Malaysia, Mexico

›Material Properties

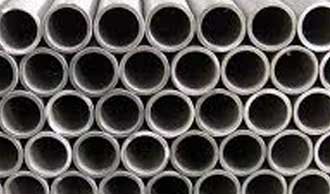

Chemical Structure of SAF 2205 Boiler Tube

Scroll to see all columns →

S31803 / S32205	C	N	P	Si	Mn	Mo	Fe	Cr	S	Ni
S31803 / S32205	1.0	0.03	0.02	2.0	3.0 - 3.5	22.0 - 23.0	0.03	4.5 - 6.5	0.14 - 0.2	Bal

Mechanical Analysis of 2205 Duplex Stainless Steel Round Pipe

col_1	col_2	col_3	col_4	col_5	col_6
S31803 / S32205	Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
S31803 / S32205	7.8 g/cm3	1350 °C (2460 °F)	Psi - 80000 , MPa - 550	Psi - 116000 , MPa - 800	15 %

›Dimensions & Weight

Weight Chart of Duplex 2205 Pipe

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
NPS	Outside Diameter	Outside Diameter	Wall Thickness	Wall Thickness		Weight	Weight
NPS	in	mm	in	mm	Sched	kg/Mtr	Lb/ft
1/2″	0.840	21	0.109	2.769	40 STD	1.268	0.851
			0.147	3.734	80 STD	1.621	1.088
3/4″	1.050	27	0.113	2.870	40 STD	1.684	1.131
			0.154	3.912	80 STD	2.195	1.474
1″	1.315	33	0.133	3.378	40 STD	2.501	1.679
			0.179	4.547	80 STD	3.325	2.172
1 1/4″	1.660	42	0.140	3.556	40 STD	3.385	2.273
			0.191	4.851	80 STD	4.464	2.997
1 1/2″	1.900	48	0.145	3.683	40 STD	4.048	2.718
			0.200	5.080	80 STD	5.409	3.361
2″	2.375	60	0.154	3.912	40 STD	5.441	3.653
			0.218	5.537	80 STD	7.480	5.022
2 1/2″	2.875	73	0.203	5.516	40 STD	8.629	5.793
			0.276	7.010	80 STD	11.411	7.661
3″	3.500	89	0.216	5.486	40 STD	11.284	7.576
			0.300	7.620	80 STD	15.272	10.253
4″	4.500	114	0.237	6.020		16.073	10.790
			0.337	8.560		22.318	14.983
6″	6.625	168	0.188	4.775		19.252	12.924
			0.203	5.516		20.739	13.923
			0.219	5.563		22.318	14.983
			0.250	6.350		25.354	17.021
			0.280	7.112	40 STD	58.263	18.974
			0.312	7.925		31.334	21.036
			0.375	9.525		37.285	25.031
			0.432	10.973	80 XHY	42.561	28.573
			0.500	12.700		48.719	32.708
8″	8.625	219	0.188	4.775		25.233	16.940
			0.203	5.156		27.198	18.259
			0.219	5.563		29.286	19.661
			0.250	6.350	20	33.308	22.361
			0.277	7.036	30	36.786	24.696
			0.322	8.179	40	42.352	28.554
			0.375	9.525		49.216	33.041
			0.406	10.312	60	53.085	35.638
			0.500	12.700	80 XHY	64.627	43.388
10″	10.750	273	0.188	4.775		31.588	21.207
			0.219	5.563		36.689	24.631
			0.250	6.350	20	41.759	28.035
			0.307	7.798	30	51.002	34.240
			0.344	8.738		56.946	38.231
			0.365	9.271	40 STD	63.301	40.483
			0.438	11.125		71.852	48.238
			0.500	12.700	60 XHY	81.530	54.735
			0.594	15.088	80	95.969	64.429
12″	12.750	324	0.188	4.775		37.570	25.222
			0.219	5.563		43.657	29.309
			0.250	6.350		49.713	33.375
			0.281	7.137		55.739	37.420
			0.312	7.925		61.735	41.445
			0.375	9.525		73.824	49.562
			0.406	10.312		79.727	53.525
			0.500	12.700		97.438	65.415
			0.562	14.275		108.966	73.154
14″	14.000	356	0.188	4.775		41.308	27.732
			0.219	5.563		48.012	32.233
			0.250	6.350	20	54.685	36.713
			0.281	7.137		61.327	41.172
			0.312	7.925		67.939	45.611
			0.375	9.525	STD	81.281	54.568
			0.438	11.125	40	94.498	63.441
			0.500	12.700	XHY	107.381	72.090
			0.625	15.875		132.983	89.278
16”	16.000	406	0.188	4.775		47.290	21.748
			0.219	5.563		54.980	36.910
			0.250	6.350	10	62.639	42.053
			0.281	7.137		70.268	47.174
			0.312	7.925	20	77.866	52.275
			0.344	8.738		85.677	57.519
			0.375	9.525	30 STD	93.213	62.578
			0.438	11.125		108.433	72.797
			0.500	12.700	40 XHY	123.289	82.770
18″	18.000	457	0.219	5.563		61.948	41.588
			0.250	6.350		70.593	47.393
			0.281	7.137		79.208	53.176
			0.312	7.925	20	87.792	58.939
			0.375	9.525	STD	105.144	70.588
			0.438	11.125	30	122.369	82.152
			0.500	12.700	XHY	139.198	93.450
			0.562	14.275	40	155.904	104.666
			0.625	15.875		172.754	115.978
20″	20.000	508	0.250	6.350		78.547	52.733
			0.282	7.163		88.458	59.386
			0.312	7.925		97.719	65.604
			0.375	9.525	20 STD	117.075	78.598
			0.438	11.125		136.305	91.508
			0.500	12.700	30 XHY	155.106	104.130
			0.594	15.088	40	183.378	123.110
			0.625	15.875		192.640	129.328
			0.688	17.475		211.368	141.901
24″	24.000	610	0.250	6.350		94.456	63.413
			0.281	7.137		106.029	71.183
			0.312	7.925		117.573	18.932
			0.375	9.525	20 STD	140.938	64.618
			0.438	11.125		164.176	110.219
			0.500	12.700	XHY	186.923	125.490
			0.625	15.875		232.410	156.028
			0.688	17.475	40	255.148	171.293
			0.750	19.050		277.401	186.233
30″	30.000	762	0.250	6.350		118.318	79.433
			0.281	7.137		132.851	89.189
			0.312	7.925	10	147.353	98.925
			0.375	9.525	STD	176.731	118.648
			0.438	11.125		205.983	138.286
			0.500	12.700	20 XHY	234.647	157.530
			0.625	15.875	30	292.066	196.078
			0.688	17.475		320.817	215.380
			0.750	19.050		348.988	234.293
36″	36.000	914	0.250	6.350		142.180	95.453
			0.281	7.137		159.672	107.196
			0.312	7.925	10	177.133	118.918
			0.375	9.525	STD	215.525	142.678
			0.438	11.125		247.790	166.353
			0.500	12.700	20 XHY	282.372	198.570
			0.625	15.875		351.723	236.128
			0.688	17.475		386.487	259.467
			0.750	19.050		420.576	282.353
42″	42.000	1067	0.312	7.925		206.914	138.911
			0.375	9.525	STD	248.319	166.708
			0.500	12.700	XHY	33.097	221.610
			0.750	19.050		492.163	330.413
48″	48.000	1219	0.375	9.525	STD	284.112	190.738
			0.438	11.125		331.404	222.487
			0.500	12.700	XHY	377.822	253.650
			0.750	19.050		563.750	378.473
			0.875	22.225		655.969	440.383

›Pressure Ratings

Pressure Rating of Duplex 2205 Pipe

Scroll to see all columns →

Tube Outside Diameter / (In.)	Wall Thickness Of Tubes (In)	Wall Thickness Of Tubes (In)_2	Wall Thickness Of Tubes (In)_3	Wall Thickness Of Tubes (In)_4	Wall Thickness Of Tubes (In)_5	Wall Thickness Of Tubes (In)_6	Wall Thickness Of Tubes (In)_7	Wall Thickness Of Tubes (In)_8
Tube Outside Diameter / (In.)	.028	.035	.049	.065	.083	.095	.109	.120
Tube Outside Diameter / (In.)	Working Pressure (Psig)	Working Pressure (Psig)	Working Pressure (Psig)	Working Pressure (Psig)	Working Pressure (Psig)	Working Pressure (Psig)	Working Pressure (Psig)	Working Pressure (Psig)
1/8	7900	10100
5/16		3700	5400	7300
1/4	3700	4800	7000	9500
1				2200	2900	3400	3900	4300
1/2		2300	3200	4400
3/8		3100	4400	6100
3/4			2200	3000	4000	4600

Duplex 2205 Pipe

Get a Price

Request a quote for this item

Specify the grade, size, quantity and governing standard, and we'll confirm stock and pricing — typically within the same working day.

Request a Quote for Duplex 2205 Pipe

Contact

Send us the spec

Grade, form, size and quantity — that's all we need to confirm stock and quote. Reach us directly, or use the form below.

Enquiry FormReply same working day

Direct Contact

Head Office

Shop No. 5, Ravi Estate, Keval Kantha Road, Near Gujarat Bottling Road, Industrial Area, Rakhial, Ahmedabad, Gujarat – 380023, India

Phone / WhatsApp

+91 93240 06771

exportompmo@gmail.com

Working Hours

Monday – Saturday8:00 AM – 8:00 PM

SundayClosed
