Super Duplex 2507 Pipe

NABL approved Super Duplex 2507 Pipe manufacturer, view ASTM A790 UNS S32750 Seamless Tube, Saf 2507 Welded Pipe ready sizes, buy Alloy 2507 Super Duplex Hot Rolled/ Cold Drawn Tubing at low cost.

Duplex & Super Duplex

On This Page

Standard Specification of Super Duplex 2507 Pipe Chemical Compatibility of Super Duplex Alloy 2507 Heat Exchanger Tube Mechanical Characteristics of A790 S32750 Seamless Pipe Material Equivalent of 2507 Stainless Round Pipe Super Duplex 2507 Pipe Pressure Rating Alloy 2507 Super Duplex Pipe Schedule Chart A790 Uns S32750 Pipe Weight Chart ASME B36.19 Sandvik Saf 2507 Tubing Sizes Astm A790 S32750 Stainless Tube Sizes Saf 2507 Material test Features of Super Duplex 2507 Pipe SDSS 2507 Tube Applications ASTM A790 UNS S32750 Tube Elevated Temperature Tensile Properties Saf 2507 Tubing Physical Properties

Gallery

Super Duplex 2507 Pipe in Detail

Specification

Features & Applications

Saf 2507 Material Test

Positive Material Identification – PMI Testing
Hardness Test
Chemical Analysis – Spectro Analysis
Intergranular Corrosion (IGC) Test
Flaring Test
Flattening Test
Pitting Resistance Test

Features of Super Duplex 2507 Pipe

High Strength
Good general corrosion resistance
Low rate of thermal expansion
Good workability and weldability
Superior resistance to crevice corrosion and chloride pitting
Suggested for applications up to 600° F

SDSS 2507 Tube Applications

Desalination Equipment
Pulp & Paper Mill Equipment
Chemical process pressure vessels
Marine Applications
Offshore Oil production/technology
Flue Gas Scrubbing Equipment

Technical Data

Full Specifications

›Technical Data

Standard Specification of Super Duplex 2507 Pipe

ASTM / ASME Standards	ASTM A790 / ASME SA790
Pipe Form	Rectangular, Hollow, Round, Square, Hydraulic, Straight Pipes Etc.
Pipe/ Tube Length	Single Random, Double Random and Cut Length.
Pipe/ Tube Schedule	SCH40, SCH10, SCH5, STD, SCH80, SCH160
Pipe Finish	BA (Bright & Annealed), Polished, AP (Annealed & Pickled), MF
EFW Pipe size	5.0 mm - 1219.2 mm
End	Plain End, Beveled End, Treaded.
Welded Tube Size	6.35 mm OD To 152 mm OD
Swg & Bwg	10 Swg., 16 Swg., 12 Swg., 14 Swg., 18 Swg., 20 Swg.
Marking	All Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Material Test Certificates (MTC)	Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
Tubing wall thickness	0.020" –0.220", (special wall thicknesses available)
Marking	All tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Tube Type	ERW, EFW, Welded, Seamless, Fabricated
Export to	Brazil, Iran, Spain, Canada, Egypt, Ireland, Korea, Oman, Dubai, Ukraine, India, Saudi Arabia, Thailand, Singapore, Indonesia, USA, Peru, etc
Finish	Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
Tube Form	Hydraulic, Rectangular, Boiler, Square, Straight or ‘U’ bent Tubes, Round, Coil, Hollow, LSAW Tubes Etc.
Application	Gas Tube, Fluid Tube, Oil Tube, Boiler and Heat exchanger

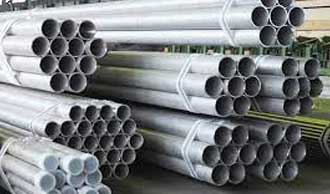

Material Equivalent of 2507 Stainless Round Pipe

col_1	col_2	col_3
STANDARD	UNS	WERKSTOFF NR.
Super Duplex S32750	S32750	1.4410

Alloy 2507 Super Duplex Pipe Schedule Chart

1/8" IPS(.405"O. D.)	3 1/2" IPS( 4.000"O. D.)
3/8" IPS(.675"O. D.)	5" IPS( 5.563"O. D.)
1/4" IPS(.540"O. D.)	4" IPS(4.500"O. D.)
SCH 40, 80	SCH 10, 40, 80, 160, XXH
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.)	6" IPS(6.625"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.)	8 ” IPS(8.625"O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
1" IPS:(1.315′O. D.)	10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
SCH 5, 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
1-1/4" IPS(1.660"O. D.)	12" IPS(12.750"O. D.)
1-1/2" IPS(1.900"O. D.)	14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
SCH 10, 40, 80, 160, XXH	SCH10 (.188), SCH40 (.375)
SCH 10, 40, 80, 160, XXH	SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.)	18" IPS (18.000"O. D.)
2" IPS(2.375"O. D.)	16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH-40 (.375)
SCH 5, 10, 40, 80, 160, XXH
3" IPS( 3.500"O. D.)

ASME B36.19 Sandvik Saf 2507 Tubing Sizes

Pipe Outside Diameter / Millimeter	Pipe Weight / Millimeter	inch.	Schedule	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	3.02	1/4	80S	0.81
13.72	2.24	1/4	40S	0.64
17.15	1.65	3/8	10S	0.64
17.15	3.20	3/8	80S	1.12
17.15	2.31	3/8	40S	0.86
21.34	2.11	1/2	10S	1.02
21.34	3.73	1/2	80S	1.65
21.34	2.77	1/2	40S	1.29
26.67	2.11	3/4	10S	1.30
26.67	3.91	3/4	80S	2.23
26.67	2.87	3/4	40S	1.71
33.40	2.77	1	10S	2.13
33.40	4.55	1	80S	3.29
33.40	3.38	1	40S	2.54
33.40	6.352)	1	160	4.30
42.16	3.56	1¼	40S	3.44
42.16	2.77	1¼	10S	2.73
42.16	4.85	1¼	80S	4.53
48.26	2.77	1½	10S	3.16
42.16	6.352)	1¼	160	5.69
48.26	3.68	1½	40S	4.11
60.33	2.77	2	10S	3.99
48.26	5.08	1½	80S	5.49
60.33	3.91	2	40S	5.52
60.33	8.742)	2	160	11.29
60.33	5.54	2	80S	7.60
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97

Astm A790 S32750 Stainless Tube Sizes

Scroll to see all columns →

col_1	Sizes	Sizes_2	Sizes_3	col_5	Standard Tolerances	Standard Tolerances_2	Standard Tolerances_3
Products	OD	Wall	Lengths and/or coils	Grades	OD	Wall	Lengths
Pressure & Corrosion Tubing Meets or exceeds requirements for welded Specification: ASTM-A789	1/16" (1.59 mm) to 4" (101.6 mm) Metric sizes available	0.010" (0.25 mm) to 0.220" (5.59 mm)	Random or cut lengths up to 40' (12.2 m) Coils to 1-1/2" OD	Super Duplex 2507	<1-1/2" (38.1 mm) ±0.005" (0.13 mm) 1-1/2" (38.1 mm) to 3" (76.2 mm) ±0.010" (0.25 mm) 3-1/2" (88.9 mm) to 4" (101.6 mm) ±0.015" (0.38 mm)	±10%	Randoms up to +2" (50.8 mm) Cuts +1/8" (3 mm) -0" Coils to 80,000' (24,384 m)
Subsea Umbilical Tubing Specifications: ASTM-A789 and ASTM-A790	3/8" (9.53 mm) to 1-1/2" (38.1 mm)	0.039" (0.99 mm) to 0.125" (3.18 mm)	Cut lengths to 60' (18.3 m) Coils to 1-1/2" OD*	Super Duplex 2507	±0.005" (0.127 mm)	±10%	Coils to 80,000' (24,384 m)

ASTM A790 UNS S32750 Tube Elevated Temperature Tensile Properties

Temp.	-50°C	+20°C	-60°F	+70°F
Single	75 J/cm_	90 J/cm_	54 ft. lbs	65 ft. lbs
Average (5)	90 J/cm_	150 J/cm	65 ft. lbs	87 ft. lbs

Saf 2507 Tubing Physical Properties

Scroll to see all columns →

Interval / Temper / °C	Thermal / expansion / ax10M-bK-1	°C / /	Resistivity / / (μ_ cm)	Thermal / conductivity / (W.m-1.K-1)	Specific / heat / (J.kg-1.K-1	Young / modulus / E / (GPa)	Shear / modulus / G / (GPa)
20-100	13	100	92	18	500	190	73
20-100	13	20	80	17	450	200	75
20-300	14	300	105	20	560	170	67
20-200	13.5	200	100	19	530	180	70

We are Leading supplier in Below locations

col_1	col_2
cold rolled 2507 super duplex stainless steel square pipe	Philippines, Kuwait, South Africa, Taiwan
12mm Duplex Steel 2507 Pipe	Singapore, Europe, UAE, South Africa
Super duplex 2507 large diameter stainless steel tube and Pipe	Thailand, Hong Kong, Oman, France
super duplex 2507 pipe 10 inch Pipe	Nigeria, Canada, Ellington -United States, Australia
SAF 2507 Super Duplex Seamless Pipe	Netherlands, Malaysia, Sweden, Russia, Brazil
schedule 80s super duplex S32750 stainless steel pipe	Malaysia, Singapore, Bahrain, South Korea
AISI 2507 Super Duplex Stainless Steel Square Pipe	Belgium, UK, Philippines, Indonesia
2 Inch ASTM A789 S32750 Seamless Duplex Pipe 60.3mm Outer Diameter	Singapore, Europe, Qatar, Malaysia
Super Duplex Stainless Steel Welded Pipe 9mm 6mm	UK, Philippines, Dammam -KSA, Poland
12 Inch Super Duplex Stainless Steel Pipe	Malaysia, Thailand, Czechia, Japan
SDSS Schedule 40 Seamless and welded tubes	Egypt, Los Alamos -Mexico, Malaysia, Mexico
2507 Uns S32750 Super Duplex Stainless Steel Pipe	UAE, Italy, Singapore, Malaysia
Super Duplex 2507 Stainless Steel Square pipe	Chile, Canada, Philippines, Iran
100mm super duplex stainless steel 2507 pipe	Malaysia, Turkey, Malaysia, Germany
20mm Schedule 40 Super Duplex 2507 Pipe	United Kingdom -UK, NY 12203 (USA), Singapore, Malaysia
3 inch diameter Super Duplex 2507 Stainless Steel Polished Pipe	United Arab Emirates (UAE), Romania, Europe, Norway
2507 Polished Super Duplex Stainless Steel Food Pipes	China, Bangladesh, Malaysia, Colombia
super duplex 2507 sch 40 polishing 8 inch stainless welded pipe	Brazil, Spain, UK, Saudi Arabia (KSA)
3/4 inch stainle steel tubing super duplex 2507 pipe	Finland, Malaysia, Dubai, USA

›Material Properties

Chemical Compatibility of Super Duplex Alloy 2507 Heat Exchanger Tube

Scroll to see all columns →

C	N	P	Si	Mn	Mo	Ni	Cr	S	Other
0.030	0.24/0.32	0.035	0.80	1.20	3.0/5.0	6.00/8.00	24.0/26.0	0.020	Cu:0.50

Mechanical Characteristics of A790 S32750 Seamless Pipe

col_1	col_2	col_3	col_4	col_5
Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
7.8 g/cm3	1350 °C (2460 °F)	Psi - 80000 , MPa - 550	Psi - 116000 , MPa - 800	15 %

›Pressure Ratings

Super Duplex 2507 Pipe Pressure Rating

Scroll to see all columns →

Pipe Outside Diameter / (In.)	Wall Thickness Of Pipes (In)	Wall Thickness Of Pipes (In)_2	Wall Thickness Of Pipes (In)_3	Wall Thickness Of Pipes (In)_4	Wall Thickness Of Pipes (In)_5	Wall Thickness Of Pipes (In)_6	Wall Thickness Of Pipes (In)_7	Wall Thickness Of Pipes (In)_8
Pipe Outside Diameter / (In.)	.028	.035	.049	.065	.083	.095	.109	.120
Pipe Outside Diameter / (In.)	Working Pressure (Psig)	Working Pressure (Psig)	Working Pressure (Psig)	Working Pressure (Psig)	Working Pressure (Psig)	Working Pressure (Psig)	Working Pressure (Psig)	Working Pressure (Psig)
1/8	7900	10100
5/16		3700	5400	7300
1/4	3700	4800	7000	9500
3/8		3100	4400	6100
1				2200	2900	3400	3900	4300
3/4			2200	3000	4000	4600
1/2		2300	3200	4400

›Dimensions & Weight

A790 Uns S32750 Pipe Weight Chart

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
NPS	Outside Diameter	Outside Diameter	Wall Thickness	Wall Thickness		Weight	Weight
NPS	in	mm	in	mm	Sched	kg/Mtr	Lb/ft
1/2"	0.840	21	0.109	2.769	40 STD	1.268	0.851
3/4"	1.050	27	0.113	2.870	40 STD	1.684	1.131
			0.147	3.734	80 STD	1.621	1.088
			0.154	3.912	80 STD	2.195	1.474
			0.179	4.547	80 STD	3.325	2.172
1"	1.315	33	0.133	3.378	40 STD	2.501	1.679
1 1/4"	1.660	42	0.140	3.556	40 STD	3.385	2.273
1 1/2"	1.900	48	0.145	3.683	40 STD	4.048	2.718
			0.191	4.851	80 STD	4.464	2.997
			0.200	5.080	80 STD	5.409	3.361
			0.218	5.537	80 STD	7.480	5.022
2"	2.375	60	0.154	3.912	40 STD	5.441	3.653
2 1/2"	2.875	73	0.203	5.516	40 STD	8.629	5.793
3"	3.500	89	0.216	5.486	40 STD	11.284	7.576
			0.276	7.010	80 STD	11.411	7.661
			0.300	7.620	80 STD	15.272	10.253
			0.337	8.560		22.318	14.983
4"	4.500	114	0.237	6.020		16.073	10.790
6"	6.625	168	0.188	4.775		19.252	12.924
			0.219	5.563		22.318	14.983
			0.203	5.516		20.739	13.923
			0.250	6.350		25.354	17.021
			0.312	7.925		31.334	21.036
			0.280	7.112	40 STD	58.263	18.974
			0.375	9.525		37.285	25.031
			0.500	12.700		48.719	32.708
			0.432	10.973	80 XHY	42.561	28.573
8"	8.625	219	0.188	4.775		25.233	16.940
			0.219	5.563		29.286	19.661
			0.203	5.156		27.198	18.259
			0.250	6.350	20	33.308	22.361
			0.322	8.179	40	42.352	28.554
			0.277	7.036	30	36.786	24.696
			0.375	9.525		49.216	33.041
			0.500	12.700	80 XHY	64.627	43.388
			0.406	10.312	60	53.085	35.638
10"	10.750	273	0.188	4.775		31.588	21.207
			0.250	6.350	20	41.759	28.035
			0.219	5.563		36.689	24.631
			0.307	7.798	30	51.002	34.240
			0.365	9.271	40 STD	63.301	40.483
			0.344	8.738		56.946	38.231
			0.438	11.125		71.852	48.238
			0.594	15.088	80	95.969	64.429
			0.500	12.700	60 XHY	81.530	54.735
12"	12.750	324	0.188	4.775		37.570	25.222
			0.250	6.350		49.713	33.375
			0.219	5.563		43.657	29.309
			0.281	7.137		55.739	37.420
			0.375	9.525		73.824	49.562
			0.312	7.925		61.735	41.445
			0.406	10.312		79.727	53.525
			0.562	14.275		108.966	73.154
			0.500	12.700		97.438	65.415
14"	14.000	356	0.188	4.775		41.308	27.732
			0.250	6.350	20	54.685	36.713
			0.219	5.563		48.012	32.233
			0.281	7.137		61.327	41.172
			0.375	9.525	STD	81.281	54.568
			0.312	7.925		67.939	45.611
			0.438	11.125	40	94.498	63.441
			0.625	15.875		132.983	89.278
			0.500	12.700	XHY	107.381	72.090
16”	16.000	406	0.188	4.775		47.290	21.748
			0.250	6.350	10	62.639	42.053
			0.281	7.137		70.268	47.174
			0.219	5.563		54.980	36.910
			0.312	7.925	20	77.866	52.275
			0.375	9.525	30 STD	93.213	62.578
			0.344	8.738		85.677	57.519
			0.438	11.125		108.433	72.797
18"	18.000	457	0.219	5.563		61.948	41.588
			0.500	12.700	40 XHY	123.289	82.770
			0.250	6.350		70.593	47.393
			0.312	7.925	20	87.792	58.939
			0.281	7.137		79.208	53.176
			0.375	9.525	STD	105.144	70.588
			0.500	12.700	XHY	139.198	93.450
			0.438	11.125	30	122.369	82.152
			0.562	14.275	40	155.904	104.666
20"	20.000	508	0.250	6.350		78.547	52.733
			0.625	15.875		172.754	115.978
			0.282	7.163		88.458	59.386
			0.375	9.525	20 STD	117.075	78.598
			0.312	7.925		97.719	65.604
			0.438	11.125		136.305	91.508
			0.625	15.875		192.640	129.328
			0.500	12.700	30 XHY	155.106	104.130
			0.594	15.088	40	183.378	123.110
			0.688	17.475		211.368	141.901
			0.281	7.137		106.029	71.183
24"	24.000	610	0.250	6.350		94.456	63.413
			0.312	7.925		117.573	18.932
			0.438	11.125		164.176	110.219
			0.375	9.525	20 STD	140.938	64.618
			0.500	12.700	XHY	186.923	125.490
			0.688	17.475	40	255.148	171.293
			0.625	15.875		232.410	156.028
			0.750	19.050		277.401	186.233
30"	30.000	762	0.250	6.350		118.318	79.433
			0.281	7.137		132.851	89.189
			0.312	7.925	10	147.353	98.925
			0.375	9.525	STD	176.731	118.648
			0.438	11.125		205.983	138.286
			0.500	12.700	20 XHY	234.647	157.530
			0.625	15.875	30	292.066	196.078
			0.688	17.475		320.817	215.380
			0.750	19.050		348.988	234.293
36"	36.000	914	0.250	6.350		142.180	95.453
			0.281	7.137		159.672	107.196
			0.312	7.925	10	177.133	118.918
			0.375	9.525	STD	215.525	142.678
			0.438	11.125		247.790	166.353
			0.500	12.700	20 XHY	282.372	198.570
			0.625	15.875		351.723	236.128
			0.688	17.475		386.487	259.467
			0.750	19.050		420.576	282.353
42"	42.000	1067	0.312	7.925		206.914	138.911
			0.375	9.525	STD	248.319	166.708
			0.500	12.700	XHY	33.097	221.610
			0.750	19.050		492.163	330.413
48"	48.000	1219	0.375	9.525	STD	284.112	190.738
			0.438	11.125		331.404	222.487
			0.500	12.700	XHY	377.822	253.650
			0.750	19.050		563.750	378.473
			0.875	22.225		655.969	440.383

Super Duplex 2507 Pipe

Get a Price

Request a quote for this item

Specify the grade, size, quantity and governing standard, and we'll confirm stock and pricing — typically within the same working day.

Request a Quote for Super Duplex 2507 Pipe

Contact

Send us the spec

Grade, form, size and quantity — that's all we need to confirm stock and quote. Reach us directly, or use the form below.

Enquiry FormReply same working day

Direct Contact

Head Office

Shop No. 5, Ravi Estate, Keval Kantha Road, Near Gujarat Bottling Road, Industrial Area, Rakhial, Ahmedabad, Gujarat – 380023, India

Phone / WhatsApp

+91 93240 06771

exportompmo@gmail.com

Working Hours

Monday – Saturday8:00 AM – 8:00 PM

SundayClosed
