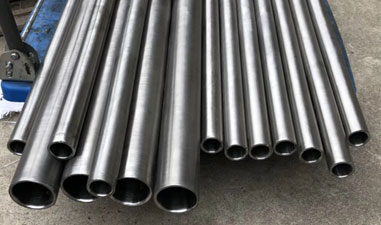

Monel 400 Pipe

Monel 400 Pipe

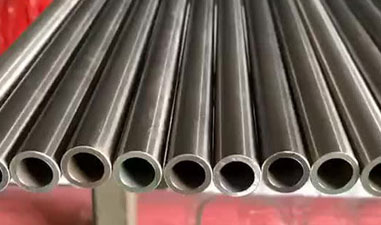

Find Specification and Pressure Rating of ASTM B163 N04400 Seamless Tube. Largest Supplier of Monel 400 Pipe in India as Per ASTM B165 Standard, Call for Fast Delivery and Custom Finish at Low Cost.

Nickel Alloys

On This Page

Gallery

Monel 400 Pipe in Detail

Specification

Features & Applications

Melting Range

  • 2370 - 2460 °F
  • 1300 - 1350 °C

Density

  • 8.80 g/cm3
  • 0.318 lb/in.3

Nickel Alloy 400 ERW Pipe ASTM Standard

  • ASTM B163
  • ASTM B829
  • ASTM B165

Nickelvac® 400 Annealed Pipe Curie Temperature

  • 21 - 49 °C
  • 70 - 120 °F

Monel Alloy 400 Exhaust Pipe Hardness (Rockwell )

  • 60 B

Tensile Strength

  • 550 Mpa
  • 80000 psi

Nicorros® 400 Clad Pipe According to

  • ASME B36.19
  • ASME B36.10

Elastic Modulus

  • 190 GPa

Electrical Resistivity

  • 850 μΩ.m

AMS 4574 Exhaust Pipe UNS

  • N04400

Monel 400 Seamless Tube Dimensional Standard

  • SUS
  • JIS
  • ASTM
  • EN
  • DIN
  • GB

DIN 2.4360 Cold Drawn Pipe Equivalent standards

  • UNS N04400
  • Old British : NA 13
  • Euronorm : NiCu30Fe
  • GOST : МНЖМц 28-2,5-1,5
  • Japanese : NW 4400
  • AFNOR : NU-30M

WNR 2.4360 Hot Finished Pipe Surface Finish

  • Pickled
  • Precleaned
  • Passivated
  • Cleaned

Yield Strength

  • 240 Mpa
  • 35000 psi

International Specifications

  • VdTUV 2635
  • Din 17752
  • AMS 4574

Supporting documents for Monel 400 Square Pipe

  • MTC EN 10204 3.1/3.2
  • Inspection reports
  • Origin
  • Labeling verification
  • Check List
  • Inspection plan

Specifications

  • ASTM B165
  • ASTM B775
  • ASTM B163
  • ASTM B751
  • ASTM B829
  • ASTM B725
  • ASTM B730

Temperatures range

  • 1000°F
  • 538°C

Testing requirements for UNS N04400 Hot Finished Pipe

  • Ultrosonic test
  • 100% eddy current test
  • 100% Radiographic Test

Werkstoff NR. 2.4360 Rectangular Pipe Treatment

  • Cold Finished
  • Hot Finished

Heat Treatment for Nickel Alloy 400 Square Pipe

  • +LC
  • +SRA
  • Q+T
  • +A
  • +N

Nickelvac® 400 Seam Welded Pipe End

  • Beveled
  • Plain Ends
  • Threaded Ends
  • Square Ends

Monel Alloy 400 Bright Annealed Pipe Services

  • Cut to Length
  • Threading
  • Welding
  • Machining
  • Beveling

2.4816 Inconel 600 Bright Annealed Pipe Length

  • Single
  • Standard
  • Double Random
  • Cut Length

DIN 2.4360 Cold Finished Pipe Manufacturing Types

  • Electric Resistance Welded
  • LSAW
  • EFW
  • CDW
  • Seamless
  • CEW
  • Fabricated
  • Welded
  • DOM

Alloy 400 Welded Tube Form

  • Coiled
  • Rectangular
  • Round
  • Hollow
  • Hydraulic
  • Square
  • Straight
  • U Shape

Werkstoff NR. 2.4360 Annealed Pipe Testing

  • X-Ray
  • UT
  • Dye Penetrant
  • Micro and MacroTest
  • PMI Testing
  • Hardness Test
  • Chemical Analysis
  • IGC Test
  • Flaring Test
  • Flattening Test
  • Pitting Resistance Test
  • Mechanical Testing

Alloy 400 Seamless Pipe Packaging

  • Crates
  • Bundles
  • Wooden Boxes
  • Custom
  • Wrapped in plastic
  • PE Fabric Bundles

Origin standards

  • American
  • European
  • Russia
  • Janpanese

Marking

  • Schedule or Wall Thickness
  • Nominal Size
  • Specification
  • Manufacturer’s Name
  • Heat Number
  • Material Grade
  • Method of Manufacturing

Certification of Monel 400 Seamless Tube

  • DFARS compliant
  • MTC EN 10204 3.1/3.2
  • Raw Materials Certificate
  • Third Party Inspection Report
  • Heat Treatment Charts
  • HS Code
  • Commercial Invoice
  • Form A for GSP

Monel 400 SMLS Tube Equipment

  • Sand-blasting machine
  • Bending machine
  • Press machine
  • Electric bevelling machine
  • Pushing Machine

Monel Alloy 400 Annealed Pipe Welding Method

  • SMAW
  • GMAW
  • MIG
  • MAG
  • FCAW
  • TIG

Available As

Monel 400 Cold Drawn PipeUNS N04400 Annealed PipeAlloy 400 Seamless PipeWerkstoff NR. 2.4360 Welded PipeNickel Alloy 400 Cold Finished Seamless PipeNickelvac® 400 Bright Annealed PipeMonel Alloy 400 Rectangular PipeNicorros® 400 Exhaust PipeAMS 4574 Seam Welded PipeASTM B163 N06600 Hot Finished PipeMonel 400 Solution Annealed PipeDIN 2.4360 Round PipeWNR 2.4360 Cold Finished PipeASTM B163 UNS N06600 Square PipeASME SB163 UNS N06600 Seam Welded PipeMonel 400 Clad PipeAlloy 400 Hot Finished Seamless Pipe

Technical Data

Full Specifications

›Pressure Ratings

Monel 400 Tubing Pressure Rating

Scroll to see all columns →

col_1col_2col_3col_4col_5col_6col_7col_8col_9
Tube O.D.(in.)1/81/45/163/81/23/41
Wall Thickness of Tube (inches).02879003700
Wall Thickness of Tube (inches).035101004800370031002300
Wall Thickness of Tube (inches).04970005400440032002200
Wall Thickness of Tube (inches).065950073006100440030002200
Wall Thickness of Tube (inches).08340002900
Wall Thickness of Tube (inches).09546003400
Wall Thickness of Tube (inches).1093900
Wall Thickness of Tube (inches).124300
›Technical Data

Monel 400 Pipe Schedule Chart

col_1col_2col_3col_4col_5
.405" OD1/8" IPS4.000" OD3 1/2" IPS
SCH 40 80SCH 40 80SCH 40 80SCH 10 to XXHSCH 10 to XXH
.540" OD1/4" IPS4.500" OD4" IPS
SCH 10 80SCH 10 80SCH 10 80SCH 10 to XXHSCH 10 to XXH
.675" OD3/8" IPS5.563" OD5" IPS
SCH 10 80SCH 10 80SCH 10 80SCH 10 to XXHSCH 10 to XXH
.840" OD1/2" IPS6.625" OD6" IPS
SCH 5 to XXHSCH 5 to XXHSCH 5 to XXHSCH 5 to XXHSCH 5 to XXH
1.050" OD3/4" IPS8.625" OD8 ” IPS
SCH 10 to XXHSCH 10 to XXHSCH 10 to XXHSCH 5 to XXHSCH 5 to XXH
:1.315′ OD1" IPS10.750" OD10" IPS
SCH 5 to XXHSCH 5 to XXHSCH 5 to XXHSCH 10 to 80SCH 10 to 80
1.660" OD1-1/4" IPS12.750" OD12" IPS
SCH 10 to XXHSCH 10 to XXHSCH 10 to XXHSCH 10 20 40SCH 10 20 40
1.900" OD1-1/2" IPS14.000" OD14" IPS
SCH 10 to XXHSCH 10 to XXHSCH 10 to XXHSCH10 SCH40SCH10 SCH40
2.375" OD2" IPS16.000" OD16" IPS
SCH 10 to XXHSCH 10 to XXHSCH 10 to XXHSCH10. SCH40SCH10. SCH40
2.875" OD2 1/2" IPS18.000" OD18" IPS
SCH 10 80 160 XXHSCH 10 80 160 XXHSCH 10 80 160 XXHSCH-40SCH-40
3.500" OD3" IPS
SCH 5 to XXHSCH 5 to XXHSCH 5 to XXH

Monel 400 Seamless Tube Physical Properties

PropertiesMetricImperial
Density8.8 gm/cm30.318 lb/in3

Standard Specification of Nickel 400 Pipe

UNSSpecificationsInternational Specifications:
N04400ASTM B165, B829, B775, B725, B163, B730, B751,AMS 4574VdTUV 2635, DIN 17752

Size of Monel 400 Welded Tube

Wall ThicknessNickel Tube Sizes ( O.D.)
.0101/16" 3/16"
.0201/16" 3/16" 5/16"
.0121/8"
.0161/8" 3/16"
.0281/8" 1/4" 3/8" 3/4" 1 1/2"
.0351/8" 1/4" 3/8" 1/2" 5/8" 7/8" 1 1/4" 2 1/4"
.0493/16" 5/16" 1/2" 5/8" 7/8" 1 1/8" 1 1/2" 1 5/8" 2 1/4"
.0655/16" 1/2" 5/8" 1" 1 1/2" 2" 3"
.0831/4" 1/2" 3/4" 1" 1 1/2" 1 7/8" 3"
.0951/2" 1" 1 1/2" 2"
.1091/2" 1" 1 1/2" 2"
.1201/2" 3/4" 1" 1 1/2" 2" 2 1/4" 3"
.1253/4" 1 1/4" 2" 3 1/4"
.1341"
.2503"
.3753 1/2"

Wall Thickness of UNS N04400 Pipe

TypesOut diameterLengthWall thickness
NB Sizes (in stock)1/8” - 8”Upto 6 MetersSCH 5 to SCH 160
monel 400 Welded Pipe (in Stock + Custom Sizes)5 mm - 1219.2mmUpto 6 Meters1 - 15 mm
monel 400 Seamless Pipe (Custom Sizes)5 mm - 203.2mmUpto 6 MetersAs per requirement
›Dimensions & Weight

Weight Chart of Monel Alloy 400 Tubes

Scroll to see all columns →

NPSWall ThicknessWall Thickness_2Outside DiameterOutside Diameter_2col_6WeightWeight_2
NPSinmminmmSchedLb/ftkg/Mtr
1/2".1092.769.8402140 STD.8511.268
.1473.73480 STD1.0881.621
3/4".1132.8701.0502740 STD1.1311.684
.1543.91280 STD1.4742.195
1".1333.3781.3153340 STD1.6792.501
.1794.54780 STD2.1723.325
1 1/4".1403.5561.6604240 STD2.2733.385
.1914.85180 STD2.9974.464
1 1/2".1453.6831.9004840 STD2.7184.048
.2005.08080 STD3.3615.409
2".1543.9122.3756040 STD3.6535.441
.2185.53780 STD5.0227.480
2 1/2".2035.5162.8757340 STD5.7938.629
.2767.01080 STD7.66111.411
3".2165.4863.5008940 STD7.57611.284
.3007.62080 STD1 .25315.272
4".2376.0204.5001141 .79016.073
.3378.56014.98322.318
6".1884.7756.62516812.92419.252
.2035.51613.9232 .739
.2195.56314.98322.318
.2506.35017.02125.354
.2807.11240 STD18.97458.263
.3127.92521.03631.334
.3759.52525.03137.285
.4321 .97380 XHY28.57342.561
.50012.70032.70848.719
8".1884.7758.62521916.94025.233
.2035.15618.25927.198
.2195.56319.66129.286
.2506.3502022.36133.308
.2777.0363024.69636.786
.3228.1794028.55442.352
.3759.52533.04149.216
.4061 .3126035.63853.085
.50012.70080 XHY43.38864.627
10".1884.7751 .75027321.20731.588
.2195.56324.63136.689
.2506.3502028.03541.759
.3077.7983034.24051.002
.3448.73838.23156.946
.3659.27140 STD4 .48363.301
.43811.12548.23871.852
.50012.70060 XHY54.73581.530
.59415.0888064.42995.969
12".1884.77512.75032425.22237.570
.2195.56329.30943.657
.2506.35033.37549.713
.2817.13737.42055.739
.3127.92541.44561.735
.3759.52549.56273.824
.4061 .31253.52579.727
.50012.70065.41597.438
.56214.27573.154108.966
14".1884.77514.00035627.73241.308
.2195.56332.23348.012
.2506.3502036.71354.685
.2817.13741.17261.327
.3127.92545.61167.939
.3759.525STD54.56881.281
.43811.1254063.44194.498
.50012.700XHY72.090107.381
.62515.87589.278132.983
16”.1884.77516.00040621.74847.290
.2195.56336.91054.980
.2506.3501042.05362.639
.2817.13747.1747 .268
.3127.9252052.27577.866
.3448.73857.51985.677
.3759.52530 STD62.57893.213
.43811.12572.797108.433
.50012.70040 XHY82.770123.289
18".2195.56318.00045741.58861.948
.2506.35047.3937 .593
.2817.13753.17679.208
.3127.9252058.93987.792
.3759.525STD7 .588105.144
.43811.1253082.152122.369
.50012.700XHY93.450139.198
.56214.27540104.666155.904
.62515.875115.978172.754
20".2506.3502 .00050852.73378.547
.2827.16359.38688.458
.3127.92565.60497.719
.3759.52520 STD78.598117.075
.43811.12591.508136.305
.50012.70030 XHY104.130155.106
.59415.08840123.110183.378
.62515.875129.328192.640
.68817.475141.901211.368
24".2506.35024.00061063.41394.456
.2817.13771.183106.029
.3127.92518.932117.573
.3759.52520 STD64.61814 .938
.43811.12511 .219164.176
.50012.700XHY125.490186.923
.62515.875156.028232.410
.68817.47540171.293255.148
.75019.050186.233277.401
30".2506.3503 .00076279.433118.318
.2817.13789.189132.851
.3127.9251098.925147.353
.3759.525STD118.648176.731
.43811.125138.286205.983
.50012.70020 XHY157.530234.647
.62515.87530196.078292.066
.68817.475215.38032 .817
.75019.050234.293348.988
36".2506.35036.00091495.453142.180
.2817.137107.196159.672
.3127.92510118.918177.133
.3759.525STD142.678215.525
.43811.125166.353247.790
.50012.70020 XHY198.570282.372
.62515.875236.128351.723
.68817.475259.467386.487
.75019.050282.35342 .576
42".3127.92542.0001067138.911206.914
.3759.525STD166.708248.319
.50012.700XHY221.61033.097
.75019.05033 .413492.163
48".3759.52548.0001219STD19 .738284.112
.43811.125222.487331.404
.50012.700XHY253.650377.822
.75019.050378.473563.750
.87522.22544 .383655.969
›Material Properties

Mechanical Properties Chart of Monel Alloy 400 Square Pipe

ElementMelting Pointcol_3Tensile StrengthElongation
Element1350 °C 2460 °F80,000 Psi 550 MPaElongation
Monel 400DensityYield Strength40 %
Monel 4008.8 g/cm335,000 Psi 240 MPa40 %

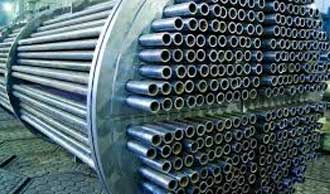

Nickel 400 Heat Exchanger Tube Equivalent grades

Scroll to see all columns →

STANDARDNorth AmericaWERKSTOFF NR.British StandardEuropeJapanRussiaFrance
Monel 400N044002.4360NA 13NiCu30FeNW 4400МНЖМц 28-2,5-1,5NU-30M
Monel 400 Pipe
Monel 400 Pipe

Get a Price

Request a quote for this item

Specify the grade, size, quantity and governing standard, and we'll confirm stock and pricing — typically within the same working day.

Request a Quote for Monel 400 Pipe

Contact

Send us the spec

Grade, form, size and quantity — that's all we need to confirm stock and quote. Reach us directly, or use the form below.

Enquiry FormReply same working day
Direct Contact

Head Office

Shop No. 5, Ravi Estate, Keval Kantha Road, Near Gujarat Bottling Road, Industrial Area, Rakhial, Ahmedabad, Gujarat – 380023, India

Phone / WhatsApp

+91 93240 06771

Working Hours

Monday – Saturday8:00 AM – 8:00 PM

SundayClosed
