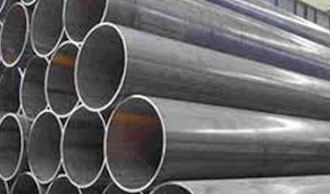

Stainless Steel 316L Pipe

Stainless Steel 316L Pipe

Looking for specific size Stainless Steel 316L Pipe? Check ready stock of ASME SA213/ ASTM A213 TP316L Seamless/ Welded Tube. view UNS S31603 Rectangular/ Square Tubing Price List.

Stainless Steel

On This Page

Gallery

Stainless Steel 316L Pipe in Detail

Technical Data

Full Specifications

›Technical Data

Specification Table of Stainless Steel 316L Pipe

ASTM / ASME StandardsASTM A269 / ASME SA269 ASTM A312 / ASME SA312
Pipe FormRound, Square, Hollow, Rectangular, Hydraulic, Straight Pipes Etc.
Pipe/ Tube LengthSingle Random, Double Random & Cut Length.
Pipe/ Tube ScheduleSCH5, SCH10, SCH40, STD, SCH80, SCH160
Pipe FinishPolished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
EFW Pipe size5.0 mm - 1219.2 mm
EndPlain End, Beveled End, Treaded.
Welded Tube Size6.35 mm OD To 152 mm OD
Swg & Bwg10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
MarkingAll Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Material Test Certificates (MTC)Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
Tubing wall thickness0.020" –0.220", (special wall thicknesses available)
Tube LengthSingle Random, Double Random, Standard & Cut length
EndPlain End, Beveled End, Treaded
MarkingAll tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Tube TypeSeamless, ERW, EFW, Welded, Fabricated
FinishPolished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
Tube FormRound, Coil, Square, Rectangular, Boiler, Hydraulic, Straight or ‘U’ bent Tubes, Hollow, LSAW Tubes Etc.
ApplicationOil Tube, Gas Tube, Fluid Tube, Boiler and Heat exchanger

Equivalent Material of SUS 316L ERW Pipe

Scroll to see all columns →

STANDARDWERKSTOFF NR.UNSJISBSGOSTAFNOREN
SS 316L1.4404 / 1.4435S31603SUS 316L316S11 / 316S1303Ch17N14M3 / 03Ch17N14M2Z3CND17-11-02 / Z3CND18-14-03X2CrNiMo17-12-2 / X2CrNiMo18-14-3

ASTM A312 TP316L Pipe Sizes

WallSizes ( O.D.)
.0101/16" , 1/8" , 3/16"
.0201/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.0121/8"
.0161/8" , 3/16"
.0281/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.0351/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.0493/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.0651/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.0831/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.0951/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.1091/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.1201/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.1253/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.1341"
.2503"
.3753 1/2"

We Supplied Following Material

col_1col_2
stainless steel pipe 316l schedule 40Romania, Malaysia, Europe, Japan
stainless steel pipe 316l schedule 10sMalaysia, China, Sweden, Colombia
SCH 10 40 80 SS UNS S31603 PipesSpain, Egypt, UK, Mexico
SS DIN 1.4436 Square PipeMalaysia, UAE, United Kingdom -UK, Europe
316L SS Hexagonal PipePoland, Ellington -United States, UK, Canada
2 Inch 316L stainless steel tubeSingapore, Bahrain, South Africa
316L mirror polished stainless steel pipeUK, Nigeria, Philippines, Australia
316L Bright Annealed Tube Stainless Steel For InstrumentationHong Kong, UAE, Oman, Malaysia
316L 42mm Inox Round Section TubeIran, Singapore, Chile, Italy

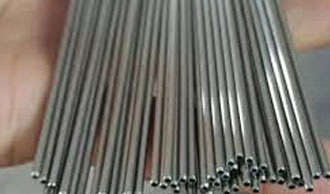

Dia 1.0mm thick 0.2mm 316L grade BA stainless steel capillary tubeNorway, Malaysia, United Arab Emirates (UAE), Turkey
Round Stainless Steel 316L Tube 5/16"Netherlands, Dubai, Russia, Malaysia
ASTM A358 TP316L Coil TubingIndonesia, Belgium, Dammam -KSA, Philippines
Type 316L Stainless Steel Polished PipesQatar, Europe, Thailand, France,
Uns S31603 Thin Wall TubingNY 12203 (USA), Malaysia, Singapore, South Korea
1.4435 Stainless Steel Welded PipesCanada, Singapore, Philippines, Malaysia
Bright Annealed Stainless Steel ASTM A312 tp316L PipeGermany, Czechia Thailand, Malaysia
Stainless Steel hollow pipes 316L gradeBangladesh, USA, Malaysia, Finland
316L Stainless Steel schedule 40 pipesLos Alamos -Mexico, Philippines, Malaysia, Taiwan
ASTM A312 tp316L Corrugated PipesSouth Africa, Kuwait, Saudi Arabia (KSA), Brazil
›Dimensions & Weight

Weight Chart of Inox 316L Pipe

Scroll to see all columns →

PIPE SIZEOD IN INCHESA.S.A. Pipe SchedulesA.S.A. Pipe Schedules_2A.S.A. Pipe Schedules_3A.S.A. Pipe Schedules_4A.S.A. Pipe Schedules_5A.S.A. Pipe Schedules_6A.S.A. Pipe Schedules_7A.S.A. Pipe Schedules_8A.S.A. Pipe Schedules_9A.S.A. Pipe Schedules_10A.S.A. Pipe Schedules_11A.S.A. Pipe Schedules_12
PIPE SIZEOD IN INCHES5s510s1040s & Std.406080s & E.H.80120160DBL E.H.
1/8.405.035.1383.049.1863.049.1863.068.2447068.24470.95.31450.95.3145
1/4.540.049.2570.065.3297.065.3297.088.4248088.4248.119.5351.119.5351
3/8.675.049.3276.065.4235.065.4235.091.5676.091.5676.126.7338.126.7338
1/2.840.065.5383.065.5383.083.6710.083.6710.109.8510.109.8510.1471.088.1471.088.1871.304.2941.714
3/41.050.065.6838.065.6838.083.8572.083.8572.1131.131.1131.131.1541.474.1541.474.2181.937.3082.441
11.315.065.8678.065.8678.1091.404.1091.404.1331.679.1331.679.1792.172.1792.172.2502.844.3583.659
1-1/41.660.0651.107.0651.107.1091.806.1091.806.1402.273.1402.273.1912.997.1912.997.2503.765.3825.214
1-1/21.900.0651.274.0651.274.1092.085.1092.085.1452.718.1452.718.2003.631.2003.631.2814.859.4006.408
22.375.0651.604.0651.604.1092.638.1092.638.1543.653.1543.653.2185.022.2185.022.3437.444.4369.029
2-1/22.875.0832.475.0832.475.1203.531.1203.531.2035.793.2035.793.2767.661.2767.661.37510.01.55213.70
33.500.0833.029.0833.029.1204.332.1204.332.2167.576.2167.576.30010.25.30010.25.43714.32.60018.58
3-1/24.000.0833.472.0833.472.1204.973.1204.973.2269.109.2269.109.31812.51.31812.51.63622.85
44.500.0833.915.0833.915.1205.613.1205.613.23710.79.23710.79.28112.66.33714.98.33714.98.43719.01.53122.51.67427.54
4-1/25.000.24712.53.35517.61.71032.53
55.563.1096.349.1096.349.1347.770.1347.770.25814.62.25814.62.37520.78.37520.78.50027.04.62532.96.75038.55
66.625.1097.585.1097.585.1349.290.1349.290.28018.97.28018.97.43228.57.43228.57.56236.39.71845.30.86453.16
77.625.30123.57.50038.05.87563.08
Medium Type = Wall thickness in inches Bold Type = Steel weight per foot in poundsMedium Type = Wall thickness in inches Bold Type = Steel weight per foot in poundsMedium Type = Wall thickness in inches Bold Type = Steel weight per foot in poundsMedium Type = Wall thickness in inches Bold Type = Steel weight per foot in poundsMedium Type = Wall thickness in inches Bold Type = Steel weight per foot in poundsMedium Type = Wall thickness in inches Bold Type = Steel weight per foot in poundsMedium Type = Wall thickness in inches Bold Type = Steel weight per foot in poundsMedium Type = Wall thickness in inches Bold Type = Steel weight per foot in poundsMedium Type = Wall thickness in inches Bold Type = Steel weight per foot in poundsMedium Type = Wall thickness in inches Bold Type = Steel weight per foot in poundsMedium Type = Wall thickness in inches Bold Type = Steel weight per foot in poundsMedium Type = Wall thickness in inches Bold Type = Steel weight per foot in poundsMedium Type = Wall thickness in inches Bold Type = Steel weight per foot in poundsMedium Type = Wall thickness in inches Bold Type = Steel weight per foot in pounds

UNS S31603 Tube Dimensions

Scroll to see all columns →

NominalO.D. Inches10s1040s & Std4080s & E.H.80160
1/8.405.049.049.068.068.095.095
1/4.540.065.065.088.088.119.119
3/8.675.065.065.091.091.126.126
1/2.840.083.083.109.109.147.147.187
3/41.050.083.083.113.113.154.154.218
11.315.109.109.133.133.179.179.250
1 1/41.660.109.109.140.140.191.191.250
1 1/21.900.109.109.145.145.200.200.281
22.375.109.109.154.154.218.218.343
2 1/22.875.120.120.203.203.276.276.375
33.500.120.120.216.216.300.300.437
3 1/24.000.120.120.226.226.318.318
44.500.120.120.237.237.337.337.531
4 1/25.000.247.355
55.563.134.134.258.258.375.375.625
66.625.134.134.280.280.432.432.718
77.625.301.500
88.625.148.148.322.322.500.500.906
99.625.342.500
1010.750.165.165.365.365.500.5931.125
1111.750.375.500
1212.750.180.180.375.406.500.6871.312
1414.000.188.250.375.437.500.7501.406
1616.000.188.250.375.500.500.8431.593
1818.000.188.250.375.562.500.9371.781
›Pressure Ratings

316L SS Seamless Tubes Pressure Rating of

Scroll to see all columns →

OD inchesAve. Wall inchesMin Yield Strength (PSI)Min Tensile Strength (PSI)Theoretical Burst Pressure * (PSI)Working Pressure (PSI) 25% of BurstTheoretical Yield Point ** (PSI)Collapse Pressure *** (PSI)
0.2500.02030,00075,00014,2863,5715,7144,416
0.2500.02830,00075,00021,6495,4128,6605,967
0.2500.03530,00075,00029,1677,29211,6677,224
0.2500.04930,00075,00048,35512,08919,3429,455
0.2500.06530,00075,00081,25020,31332,50011,544
0.3750.02030,00075,0008,9552,2393,5823,029
0.3750.02830,00075,00013,1663,2925,2664,145
0.3750.03530,00075,00017,2134,3036,8855,077
0.3750.04930,00075,00026,5346,63410,6146,816
0.3750.06530,00075,00039,7969,94915,9188,597
0.5000.02030,00075,0006,5221,6302,6092,316L
0.5000.02830,00075,0009,4592,3653,7843,172
0.5000.03530,00075,00012,2093,0524,8843,906
0.5000.04930,00075,00018,2844,5717,3135,316L
0.5000.06530,00075,00026,3516,58810,5416,786
0.5000.08330,00075,00037,2759,31914,9108,307
0.6250.02030,00075,0005,1281,2822,0511,859
0.6250.02830,00075,0007,3811,8452,9532,568
0.6250.03530,00075,0009,4592,3653,7843,172
0.6250.04930,00075,00013,9473,4875,5794,335
0.6250.06530,00075,00019,6974,9247,8795,591
0.6250.08330,00075,00027,1246,78110,8506,910
0.6250.09530,00075,00032,7598,19013,1037,734
0.6250.10930,00075,00040,17210,04316,0698,639
0.7500.02830,00075,0006,0521,5132,4212,156
0.7500.03530,00075,0007,7211,9303,0882,669
0.7500.04930,00075,00011,2732,8184,5093,664
0.7500.06530,00075,00015,7263,9316,2904,749
0.7500.08330,00075,00021,3185,3308,5275,905
0.7500.09530,00075,00025,4466,36210,1796,637
0.7500.10930,00075,00030,7337,68312,2937,453
0.7500.12030,00075,00035,2948,82414,1188,064
0.8750.02030,00075,0003,5938981,4371,340
0.8750.02830,00075,0005,1281,2822,0511,859
0.8750.03530,00075,0006,5221,6302,6092,316L
0.8750.04930,00075,0009,4592,3653,7843,172
0.8750.06530,00075,00013,0873,2725,2354,126
0.8750.08330,00075,00017,5604,3907,0245,152
0.8750.09530,00075,00020,8035,2018,3215,807
0.8750.10930,00075,00024,8866,2219,9546,543
0.8750.12030,00075,00028,3467,08711,3397,100
1.0000.02830,00075,0004,4491,1121,7801,633
1.0000.03530,00075,0005,6451,4112,2582,027
1.0000.04930,00075,0008,1492,0373,2592,796
1.0000.06530,00075,00011,2072,8024,4833,647
1.0000.08330,00075,00014,9283,7325,9714,567
1.0000.09530,00075,00017,5934,3987,0375,159
1.0000.10930,00075,00020,9085,2278,3635,827
1.0000.12030,00075,00023,6845,9219,4746,336
1.0000.13430,00075,00027,4596,86510,9846,963
1.2500.03530,00075,0004,4491,1121,7801,633
1.2500.04930,00075,0006,3801,5952,5522,260
1.2500.06530,00075,0008,7052,1763,4822,958
1.2500.08330,00075,00011,4852,8714,5943,719
1.2500.09530,00075,00013,4433,3615,3774,213
1.2500.10930,00075,00015,8433,9616,3374,776
1.2500.12030,00075,00017,8224,4557,1295,207
1.2500.13430,00075,00020,4685,1178,1875,742
1.5000.03530,00075,0003,6719181,4691,367
1.5000.04930,00075,0005,2431,3112,0971,896
1.5000.06530,00075,0007,1171,7792,8472,487
1.5000.08330,00075,0009,3332,3333,7333,136
1.5000.09530,00075,00010,8782,7194,3513,559
1.5000.10930,00075,00012,7543,1885,1014,043
1.5000.12030,00075,00014,2863,5715,7144,416
1.5000.13430,00075,00016,3154,0796,5264,881
1.5000.14830,00075,00018,4394,6107,3755,336
1.7500.03530,00075,0003,1257811,2501,176
1.7500.04930,00075,0003,8649661,5461,434
1.7500.06530,00075,0006,0191,5052,4072,146
1.7500.08330,00075,0007,8601,9653,1442,711
1.7500.09530,00075,0009,1352,2843,6543,080
1.7500.10930,00075,00010,6722,6684,2693,504
1.7500.12030,00075,00011,9212,9804,7683,832
1.7500.13430,00075,00013,5633,3915,4254,242
1.7500.14830,00075,00015,2683,8176,1074,645
1.7500.16530,00075,00017,4304,3576,9725,124
2.0000.03530,00075,0002,7206801,0881,032
2.0000.04930,00075,0003,8649661,5461,434
2.0000.06530,00075,0005,2141,3032,0861,887
2.0000.08330,00075,0006,7881,6972,7152,387
2.0000.09530,00075,0007,8731,9683,1492,715
2.0000.10930,00075,0009,1752,2943,6703,092
2.0000.12030,00075,00010,2272,5574,0913,384
2.0000.13430,00075,00011,6052,9014,6423,751
2.0000.14830,00075,00013,0283,2575,2114,111
2.0000.16530,00075,00014,8203,7055,9284,542
›Material Properties

Chemical Composition WNR 1.4404 Tubing & Pipe

Scroll to see all columns →

GradeCMnSiPSCrMoNiFe
SS 316L0.035 max2.0 max1.0 max0.045 max0.030 max16.00 - 18.002.00 - 3.0010.00 - 14.0068.89 min

316L Stainless Steel Pipe & Tube Mechanical Analysis

DensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
8.0 g/cm31399 °C (2550 °F)Psi - 75000 , MPa - 515Psi - 30000 , MPa - 20535 %
›Tolerances

Stainless Steel 316L Welded Pipe Diameter Tolerance

col_1col_2col_3col_4col_5
NPSASTM A312 OD ToleranceASTM A312 OD ToleranceASTM A312 OD ToleranceASTM A312 OD Tolerance
NPS++––
NPSinchmminchmm
1/8~1 1 /21/64(0.015)0.41/32(0.031)0.8
> 1 1 /2~41/32(0.031)0.81/32(0.031)0.8
> 4~81/16(0.062)1.61/32(0.031)0.8
> 8~183/32(0.093)2.41/32(0.031)0.8
> 18~261/8(0.125)3.21/32(0.031)0.8
> 26~345/32(0.156)41/32(0.031)0.8
> 34~483/16(0.187)4.81/32(0.031)0.8

Wall Thickness Tolerance of SUS 316L Pipe/ Tube

col_1col_2col_3
NPSASTM A312 WT Tolerance, %ASTM A312 WT Tolerance, %
NPS+–
1/8-2 1 /22012.5
3~18, t/D≤ 5%22.512.5
3~18, t/D> 5%1512.5
≥ 20, welded17.512.5
≥ 20, seamless, t/D≤ 5%22.512.5
≥ 20, seamless, t/D> 5%1512.5
Stainless Steel 316L Pipe
Stainless Steel 316L Pipe

Get a Price

Request a quote for this item

Specify the grade, size, quantity and governing standard, and we'll confirm stock and pricing — typically within the same working day.

Request a Quote for Stainless Steel 316L Pipe

Contact

Send us the spec

Grade, form, size and quantity — that's all we need to confirm stock and quote. Reach us directly, or use the form below.

Enquiry FormReply same working day
Direct Contact

Head Office

Shop No. 5, Ravi Estate, Keval Kantha Road, Near Gujarat Bottling Road, Industrial Area, Rakhial, Ahmedabad, Gujarat – 380023, India

Phone / WhatsApp

+91 93240 06771

Working Hours

Monday – Saturday8:00 AM – 8:00 PM

SundayClosed
