Stainless Steel Square Pipe

Stainless Steel Box Pipe Supplier In India. Stock Of 304/316 SS Square Pipe. View price of Astm A554 Square Tube. Refer 202 stainless steel square pipe price

Stainless Steel

On This Page

Specification Chart of Stainless Steel Box Pipe 316 stainless square tube Dimensions Astm A554 Square Tube Nominal Bore Schedule Sizes SS Square Tubes Tolerances Nominal Wall Thickness of SS 304 Square Pipe Ss Square Pipe Minimum Wall Thickness Chemical Properties of Stainless Square Pipe / Tube Stainless Steel Square Pipe Mechanical Properties ASME B36.10 SS Square Pipe Equivalent Grades

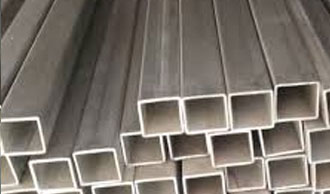

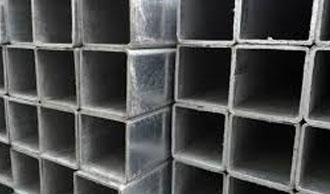

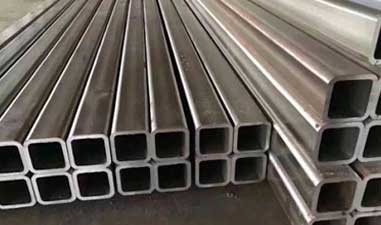

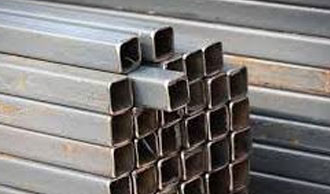

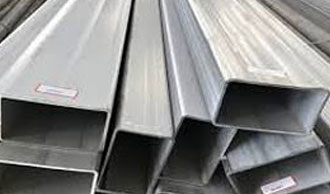

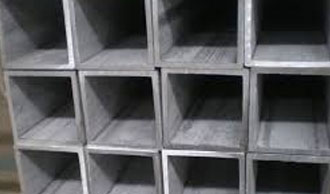

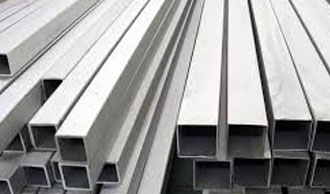

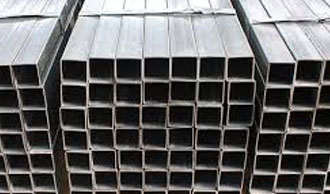

Gallery

Stainless Steel Square Pipe in Detail

Technical Data

Full Specifications

›Technical Data

Specification Chart of Stainless Steel Box Pipe

col_1	col_2
Pipe Size	12.75 X 12.75, 15 X 15, 20 X 20, 25 X 25, 30 X 30, 40 X 40, 50 X 50, 60 X 60, 75 X 75, 80 X 80, 90 X 90, 100 X100
Square Pipe Grades	TP - 304/L/H, TP - 316/L/H/Ti, TP - 317L, TP - 321/H, TP - 347/H, 202, JT - 7, J4 - 1, TP - 409/L, TP - 410, TP - 430Ti, TP 439
Export to	Oman, USA, Peru, Dubai, Singapore, Korea, Iran, Ireland, Egypt, India, Brazil, Thailand, Indonesia, Ukraine, Saudi Arabia, Spain, Canada etc
Pipe Standards	ASTM A249 - A269 - A312 - A358 - A409 - A554 - A778 - A789 - A790
TOLERANCE on Length	Commercial Length: 6000mm +/- 30mm / Fix Length: from 1200 mm up to 12000mm with a tolerance up to -0/+ 5mm
Square Pipe Finish	Polished Grit 120 - 600, Seamless, Welded, Brushed, Pickled, Solution Annealed and Pickled up to O.D. 219.1mm,Mirror Polished

Astm A554 Square Tube Nominal Bore Schedule Sizes

Scroll to see all columns →

Nominal	Nominal_2	SS Square Pipe Schedule 5	SS Square Pipe Schedule 5_2	SS Square Pipe Schedule 5_3	SS Square Pipe Schedule 10	SS Square Pipe Schedule 10_2	SS Square Pipe Schedule 10_3	SS Square Pipe Schedule 40	SS Square Pipe Schedule 40_2	SS Square Pipe Schedule 40_3
Inch	MM	Wt./MM	Kg./M	Kg./Ft	Wt./MM	Kg./M	Kg./Ft	Wt./MM	Kg./M	Kg./Ft
1 / 2	21	1.65	0.801	0.244	2.11	0.999	0.305	2.77	1.270	0.387
3 / 4	21.30	1.65	1.020	0.311	2.11	1.280	0.390	2.87	1.680	0.512
1	26.70	1.65	1.290	0.393	2.77	2.090	0.637	3.38	2.500	0.762
1 1 / 4	33.40	1.65	1.650	0.503	2.77	2.690	0.820	3.56	3.380	1.030
1 1 / 2	42.20	1.65	1.900	0.579	2.77	3.110	0.948	3.68	4.050	1.230
2	48.30	1.65	3.340	0.728	2.77	3.920	1.200
2 1 / 2	73.00	2.11	3.690	1.130	3.05	5.260	1.600
3	88.90	2.11	4.510	1.380	3.05	6.450	1.970
3 1 / 2	101.60	2.11	5.190	1.580	3.05	7.400	2.260

Nominal Wall Thickness of SS 304 Square Pipe

Scroll to see all columns →

NPS Designator	Outside Diameter in.	Schedule 10S in.	Schedule 40S in.	Schedule 80S in.	Schedule 160 in.	Schedule XX in.
1/4	0.540	0.065	0.088	0.119
3/8	0.675	0.065	0.091	0.126
1/2	0.840	0.083	0.109	0.147	.188	.294
3/4	1.050	0.083	0.113	0.154	.218	.308
1.0	1.315	0.109	0.133	0.179	.250	.358
1 1/4	1.660	0.109	0.140	0.191	.250	.382
1 1/2	1.900	0.109	0.145	0.200	.281	.400
2	2.375	0.109	0.154	0.218	.343	.436
2 1/2	2.875	0.120	0.203	0.276	.375	.552
3	3.500	0.120	0.216	0.300	.438	.600
3 1/2	4.000	0.120	0.226	0.318		.636
4	4.500	0.120	0.237	0.337	.534	.674
5	5.563	0.134	0.258	0.375	.625	.750
6	6.625	0.134	0.280	0.432	.719	.864
8	8.625	0.148	0.322	0.500	.906	.875
10	10.750	0.165	0.365	0.500	1.125
12	12.750	0.180	0.375	0.500	1.312
14	14.000	0.188	0.375	0.500	1.406
16	16.000	0.188	0.375	0.500	1.594

Ss Square Pipe Minimum Wall Thickness

Scroll to see all columns →

Nominal Thickness	Nominal Thickness_2	Minimum Thickness on Inspection	Minimum Thickness on Inspection_2	Nominal Thickness_3	Nominal Thickness_4	Minimum Thickness on Inspection_3	Minimum Thickness on Inspection_4	Nominal Thickness_5	Nominal Thickness_6	Minimum Thickness on Inspection_5	Minimum Thickness on Inspection_6
in.	mm	in	mm	in	mm	in	mm	in	mm	in	mm
0.068	1.7	0.060	1.5	0.294	7.5	0.257	6.5	0.750	19.0	0.658	16.6
0.068	2.2	0.077	2.0	0.300	7.6	0.262	6.7	0.812	20.6	0.710	18.0
0.091	2.3	0.080	2.0	0.307	7.8	0.269	6.8	0.843	21.4	0.736	18.7
0.095	2.4	0.083	2.1	0.308	7.8	0.270	6.9	0.854	21.7	0.756	19.2
0.113	2.9	0.099	2.5	0.312	7.9	0.273	6.9	0.875	22.2	0.766	19.5
0.119	3.0	0.104	2.6	0.318	8.1	0.278	7.1	0.906	23.0	0.783	20.1
0.125	3.2	0.109	2.8	0.322	8.2	0.282	7.2	0.937	23.8	0.820	20.8
0.126	3.2	0.110	2.8	0.330	8.4	0.289	7.3	0.968	24.6	0.847	21.5
0.133	3.4	0.116	2.9	0.337	8.6	0.295	7.5	1.000	25.4	0.875	22.2
0.140	3.6	0.122	3.1	0.343	8.7	0.300	7.6	1.031	26.2	0.902	22.9
0.145	3.7	0.127	3.2	0.344	8.7	0.301	7.6	1.062	27.0	0.929	23.6
0.147	3.7	0.129	3.3	0.358	9.1	0.313	8.0	1.083	27.8	0.956	24.3
0.154	3.9	0.135	3.4	0.365	9.3	0.319	8.1	1.125	28.6	0.984	25.0
0.156	4.0	0.136	3.5	0.375	9.5	0.328	8.3	1.156	29.4	1.012	25.7
0.179	4.5	0.157	4.0	0.382	9.7	0.334	8.5	1.218	30.9	1.066	27.1
0.187	43.7	0.164	4.2	0.400	10.2	0.350	8.9	1.250	31.8	1.094	27.8
0.188	4.8	0.164	4.2	0.406	10.3	0.355	9.0	1.281	32.5	1.121	28.5
0.191	4.9	0.167	4.2	0.432	10.4	0.378	9.6	1.312	33.3	1.148	29.2
0.200	5.1	0.175	4.4	0.436	11.1	0.382	9.7	1.343	34.1	1.175	29.8
0.203	5.2	0.178	4.5	0.437	11.1	0.382	9.7	1.375	34.9	1.203	30.6
0.216	5.5	0.189	4.8	0.438	11.1	0.383	9.7	1.406	35.7	1.230	31.2
0.218	5.5	0.191	4.9	0.500	12.7	0.438	11.1	1.436	36.5	1.258	32.0
0.219	5.6	0.192	4.9	0.531	13.5	0.465	11.8	1.500	36.1	1.312	33.3
0.226	5.7	0.196	5.0	0.552	14.0	0.483	12.3	1.531	38.9	1.340	34.0
0.237	6.0	0.207	5.2	0.562	14.3	0.492	12.5	1.562	39.7	1.367	34.7
0.250	6.4	0.219	5.6	0.593	15.1	0.519	13.2	1.593	40.5	1.394	35.4
0.258	6.6	0.226	5.7	0.600	15.2	0.525	13.3	1.750	44.5	1.531	38.9
0.276	7.0	0.242	6.1	0.625	15.9	0.547	13.9	1.781	45.2	1.558	39.6
0.277	7.0	0.242	6.1	0.656	16.6	0.573	14.6	1.812	46.0	1.586	49.3
0.279	7.1	0.244	6.2	0.674	17.1	0.590	15.0	1.968	50.0	1.772	43.7
0.280	7.1	0.245	6.2	0.687	17.4	0.601	15.3	2.062	52.4	1.804	45.8
0.281	7.1	0.246	6.2	0.719	18.3	0.629	16.0	2.343	59.5	2.050	52.1

Requirements and Materials country wise

col_1	col_2
6 inch stainless steel square pipe	Canada, Philippines, Malaysia, Singapore
304 Stainless Steel square Pipe	Romania, Europe, Japan, Malaysia
Seamless Square Pipe	Malaysia, Sweden, Colombia, China
Hairline Surface 316 Stainless Steel Square Tube	Los Alamos -Mexico, Malaysia, Taiwan, Philippines
304 stainless steel square tube	NY 12203 (USA), Singapore, South Korea, Malaysia
316 stainless steel square pipe with 400 grit finish	Philippines, Dammam -KSA, Indonesia, Belgium
316 stainless square tube	Europe, Qatar, France, Thailand
AISI 201 Stainless Steel Square Tube	Thailand, Czechia, Germany, Malaysia
316 grade 6 inch welded polished stainless steel rectangular pipe	Bangladesh, Malaysia, USA, Finland
316L square section shape stainless steel pipe	Kuwait, South Africa, Saudi Arabia (KSA), Brazil
316 hollow section stainless welded steel tube	Singapore, Bahrain, South Africa, Singapore

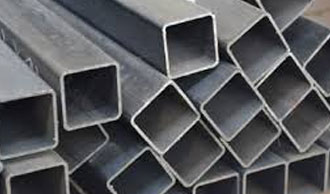

ASTM A554 Stainless Steel Welded Square Tubes 304	UK, Philippines, Australia, Nigeria
Stainless 316 seamless square steel pipe 100mm x 100mm	Hong Kong, Oman, Malaysia, UAE
304 Stainless Steel Square welded Tube	Iran, Chile, Italy, Singapore
300 Series welded stainless steel square tube	Norway, United Arab Emirates (UAE), Turkey, Malaysia
38mm High Quality Food Grade Stainless Steel Square Tube	Russia, Netherlands, Malaysia, Dubai
Food Grade 304 Stainless Steel Welded Square Tube	Mexico, Egypt, Spain, UK
Ss304 Hollow Section Stainless Steel Square Pipe	Malaysia, United Kingdom -UK, Europe, UAE
430 Stainless Steel Square Profile Tube	Poland, UK, Canada, Ellington -United States

›Dimensions & Weight

316 stainless square tube Dimensions

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9	col_10	col_11
MM	0.65	0.80	0.90	0.95	1.00	1.20	1.50	2.00	2.50
12.5 x 12.5	0.075	0.091	0.102	0.107	0.112	0.133	0.163
20 x 20				0.176	0.184	0.220	0.271	0.354	0.433	0.508
25 x 25				0.221	0.232	0.277	0.343	0.450	0.553	0.652
30 x 30				0.267	0.280	0.335	0.415	0.516	0.673	0.796
38 x 38				0.340	0.358	0.427	0.531	0.700	0.866	1.027
40 x 40				0.358	0.376	0.450	0.559	0.738	0.898	1.084
50 x 50					0.473	0.565	0.703	0.930	1.153	1.372

›Tolerances

SS Square Tubes Tolerances

NPS Designator	Permissible Variations in Outside Diameter	Permissible Variations in Outside Diameter_2
NPS Designator	Over In.	Under In.
1/8 to 1-1/2, incl	1/64 (0.015)	1/32 (0.031)
Over 1-1/2 to 4, incl	1/32 (0.031)	1/32 (0.031)
Over 4 to 8, incl	1/16 (0.062)	1/32 (0.031)
Over 8 to 18, incl	3/23 (0.093)	1/32 (0.031)

›Material Properties

Chemical Properties of Stainless Square Pipe / Tube

Scroll to see all columns →

Grade	Grade_2	C	Mn	Si	P	S	Cr	Mo	Ni	N	Ti	Fe
304	min.						18.0		8.0
304	max.	0.08	2.0	0.75	0.045	0.030	20.0		10.5	0.10
304L	min.						18.0		8.0
304L	max.	0.030	2.0	0.75	0.045	0.030	20.0		12.0	0.10
304H	min.	0.04					18.0		8.0
304H	max.	0.010	2.0	0.75	0.045	0.030	20.0		10.5
SS 310		0.015 max	2 max	0.015 max	0.020 max	0.015 max	24.00 26.00	0.10 max	19.00 21.00	54.7 min
SS 310S		0.08 max	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00	0.75 max	19.00 21.00	53.095 min
SS 310H		0.04 0.10	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00		19.00 21.00	53.885 min
316	min.						16.0	2.03.0	10.0
316	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316L	min.						16.0	2.03.0	10.0
316L	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316TI		0.08 max	10.00 14.00	2.0 max	0.045 max	0.030 max	16.00 18.00	0.75 max	2.00 3.00
317		0.08 max	2 max	1 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00				57.845 min
SS 317L		0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00	11.00 15.00			57.89 min
SS 321		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	5(C+N) 0.70 max
SS 321H		0.04 0.10	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	4(C+N) 0.70 max
347/ 347H		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 20.00		9.0013.00
410	min.						11.5
410	max.	0.15	1.0	1.00	0.040	0.030	13.5		0.75
446	min.						23.0			0.10
446	max.	0.2	1.5	0.75	0.040	0.030	30.0		0.50	0.25
904L	min.						19.0	4.00	23.00	0.10
904L	max.	0.20	2.00	1.00	0.045	0.035	23.0	5.00	28.00	0.25

Stainless Steel Square Pipe Mechanical Properties

col_1	col_2	col_3	col_4	col_5	col_6
Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
304/ 304L	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
304H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
310 / 310S / 310H	7.9 g/cm3	1402 °C (2555 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
306/ 316H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
316L	8.0 g/cm3	1399 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
317	7.9 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
321	8.0 g/cm3	1457 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
347	8.0 g/cm3	1454 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
904L	7.95 g/cm3	1350 °C (2460 °F)	Psi 71000 , MPa 490	Psi 32000 , MPa 220	35 %

ASME B36.10 SS Square Pipe Equivalent Grades

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 304	1.4301	S30400	SUS 304	304S31	08Х18Н10	Z7CN18‐09	X5CrNi18-10
SS 304L	1.4306 / 1.4307	S30403	SUS 304L	3304S11	03Х18Н11	Z3CN18‐10	X2CrNi18-9 / X2CrNi19-11
SS 304H	1.4301	S30409	–	–	–	–	–
SS 310	1.4841	S31000	SUS 310	310S24	20Ch25N20S2	–	X15CrNi25-20
SS 310S	1.4845	S31008	SUS 310S	310S16	20Ch23N18	–	X8CrNi25-21
SS 310H	–	S31009	–	–	–	–	–
SS 316	1.4401 / 1.4436	S31600	SUS 316	316S31 / 316S33	–	Z7CND17‐11‐02	X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L	1.4404 / 1.4435	S31603	SUS 316L	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	Z3CND17‐11‐02 / Z3CND18‐14‐03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3
SS 316H	1.4401	S31609	–	–	–	–	–
SS 316Ti	1.4571	S31635	SUS 316Ti	320S31	08Ch17N13M2T	Z6CNDT17‐123	X6CrNiMoTi17-12-2
SS 317	1.4449	S31700	SUS 317	–	–	–	–
SS 317L	1.4438	S31703	SUS 317L	–	–	–	X2CrNiMo18-15-4
SS 321	1.4541	S32100	SUS 321	–	–	–	X6CrNiTi18-10
SS 321H	1.4878	S32109	SUS 321H	–	–	–	X12CrNiTi18-9
SS 347	1.4550	S34700	SUS 347	–	08Ch18N12B	–	X6CrNiNb18-10
SS 347H	1.4961	S34709	SUS 347H	–	–	–	X6CrNiNb18-12
SS 904L	1.4539	N08904	SUS 904L	904S13	STS 317J5L	Z2 NCDU 25-20	X1NiCrMoCu25-20-5
