Stainless Steel Capillary Tube

PED Approved Stainless Steel Capillary Tube Supplier, View Heat/ Micro/ Flow Capillary Pipe Dimensions. buy 310 ss Pressure Gauge Capillary Tube at the best price in Mumbai, India.

Stainless Steel

On This Page

Stainless Steel Capillary Tube Specification Chart SS Heat Capillary Pipe Chemical Properties Mechanical Strength Table of Stainless Steel Capillary Tubing Equivalent Material of ASME SA269 Narrow Capillary Tube Dimensional Tolerances of 304 SS Capillary Tube 316 SS Precision Tubing Pressure Rating Applications of 310 ss Pressure Gauge Capillary Tube

Gallery

Stainless Steel Capillary Tube in Detail

Specification

Features & Applications

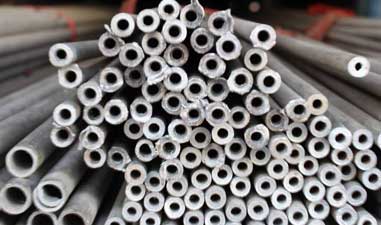

Applications of 310 ss Pressure Gauge Capillary Tube

Small precision stainless steel antenna
Liquid/ Gas Transportation Lines
Measurement devices
Chromatography applications
Remote thermometer systems
Medical devices and equipment’s

Technical Data

Full Specifications

›Technical Data

Stainless Steel Capillary Tube Specification Chart

Size Range	0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.
Thickness	1mm to 20mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10
Mill Test Certificate	EN10204 3.1
Packing	Sleeved, Ends Capped, Wooden Boxed
Wall Thickness	0.08 – 0.2 mm
Outside Diameter	0.3 –12.0 mm
Specification	ASME / ASTM A213, ASTM A688 / A688M - 08, ASTM A803 / A803M, ASTM A556 / A556M, ASME SA556, ASME SA688
Material	SS 304, SS 304L, SS 316, SS 316L
Export to	Ireland, Indonesia, Ukraine, Oman, Dubai, Singapore, Korea, Iran, India, Thailand, Egypt, Saudi Arabia, Spain, Brazil, Canada, USA, Peru, etc
Finish	Pickled, Polished, Bright Annealed, Electrolytic Polished
Form	Round, Strait, Hydraulic etc.

Equivalent Material of ASME SA269 Narrow Capillary Tube

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 304	1.4301	S30400	SUS 304	304S31	08Х18Н10	Z7CN18‐09	X5CrNi18-10
SS 304L	1.4306 / 1.4307	S30403	SUS 304L	3304S11	03Х18Н11	Z3CN18‐10	X2CrNi18-9 / X2CrNi19-11
SS 304H	1.4301	S30409	–	–	–	–	–
SS 310	1.4841	S31000	SUS 310	310S24	20Ch25N20S2	–	X15CrNi25-20
SS 310S	1.4845	S31008	SUS 310S	310S16	20Ch23N18	–	X8CrNi25-21
SS 310H	–	S31009	–	–	–	–	–
SS 316	1.4401 / 1.4436	S31600	SUS 316	316S31 / 316S33	–	Z7CND17‐11‐02	X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L	1.4404 / 1.4435	S31603	SUS 316L	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	Z3CND17‐11‐02 / Z3CND18‐14‐03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3
SS 316H	1.4401	S31609	–	–	–	–	–
SS 316Ti	1.4571	S31635	SUS 316Ti	320S31	08Ch17N13M2T	Z6CNDT17‐123	X6CrNiMoTi17-12-2
SS 317	1.4449	S31700	SUS 317	–	–	–	–
SS 317L	1.4438	S31703	SUS 317L	–	–	–	X2CrNiMo18-15-4
SS 321	1.4541	S32100	SUS 321	–	–	–	X6CrNiTi18-10
SS 321H	1.4878	S32109	SUS 321H	–	–	–	X12CrNiTi18-9
SS 347	1.4550	S34700	SUS 347	–	08Ch18N12B	–	X6CrNiNb18-10
SS 347H	1.4961	S34709	SUS 347H	–	–	–	X6CrNiNb18-12
SS 904L	1.4539	N08904	SUS 904L	904S13	STS 317J5L	Z2 NCDU 25-20	X1NiCrMoCu25-20-5

Check What We Supply if you belong to following locations

col_1	col_2
Dia 1.0mm thick 0.2mm 304 grade BA stainless steel capillary tube	Chile, Canada, Philippines, Iran
316 stainless steel capillary pipe	Thailand, Hong Kong, Oman, France
Small Size Thin Wall Stainless Steel Capillary Tube	China, Bangladesh, Malaysia, Colombia
304 stainless steel Capillary tube	Egypt, Los Alamos -Mexico, Malaysia, Mexico
Hospital grade 316 stainless steel capillary pipe	United Kingdom -UK, NY 12203 (USA), Singapore, Malaysia
Precision 1.4401 stainless steel needle tubing	UK, Philippines, Dammam -KSA, Poland
Stainless steel capillary tube types 1mm 2mm 3mm	Singapore, Europe, Qatar, Malaysia
Stainless Steel Capillary Tube	Malaysia, Thailand, Czechia, Japan
Small Diameter AISI 316 SS Capillary Tube	United Arab Emirates (UAE), Romania, Europe, Norway
capillary thin wall 304 stainless steel tube	Netherlands, Malaysia, Sweden, Russia, Brazil
316 factory micro bright annealing stainless steel capillary tube	Philippines, Kuwait, South Africa, Taiwan
Micro small diameter 304 hypodermic needle small diameter stainless steel tube	Malaysia, Singapore, Bahrain, South Korea
Custom Fluid Capillary 321 Stainless Steel Tube	Belgium, UK, Philippines, Indonesia
Small Size Diameter 316 Stainless Steel Needle Medical Capillary Tube	Malaysia, Turkey, Malaysia, Germany
12mm stainless steel inox capillary tube	Finland, Malaysia, Dubai, USA
SS316 precision stainless steel micro capillary tube	Brazil, Spain, UK, Saudi Arabia (KSA)
micro 304 stainless steel capillary tube	Singapore, Europe, UAE, South Africa
904L stainless steel capillary tube	Nigeria, Canada, Ellington -United States, Australia
316 Stainless Steel Bright Annealing Capillary Tube	UAE, Italy, Singapore, Malaysia

›Material Properties

SS Heat Capillary Pipe Chemical Properties

Scroll to see all columns →

Grade	Grade_2	C	Mn	Si	P	S	Cr	Mo	Ni	N	Ti	Fe
304	min.						18.0		8.0
304	max.	0.08	2.0	0.75	0.045	0.030	20.0		10.5	0.10
304L	min.						18.0		8.0
304L	max.	0.030	2.0	0.75	0.045	0.030	20.0		12.0	0.10
304H	min.	0.04					18.0		8.0
304H	max.	0.010	2.0	0.75	0.045	0.030	20.0		10.5
SS 310		0.015 max	2 max	0.015 max	0.020 max	0.015 max	24.00 26.00	0.10 max	19.00 21.00	54.7 min
SS 310S		0.08 max	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00	0.75 max	19.00 21.00	53.095 min
SS 310H		0.04 0.10	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00		19.00 21.00	53.885 min
316	min.						16.0	2.03.0	10.0
316	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316L	min.						16.0	2.03.0	10.0
316L	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316TI		0.08 max	10.00 14.00	2.0 max	0.045 max	0.030 max	16.00 18.00	0.75 max	2.00 3.00
317		0.08 max	2 max	1 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00				57.845 min
SS 317L		0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00	11.00 15.00			57.89 min
SS 321		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	5(C+N) 0.70 max
SS 321H		0.04 0.10	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	4(C+N) 0.70 max
347/ 347H		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 20.00		9.0013.00
410	min.						11.5
410	max.	0.15	1.0	1.00	0.040	0.030	13.5		0.75
446	min.						23.0			0.10
446	max.	0.2	1.5	0.75	0.040	0.030	30.0		0.50	0.25
904L	min.						19.0	4.00	23.00	0.10
904L	max.	0.20	2.00	1.00	0.045	0.035	23.0	5.00	28.00	0.25

Mechanical Strength Table of Stainless Steel Capillary Tubing

col_1	col_2	col_3	col_4	col_5	col_6
Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
304/ 304L	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
304H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
310 / 310S / 310H	7.9 g/cm3	1402 °C (2555 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
306/ 316H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
316L	8.0 g/cm3	1399 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
317	7.9 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
321	8.0 g/cm3	1457 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
347	8.0 g/cm3	1454 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
904L	7.95 g/cm3	1350 °C (2460 °F)	Psi 71000 , MPa 490	Psi 32000 , MPa 220	35 %

›Dimensions & Weight

Dimensional Tolerances of 304 SS Capillary Tube

OD	Tolerance
4 to 35mm	+/- 0.08mm
35 to 38mm	+/- 0.15mm
38 to 60mm	+/- 0.20mm
60 and above	+/- 0.25mm

›Pressure Ratings

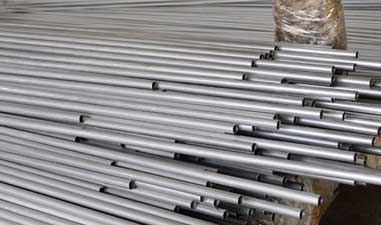

316 SS Precision Tubing Pressure Rating

Scroll to see all columns →

AVE. WALL INCHES	MIN YIELD STRENGTH (PSI)	MIN TENSILE STRENGTH (PSI)	THEORETICAL BURST PRESSURE * (PSI)	WORKING PRESSURE (PSI) 25% OF BURST	THEORETICAL YIELD POINT ** (PSI)	COLLAPSE PRESSURE *** (PSI)	col_8
0.250	0.020	30,000	75,000	14,286	3,571	5,714	4,416
0.250	0.028	30,000	75,000	21,649	5,412	8,660	5,967
0.250	0.035	30,000	75,000	29,167	7,292	11,667	7,224
0.250	0.049	30,000	75,000	48,355	12,089	19,342	9,455
0.250	0.065	30,000	75,000	81,250	20,313	32,500	11,544
0.375	0.020	30,000	75,000	8,955	2,239	3,582	3,029
0.375	0.028	30,000	75,000	13,166	3,292	5,266	4,145
0.375	0.035	30,000	75,000	17,213	4,303	6,885	5,077
0.375	0.049	30,000	75,000	26,534	6,634	10,614	6,816
0.375	0.065	30,000	75,000	39,796	9,949	15,918	8,597
0.500	0.020	30,000	75,000	6,522	1,630	2,609	2,304
0.500	0.028	30,000	75,000	9,459	2,365	3,784	3,172
0.500	0.035	30,000	75,000	12,209	3,052	4,884	3,906
0.500	0.049	30,000	75,000	18,284	4,571	7,313	5,304
0.500	0.065	30,000	75,000	26,351	6,588	10,541	6,786
0.500	0.083	30,000	75,000	37,275	9,319	14,910	8,307
0.625	0.020	30,000	75,000	5,128	1,282	2,051	1,859
0.625	0.028	30,000	75,000	7,381	1,845	2,953	2,568
0.625	0.035	30,000	75,000	9,459	2,365	3,784	3,172
0.625	0.049	30,000	75,000	13,947	3,487	5,579	4,335
0.625	0.065	30,000	75,000	19,697	4,924	7,879	5,591
0.625	0.083	30,000	75,000	27,124	6,781	10,850	6,910
0.625	0.095	30,000	75,000	32,759	8,190	13,103	7,734
0.625	0.109	30,000	75,000	40,172	10,043	16,069	8,639
0.750	0.028	30,000	75,000	6,052	1,513	2,421	2,156
0.750	0.035	30,000	75,000	7,721	1,930	3,088	2,669
0.750	0.049	30,000	75,000	11,273	2,818	4,509	3,664
0.750	0.065	30,000	75,000	15,726	3,931	6,290	4,749
0.750	0.083	30,000	75,000	21,318	5,330	8,527	5,905
0.750	0.095	30,000	75,000	25,446	6,362	10,179	6,637
0.750	0.109	30,000	75,000	30,733	7,683	12,293	7,453
0.750	0.120	30,000	75,000	35,294	8,824	14,118	8,064
0.875	0.020	30,000	75,000	3,593	898	1,437	1,340
0.875	0.028	30,000	75,000	5,128	1,282	2,051	1,859
0.875	0.035	30,000	75,000	6,522	1,630	2,609	2,304
0.049	30,000	75,000	9,459	2,365	3,784	3,172
0.875	0.065	30,000	75,000	13,087	3,272	5,235	4,126
0.875	0.083	30,000	75,000	17,560	4,390	7,024	5,152
0.875	0.095	30,000	75,000	20,803	5,201	8,321	5,807
0.875	0.109	30,000	75,000	24,886	6,221	9,954	6,543
0.875	0.120	30,000	75,000	28,346	7,087	11,339	7,100
1.000	0.028	30,000	75,000	4,449	1,112	1,780	1,633
1.000	0.035	30,000	75,000	5,645	1,411	2,258	2,027
1.000	0.049	30,000	75,000	8,149	2,037	3,259	2,796
1.000	0.065	30,000	75,000	11,207	2,802	4,483	3,647
1.000	0.083	30,000	75,000	14,928	3,732	5,971	4,567
1.000	0.095	30,000	75,000	17,593	4,398	7,037	5,159
1.000	0.109	30,000	75,000	20,908	5,227	8,363	5,827
1.000	0.120	30,000	75,000	23,684	5,921	9,474	6,336
1.000	0.134	30,000	75,000	27,459	6,865	10,984	6,963
1.250	0.035	30,000	75,000	4,449	1,112	1,780	1,633
1.250	0.049	30,000	75,000	6,380	1,595	2,552	2,260
