Stainless Steel Sanitary Tube Supplier in India

We pride ourselves on supplying Stainless Steel Sanitary Tube, Maintain ready stock of ASTM A270 SS Hygienic Tube, View Sanitary Stainless Steel Tube Dimensions and Price List.

Stainless Steel

On This Page

Stainless Steel Sanitary Tube Specification Chemical Properties of ASME B36.10 SS Sanitary Tubing Mechanical Characteristics of High Polished SS Sanitary Tube Equivalent material of ASTM A270 Sanitary Spool Tube Stainless Steel Sanitary Tube Sizes Schedule Chart of Stainless Steel Sanitary Tube Pressure Rating of Stainless Steel Sanitary Tube

Gallery

Stainless Steel Sanitary Tube Supplier in India in Detail

Technical Data

Full Specifications

›Technical Data

Stainless Steel Sanitary Tube Specification

col_1	col_2

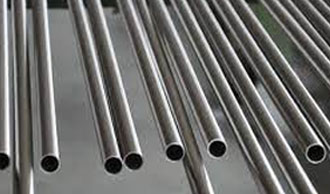

ASTM	ASTM A270 / ASME SA 270
OD.	1/2”
WT Tolerance	+/-10%
Material	SS 304, SS 304L,SS 316,SS 316L
Wall	16 Gauge (0.065”)
Length	20′
OD Tolerance	+/-0.005” / +/-0.13MM
Standard	3A / ASTM A270 / A270M
Length Tolerance	+1/8” / +3.18MM
Finish	20Ra ID / 32Ra OD
Certification	3A – Food / Dairy Grade
Mill Test Certificate	EN10204 3.1
Export to	Singapore, Indonesia, Dubai, Brazil, Ukraine, India, Thailand, Korea, Oman, Spain, Canada, USA, Ireland, Iran, Egypt, Saudi Arabia, Peru, etc
Packing	Sleeved, Ends Capped, Wooden Boxed
Polish	Mechanical Polished
Type	Seamless

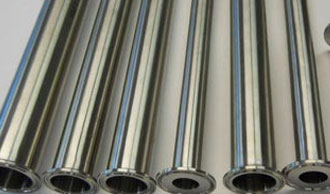

Equivalent material of ASTM A270 Sanitary Spool Tube

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 304	1.4301	S30400	SUS 304	304S31	08Х18Н10	Z7CN18‐09	X5CrNi18-10
SS 304L	1.4306 / 1.4307	S30403	SUS 304L	3304S11	03Х18Н11	Z3CN18‐10	X2CrNi18-9 / X2CrNi19-11
SS 304H	1.4301	S30409	–	–	–	–	–
SS 310	1.4841	S31000	SUS 310	310S24	20Ch25N20S2	–	X15CrNi25-20
SS 310S	1.4845	S31008	SUS 310S	310S16	20Ch23N18	–	X8CrNi25-21
SS 310H	–	S31009	–	–	–	–	–
SS 316	1.4401 / 1.4436	S31600	SUS 316	316S31 / 316S33	–	Z7CND17‐11‐02	X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L	1.4404 / 1.4435	S31603	SUS 316L	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	Z3CND17‐11‐02 / Z3CND18‐14‐03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3
SS 316H	1.4401	S31609	–	–	–	–	–
SS 316Ti	1.4571	S31635	SUS 316Ti	320S31	08Ch17N13M2T	Z6CNDT17‐123	X6CrNiMoTi17-12-2
SS 317	1.4449	S31700	SUS 317	–	–	–	–
SS 317L	1.4438	S31703	SUS 317L	–	–	–	X2CrNiMo18-15-4
SS 321	1.4541	S32100	SUS 321	–	–	–	X6CrNiTi18-10
SS 321H	1.4878	S32109	SUS 321H	–	–	–	X12CrNiTi18-9
SS 347	1.4550	S34700	SUS 347	–	08Ch18N12B	–	X6CrNiNb18-10
SS 347H	1.4961	S34709	SUS 347H	–	–	–	X6CrNiNb18-12
SS 904L	1.4539	N08904	SUS 904L	904S13	STS 317J5L	Z2 NCDU 25-20	X1NiCrMoCu25-20-5

Stainless Steel Sanitary Tube Sizes

Tube OD	Thikness	Grade
1/2	0.065	304
1/2	0.065	316
3/4	0.065	304
3/4	0.065	316
1	0.065	304
1	0.065	316
1 1/2	0.065	304
1 1/2	0.065	316
2	0.065	304
2	0.065	316
2 1/2	0.065	304
2 1/2	0.065	316
3	0.065	304
3	0.065	316
4	0.083	304
4	0.083	316
6	0.109	304
6	0.109	316

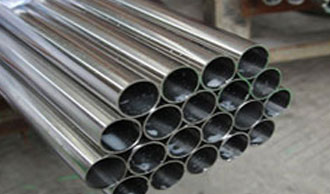

8	0.109	304
8	0.109	316

Schedule Chart of Stainless Steel Sanitary Tube

NB SIZES	SCH 5	SCH 10	SCH 40	SCH 80	SCH 160
1/8″
1/4″
3/8″
1/2″
3/4″
1″
1 1/4″
1 1/2″
2″
2 1/2″
3″
4″
5″
6″

View what and Where Supplies

col_1	col_2
9MM Thickness ss 904l sanitary Pipe	Philippines, Chile, Canada, Iran

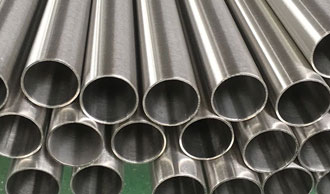

Food Grade 304 Sanitary Seamless Stainless Steel Tube	Europe, United Arab Emirates (UAE), Romania, Norway
321 Sanitary Seamless Stainless Steel Tube	Sweden, Netherlands, Malaysia, Russia

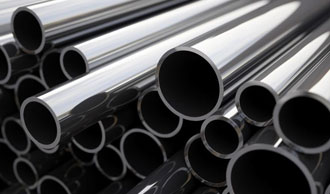

Food Grade 316 Sanitary Stainless Steel Tube	Malaysia, Egypt, Los Alamos -Mexico, Mexico
Mirror Polished Sanitary Welded 316L Stainless Steel Tube	Singapore, United Kingdom -UK, NY 12203 (USA), Malaysia
stainless steel sanitary 6inch pipe	Dammam -KSA, UK, Philippines, Poland

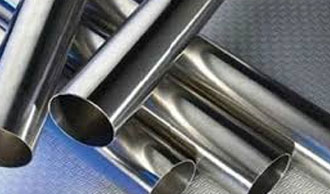

42mm inox aisi 304 sanitary pipe	Qatar, Singapore, Europe, Malaysia
304l mirror polished stainless steel pipe sanitary piping	Czechia, Malaysia, Thailand, Japan

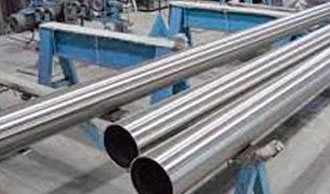

Mirror Polish Stainless Steel Sanitary Welded Tube	Malaysia, China, Bangladesh, Colombia
TG 304 mirror polished sanitary piping	South Africa, Philippines, Kuwait, Taiwan
TP304 Mirror Polished Stainless Steel Pipe	Bahrain, Malaysia, Singapore, South Korea
30mm OD Sanitary Welding Pipe 304	Philippines, Belgium, UK, Indonesia
SCH 40 SUS304 Sanitary Stainless Steel Tube	Oman, Thailand, Hong Kong, France

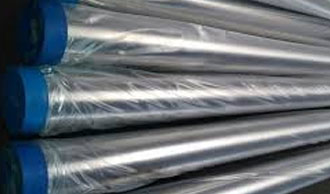

Sanitary industrial stainless steel pipe	Malaysia, Malaysia, Turkey, Germany
SS316 Sanitary Tube Polish	Dubai, Finland, Malaysia, USA
Mirror Polished Sanitary 316L Stainless Steel Tube	UK, Brazil, Spain, Saudi Arabia (KSA)
Small Sanitary 904l Stainless Steel Capillary Tube	UAE, Singapore, Europe, South Africa
Sanitary 450mm diameter stainless steel pipe	Ellington -United States, Nigeria, Canada, Australia
4 Inch 316 Stainless Steel Welded Pipe	Singapore, UAE, Italy, Malaysia

›Material Properties

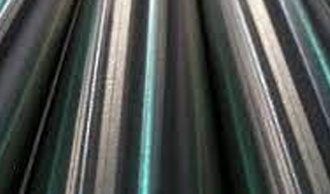

Chemical Properties of ASME B36.10 SS Sanitary Tubing

Scroll to see all columns →

Grade	Grade_2	C	Mn	Si	P	S	Cr	Mo	Ni	N	Ti	Fe
304	min.						18.0		8.0
304	max.	0.08	2.0	0.75	0.045	0.030	20.0		10.5	0.10
304L	min.						18.0		8.0
304L	max.	0.030	2.0	0.75	0.045	0.030	20.0		12.0	0.10
304H	min.	0.04					18.0		8.0
304H	max.	0.010	2.0	0.75	0.045	0.030	20.0		10.5
SS 310		0.015 max	2 max	0.015 max	0.020 max	0.015 max	24.00 26.00	0.10 max	19.00 21.00	54.7 min
SS 310S		0.08 max	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00	0.75 max	19.00 21.00	53.095 min
SS 310H		0.04 0.10	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00		19.00 21.00	53.885 min
316	min.						16.0	2.03.0	10.0
316	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316L	min.						16.0	2.03.0	10.0
316L	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316TI		0.08 max	10.00 14.00	2.0 max	0.045 max	0.030 max	16.00 18.00	0.75 max	2.00 3.00
317		0.08 max	2 max	1 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00				57.845 min
SS 317L		0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00	11.00 15.00			57.89 min
SS 321		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	5(C+N) 0.70 max
SS 321H		0.04 0.10	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	4(C+N) 0.70 max
347/ 347H		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 20.00		9.0013.00
410	min.						11.5
410	max.	0.15	1.0	1.00	0.040	0.030	13.5		0.75
446	min.						23.0			0.10
446	max.	0.2	1.5	0.75	0.040	0.030	30.0		0.50	0.25
904L	min.						19.0	4.00	23.00	0.10
904L	max.	0.20	2.00	1.00	0.045	0.035	23.0	5.00	28.00	0.25

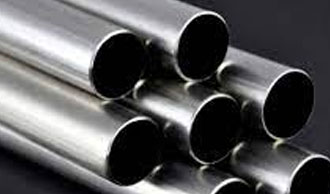

Mechanical Characteristics of High Polished SS Sanitary Tube

col_1	col_2	col_3	col_4	col_5	col_6
Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
304/ 304L	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
304H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
310 / 310S / 310H	7.9 g/cm3	1402 °C (2555 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
306/ 316H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
316L	8.0 g/cm3	1399 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
317	7.9 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
321	8.0 g/cm3	1457 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
347	8.0 g/cm3	1454 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
904L	7.95 g/cm3	1350 °C (2460 °F)	Psi 71000 , MPa 490	Psi 32000 , MPa 220	35 %

›Pressure Ratings

Pressure Rating of Stainless Steel Sanitary Tube

Scroll to see all columns →

AVE. WALL INCHES	MIN YIELD STRENGTH (PSI)	MIN TENSILE STRENGTH (PSI)	THEORETICAL BURST PRESSURE * (PSI)	WORKING PRESSURE (PSI) 25% OF BURST	THEORETICAL YIELD POINT ** (PSI)	COLLAPSE PRESSURE *** (PSI)	col_8
0.250	0.020	30,000	75,000	14,286	3,571	5,714	4,416
0.250	0.028	30,000	75,000	21,649	5,412	8,660	5,967
0.250	0.035	30,000	75,000	29,167	7,292	11,667	7,224
0.250	0.049	30,000	75,000	48,355	12,089	19,342	9,455
0.250	0.065	30,000	75,000	81,250	20,313	32,500	11,544
0.375	0.020	30,000	75,000	8,955	2,239	3,582	3,029
0.375	0.028	30,000	75,000	13,166	3,292	5,266	4,145
0.375	0.035	30,000	75,000	17,213	4,303	6,885	5,077
0.375	0.049	30,000	75,000	26,534	6,634	10,614	6,816
0.375	0.065	30,000	75,000	39,796	9,949	15,918	8,597
0.500	0.020	30,000	75,000	6,522	1,630	2,609	2,304
0.500	0.028	30,000	75,000	9,459	2,365	3,784	3,172
0.500	0.035	30,000	75,000	12,209	3,052	4,884	3,906
0.500	0.049	30,000	75,000	18,284	4,571	7,313	5,304
0.500	0.065	30,000	75,000	26,351	6,588	10,541	6,786
0.500	0.083	30,000	75,000	37,275	9,319	14,910	8,307
0.625	0.020	30,000	75,000	5,128	1,282	2,051	1,859
0.625	0.028	30,000	75,000	7,381	1,845	2,953	2,568
0.625	0.035	30,000	75,000	9,459	2,365	3,784	3,172
0.625	0.049	30,000	75,000	13,947	3,487	5,579	4,335
0.625	0.065	30,000	75,000	19,697	4,924	7,879	5,591
0.625	0.083	30,000	75,000	27,124	6,781	10,850	6,910
0.625	0.095	30,000	75,000	32,759	8,190	13,103	7,734
0.625	0.109	30,000	75,000	40,172	10,043	16,069	8,639
0.750	0.028	30,000	75,000	6,052	1,513	2,421	2,156
0.750	0.035	30,000	75,000	7,721	1,930	3,088	2,669
0.750	0.049	30,000	75,000	11,273	2,818	4,509	3,664
0.750	0.065	30,000	75,000	15,726	3,931	6,290	4,749
0.750	0.083	30,000	75,000	21,318	5,330	8,527	5,905
0.750	0.095	30,000	75,000	25,446	6,362	10,179	6,637
0.750	0.109	30,000	75,000	30,733	7,683	12,293	7,453
0.750	0.120	30,000	75,000	35,294	8,824	14,118	8,064
0.875	0.020	30,000	75,000	3,593	898	1,437	1,340
0.875	0.028	30,000	75,000	5,128	1,282	2,051	1,859
0.875	0.035	30,000	75,000	6,522	1,630	2,609	2,304
0.049	30,000	75,000	9,459	2,365	3,784	3,172
0.875	0.065	30,000	75,000	13,087	3,272	5,235	4,126
0.875	0.083	30,000	75,000	17,560	4,390	7,024	5,152
0.875	0.095	30,000	75,000	20,803	5,201	8,321	5,807
0.875	0.109	30,000	75,000	24,886	6,221	9,954	6,543
0.875	0.120	30,000	75,000	28,346	7,087	11,339	7,100
1.000	0.028	30,000	75,000	4,449	1,112	1,780	1,633
1.000	0.035	30,000	75,000	5,645	1,411	2,258	2,027
1.000	0.049	30,000	75,000	8,149	2,037	3,259	2,796
1.000	0.065	30,000	75,000	11,207	2,802	4,483	3,647
1.000	0.083	30,000	75,000	14,928	3,732	5,971	4,567
1.000	0.095	30,000	75,000	17,593	4,398	7,037	5,159
1.000	0.109	30,000	75,000	20,908	5,227	8,363	5,827
1.000	0.120	30,000	75,000	23,684	5,921	9,474	6,336
1.000	0.134	30,000	75,000	27,459	6,865	10,984	6,963
1.250	0.035	30,000	75,000	4,449	1,112	1,780	1,633
1.250	0.049	30,000	75,000	6,380	1,595	2,552	2,260
