Titanium Pipe

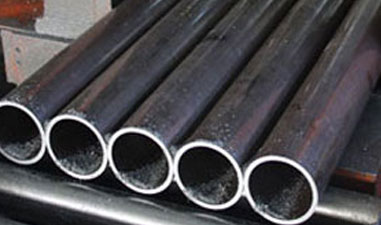

EIL approved Manufacturer of Titanium Seamless Pipe. ASTM B388 Ti Alloy Welded Tube Supplier, View Titanium Exhaust Pipe Size & Dimensions & Schedule 40 Ti Boiler/ Heat Exchanger Tubing Price Per Kg

Titanium

On This Page

Spec Chart of Titanium Seamless Pipe Sizes of Titanium Alloy Pipe Titanium Pipe Weight Chart ASTM B337 Titanium Pipe Schedule Chart Titanium Super Alloy Pipe Pressure Rating Titanium Pipe Chemical Composition Mechanical Characteristics of Titanium Exhaust Pipe Equivalent Material of Titanium Oval Tubing Titanium Alloy Seamless Pipe Material Specification Wall thickness of ASTM B337 Titanium Pipe ASTM B338 Titanium Tube Sizes Titanium Seamles Tubes Surface Finish Size Range of Titanium Round Tube

Gallery

Titanium Pipe in Detail

Technical Data

Full Specifications

›Technical Data

Spec Chart of Titanium Seamless Pipe

col_1	col_2
Dimensions	ASTM, ASME and API
Specialized in	Large Diameter Size
Schedule	SCH80, XS, SCH60, SCH80, SCH20, SCH30, SCH40, STD, SCH120, SCH140, SCH160, XXS
Type	Welded / Fabricated / Seamless / ERW / LSAW Pipes
Form	Square, Rectangular, Round, Hydraulic Etc
Export to	Iran, Spain, Canada, Thailand, Singapore, Indonesia, Korea, India, Saudi Arabia, Egypt, Ireland, Brazil, Oman, Dubai, Ukraine, USA, Peru, etc
Length	Double Random , Single Random, & Cut Length.
End	Beveled End, Plain End, Treaded

Sizes of Titanium Alloy Pipe

ASTM B337 Titanium Pipe OD / mm	Pipe WT / mm	in.	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97

ASTM B337 Titanium Pipe Schedule Chart

1/8" IPS(.405"O. D.)	3 1/2" IPS( 4.000"O. D.)
SCH 40, 80	SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.)	4" IPS(4.500"O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.)	5" IPS( 5.563"O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.)	6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.)	8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.)	10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.)	12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.)	14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.)	16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.)	18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH

Equivalent Material of Titanium Oval Tubing

col_1	col_2	col_3
STANDARD	UNS	WERKSTOFF NR.
Titanium Gr 2	R50400	3.7035
Titanium Gr 5	R56400	3.7165

Titanium Alloy Seamless Pipe Material Specification

Titanium grade Pipe	Description
Pipes Ti Grade 1 (CP Ti)	Relatively low-strength and high-ductility pure titanium (Cp).
Pipes Ti Grade 2 (CP Ti)	Medium-strength pure Ti (Cp).
Pipes Ti Grade 3 (CP Ti)	High strength pure Ti (Cp).
Pipes Ti Grade 5
Pipes Ti Grade 7	Medium-strength Pd-alloyed Ti for enhanced corrosion properties.
Pipes Ti Grade 9	High-strength Ti alloyed with 3% Al and 2.5% V.
Pipes Ti Grade 11	Low-strength Ti plus 0.12-0.25% Pd for enhanced corrosion properties.
Pipes Ti Grade 12	High-strength Ti alloy plus 0.3% Mo and 0.8% Ni for enhanced corrosion properties.
Pipes Ti Grade 16	Medium-strength Ti plus 0.04-0.08% Pd for enhanced corrosion properties.
Pipes Ti Grade 17	Low-strength Ti plus 0.04-0.08% Pd for enhanced corrosion properties.
Pipes Ti Grade 26	Medium-strength Ti plus 0.08-0.14% Ru for enhanced corrosion properties.
Pipes Ti Grade 28	High-strength Ti alloy plus 3% Al, 2.5% V and 0.08%-0.14% Ru for enhanced corrosion properties.

Wall thickness of ASTM B337 Titanium Pipe

Types	Out diameter	Wall thickness	Length
NB Sizes (in stock)	1/8” ~ 8”	SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160	Upto 6 Meters
Titanium Seamless Pipe (Custom Sizes)	5.0mm ~ 203.2mm	As per requirement	Upto 6 Meters
Titanium Welded Pipe (in Stock + Custom Sizes)	5.0mm ~ 1219.2mm	1.0 ~ 15.0 mm	Upto 6 Meters

ASTM B338 Titanium Tube Sizes

Wall Thickness	Titanium Tube Sizes ( O.D.)
.010	1/16" , 1/8" , 3/16"
.020	1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012	1/8"
.016	1/8" , 3/16"
.028	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049	3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065	1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083	1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095	1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109	1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120	1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125	3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134	1"
.250	3"
.375	3 1/2"

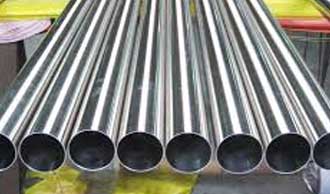

Size Range of Titanium Round Tube

Dimension	Outer Diameter	Thickness	Length
Size Range:	0.5mm – 330mm	0.4mm – 10mm	Max 15m
Manufacturing Standards	ASTM B338, ASTM B861, DIN 17 861	ASTM B338, ASTM B861, DIN 17 861	ASTM B338, ASTM B861, DIN 17 861

View Where We have Supplied

col_1	col_2
ASME SB 338 Ti Hexagonal Pipe	Romania, Japan, Malaysia, Europe
High Purity Titanium Seamless Tube	UK, Australia, Nigeria, Philippines
Titanium alloy pipe for heat exchanger	Kuwait, Saudi Arabia (KSA), Brazil, South Africa
Titanium tube pipe 3 inches	Europe, France, Thailand, Qatar
ASTM B862-19 Welded Pipe	Canada, Malaysia, Singapore, Philippines
ASTM B862 Gr.1 OD 60mm 76mm 80mm 100mm titanium welded pipe	Iran, Italy, Singapore, Chile
Cold Drawn Titanium Seamless Pipe	Malaysia, Colombia, China, Sweden
60mm titanium tube	Los Alamos -Mexico, Taiwan, Philippines, Malaysia
1.375 id titanium Mortar Tube	Bangladesh, USA, Finland, Malaysia
Titanium Alloy Square Tube	Russia, Malaysia, Dubai, Netherlands
Schedule 40 Titanium Pipe	Norway, Turkey, Malaysia, United Arab Emirates (UAE)
Small Diameter 1.375 id titanium Tubing	NY 12203 (USA), South Korea, Malaysia, Singapore
OD50.8 x THK0.9 x 3000mm Titanium Seamless Pipe	Hong Kong, Malaysia, UAE, Oman

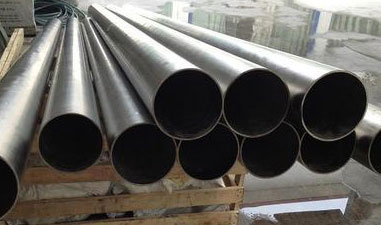

ASTM B338 Titanium Exhaust Tubing	Philippines, Indonesia, Belgium, Dammam -KSA
ASME SB861 Titanium Electropolished Pipe	Malaysia, Europe, UAE, United Kingdom -UK
7mm Titanium Hot Rolled Pipe	Thailand, Germany, Malaysia, Czechia
Titanium Alloy Heat Exchanger Tubes	Singapore, South Africa, Singapore, Bahrain
Thin Wall Ti Alloy Pipe	Poland, Canada, Ellington -United States, UK
Titanium Bright Annealed Tube	Mexico, Spain, UK, Egypt

›Dimensions & Weight

Titanium Pipe Weight Chart

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
NPS	Outside Diameter	Outside Diameter	Wall Thickness	Wall Thickness		Weight	Weight
NPS	in	mm	in	mm	Sched	kg/Mtr	Lb/ft
1/2″	0.840	21	0.109	2.769	40 STD	1.268	0.851
			0.147	3.734	80 STD	1.621	1.088
3/4″	1.050	27	0.113	2.870	40 STD	1.684	1.131
			0.154	3.912	80 STD	2.195	1.474
1″	1.315	33	0.133	3.378	40 STD	2.501	1.679
			0.179	4.547	80 STD	3.325	2.172
1 1/4″	1.660	42	0.140	3.556	40 STD	3.385	2.273
			0.191	4.851	80 STD	4.464	2.997
1 1/2″	1.900	48	0.145	3.683	40 STD	4.048	2.718
			0.200	5.080	80 STD	5.409	3.361
2″	2.375	60	0.154	3.912	40 STD	5.441	3.653
			0.218	5.537	80 STD	7.480	5.022
2 1/2″	2.875	73	0.203	5.516	40 STD	8.629	5.793
			0.276	7.010	80 STD	11.411	7.661
3″	3.500	89	0.216	5.486	40 STD	11.284	7.576
			0.300	7.620	80 STD	15.272	10.253
4″	4.500	114	0.237	6.020		16.073	10.790
			0.337	8.560		22.318	14.983
6″	6.625	168	0.188	4.775		19.252	12.924
			0.203	5.516		20.739	13.923
			0.219	5.563		22.318	14.983
			0.250	6.350		25.354	17.021
			0.280	7.112	40 STD	58.263	18.974
			0.312	7.925		31.334	21.036
			0.375	9.525		37.285	25.031
			0.432	10.973	80 XHY	42.561	28.573
			0.500	12.700		48.719	32.708
8″	8.625	219	0.188	4.775		25.233	16.940
			0.203	5.156		27.198	18.259
			0.219	5.563		29.286	19.661
			0.250	6.350	20	33.308	22.361
			0.277	7.036	30	36.786	24.696
			0.322	8.179	40	42.352	28.554
			0.375	9.525		49.216	33.041
			0.406	10.312	60	53.085	35.638
			0.500	12.700	80 XHY	64.627	43.388
10″	10.750	273	0.188	4.775		31.588	21.207
			0.219	5.563		36.689	24.631
			0.250	6.350	20	41.759	28.035
			0.307	7.798	30	51.002	34.240
			0.344	8.738		56.946	38.231
			0.365	9.271	40 STD	63.301	40.483
			0.438	11.125		71.852	48.238
			0.500	12.700	60 XHY	81.530	54.735
			0.594	15.088	80	95.969	64.429
12″	12.750	324	0.188	4.775		37.570	25.222
			0.219	5.563		43.657	29.309
			0.250	6.350		49.713	33.375
			0.281	7.137		55.739	37.420
			0.312	7.925		61.735	41.445
			0.375	9.525		73.824	49.562
			0.406	10.312		79.727	53.525
			0.500	12.700		97.438	65.415
			0.562	14.275		108.966	73.154
14″	14.000	356	0.188	4.775		41.308	27.732
			0.219	5.563		48.012	32.233
			0.250	6.350	20	54.685	36.713
			0.281	7.137		61.327	41.172
			0.312	7.925		67.939	45.611
			0.375	9.525	STD	81.281	54.568
			0.438	11.125	40	94.498	63.441
			0.500	12.700	XHY	107.381	72.090
			0.625	15.875		132.983	89.278
16”	16.000	406	0.188	4.775		47.290	21.748
			0.219	5.563		54.980	36.910
			0.250	6.350	10	62.639	42.053
			0.281	7.137		70.268	47.174
			0.312	7.925	20	77.866	52.275
			0.344	8.738		85.677	57.519
			0.375	9.525	30 STD	93.213	62.578
			0.438	11.125		108.433	72.797
			0.500	12.700	40 XHY	123.289	82.770
18″	18.000	457	0.219	5.563		61.948	41.588
			0.250	6.350		70.593	47.393
			0.281	7.137		79.208	53.176
			0.312	7.925	20	87.792	58.939
			0.375	9.525	STD	105.144	70.588
			0.438	11.125	30	122.369	82.152
			0.500	12.700	XHY	139.198	93.450
			0.562	14.275	40	155.904	104.666
			0.625	15.875		172.754	115.978
20″	20.000	508	0.250	6.350		78.547	52.733
			0.282	7.163		88.458	59.386
			0.312	7.925		97.719	65.604
			0.375	9.525	20 STD	117.075	78.598
			0.438	11.125		136.305	91.508
			0.500	12.700	30 XHY	155.106	104.130
			0.594	15.088	40	183.378	123.110
			0.625	15.875		192.640	129.328
			0.688	17.475		211.368	141.901
24″	24.000	610	0.250	6.350		94.456	63.413
			0.281	7.137		106.029	71.183
			0.312	7.925		117.573	18.932
			0.375	9.525	20 STD	140.938	64.618
			0.438	11.125		164.176	110.219
			0.500	12.700	XHY	186.923	125.490
			0.625	15.875		232.410	156.028
			0.688	17.475	40	255.148	171.293
			0.750	19.050		277.401	186.233
30″	30.000	762	0.250	6.350		118.318	79.433
			0.281	7.137		132.851	89.189
			0.312	7.925	10	147.353	98.925
			0.375	9.525	STD	176.731	118.648
			0.438	11.125		205.983	138.286
			0.500	12.700	20 XHY	234.647	157.530
			0.625	15.875	30	292.066	196.078
			0.688	17.475		320.817	215.380
			0.750	19.050		348.988	234.293
36″	36.000	914	0.250	6.350		142.180	95.453
			0.281	7.137		159.672	107.196
			0.312	7.925	10	177.133	118.918
			0.375	9.525	STD	215.525	142.678
			0.438	11.125		247.790	166.353
			0.500	12.700	20 XHY	282.372	198.570
			0.625	15.875		351.723	236.128
			0.688	17.475		386.487	259.467
			0.750	19.050		420.576	282.353
42″	42.000	1067	0.312	7.925		206.914	138.911
			0.375	9.525	STD	248.319	166.708
			0.500	12.700	XHY	33.097	221.610
			0.750	19.050		492.163	330.413
48″	48.000	1219	0.375	9.525	STD	284.112	190.738
			0.438	11.125		331.404	222.487
			0.500	12.700	XHY	377.822	253.650
			0.750	19.050		563.750	378.473
			0.875	22.225		655.969	440.383

›Pressure Ratings

Titanium Super Alloy Pipe Pressure Rating

Scroll to see all columns →

Pipe O.D. / (in.)	Wall Thickness of Pipe (inches)	Wall Thickness of Pipe (inches)_2	Wall Thickness of Pipe (inches)_3	Wall Thickness of Pipe (inches)_4	Wall Thickness of Pipe (inches)_5	Wall Thickness of Pipe (inches)_6	Wall Thickness of Pipe (inches)_7	Wall Thickness of Pipe (inches)_8
Pipe O.D. / (in.)	.028	.035	.049	.065	.083	.095	.109	.120
Pipe O.D. / (in.)	Working Pressure (psig)	Working Pressure (psig)	Working Pressure (psig)	Working Pressure (psig)	Working Pressure (psig)	Working Pressure (psig)	Working Pressure (psig)	Working Pressure (psig)
1/8	7900	10100
1/4	3700	4800	7000	9500
5/16		3700	5400	7300
3/8		3100	4400	6100
1/2		2300	3200	4400
3/4			2200	3000	4000	4600
1				2200	2900	3400	3900	4300

›Material Properties

Titanium Pipe Chemical Composition

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7
Grade	C	N	O	H	Ti	Fe
Titanium Grade 1	.08 Max	.03 Max	.18 Max	.015 Max	Bal	.20 Max
Titanium Grade 4	.08 Max	.05 Max	.40 Max	.015 Max	Bal	.50 Max
Titanium Grade 7	.08 Max	.03 Max	.25 Max	.015 Max	Bal	.30 Max
Titanium Grade 9	.08 Max	.03 Max	.15 Max	.015 Max	-	.25 Max
Titanium Grade 12	.08 Max	.03 Max	.25 Max	0.15 Max	-	.30 Max

Mechanical Characteristics of Titanium Exhaust Pipe

col_1	col_2	col_3	col_4	col_5
Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
4.5 G/Cm3	1665 °C (3030 °F)	Psi – 39900 , MPa – 275	Psi – 49900 , MPa – 344	20 %
4.43 G/Cm3	1632 °C (2970 °F)	Psi – 128000 , MPa – 880	Psi – 138000 , MPa – 950	14 %

›Finishes & Forms

Titanium Seamles Tubes Surface Finish

col_1	col_2	col_3	col_4	col_5	col_6
Surface Finish	Surface Finish	Internal Surface(ID)	Internal Surface(ID)	Exterbal Surface(OD)	Exterbal Surface(OD)
Surface Finish	Surface Finish	Roughness Average(RA)	Roughness Average(RA)	Roughness Average(RA)	Roughness Average(RA)
Surface Finish	Surface Finish	μ inch	μm	μ inch	μm
MP	Mechanical Polish	40,32,25,20	1.0,0.8,0.6,0.5	32	0.8
EP	Electro Polish	15,10,7,5	0.38,0.25,0.20;0.13	32	0.8
BA	Beight Annealed	40,32,25,20	1.0,0.8,0.6,0.5	32	0.8
AP	Annealed & Pickled	Not defined	Not defined	40 or Not defined	1.0 or Not defined

Titanium Pipe

Get a Price

Request a quote for this item

Specify the grade, size, quantity and governing standard, and we'll confirm stock and pricing — typically within the same working day.

Request a Quote for Titanium Pipe

Contact

Send us the spec

Grade, form, size and quantity — that's all we need to confirm stock and quote. Reach us directly, or use the form below.

Enquiry FormReply same working day

Direct Contact

Head Office

Shop No. 5, Ravi Estate, Keval Kantha Road, Near Gujarat Bottling Road, Industrial Area, Rakhial, Ahmedabad, Gujarat – 380023, India

Phone / WhatsApp

+91 93240 06771

exportompmo@gmail.com

Working Hours

Monday – Saturday8:00 AM – 8:00 PM

SundayClosed
