Alloy Steel Pipe Fittings Manufacturer in India in Detail
Specification
Features & Applications
Alloy Steel Pipe Fittings Sizes
- Seamless : 1/2" - 24"
- Welded : 24 - 96"
High Alloy Steel Elbow Size
- 1/2 to 48
Low Alloy Steel Seamless Pipe Fittings Density
- 7.85 g/cm3
Chrome Alloy Steel Weldable Pipe Fittings Temperature Range
- 1150 °F to 1800 °F
- 620° C to 980 °C
Chromoly Seamless Pipe Fittings Coating
- Hot-dip galvanizing
- Anti rust light oiling
- FBE coated
- Varnished
- PE coating
- Back painting
Chromoly Steel Alloy Elbow JIS Standard
- JIS B2313
- JIS B2312
Chromium Alloy Steel Reducer Schedule
- 5 to XXS
AS Stub End Manufacturing Technique
- Mandrel
- Hot forming
High Alloy Steel Buttweld Pipe Fittings Dimensional Standard
- ASME
- DIN
- BS
- ASTM
- ISO
- SAE
- AMS
- EN
Thickness Tolerance
- +/- 12.5%
Low Alloy Steel Tee American Standard
- ASME B16.9
- BS3799
- ASME B16.11
- MSS SP-43
Requirements Meet for Chrome Alloy Steel Cross
- NACE MR0103
- NACE TM-0284
- Sour service
- ISO 15156
- NORSOK
- NACE MR0175
- HIC tested
- MTC EN 10204 3.1/ 3.2 certificate
- IBR
Chromoly Pipe Bending Method
- Hot Induction Bending
- Roll Bending
- Ram-Type Bending
- Rotary Draw Bending
- Mandrel Bending
Marking for Chromoly Steel Cap
- Grade
- Manufacturers name
- Heat number
- Dimensional standard
- Size
Chromoly Steel Alloy Elbow Packaging
- Wooden Cases
- Wooden Pallet
- Custom
- Carton Box
ASTM A234 Elbow Testing Methods
- HIC tested
- Positive Material Identification
- Magnetic Particle Examination
- Ultrasonic test
- Hyrdrostatic test
CrMo Pipe Bend Radius
- 3D
- 4D
- 5D
- 6D
- 8D
- 10D
ASTM A234 Alloy Steel 180° SR Return Bend Characteristics
- Good creep resistance
- Metallurgical stability
- Good resistance to oxidizing
ASTM A234 Alloy Steel Long Radius Bend EN Standard
- EN 10253-2
Low Alloy Steel Pipe Bends Angle
- 15°
- 22.5
- 30°
- 45°
- 60°
- 90°
- 135°
- 180°
Alloy Steel Fittings Types
- ASTM A234 Elbow
- Chromoly Steel Cross
- Chromoly Alloy Tee
- Chromoly Steel Alloy Reducer
- Chrome Alloy Steel Cap
- Alloy Steel Pipe Bend
- Boiler Steel Stub End
Value Added Services
- Cladding
- Bending
- Rolling
- Polish
- Forging
- Heat Treatment
- Pickling
- Cutting
ASME SA403 Stainless Steel LR Seamless Elbows Features
- Corrosion resistant
- Corrosion resistance
- Dimensional stability
- Longer service life
- Durability
End types of Inox steel Fittings
- Treaded small end
- Plain small end
- Treaded large end
- Treaded Both Ends
- Plain large end
- Plain Both Ends
- Beveled large end
- Beveled Both Ends
- Beveled small end
Features
- Good load bearing
- High tensile strength
- Excellent versatility
- Good weldability
ASTM Standard For Alloy Steel Pipe Fittings
- ASTM A234
- ASME SA234
Available As
30° Low Alloy Steel Elbow180° Short Radius ASTM A234 Alloy Steel Elbow120° Chromium Alloy Steel ElbowHigh Alloy Steel Seamless ElbowASME SA234 1.5d Elbow22.5 Degree Chromoly Metal ElbowChromoly Reducing Elbow90° ASME SA234 Alloy Steel ElbowASTM A234 5d ElbowChromoly Steel Welded Elbow180° Chromoly Alloy ElbowChromoly Steel Alloy Short Radius Elbow180° Chrome Alloy Steel Elbow90° Short Radius Alloy Steel Elbow45° Short Radius Boiler Steel ElbowLow Alloy Steel 1d Elbow60° ASTM A234 Alloy Steel Elbow90° Long Radius Chromium Alloy Steel ElbowHigh Alloy Steel 3d Elbow45° Long Radius ASME SA234 ElbowChromoly Metal2d Elbow45° Chromoly ElbowASME SA234 Alloy Steel Long Radius ElbowASTM A234 8d ElbowChromoly Steel Saddle TeeChromoly Alloy Y TeeChromoly Steel Alloy Lateral TeeChrome Alloy Steel Swept TeeAlloy Steel Buttweld TeeBoiler Steel Reducing TeeLow Alloy Steel Equal TeeASTM A234 Alloy Steel Straight TeesChromium Alloy Steel Reducing Outlet TeesHigh Alloy Steel Barred TeeASME SA234 Lap Joint Stub EndChromoly Metal Short Stub EndChromoly Long Stub EndASME SA234 Alloy Steel CollarASTM A234 Hemi-head Pipe CapChromoly Steel 5d Pipe BendChromoly Alloy 3d Pipe BendChromoly Steel Alloy Piggable BendChrome Alloy Steel Seamless Pipe BendAlloy Steel Long Radius BendBoiler Steel Short Radius BendLow Alloy Steel J BendASTM A234 Alloy Steel 10d Pipe BendChromium Alloy Steel Return BendHigh Alloy Steel L BendASME SA234 22d Pipe BendChromoly Metal Welded Pipe BendChromoly 2.5d Pipe BendASME SA234 Alloy Steel Mitered Pipe BendASTM A234 Hot Induction BendAlloy Steel Eccentric Swage NippleAS Concentric Swage NippleAlloy Steel Unequal CrossASTM A234 AS Reducing Outlet CrossesAlloy Steel Straight CrossesAS Equal Cross
Technical Data
Full Specifications
›Pressure Ratings
Alloy Steel Buttweld Fittings Pressure rating
Scroll to see all columns →
| OD | NPS | Wall Thick. | Pipe Sched | Temperature | Temperature_2 | Temperature_3 | Temperature_4 | Temperature_5 |
|---|---|---|---|---|---|---|---|---|
| inches | inches | inches | Pipe Sched | 500 | 400 | 300 | 200 | 100 |
| inches | inches | inches | Pipe Sched | 14400 | 15500 | 16700 | 16700 | 16700 |
| 10.075 | 10 | 0.0365 | 40 | 603 | 649 | 699 | 699 | 699 |
| 10.075 | 10 | 0.0594 | 80 | 999 | 1075 | 1159 | 1159 | 1159 |
| 10.075 | 10 | 1.0125 | 160 | 1974 | 2124 | 2289 | 2289 | 2289 |
| 8.0625 | 8 | 0.0322 | 40 | 665 | 716 | 771 | 771 | 771 |
| 8.0625 | 8 | 0.05 | 80 | 1050 | 1131 | 1218 | 1218 | 1218 |
| 8.0625 | 8 | 0.0906 | 160 | 1982 | 2133 | 2298 | 2298 | 2298 |
| 6.0625 | 6 | 0.028 | 40 | 756 | 814 | 877 | 877 | 877 |
| 6.0625 | 6 | 0.0432 | 80 | 1189 | 1280 | 1379 | 1379 | 1379 |
| 6.0625 | 6 | 0.0719 | 160 | 2054 | 2211 | 2382 | 2382 | 2382 |
| 5.0563 | 5 | 0.0258 | 40 | 832 | 896 | 965 | 965 | 965 |
| 5.0563 | 5 | 0.0375 | 80 | 1231 | 1325 | 1428 | 1428 | 1428 |
| 5.0563 | 5 | 0.0625 | 160 | 2133 | 2296 | 2474 | 2474 | 2474 |
| 4.05 | 4 | 0.0237 | 40 | 950 | 1023 | 1102 | 1102 | 1102 |
| 4.05 | 4 | 0.0337 | 80 | 1377 | 1482 | 1596 | 1596 | 1596 |
| 4.05 | 4 | 0.0531 | 160 | 2552 | 2424 | 2611 | 2611 | 2611 |
| 3.05 | 3 | 0.0216 | 40 | 1122 | 1208 | 1301 | 1301 | 1301 |
| 3.05 | 3 | 0.03 | 80 | 1590 | 1712 | 1844 | 1844 | 1844 |
| 3.05 | 3 | 0.0438 | 160 | 2403 | 2587 | 2787 | 2787 | 2787 |
| 2.0375 | 2 | 0.0154 | 40 | 1182 | 1272 | 1371 | 1371 | 1371 |
| 2.0375 | 2 | 0.0218 | 80 | 1712 | 1843 | 1985 | 1985 | 1985 |
| 2.0375 | 2 | 0.0344 | 160 | 2831 | 3047 | 3283 | 3283 | 3283 |
| 1.09 | 1 1/2 | 0.0145 | 40 | 1404 | 1512 | 1629 | 1629 | 1629 |
| 1.09 | 1 1/2 | 0.02 | 80 | 1986 | 2138 | 2303 | 2303 | 2303 |
| 1.09 | 1 1/2 | 0.0281 | 160 | 2899 | 3120 | 3362 | 3362 | 3362 |
›Material Properties
Chemical Composition of High Alloy Steel Reducer
Scroll to see all columns →
| Grade | Mn | Mo | C | Cr | S | P | Si |
|---|---|---|---|---|---|---|---|
| WP1 | .30 to .90 | .44 to .65 | .28 | .045 | .045 | .10 to .50 | |
| WP5 | .30 to .60 | .44 to .65 | .15 | 4.0 to 6.0 | .030 | .040 | .50 |
| WP9 | .30 to .60 | .90 to 1.10 | .15 | 8.0 to 1 .0 | .030 | .030 | 1 |
| WP11 | .30 to .80 | .44 to .65 | .05 to .20 | 1 to 1.50 | .040 | .040 | .50 to 1 |
| WP12 | .30 to .80 | .44 to .65 | .05 to .20 | .80 to 1.25 | .045 | .045 | .60 |
| WP22 | .30 to .60 | .87 to 1.13 | .05 to .15 | 1.90 to 2.60 | .040 | .040 | .50 |
| WP24 | .30 to .70 | .90 to 1.10 | .05 to .10 | 2.20 to 2.60 | .010 | .020 | .15 to .45 |
| WPR | .40 to 1.06 | .20 | .050 | .045 | |||
| WP91 | .30 to .60 | .85 to 1.05 | .08 to .12 | .85 to 1.05 | .010 | .020 | .20 to .50 |
| WP911 | .30 to .60 | .90 to 1.10 | .09 to .13 | .90 to 1.10 | .010 | .020 | .10 to .50 |
| WP92 | .30 to .60 | .30 to .60 | .07 to .13 | .30 to .60 | .010 | .020 | .50 |
Mechanical properties of Alloy Steel Concentric Reducer
| Grade | YS, min. ksi[MPa] | TS, min. ksi[MPa] | Elongation, min. % | Elongation, min. %_2 |
|---|---|---|---|---|
| Grade | YS, min. ksi[MPa] | TS, min. ksi[MPa] | Longitudinal | Transverse |
| WP1 | 30[205] | 55-80 [380-550] | 20 | 13 |
| WP12 | 32[220] | 60[415] | 22 | 14 |
| WP11 CL | 30[205] | 60[415] | 22 | 14 |
| WP12 CL2 | 40[275] | 70[485] | 22 | 14 |
| WP11 CL3 | 45[310] | 75[520] | 22 | 14 |
| WP11 CL2 | 40[275] | 70[485] | 22 | 14 |
| WP22 CL3 | 45[310] | 75[520] | 22 | 14 |
| WP22 CL1 | 30[205] | 60[415] | 22 | 14 |
| WP24 | 60[415] | 85[585] | 20 | - |
| WP5 CL3 | 45[310] | 75[520] | 22 | 14 |
| WP5 CL1 | 30[205] | 60[415] | 22 | 14 |
| WP9 CL3 | 45[310] | 75[520] | 22 | 14 |
| WP9 CL1 | 30[205] | 60[415] | 22 | 14 |
| WP91 | 60[415] | 90[620] | 20 | 13 |
| WP92 | 64[440] | 90-120 [620-840] | 20 | 13 |
›Dimensions & Weight

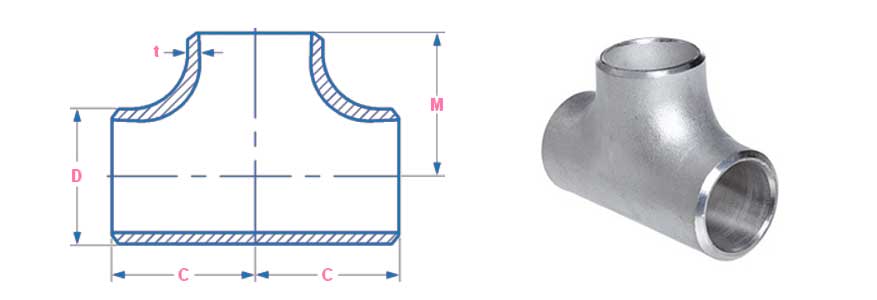

Dimension Table of Low Alloy Steel Fittings
| NPS | Outer Diameter / D | Center to End / C | Center to End / M |
|---|---|---|---|
| 1/2 | 21.3 | 25 | 25 |
| 1 | 33.4 | 38 | 38 |
| 1.1/2 | 48.3 | 57 | 57 |
| 2.1/2 | 73 | 76 | 76 |
| 3.1/2 | 101.6 | 95 | 95 |
| 5 | 141.3 | 124 | 124 |
| 8 | 219.1 | 178 | 178 |
| 12 | 323.8 | 254 | 254 |
| 16 | 406.4 | 305 | 305 |
| 20 | 508 | 381 | 381 |
| 24 | 610 | 432 | 432 |
| 28 | 711 | 521 | 521 |
| 32 | 813 | 597 | 597 |
| 36 | 914 | 673 | 673 |
| 40 | 1016 | 749 | 749 |
| 44 | 1118 | 813 | 762 |
| 48 | 1219 | 889 | 838 |
Weight Chart of Alloy Steel Buttweld Fittings
Scroll to see all columns →
| DN | DN_2 | 8 | 15 | 25 | 40 | 65 | 90 | 150 | 250 | 300 |
|---|---|---|---|---|---|---|---|---|---|---|
| Schedule 10S | Equal tee | .03 | .09 | .28 | .68 | 1.41 | 2.67 | 8.07 | 26.46 | 39.46 |
| Schedule 10S | 45° Elbow | .01 | .03 | .08 | .17 | .48 | .75 | 2.72 | 9.75 | 13.62 |
| Schedule 10S | 90° Elbow | .02 | .06 | .14 | .3 | .85 | 1.7 | 5.45 | 18.15 | 25.8 |
| Schedule 40S | Equal tee | .06 | .1 | .29 | .86 | 2.19 | 4.08 | 1 .99 | 35.38 | 62.14 |
| Schedule 40S | 45° Elbow | .02 | .04 | .11 | .23 | .77 | 1.42 | 5.44 | 19.27 | 29.71 |
| Schedule 40S | 90° Elbow | .03 | .08 | .15 | .4 | 1.4 | 2.83 | 1 .89 | 38.56 | 59.42 |
| Schedule 80S | Equal tee | .07 | .14 | .38 | 1.02 | 3.13 | 5.44 | 13.61 | 49.9 | 83.91 |
| Schedule 80S | 45° Elbow | .03 | .05 | .14 | .29 | .99 | 2 | 8.16 | 25.86 | 39.69 |
| Schedule 80S | 90° Elbow | .04 | .1 | .22 | .51 | 1.81 | 4 | 16.32 | 51.71 | 79.38 |

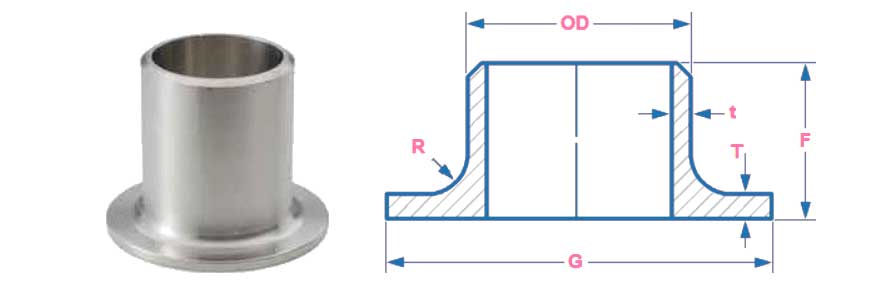

Low Alloy Steel Stub End Dimension
Scroll to see all columns →
| NPS | OD | G | T | R / Type A | F | R / Type B |
|---|---|---|---|---|---|---|
| 1/2 | 21.3 | 34.9 | 2.11 | 3.05 | 5 .8 | .76 |
| 3/4 | 26.7 | 42.9 | 2.11 | 3.05 | 5 .8 | .76 |
| 1 | 33.4 | 5 .8 | 2.77 | 3.05 | 5 .8 | .76 |
| 1.1/4 | 42.2 | 63.5 | 2.77 | 4.83 | 5 .8 | .76 |
| 1.1/2 | 48.3 | 73 | 2.77 | 6.35 | 5 .8 | .76 |
| 2 | 6 .3 | 92.1 | 2.77 | 7.87 | 63.5 | .76 |
| 2.1/2 | 73 | 104.8 | 3.05 | 7.87 | 63.5 | .76 |
| 3 | 88.9 | 127 | 3.05 | 9.65 | 63.5 | .76 |
| 3.1/2 | 101.6 | 139.7 | 3.05 | 9.65 | 76.2 | .76 |
| 4 | 114.3 | 157.2 | 3.05 | 11.18 | 76.2 | .76 |
| 5 | 141.3 | 185.7 | 3.40 | 11.18 | 76.2 | 1.52 |
| 6 | 168.3 | 215.9 | 3.40 | 12.7 | 88.9 | 1.52 |
| 8 | 219.1 | 269.9 | 3.76 | 12.7 | 101.6 | 1.52 |
| 10 | 273.1 | 323.9 | 4.19 | 12.7 | 127 | 1.52 |
| 12 | 323.9 | 381 | 4.57 | 12.7 | 152.4 | 1.52 |
| 14 | 355.6 | 412.8 | 4.78 | 12.70 | 152.4 | 1.52 |
| 16 | 406.4 | 469.9 | 4.78 | 12.7 | 152.4 | 1.52 |
| 18 | 457.2 | 533.4 | 4.78 | 12.70 | 152.4 | 1.52 |
| 20 | 508 | 584.2 | 5.54 | 12.70 | 152.4 | 1.52 |
| 24 | 609.6 | 692.2 | 6.35 | 12.7 | 152.4 | 1.52 |
›Technical Data
Alloy Steel Pipe Fittings Manufacturing Standards
| col_1 | col_2 |
|---|---|
| ASME B16.9 | ASME B16.11 |
| ASME B16.28 | BS3799 |
| MSS SP43 | MSS SP95 |
| Mss SP75 |
Low AS Pipe Fittings Sizes & Schedules
| col_1 | Alloy Steel Butt Weld Fittings |
|---|---|
| Fittings Types | 90º LRs 90º SRs 45º Elbow Concentric Reducers Eccentric Reducers Tees Reducing Tees Stub Ends Fittings |
| Sizes | 1/2 to 12 inch |
| Schedules | Sch 10S to 80S |
