ASTM A234 WP22 Fittings

ASTM A234 WP22 Fittings manufacturer In India. Stock Of Alloy Steel WP22 Elbow. View price of Sa234 Wp22 Stub End/ Tee. Check Dimensions of Wp22 Buttweld Reducer

Alloy Steel

On This Page

Material Specification of ASTM A234 WP22 Fittings Chemical Analysis Of A234 WP22 Material Mechanical Behaviour Of Sa234 Wp22 Stub End Sizes & Schedule of ASTM A234 WP22 Pipe Fittings ASTM A234 Gr WP22 Reducer Dimensions SA 234 WP22 Alloy Steel Tee, Stub End Dimensions Weight Chart of Alloy Steel Grade WP22 Weld Fittings Ready Stock of SA234 Gr WP22 Fittings

Gallery

ASTM A234 WP22 Fittings in Detail

Technical Data

Full Specifications

›Technical Data

Material Specification of ASTM A234 WP22 Fittings

Specifications	ASTM A234
size	Seamless Butt Weld Fittings: 1/2" - 10" / Welded Butt Weld Fittings: 1/2" - 48"
Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Connection	Welding
Type	DN15-DN1200
Test Certificates	EN 10204/3.1B / Raw Materials Certificate / 100% Radiography Test Report / Third Party Inspection Report, etc
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Manufacturing process	Push, Press, Forge, Cast, etc.
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43
Elbows	Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D . / Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Origin & Mills	Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries	Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
Export to	Dubai, Brazil, Singapore, Indonesia, Ukraine, India, Thailand, Korea, Iran, Egypt, Saudi Arabia, Oman, Spain, Canada, USA, Ireland, Peru, etc
Specialized manufacturer of	90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175	We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

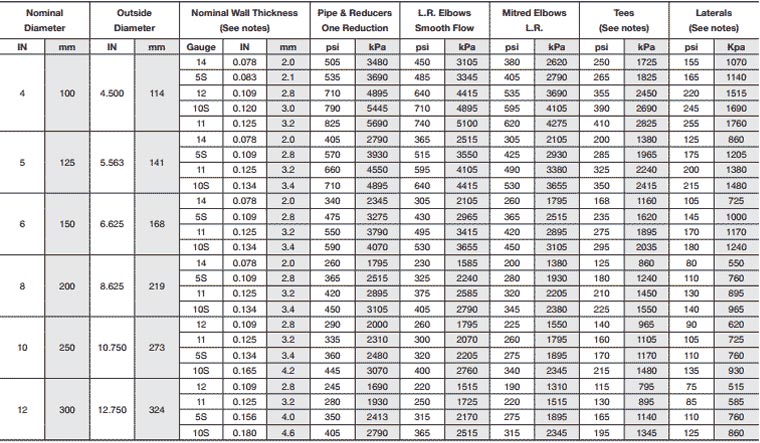

Sizes & Schedule of ASTM A234 WP22 Pipe Fittings

col_1	col_2
Fittings Types	90º LRs, 90º SRs, 45º Elbow, / Concentric Reducers, Eccentric Reducers, / Tees, Reducing Tees and Stub Ends Fittings
Sizes	1/2″ – 12″
Schedules	Sch 10S – 80S

Ready Stock of SA234 Gr WP22 Fittings

col_1	col_2
SA234 Gr WP22 Tube End Caps	Chrome Moly ASTM A234 WP22 Butt weld Pipe Caps
SA234 Grade WP22 Forged End Caps	Chromoly Steel WP22 Socket Weld End Cap
ASME SA234 WP22 Pipe Caps	Chromoly Steel ASTM A234 WP22 Buttweld End Cap Fitting
A234 WP22 Cl1 Buttweld Fittings	ASTM A234 Grade WP22 Pipe Fittings
A234 WP22 Material	Alloy Steel Gr WP22 Fittings
A234 Grade WP22 fittings	Alloy Steel ASTM A234 WP22 Fittings
SA234 Gr WP22 Fittings	ASME SA234 Gr WP22 Tee

Check Where We Exported our material

col_1	col_2
A234 Wp22 Sch80 Eccentric Alloy Reducer ASME 16.9	Dammam -KSA, Philippines, Indonesia, Belgium
Astm a234 WP22 Alloy Steel 90d Elbow Lr Bw Smls	Qatar, Europe, France, Thailand
ASTM A234 WP22 Alloy Steel 180 Degree Elbow	Czechia, Thailand, Germany, Malaysia
ASTM B16.9 AS A234 WP22 EQUAL TEE	Malaysia, Bangladesh, USA, Finland
A234 gr WP22 45 degree elbow	South Africa, Kuwait, Saudi Arabia (KSA), Brazil
A234 WP22 SCH 10 API 45 degree lateral tee	Bahrain, Singapore, South Africa, Singapore
ASTM A234 WP22 90 deg BW 3" sch 80 alloy steel seamless elbow	Philippines, UK, Australia, Nigeria
ASTM A234 WP22 butt welding tee	Oman, Hong Kong, Malaysia, UAE
ELBOW 45 deg , LR BW SMLS SCH 80S, ASME B16.9, ASTM A234,Gr.WP22 CL.1	Chile, Iran, Italy, Singapore
ASTM A234 WP22 induction elbows	United Arab Emirates (UAE), Norway, Turkey, Malaysia
ASTM A234 WP22 cl. 2 bw tube fittings	Netherlands, Russia, Malaysia, Dubai
butt welding ASTM B16.9 A234 WP22 concentric reducer	Egypt, Mexico, Spain, UK
A234 WP22 Steel Bend 1/2"-24"	United Kingdom -UK, Malaysia, Europe, UAE
ASME b16.9 elbow 90 deg lr bw smls astm a234 WP22	UK, Poland, Canada, Ellington -United States
ASME b16.9 astm a234 gr WP22 reducer tee	Philippines, Canada, Malaysia, Singapore
SCH20 ASTM A234 Grade WP22 long radius 90 degrees elbow	Europe, Romania, Japan, Malaysia
elbow 2" SCH40s ASTM A234 WP22	Sweden, Malaysia, Colombia, China
24*18'' TEE A234 WP22 SCH40	Malaysia, Los Alamos -Mexico, Taiwan, Philippines
tee forging astm a234 gr wp22	Singapore, NY 12203 (USA), South Korea, Malaysia

›Material Properties

Chemical Analysis Of A234 WP22 Material

Scroll to see all columns →

C	Mn	Si	S	P	Cr	Mo
0.05-0.15	0.3-0.5	0.5	≤0.04	≤0.04	2-2.5	0.87-1.13

Mechanical Behaviour Of Sa234 Wp22 Stub End

col_1	col_2	col_3
Tensile Strength (Mpa)	Yield Strength (Mpa)	Elongation %
415 – 585	≥205	≥20

›Dimensions & Weight

ASTM A234 Gr WP22 Reducer Dimensions

Nominal / Pipe Size	Outside / Diameter	Outside / Diameter_2	Reducers	Reducers_2
Reduced from / (inches)	(mm)	(inches)	Reduced to / (inches)	Concentric & Eccentric Length / (inches)
1/2	21.3	0.840	1/4	1 1/2
1/2	21.3	0.840	3/8	1 1/2
3/4	26.7	1.050	3/8	2
3/4	26.7	1.050	1/2	2
1	33.4	1.315	3/8	2
1	33.4	1.315	1/2	2
1	33.4	1.315	3/4	2
1 1/4	42.2	1.660	1/2	2
1 1/4	42.2	1.660	3/4	2
1 1/4	42.2	1.660	1	2
1 1/2	48.3	1.900	1/2	2 1/2
1 1/2	48.3	1.900	3/4	2 1/2
1 1/2	48.3	1.900	1	2 1/2
1 1/2	48.3	1.900	1 1/4	2 1/2
2	60.3	2.375	3/4	3
2	60.3	2.375	1	3
2	60.3	2.375	1 1/4	3
2	60.3	2.375	1 1/2	3
2 1/2	73.0	2.875	1	3 1/2
2 1/2	73.0	2.875	1 1/4	3 1/2
2 1/2	73.0	2.875	1 1/2	3 1/2
2 1/2	73.0	2.875	2	3 1/2
3	88.9	3.500	1	3 1/2
3	88.9	3.500	1 1/2	3 1/2
3	88.9	3.500	2	3 1/2
3	88.9	3.500	2 1/2	3 1/2
3 1/2	101.6	4.000	1 1/4	4
3 1/2	101.6	4.000	1 1/2	4
3 1/2	101.6	4.000	2	4
3 1/2	101.6	4.000	2 1/2	4
3 1/2	101.6	4.000	3	4
4	114.3	4.500	1 1/2	4
4	114.3	4.500	2	4
4	114.3	4.500	2 1/2	4
4	114.3	4.500	3	4
4	114.3	4.500	3 1/2	4
5	141.3	5.563	2	5
5	141.3	5.563	2 1/2	5
5	141.3	5.563	3	5
5	141.3	5.563	3 1/2	5
5	141.3	5.563	4	5
6	168.3	6.625	2 1/2	5 1/2
6	168.3	6.625	3	5 1/2
6	168.3	6.625	3 1/2	5 1/2
6	168.3	6.625	4	5 1/2
6	168.3	6.625	5	5 1/2
8	219.1	8.625	3	6
8	219.1	8.625	3 1/2	6
8	219.1	8.625	4	6
8	219.1	8.625	5	6
8	219.1	8.625	6	6
10	273.1	10.750	4	7
10	273.1	10.750	5	7
10	273.1	10.750	6	7
10	273.1	10.750	8	7
12	323.9	12.750	5	8
12	323.9	12.750	6	8
12	323.9	12.750	8	8
12	323.9	12.750	10	8

SA 234 WP22 Alloy Steel Tee, Stub End Dimensions

Scroll to see all columns →

Nominal / Pipe / Size	Outside / Diameter	Outside / Diameter_2	Caps	Straight Tees	Straight Crosses	Stub Ends	Stub Ends_2	Stub Ends_3
(inches)	(mm)	(inches)	Length / (inches)	Center to End / (inches)	Center to End / (inches)	Lap Diameter / (inches)	Long Length / (inches)	Short Length / (inches)
1/2	21.3	0.840	1	1	–	1 3/8	3	2
3/4	26.7	1.050	1	1 1/8	–	1 11/16	3	2
1	33.4	1.315	1 1/2	1 1/2	1 1/2	2	4	2
1 1/4	42.2	1.660	1 1/2	1 7/8	1 7/8	2 1/2	4	2
1 1/2	48.3	1.900	1 1/2	2 1/4	2 1/4	2 7/8	4	2
2	60.3	2.375	1 1/2	2 1/2	2 1/2	3 5/8	6	2 1/2
2 1/2	73.0	2.875	1 1/2	3	3	4 1/8	6	2 1/2
3	88.9	3.500	2	3 3/8	3 3/8	5	6	2 1/2
3 1/2	101.6	4.000	2 1/2	3 3/4	3 3/4	5 1/2	6	3
4	114.3	4.500	2 1/2	4 1/8	4 1/8	6 3/16	6	3
5	141.3	5.563	3	4 7/8	4 7/8	7 5/16	8	3
6	168.3	6.625	3 1/2	5 5/8	5 5/8	8 1/2	8	3 1/2
8	219.1	8.625	4	7	7	10 5/8	8	4
10	273.1	10.750	5	8 1/2	8 1/2	12 3/4	10	5
12	323.9	12.750	6	10	10	15	10	6

Weight Chart of Alloy Steel Grade WP22 Weld Fittings

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9	col_10
DN	Schedule 10S	Schedule 10S	Schedule 10S	Schedule 40S	Schedule 40S	Schedule 40S	Schedule 80S	Schedule 80S	Schedule 80S
DN	900 Elbow	450 Elbow	Equal tee	900 Elbow	450 Elbow	Equal tee	900 Elbow	450 Elbow	Equal tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91
