Specification Format of ASTM A234 WPB Fittings

Specifications	ASTM A234
size	Seamless Butt Weld Fittings: 1/2" - 10" / Welded Butt Weld Fittings: 1/2" - 48"
Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Connection	Welding
Type	DN15-DN1200
Test Certificates	EN 10204/3.1B / Raw Materials Certificate / 100% Radiography Test Report / Third Party Inspection Report, etc
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Manufacturing process	Push, Press, Forge, Cast, etc.
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43
Elbows	Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D . / Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Origin & Mills	Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries	Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
Export to	Brazil, Ukraine, Singapore, Indonesia, Dubai, India, Thailand, Korea, Oman, USA, Ireland, Iran, Egypt, Spain, Canada, Saudi Arabia, Peru, etc
Specialized manufacturer of	90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175	We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

›Material Properties

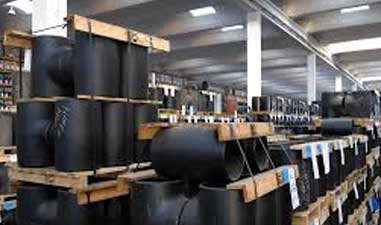

SA234 WPB Buttweld Tee Chemical Formula

Scroll to see all columns →

Grade	C	Mn	P	S	Si	Cr	Mo	Ni	Cu	V	Nb
WPB	0.3	0.29-1.06	0.05	0.058	0.1min	0.4	0.15	0.4	0.4	0.08	0.02

Carbon Steel WPB Reducer Mechanical Analysis

Item	Tensile Strength (KSI)	Yield Strength (KSI)
WPB	60	35

Equivalent Grades Of A234 Gr WPB Material

Pipe	Fittings	Flanges	Valves	Bolts & Nuts
A106 Gr A	A234 Gr WPA	A105	A216 Gr WCB	A193 Gr B7 / A194 Gr 2H
A106 Gr B	A234 Gr WPB	A105	A216 Gr WCB	A193 Gr B7 / A194 Gr 2H
A106 Gr C	A234 Gr WPC	A105	A216 Gr WCB	A193 Gr B7 / A194 Gr 2H

›Technical Data

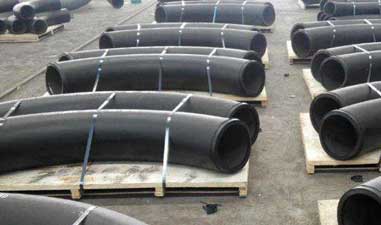

Size Range of SA234 WPB Elbow

Scroll to see all columns →

Nom. Pipe Size	ASTM A234 WPB 90° Elbows	ASTM A234 WPB 90° Elbows_2	ASTM A234 WPB 90° Elbows_3	ASTM A234 WPB 90° Elbows_4	ASTM A234 WPB 90° Elbows_5	ASTM A234 WPB 90° Elbows_6	ASTM A234 WPB 90° Elbows_7	ASTM A234 WPB 90° Elbows_8	ASTM A234 WPB 45° Elbows	ASTM A234 WPB 45° Elbows_2	ASTM A234 WPB 45° Elbows_3	ASTM A234 WPB 45° Elbows_4	ASTM A234 WPB 180° Return Long Radius Elbow	ASTM A234 WPB 180° Return Long Radius Elbow_2
Nom. Pipe Size	Long Radius	Long Radius	Long Radius	Long Radius	Short Radius	Short Radius	3R	3R	Long Radius	Long Radius	3R	3R	STD	XS
Nom. Pipe Size	STD	XS	SCH. 160	XXS	STD	XS	STD	XS	STD	XS	STD	XS	STD	XS
½	.18	.25	–	–	–	–	–	–	.09	.19	–	–	.35	–
¾	.19	.25	–	–	–	–	–	–	.09	.19	–	–	.40	.65
1	.40	.50	.60	.75	.25	–	–	–	0.25	.31	–	–	.75	1.00
1¼	.60	.90	1.00	1.38	.4	–	–	–	0.38	.50	–	–	1.25	1.75
1½	.90	1.15	1.80	1.50	.56	.75	–	–	.40	.69	–	–	1.88	2.39
2	1.60	2.20	3.25	3.50	1.00	1.50	3.00	4.00	.81	1.19	1.5	2.1	3.23	4.40
2½	3.25	4.00	5.13	7.00	2.13	2.80	6.00	8.00	1.75	2.13	3.00	4.00	6.50	8.00
3	5.00	6.50	8.50	11.0	3.00	4.25	10.0	13.0	2.63	3.50	5.00	7.00	10.25	13.00
3½	6.75	8.35	–	16.0	4.50	6.00	13.0	18.0	3.50	4.50	7.00	9.00	13.00	16.75
4	9.00	13.5	18.0	20.0	6.25	8.50	18.0	25.0	4.50	6.10	9.00	13.0	18.5	25.0
5	15.0	22.0	32.0	36.0	9.60	14.0	29.0	43.0	7.50	10.7	15.0	22.0	30.0	44.0
6	24.5	35.0	57.0	65.0	18.0	23.0	45.0	70.0	12.0	17.5	23.0	35.0	50.0	70.0
8	50.0	71.0	120	118	34.0	47.5	90.0	140	23.0	35.0	45.0	70.0	95.0	142
10	88.0	107	260	–	58.0	70.0	159	218	43.0	53.0	80.0	109	117	215
12	125	160	450	–	80.0	104	233	310	62.0	84.0	117	155	230	320
14	160	205	572	–	105	140	298	400	80.0	100	149	200	325	400
16	206	276	–	–	132	174	390	520	100	135	195	260	412	550
18	260	340	–	–	167	219	495	660	126	167	248	330	510	690
20	320	420	–	–	210	275	610	810	160	206	305	405	640	830
22	394	520	–	–	–	–	735	980	197	260	368	490	787	1040
24	460	600	–	–	298	392	875	1170	238	300	438	585	890	1200
26	550	729	–	–	–	–	1030	1370	275	365	515	685	–	–
30	734	975	–	–	–	–	1370	1830	367	488	685	915	–	–
36	1062	1412	–	–	–	–	1970	2630	531	706	985	1315	–	–

Check the Material List supplied in Europe, Africa and Middle East

col_1	col_2
Seamless std carbon steel a234 wpb 4 inch 90 elbow	China, Chile, United Kingdom -UK, South Africa
Reducing Tee SCH40 DN50 ASTM A234 WPB Butt Weld	The Philippines, United Arab Emirates (UAE), UK, Bahrain
A234 WPB SCH80 high pressure carbon steel pipe fitting	Malaysia, Netherlands, Philippines, Philippines
carbon steel A234 WPB 90 degree elbow	Sweden, Egypt, Europe, Oman
ASTM a234 wpb butt welded carbon steel stub end	Malaysia, Australia, Spain, Germany
ASME B16.9 Seamless A234 WPB SCH40 90 Degree Elbow	Singapore, Malaysia, Europe, USA
Butt Welded Carbon Steel A234 Wpb Sch40 Pipe Caps	Japan, Italy, Canada, Saudi Arabia (KSA)
ASME B16.9 A234 WPB tee	Colombia, Turkey, Malaysia, South Africa
Black Steel A234 WPB 1.5D LR SCH40 Elbow	Taiwan, Malaysia, Mexico, Thailand
ASTM A234 WPB 12 Inch Carbon Steel End Cap	South Korea, UK, Malaysia, Bangladesh
A234 WPB SCH40 20 Inch Carbon Steel butt welding Pipe Fitting	Romania, Singapore, Poland, Kuwait
astm a234 wpb 3inch sch40/std long radius Elbow	Malaysia, Iran, Canada, Singapore
Sch40 astm a234 gr. wpb ansi b16.9 carbon steel elbows	Los Alamos -Mexico, Norway, Singapore, Finland
ANSI B16.9 SCH80 EQ TEE A234 WPB 1"	NY 12203 (USA), Russia, Ellington -United States, Brazil
ASME B16.9 A234 WPB 90 degree long radius elbow for oil and gas	Dammam -KSA, Hong Kong, Singapore, UAE
20 INCH x 8 INCH SCH 80 REDUCING TEE BE SMLS ASTM A234 Gr. WPB	Qatar, Dubai, Malaysia, Nigeria
butt weldeding elbow 90d LR carbon steel A234 WPB	Czechia, Malaysia, Belgium, UAE
CAP CARBON STEEL 1" STD A234 WPB	Malaysia, UK, Thailand, Indonesia
ELBOW 45DEG LR ASTM A234 WPB 48INCH SCH	Europe, Philippines, Malaysia, France

›Dimensions & Weight

Dimensions Chart of ASTM A234 WPB Long Radius Elbow

Scroll to see all columns →

Nominal / Pipe Size	Outside / Diameter	Inside / Diameter	Wall / Thickness	Center / To End	Pipe / Schedule	Weight / Pounds
1	1.32	1.05	0.133	1	40	0.25
1 1/4	1.66	1.38	0.14	1.25	40	0.39
1 1/2	1.9	1.61	0.145	1.5	40	0.53
2	2.38	2.07	0.154	2	40	0.97
2 1/2	2.88	2.47	0.203	2.5	40	2
3	3.5	3.07	0.216	3	40	3
3 1/2	4	3.55	0.226	3.5	40	4.3
4	4.5	4.03	0.237	4	40	6.1
5	5.56	5.05	0.258	5	40	9.7
6	6.63	6.07	0.28	6	40	16.7
8	8.63	7.98	0.322	8	40	32.4
10	10.75	10.02	0.365	10	40	56.3
12	12.75	12	0.375	12	*	79.4
14	14	13.25	0.375	14	30	104
16	16	15.25	0.375	16	30	129
18	18	17.25	0.375	18	*	163
20	20	19.25	0.375	20	20	210
24	24	23.25	0.375	24	20	297
30	30	29.25	0.375	30	*	480
36	36	35.25	0.375	36	*	692
42	42	41.25	0.375	42	*	967
48	48	47.25	0.375	48	*	1,340

Dimensions Table of A234 Gr Wpb Short Radius Elbow

Scroll to see all columns →

Nominal / Pipe Size	Outside / Diameter	Inside / Diameter	Wall / Thickness	Center / To End	Pipe / Schedule	Weight / Pounds
1/2	0.84	0.622	0.109	1.5	40	0.16
3/4	1.05	0.824	0.113	1.5	40	0.17
1	1.32	1.049	0.133	1.5	40	0.4
1 1/4	1.66	1.38	0.14	1.88	40	0.55
1 1/2	1.9	1.61	0.145	2.25	40	0.8
2	2.38	2.07	0.154	3	40	1.6
2 1/2	2.88	2.47	0.203	3.75	40	3.2
3	3.5	3.07	0.216	4.5	40	4.8
3 1/2	4	3.55	0.226	5.25	40	6.6
4	4.5	4.03	0.237	6	40	8.9
5	5.56	5.05	0.258	7.5	40	15.1
6	6.62	6.07	0.28	9	40	24
8	8.62	7.98	0.322	12	40	47.8
10	10.75	10.02	0.365	15	40	83.4
12	12.75	12	0.375	18	*	123
14	14	13.25	0.375	21	30	155
16	16	15.25	0.375	24	30	206
18	18	17.25	0.375	27	*	262
20	20	19.25	0.375	30	20	324
24	24	23.25	0.375	36	20	466
30	30	29.25	0.375	45	*	720
36	36	35.25	0.375	54	*	1,039
42	42	41.25	0.375	63	*	1,420
48	48	47.25	0.375	72	*	2,000

A234 Grade WPB WPB Reducer Weight

Nominal / Pipe Size	Outside / Diameter	Outside / Diameter_2	Reducers	Reducers_2
Reduced from / (inches)	(mm)	(inches)	Reduced to / (inches)	Concentric & Eccentric Length / (inches)
1/2	21.3	0.840	1/4	1 1/2
1/2	21.3	0.840	3/8	1 1/2
3/4	26.7	1.050	3/8	2
3/4	26.7	1.050	1/2	2
1	33.4	1.315	3/8	2
1	33.4	1.315	1/2	2
1	33.4	1.315	3/4	2
1 1/4	42.2	1.660	1/2	2
1 1/4	42.2	1.660	3/4	2
1 1/4	42.2	1.660	1	2
1 1/2	48.3	1.900	1/2	2 1/2
1 1/2	48.3	1.900	3/4	2 1/2
1 1/2	48.3	1.900	1	2 1/2
1 1/2	48.3	1.900	1 1/4	2 1/2
2	60.3	2.375	3/4	3
2	60.3	2.375	1	3
2	60.3	2.375	1 1/4	3
2	60.3	2.375	1 1/2	3
2 1/2	73.0	2.875	1	3 1/2
2 1/2	73.0	2.875	1 1/4	3 1/2
2 1/2	73.0	2.875	1 1/2	3 1/2
2 1/2	73.0	2.875	2	3 1/2
3	88.9	3.500	1	3 1/2
3	88.9	3.500	1 1/2	3 1/2
3	88.9	3.500	2	3 1/2
3	88.9	3.500	2 1/2	3 1/2
3 1/2	101.6	4.000	1 1/4	4
3 1/2	101.6	4.000	1 1/2	4
3 1/2	101.6	4.000	2	4
3 1/2	101.6	4.000	2 1/2	4
3 1/2	101.6	4.000	3	4
4	114.3	4.500	1 1/2	4
4	114.3	4.500	2	4
4	114.3	4.500	2 1/2	4
4	114.3	4.500	3	4
4	114.3	4.500	3 1/2	4
5	141.3	5.563	2	5
5	141.3	5.563	2 1/2	5
5	141.3	5.563	3	5
5	141.3	5.563	3 1/2	5
5	141.3	5.563	4	5
6	168.3	6.625	2 1/2	5 1/2
6	168.3	6.625	3	5 1/2
6	168.3	6.625	3 1/2	5 1/2
6	168.3	6.625	4	5 1/2
6	168.3	6.625	5	5 1/2
8	219.1	8.625	3	6
8	219.1	8.625	3 1/2	6
8	219.1	8.625	4	6
8	219.1	8.625	5	6
8	219.1	8.625	6	6
10	273.1	10.750	4	7
10	273.1	10.750	5	7
10	273.1	10.750	6	7
10	273.1	10.750	8	7
12	323.9	12.750	5	8
12	323.9	12.750	6	8
12	323.9	12.750	8	8
12	323.9	12.750	10	8
