Carbon Steel Pipe Fittings Manufacturer in India in Detail
Specification
Features & Applications
Carbon Steel Buttweld Pipe Fittings Sizes
- Seamless : 1/2" - 24"
- Welded : 24 - 96"
Medium Carbon Steel Elbow Size
- 1/2 to 48 inch
CS Pipe Fittings Temperature Limit
- - 50°F
- - 46°C
Black Steel Buttweld Fittings Operating Temperature
- 800 °F
- 427 °C
High Carbon Steel Seamless Pipe Fittings Coating
- Hot-dip galvanizing
- Anti rust light oiling
- FBE coated
- Varnished
- PE coating
- Back painting
Killed Carbon Steel Weldable Pipe Fittings Melting Point
- LC : 2570 °F / 1410 °C
- HC : 2600 to 2800 °F
Normalized Carbon Steel Butt Welded Fittings Schedule
- 5 to XXS
Plain Carbon Steel Reducer Manufacturing Technique
- Mandrel
- Hot forming
Carbon Steel Fittings Apllication
- Gas Processing
- Sea Water Equipment
- Pharmaceutical Equipment
- Petrochemicals
- Power Generation
- Pulp & Paper Industry
Quenching Carbon Steel Tee Dimensional Standard
- ASME
- DIN
- BS
- ASTM
- ISO
- SAE
- AMS
- EN
CS Cap JIS Standard
- JIS B2312
- JIS B2313
Carbon Metal Pipe Bend Manufacturing Standard
- ASTM A182
- MSS SP-43
- ASME B16.9
- MSS SP-95
- ASME B16.11
- BS 3799
Marking for Carbon Alloy Stub End
- Grade
- Manufacturers name
- Heat number
- Dimensional standard
- Size
Carbon Steel Cross Packaging
- Wooden Cases
- Wooden Pallet
- Custom
- Carton Box
Requirements Meet for Carbon Steel BW Fittings
- NACE MR0103
- NACE TM-0284
- Sour service
- ISO 15156
- NORSOK
- NACE MR0175
- HIC tested
- MTC EN 10204 3.1/ 3.2 certificate
- IBR
CS Pipe Bending Method
- Hot Induction Bending
- Roll Bending
- Ram-Type Bending
- Rotary Draw Bending
- Mandrel Bending
Black Steel Butt Welding Fittings Testing Methods
- HIC tested
- Positive Material Identification
- Magnetic Particle Examination
- Ultrasonic test
- Hyrdrostatic test
High Carbon Steel Pipe Bend Radius
- 3D
- 4D
- 5D
- 6D
- 8D
- 10D
Carbon Steel End Cap EN Standard
- EN 10253-2
CS Pipe Bends Angle
- 15°
- 22.5
- 30°
- 45°
- 60°
- 90°
- 135°
- 180°
Black Carbon Steel Fittings Types
- Low Carbon Steel Elbow
- Medium Carbon Steel Cross
- High Carbon Steel Tee
- Carbon Metal Reducer
- Carbon Alloy Cap
- Quenching Carbon Steel Pipe Bend
- Plain Carbon Steel Stub End
Medium Carbon Steel 45 Degree Elbows Value Added Services
- Cladding
- Bending
- Rolling
- Polish
- Forging
- Heat Treatment
- Pickling
- Cutting
Carbon Steel 90 Degree Elbows Features
- Good load bearing
- High tensile strength
- Excellent versatility
- Good weldability
Schedule 10 Carbon Steel Pipe Fittings ASTM Standard
- ASTM A234
- ASME SA234
End types of Carbon Steel Grade Lap Joint Stub Ends
- Treaded small end
- Plain small end
- Treaded large end
- Treaded Both Ends
- Plain large end
- Plain Both Ends
- Beveled large end
- Beveled Both Ends
- Beveled small end
Available As
30° CS Elbow180° Short Radius Carbon Steel Elbow120° Black Steel ElbowKilled Carbon Steel SeamleNormalized Carbon Steel ElbowCarbon Steel Grade 1.5d Elbow22.5 Degree Low Carbon Steel ElbowMedium Carbon Steel Reducing Elbow90° High Carbon Steel ElbowCarbon Metal 5d ElbowCarbon Alloy Welded Elbow180° Quenching Carbon Steel ElbowPlain Carbon Steel Alloy Short Radius Elbow180° CS Elbow90° Short Radius Carbon Steel Elbow45° Short Radius Black Steel ElbowKilled Carbon Steel 1d Elbow60° Normalized Carbon Steel Elbow90° Long Radius Carbon Steel Grade ElbowCarbon Steel 3d Elbow45° Long Radius CS ElbowLow Carbon Steel 2d Elbow45° Medium Carbon Steel ElbowHigh Carbon Steel Long Radius ElbowCarbon Metal 8d ElbowCarbon Alloy Saddle TeeQuenching Carbon Steel Y TeePlain Carbon Steel Alloy Lateral TeeCS Swept TeeCarbon Steel Buttweld TeeBlack Steel Reducing TeeKilled Carbon Steel Equal TeeNormalized Carbon Steel Straight TeesCarbon Steel Grade Reducing Outlet TeesLow Carbon Steel Barred TeeMedium Carbon Steel Lap Joint Stub EndHigh Carbon Steel Short Stub EndCarbon Metal Long Stub EndCarbon Alloy CollarQuenching Carbon Steel Hemi-head Pipe CapPlain Carbon Steel 5d Pipe BendCS 3d Pipe BendCarbon Steel Alloy Piggable BendBlack Steel Seamless Pipe BendKilled Carbon Steel Long Radius BendNormalized Carbon Steel Short Radius BendCarbon Steel Grade J BendLow Carbon Steel 10d Pipe BendMedium Carbon Steel Return BendHigh Carbon Steel L BendCarbon Metal 22d Pipe BendCarbon Alloy Welded Pipe BendQuenching Carbon Steel 2.5d Pipe BendPlain Carbon Steel Mitered Pipe BendCS Hot Induction BendCarbon Steel Eccentric Swage NippleBlack Steel Concentric Swage NippleKilled Carbon Steel Eccentric Swage NippleNormalized Carbon Steel Concentric Swage NippleCarbon Steel Grade Unequal CrossBlack Steel Reducing Outlet CrossHigh Carbon Steel Straight CrossLow Carbon Steel Equal Cross
Technical Data
Full Specifications
›Material Properties
Composition Standard of ANSI B16.9 CS Tee
Scroll to see all columns →
| Element | Carbon | Silicon | Manganese | Phosphorus | Sulphur | Molybdenum | Chromium | Nickel |
|---|---|---|---|---|---|---|---|---|
| Weight % | C | Si | Mn | P | Su | Mo | Cr | Ni |
| Weight % | 0.08 – 0.15 | 0.15 – 0.50 | 0.30 – 0.60 | 0.025 max * | 0.025 max * | 0.90 – 1.10 | 2.00 – 2.50 | 0.5 max |
Mechanical Strength of Carbon Steel Pipe Cap
Scroll to see all columns →
| Properties | Modulus of elasticity | Tensile strength | Poisson’s ratio | Yield strength | Elongation at break (in 50 mm) | Hardness, Rockwell B |
|---|---|---|---|---|---|---|
| Metric | 200 GPa | 595 MPa | 0.27-0.30 | 260 MPa | 55% | 85 |
| Imperial | 29000 ksi | 86300 psi | 0.27-0.30 | 37700 psi | 55% | 85 |
›Dimensions & Weight

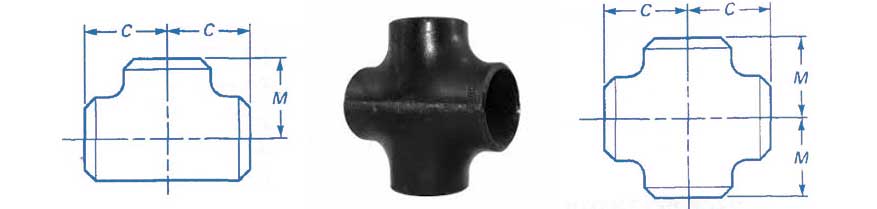

Carbon Steel Fittings Dimensions
Scroll to see all columns →
| Nominal Diameter | Nominal Diameter_2 | OD | OD_2 | OD_3 | OD_4 | Center to End | Center to End_2 |
|---|---|---|---|---|---|---|---|
| NPS | DN | D1 | D1 | D2 | D2 | M | C |
| NPS | DN | Series B | Series A | Series B | Series A | M | C |
| 1/ X 3/8 | 1 X 10 | 18 | 21.3 | 14 | 17.3 | 25 | 25 |
| 1/ X 1/4 | 1 X 8 | 18 | 21.3 | 10 | 13.7 | 25 | 25 |
| 3/ X 1/2 | 2 X 15 | 25 | 26.9 | 18 | 21.3 | 29 | 29 |
| 1 | 2 X 25 | 32 | 33.7 | 32 | 33.7 | 38 | 38 |
| 1/2 | 2 X 15 | 32 | 33.7 | 18 | 21.3 | 38 | 38 |
| 1.1/ X 1 | 3 X 25 | 38 | 42.4 | 32 | 33.7 | 48 | 48 |
| 1.1/ X 1/2 | 3 X 15 | 38 | 42.4 | 18 | 21.3 | 48 | 48 |
| 1.1/ X 1.1/4 | 4 X 32 | 45 | 48.3 | 38 | 42.4 | 57 | 57 |
| 1.1/ X 3/4 | 4 X 20 | 45 | 48.3 | 25 | 26.9 | 57 | 57 |
| 2 | 5 X 50 | 57 | 60.3 | 57 | 60.3 | 64 | 64 |
| 1.1/4 | 5 X 32 | 57 | 60.3 | 38 | 42.4 | 57 | 64 |
| 1 | 5 X 25 | 57 | 60.3 | 32 | 33.7 | 51 | 64 |
| 3/4 | 5 X 20 | 57 | 60.3 | 25 | 26.9 | 44 | 64 |
| 2/1/ X 2 | 6 X 50 | 76 | 73 | 57 | 60.3 | 70 | 76 |
| 2/1/ X 1.1/4 | 6 X 32 | 76 | 73 | 38 | 42.4 | 64 | 76 |
| 3 | 8 X 80 | 89 | 88.9 | 89 | 88.9 | 86 | 86 |
| 2 | 8 X 50 | 89 | 88.9 | 57 | 60.3 | 76 | 86 |
| 1.1/2 | 8 X 40 | 89 | 88.9 | 45 | 48.3 | 73 | 86 |
| 3.1/ X 3 | 9 X 80 | 101.6 | 89 | 88.9 | 92 | 95 | |
| 3.1/ X 2 | 9 X 50 | 101.6 | 57 | 60.3 | 83 | 95 | |
| 3.1/2 | 10 X 90 | 108 | 114.3 | 101.6 | 102 | 105 | |
| 2.1/2 | 10 X 65 | 108 | 114.3 | 76 | 73 | 95 | 105 |
| 1.1/2 | 10 X 40 | 108 | 114.3 | 45 | 48.3 | 86 | 105 |
| 4 | 12 X 100 | 133 | 141.3 | 108 | 114.3 | 117 | 124 |
| 3 | 12 X 80 | 133 | 141.3 | 89 | 88.9 | 111 | 124 |
| 2.1.2 | 12 X 65 | 133 | 141.3 | 76 | 73 | 108 | 124 |
| 6 | 15 X 150 | 159 | 168.3 | 159 | 168.3 | 143 | 143 |
| 4 | 15 X 100 | 159 | 168.3 | 108 | 114.3 | 130 | 143 |
| 3.1/2 | 15 X 90 | 168.3 | 101.6 | 127 | 143 | ||
| 2.1/2 | 15 X 65 | 159 | 168.3 | 76 | 73 | 121 | 143 |
| 6 | 20 X 150 | 219 | 219.1 | 159 | 168.3 | 168 | 178 |
| 4 | 20 X 100 | 219 | 219.1 | 108 | 114.3 | 156 | 178 |
| 1 X 10 | 25 X 250 | 273 | 273 | 273 | 273 | 216 | 216 |
| 1 X 6 | 25 X 150 | 273 | 273 | 159 | 168.3 | 194 | 216 |
| 1 X 4 | 25 X 100 | 273 | 273 | 108 | 114.3 | 184 | 216 |
| 1 X 10 | 30 X 250 | 325 | 323.9 | 273 | 273 | 241 | 254 |
| 1 X 6 | 30 X 150 | 325 | 323.9 | 159 | 168.3 | 219 | 254 |
| 1 X 14 | 35 X 350 | 377 | 355.6 | 377 | 355.6 | 279 | 279 |
| 1 X 10 | 35 X 250 | 377 | 355.6 | 273 | 273 | 257 | 279 |
| 1 X 6 | 35 X 150 | 377 | 355.6 | 159 | 168.3 | 238 | 279 |
| 1 X 14 | 40 X 350 | 426 | 406.4 | 377 | 355.6 | 305 | 305 |
| 1 X 10 | 40 X 250 | 426 | 406.4 | 273 | 273 | 283 | 305 |
| 1 X 6 | 40 X 150 | 426 | 406.4 | 159 | 168.3 | 264 | 305 |
| 1 X 16 | 45 X 400 | 480 | 457 | 426 | 406.4 | 330 | 343 |
| 1 X 12 | 45 X 300 | 480 | 457 | 325 | 323.9 | 321 | 343 |
| 1 X 8 | 45 X 200 | 480 | 457 | 219 | 219.1 | 298 | 343 |
| 2 X 20 | 50 X 450 | 530 | 508 | 480 | 457 | 368 | 381 |
| 2 X 20 | 50 X 350 | 530 | 508 | 377 | 355.6 | 356 | 381 |
CS Pipe Fittings Weight Chart
Scroll to see all columns →
| DN | DN_2 | 8 | 15 | 25 | 40 | 65 | 90 | 150 | 250 | 300 |
|---|---|---|---|---|---|---|---|---|---|---|
| Sched 80S | Equal tee | .07 | .14 | .38 | 1.02 | 3.13 | 5.44 | 13.61 | 49.9 | 83.91 |
| Sched 80S | 45° Elbow | .03 | .05 | .14 | .29 | .99 | 2 | 8.16 | 25.86 | 39.69 |
| Sched 80S | 90° Elbow | .04 | .1 | .22 | .51 | 1.81 | 4 | 16.32 | 51.71 | 79.38 |
| Sched 40S | Equal tee | .06 | .1 | .29 | .86 | 2.19 | 4.08 | 1 .99 | 35.38 | 62.14 |
| Sched 40S | 45° Elbow | .02 | .04 | .11 | .23 | .77 | 1.42 | 5.44 | 19.27 | 29.71 |
| Sched 40S | 90° Elbow | .03 | .08 | .15 | .4 | 1.4 | 2.83 | 1 .89 | 38.56 | 59.42 |
| Sched 10S | Equal tee | .03 | .09 | .28 | .68 | 1.41 | 2.67 | 8.07 | 26.46 | 39.46 |
| Sched 10S | 45°Elbow | .01 | .03 | .08 | .17 | .48 | .75 | 2.72 | 9.75 | 13.62 |
| Sched 10S | 90° Elbow | .02 | .06 | .14 | .3 | .85 | 1.7 | 5.45 | 18.15 | 25.8 |
›Technical Data
Manufacturing Standard Of Carbon Steel Fittings
| Material | Sch. & Swg. | Size | Specification |
|---|---|---|---|
| LTCS | Sch. 5 to 80s | 15 NB to 300 NB | A403 B/W ANSI B16.9 |
| LTCS | Sch. 10 to 80s | 200 NB to 600 NB | A420 WPL 6 B/W Welded ANSI B16.9 |
| CS | Sch. 40 to XXs | 15 NB to 500 NB | A234 WPB B/W Seamless ANSI B16.9 |
| CS | Sch. 10 to 80s | 200 NB to 600 NB | A234 WPW B/W Welded ANSI B16.9 |
Carbon Steel Buttweld Fittings Pressure Temperature Ratings (Standard)
| Wall Thickness | NPS | Working Pressure in lbs / square inch at the °F | Working Pressure in lbs / square inch at the °F_2 | Working Pressure in lbs / square inch at the °F_3 | Working Pressure in lbs / square inch at the °F_4 |
|---|---|---|---|---|---|
| Wall Thickness | NPS | 800 | 750 | 700 | -20 to 650 |
| .109 | 1/2 | 1220 | 1463 | 1621 | 1695 |
| .113 | 3/4 | 1046 | 1256 | 1392 | 1455 |
| .133 | 1 | 1134 | 1359 | 1506 | 1575 |
| .14 | 1 1/4 | 766 | 919 | 1019 | 1065 |
| .145 | 1 1/2 | 723 | 867 | 960 | 1005 |
| .154 | 2 | 648 | 777 | 861 | 900 |
| .203 | 2 1/2 | 874 | 1048 | 1162 | 1215 |
| .216 | 3 | 788 | 945 | 1047 | 1095 |
| .226 | 3 1/2 | 734 | 880 | 975 | 1020 |
| .237 | 4 | 702 | 841 | 932 | 975 |
| .258 | 5 | 637 | 764 | 846 | 885 |
| .28 | 6 | 604 | 725 | 803 | 840 |
| .322 | 8 | 550 | 660 | 731 | 765 |
| .365 | 10 | 518 | 621 | 688 | 720 |
| .375 | 12 | 453 | 543 | 602 | 630 |
| .375 | 14 | 410 | 492 | 545 | 570 |
| .375 | 16 | 356 | 427 | 473 | 495 |
| .375 | 18 | 354 | 388 | 430 | 450 |
| .375 | 20 | 291 | 349 | 387 | 405 |
| .375 | 24 | 237 | 284 | 315 | 330 |
| .375 | 30 | 190 | 229 | 254 | 265 |
| .375 | 36 | 148 | 178 | 198 | 220 |
| .375 | 42 | 136 | 163 | 181 | 189 |
| .375 | 48 | 118 | 143 | 158 | 165 |
