ASTM A860 Wphy 52 Fittings

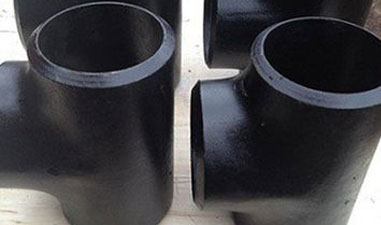

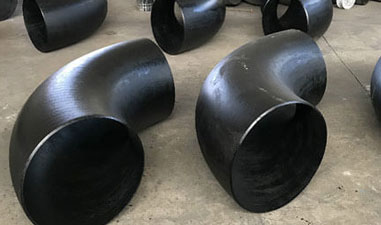

Searching for WPHY 52 Fittings in India? Buy Mss Sp 75 Wphy 52 Tee at factory price in Mumbai. View Price List of Wphy 52 Material. Manufacturer & Supplier A694 Wphy 52 Elbow/ Stub End/ Reducer.
Carbon Steel
Gallery
ASTM A860 Wphy 52 Fittings in Detail
Specification
Features & Applications
Application of WPHY 52 Long Radius Elbow
- Chemical Industries
- Fertilizer Plant
- Food & Dairy Plants
- Desalination Plant
- Paper Industries
- Oil & Gas Exploration
- Thermal & Nuclear Power Plants
- Aerospace
- Pharmaceutical Plant
Technical Data
Full Specifications
›Technical Data
Spec Chart of WPHY 52 Fittings
| col_1 | col_2 |
|---|---|
| Grade | WPHY 52 |
| Size Range | ½” to 48″ in Sch XXS, 10s, 80s, 160s, 40s. |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Wall thickness | SCH30, STD, SCH40, SCH60, SCH10, SCH20, XS, SCH80, SCH120, SCH140, SCH160, SCH100, XXS available with NACE MR 01-75 |
| Export to | Indonesia, Oman, Dubai, Ukraine, Egypt, Ireland, Brazil, Iran, Spain, Canada, Korea, India, Saudi Arabia, Thailand, Singapore, USA, Peru, etc |
| Bending Radius | R=8D, 1D, 3D, 2D, 5D, 6D, 10D or Custom |
| Elbows | Angle : 180 deg, 1.0D, 22.5 deg, 30deg, 45 deg, 90 deg, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D . / Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Type | Seamless / >Welded / Fabricated |
| Dimensions | MSS-SP-43, ANSI/ASME B16.9, B16.28, . |
| Specialized manufacturer of | Tees, Crosses, Reducers, 90º Elbows, 45º Elbows, Stub End, Pipe Bend, Pipe Cap |
Check Where We Supplied to clients worldwide
| col_1 | col_2 |
|---|---|
| 12In, SCH40, Carton Steel A860 WPHY 52 BW Equal Tee | Spain, Australia, Malaysia, Germany |
| Mss Sp 75 Wphy 52 Elbow Seamless Welded Welding Black | Malaysia, Turkey, Colombia, South Africa |
| Buttweld fittings CS End Cap MSS SP 75 WPHY 52 | Ellington -United States, Russia, NY 12203 (USA), Brazil |
| ASTM A860 MSS SP75 WPHY 52 SEAMLESS ECC REDUCER | UK, United Arab Emirates (UAE), Philippines, Bahrain |
| 12" x 6" Concentric Reducer XS BW WPHY-52 CS | Malaysia, UK, South Korea, Bangladesh |
| 6 Inch, SCH XXS, ASTM A860 WPHY 52 Equal Tee | Thailand, UK, Malaysia, Indonesia |
| ELBOWS LR 90 DEG BW SCH 160 ASTM A860 WPHY 52 NACE MR0175 | Mexico, Malaysia, Taiwan, Thailand |
| 10 INCH ELBOW 90DEG LR BW ASME B16.9 ASTM A860 WPHY 52 SMLS 1.375 INCH WALL THK | Malaysia, Dubai, Qatar, Nigeria |
| WPHY 52 12 inch SCH80 45 LR 3D CARBON STEEL ELBOW | Singapore, Hong Kong, Dammam -KSA, UAE |
| 12" x 8" Concentric Reducer XS BW WPHY-52 CS | Europe, Malaysia, Singapore, USA |
| 10" Tee BW WPHY-52 CS | Canada, Iran, Malaysia, Singapore |
| ASTM A860 WPHY 52 SCH80 CONCENTRIC REDUCER (24 " X 12") | Europe, Egypt, Sweden, Oman |
| 8 Inch, SCH 40, ASTM A860 WPHY 52 90 Degree Elbow | Philippines, Netherlands, Malaysia, Philippines |
| 16 Inch X 12 Inch REDUCER ECC BW ASME B16.9 ASTM A860 WPHY 52 SMLS 1.90Inch X 1.625Inch WALL THK | United Kingdom -UK, Chile, China, South Africa |
| High Yield Carbon Steel A860 52 End Cap | Canada, Italy, Japan, Saudi Arabia (KSA) |
| A860 WPHY 52 BW Long Stubend | Belgium, Malaysia, Czechia, UAE |
| A860 WPHY 52 Equal Tee B16.9 BW SCH-40 32mm | Poland, Singapore, Romania, Kuwait |
| 12" 90 Deg Long Radius Elbow BW WPHY-52 CS | Malaysia, Philippines, Europe, France |
| 10" x 8" Reducing Tee STD BW WPHY-52 HYCS | Singapore, Norway, Los Alamos -Mexico, Finland |
›Material Properties
Wphy 52 Chemical Composition
Scroll to see all columns →
| C | Mn | S | P | Si | Ni | Cr | Mo | Cu | Ti | V | Cb | Al |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.06 |
Astm A860 Wphy 52 Mechanical Properties
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|
| 515-690 | 66 | 28 % |
›Dimensions & Weight
Dimension Chart of MSS Sp75 WPHY 52 Pipe Fittings
Scroll to see all columns →
| Nominal / Pipe / / Size | Outside / Diameter | Outside / Diameter_2 | 90° Elbows | 90° Elbows_2 | 45° Elbows | 45° Elbows_2 | 180° Returns | 180° Returns_2 |
|---|---|---|---|---|---|---|---|---|
| (inches) | Long Radius | Short Radius | Long Radius | Long Radius | Long Radius | Long Radius | ||
| (mm) | (inches) | Center to Face / (inches) | Center to Face / (inches) | Center to Face / (inches) | Radius / (inches) | Center to Center / (inches) | Back to face / (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
