ASTM A860 WPHY 65 Fittings

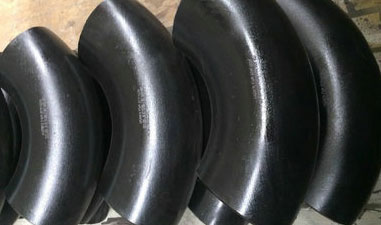

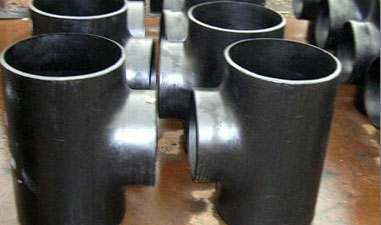

PED approved A860 WPHY 65 Fittings manufacturer in India, Supplier of Mss Sp 75 Wphy 65 Tee at factory price ex Mumbai. View Astm A860 Gr Wphy 65 Elbow/ Reducer/ Stub End Sizes and Dimensions
Carbon Steel
On This Page
Gallery
ASTM A860 WPHY 65 Fittings in Detail
Specification
Features & Applications
Application of Wphy Grade 65 Pipe Cap
- Thermal & Nuclear Power Plants
- Fertilizer Plant
- Oil & Gas Exploration
- Aerospace
- Food & Dairy Plants
- Paper Industries
- Desalination Plant
Value Added Services of WPHY 65 Tee
- Ultrasonic Testing of
- Beveling
- Polishing
- Heat Treatment, Annealing, Pickling
- Cold Drawing Services
- 100% X-Ray Welding for Large Diameter Custom Size
- Special Testing Requirements – Destructive Testing, Non Destructive Testing etc.
Technical Data
Full Specifications
›Technical Data
Standard Specification of A860 WPHY 65 Fittings
| col_1 | col_2 |
|---|---|
| Grade | WPHY 65 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Wall thickness | SCH30, STD, SCH40, SCH60, SCH10, SCH20, XS, SCH80, SCH120, SCH140, SCH160, SCH100, XXS available with NACE MR 01-75 |
| Type | Seamless / Welded / Fabricated |
| Dimensions | MSS-SP-43, ANSI/ASME B16.9, B16.28, . |
| Bending Radius | R=8D, 1D, 3D, 2D, 5D, 6D, 10D or Custom |
| Specialized manufacturer of | Tees, Crosses, Reducers, 90º Elbows, 45º Elbows, Stub End, Pipe Bend, Pipe Cap |
| Export to | Dubai, Ukraine, Egypt, Indonesia, Oman, Ireland, Thailand, Singapore, USA, Brazil, Iran, Spain, Canada, Korea, India, Saudi Arabia, Peru, etc |
| Size Range | ½” to 48″ in Sch XXS, 10s, 80s, 160s, 40s. |
| Elbows | Angle : 180 deg, 1.0D, 22.5 deg, 30deg, 45 deg, 90 deg, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D . / Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
Cv energy absorption of A860 Wphy 65 Elbow
| col_1 | col_2 | col_3 |
|---|---|---|
| Size, mm | Average/min, ft·lbs[J] | Lateral Expansion min, MLS[mm] |
| 10 × 10 | 30/25 [40/34] | 25 [0.64] |
| 10 × 7.5 | 25/21 [34/28] | 21 [0.53] |
| 10 × 5 | 20/17 [27/23] | 13 [0.33] |
We are supplying Wphy 65 Fittings in Below Contries
| col_1 | col_2 |
|---|---|
| asme b16.19 long radius pipe elbow wphy 65 2 inch | Colombia, Bangladesh, Finland, Malaysia |
| Carbon Steel MSS SP75 65 Concentric Reducer | Saudi Arabia (KSA), Malaysia, Singapore, Egypt |
| TEE ASTM A860 WPHY 65 ANSI B16.9 72x72x36 | Germany, Iran, Singapore, Chile |
| Welded seamless eccentric reducer wphy 65 ASME B16.9 | USA, Romania, Ellington -United States, Netherlands |
| 16" 90 Degree Elbow 3R STD BW WPHY-65 HYCS | South Africa, Los Alamos -Mexico, Malaysia, United Kingdom -UK |
| ELBOW 90 1.5D ASTM A860 WPHY 65 ANSI B16.9 80'' | Taiwan, Kuwait, Brazil, South Africa |
| wphy 65 6 inch elbow 90 lr 90 degree sch80 elbow | Malaysia, Europe, Thailand, Qatar |
| 24" Cap XS BW WPHY-65 CS | Malaysia, Malaysia, Philippines, UK |
| Buttweld WPHY-65 Concentric Reducer | Spain, Mexico, UK, Singapore |
| ASME B16.9 4" seamless ASTM A420 wphy 65 carbon steel TEE | Canada, Philippines, Belgium, Dammam -KSA |
| ASTM A860 High Yield Gr 65 Stub Ends | South Korea, Singapore, Singapore, Bahrain |
| 16" 90 Degree Elbow Long Radius STD BW WPHY-65 HYCS | Europe, Norway, Malaysia, United Arab Emirates (UAE) |
| A860 Wphy 65 Flanged Concentric Pipe Reducer | Japan, Thailand, Malaysia, Czechia |
| 16" x 12" Concentric Reducer STD BW WPHY-65 CS | Malaysia, Russia, UAE, Malaysia |
| MSS SP-75 Gr 65 Buttweld Fittings | Indonesia, UK, Nigeria, Philippines |
| Buttweld WPHY-65 90 Deg Elbow | Italy, Poland, Malaysia, Philippines |
| WPHY 65 12 inch SCH80 45 LR 3D CARBON STEEL ELBOW | France, Hong Kong, UAE, Oman |
| elbow 1.5d 45 degree 2 inch x65 wphy 65 | Australia, NY 12203 (USA), China, Sweden |
| 20INCH SCH60 90 DEGREE LR WPHY-65 ASME B16.9 | Turkey, Canada, Dubai, Europe |
›Material Properties
Chemical Equation of Mss Sp 75 Gr Wphy 65 Stub End
Scroll to see all columns →
| C | Mn | S | P | Si | Ni | Cr | Mo | Cu | Ti | V | Cb | Al |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.06 |
Mechanical Characteristics of WPHY 65 Cross
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|
| 515-690 | 415 | 28 % |
›Dimensions & Weight
A860 WPHY 65 Pipe Fittings Dimensions
Scroll to see all columns →
| Nominal / Pipe Size | Outside / Diameter | Outside / Diameter_2 | 90° Elbows | 90° Elbows_2 | 45° Elbows | 45° Elbows_2 | 180° Returns | 180° Returns_2 |
|---|---|---|---|---|---|---|---|---|
| (inches) | Long Radius | Short Radius | Long Radius | Long Radius | Long Radius | Long Radius | ||
| (mm) | (inches) | Center to Face / (inches) | Center to Face / (inches) | Center to Face / (inches) | Radius / (inches) | Center to Center / (inches) | Back to face / (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
