Copper Nickel Pipe Fittings

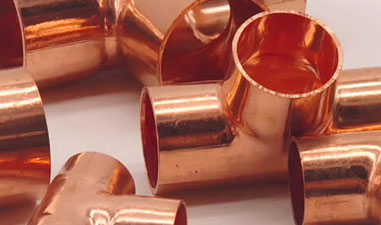

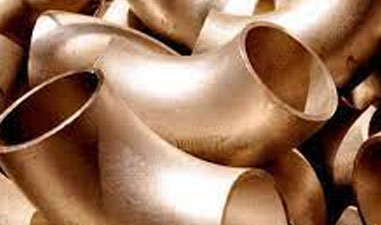

View Copper Nickel Pipe Fittings Weight Chart, Manufacturer of 70/30 Copper Elbow, Ready Stock of CUNI 90/10 Tee Pipe End Cap, Reducer At Factory Price. Supplier of Cuni c70600 Stub End/ Cross

Copper Nickel

On This Page

Specification Chart of Copper Nickel Pipe Fittings Chemical Equation of Cupro Nickel Pipe Fittings Mechanical Behaviour of Copper Nickel Tube Fittings Equivalent of Copper Nickel Alloy Pipe Fittings Dimensions of Cupro Nickel 90/10 Reducers 70/30 Copper Fittings Weight Chart ASME B16 9 Cuni 90/10 Fittings Size Chart Features of 70/30 Copper Alloy End Cap Applications of Copper Nickel 70/30 Stub End

Gallery

Copper Nickel Pipe Fittings in Detail

Specification

Features & Applications

Features of 70/30 Copper Alloy End Cap

High imperviousness to stress consumption cracking (SCC) in seawater
High imperviousness to hole erosion and stress consumption because of chlorides
Solid pitting resistance
Simplicity of welding and creation

Applications of Copper Nickel 70/30 Stub End

Navy projects
Condensers
Desalination Plants
Oil Refineries
Chemical Process Industries

Technical Data

Full Specifications

›Technical Data

Specification Chart of Copper Nickel Pipe Fittings

size	Seamless Butt Weld Fittings: 1/2" - 10" / Welded Butt Weld Fittings: 1/2" - 48"
Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 Stainless Steel Buttweld Fitting
Dimensions	ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS4504, BS1560, BS10
Type	DN15-DN1200
Connection	Welding
Manufacturing process	Push, Press, Forge, Cast, etc.
Origin & Mills	Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries	Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
Specialized manufacturer of	90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend
Test Certificates	EN 10204/3.1B / Raw Materials Certificate / 100% Radiography Test Report / Third Party Inspection Report, etc
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43
Elbows	Angle : 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D . / Standard: ASME B16.9, ASME B16.28, ASME B16.25, 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, MSS SP-75 JISB2312 JISB2313, DIN2605 JISB2311 BS, GB, ISO
Export to	Canada, Ireland, Brazil, Dubai, Iran, Spain, Thailand, Egypt, Saudi Arabia, Singapore, Indonesia, Ukraine, Korea, Oman, India, USA, Peru, etc
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175	We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Equivalent of Copper Nickel Alloy Pipe Fittings

STANDARD	WERKSTOFF NR.	UNS
Cupro Nickel 90/10	2.0872	C70600
Cupro Nickel 70/30	2.0882	C71500

ASME B16 9 Cuni 90/10 Fittings Size Chart

Scroll to see all columns →

Nominal / Pipe / Size	Outside / Diameter	Outside / Diameter_2	90° Elbows	90° Elbows_2	45° Elbows	45° Elbows_2	180° Returns	180° Returns_2
(inches)			Long Radius	Short Radius	Long Radius	Long Radius	Long Radius	Long Radius
	(mm)	(inches)	Center to Face / (inches)	Center to Face / (inches)	Center to Face / (inches)	Radius / (inches)	Center to Center / (inches)	Back to face / (inches)
1/2	21.3	0.840	1 1/2	–	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8	–	7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

Know the Delivery strength of your supplier first

col_1	col_2
Copper Nickel 90/10 Elbow 90 Deg 1/2 " SCH 10S	USA, Romania, Ellington -United States, Netherlands
CuNi 90/10 welded tee	France, Hong Kong, UAE, Oman
C70600 Copper Nickel 90-10 elbow 45 DEG 1" SCH STD	Taiwan, Kuwait, Brazil, South Africa
SCH40 CUNI 90/10 C70600 Buttweld Fitting	Japan, Thailand, Malaysia, Czechia
70/30 Cupro Nickel Piggable Bend	South Africa, Los Alamos -Mexico, Malaysia, United Kingdom -UK
CuNi 70/30 NIPPLE 4" 3000LB	Malaysia, Europe, Thailand, Qatar
c71500 70/30 1-1/2" ASME B16.9 90D Copper nickel cuNi sch40 pipe fitting	Malaysia, Russia, UAE, Malaysia
Cu-Ni DIN 2.0872 Long & Short Stubend	Australia, NY 12203 (USA), China, Sweden
UNS C71500 1-60inch sch40 ASME B16.9 4 way pipe fitting	Canada, Philippines, Belgium, Dammam -KSA
copper nickel 90-10 90 deg buttweld elbow	Malaysia, Malaysia, Philippines, UK
ASTM B171 UNS C71500 Concentric Reducer	Turkey, Canada, Dubai, Europe
cupro nickel 90-10 seamless pipe fittings	Spain, Mexico, UK, Singapore
Pipe Fittings MSS SP43 4'' STD Copper Nickel 70/30 Stub End	Germany, Iran, Singapore, Chile
Cupro Nickel 90/10 90° Short Radius Elbow	South Korea, Singapore, Singapore, Bahrain
ASTM B171 UNS C70600 Fittings	Colombia, Bangladesh, Finland, Malaysia
Copper Alloy 70/30 Long Stub End	Saudi Arabia (KSA), Malaysia, Singapore, Egypt
ASTM B171 UNS C71500 6mm pipe fitting bend	Europe, Norway, Malaysia, United Arab Emirates (UAE)
Copper Nickel Alloy 90/10 butt welded equal cross b16.9	Italy, Poland, Malaysia, Philippines
3d ASTM B171 UNS C70600 pipe bends	Indonesia, UK, Nigeria, Philippines

›Material Properties

Chemical Equation of Cupro Nickel Pipe Fittings

Scroll to see all columns →

Grade	Cu	Mn	Pb	Ni	Fe	Zn
Cupro Nickel 90/10	88.6 min	1.0 max	0.05 max	9-11 max	1.8 max	1 max
Cupro Nickel 70/30	65 min	1.0 max	0.05 max	29-33 max	0.4-1.0 max	1 max

Mechanical Behaviour of Copper Nickel Tube Fittings

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
0.323 lb/in3 at 68 F	2260 F	50000 psi	20000 psi	30 %
0.323 lb/in3 at 68 F	2260 F	50000 psi	20000 psi	30 %

›Dimensions & Weight

Dimensions of Cupro Nickel 90/10 Reducers

Nominal / Pipe Size	Outside / Diameter	Outside / Diameter_2	Reducers	Reducers_2
Reduced from / (inches)	(mm)	(inches)	Reduced to / (inches)	Concentric & Eccentric Length / (inches)
1/2	21.3	0.840	1/4	1 1/2
1/2	21.3	0.840	3/8	1 1/2
3/4	26.7	1.050	3/8	2
3/4	26.7	1.050	1/2	2
1	33.4	1.315	3/8	2
1	33.4	1.315	1/2	2
1	33.4	1.315	3/4	2
1 1/4	42.2	1.660	1/2	2
1 1/4	42.2	1.660	3/4	2
1 1/4	42.2	1.660	1	2
1 1/2	48.3	1.900	1/2	2 1/2
1 1/2	48.3	1.900	3/4	2 1/2
1 1/2	48.3	1.900	1	2 1/2
1 1/2	48.3	1.900	1 1/4	2 1/2
2	60.3	2.375	3/4	3
2	60.3	2.375	1	3
2	60.3	2.375	1 1/4	3
2	60.3	2.375	1 1/2	3
2 1/2	73.0	2.875	1	3 1/2
2 1/2	73.0	2.875	1 1/4	3 1/2
2 1/2	73.0	2.875	1 1/2	3 1/2
2 1/2	73.0	2.875	2	3 1/2
3	88.9	3.500	1	3 1/2
3	88.9	3.500	1 1/2	3 1/2
3	88.9	3.500	2	3 1/2
3	88.9	3.500	2 1/2	3 1/2
3 1/2	101.6	4.000	1 1/4	4
3 1/2	101.6	4.000	1 1/2	4
3 1/2	101.6	4.000	2	4
3 1/2	101.6	4.000	2 1/2	4
3 1/2	101.6	4.000	3	4
4	114.3	4.500	1 1/2	4
4	114.3	4.500	2	4
4	114.3	4.500	2 1/2	4
4	114.3	4.500	3	4
4	114.3	4.500	3 1/2	4
5	141.3	5.563	2	5
5	141.3	5.563	2 1/2	5
5	141.3	5.563	3	5
5	141.3	5.563	3 1/2	5
5	141.3	5.563	4	5
6	168.3	6.625	2 1/2	5 1/2
6	168.3	6.625	3	5 1/2
6	168.3	6.625	3 1/2	5 1/2
6	168.3	6.625	4	5 1/2
6	168.3	6.625	5	5 1/2
8	219.1	8.625	3	6
8	219.1	8.625	3 1/2	6
8	219.1	8.625	4	6
8	219.1	8.625	5	6
8	219.1	8.625	6	6
10	273.1	10.750	4	7
10	273.1	10.750	5	7
10	273.1	10.750	6	7
10	273.1	10.750	8	7
12	323.9	12.750	5	8
12	323.9	12.750	6	8
12	323.9	12.750	8	8
12	323.9	12.750	10	8

70/30 Copper Fittings Weight Chart

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9	col_10
DN	Schedule 10S	Schedule 10S	Schedule 10S	Schedule 40S	Schedule 40S	Schedule 40S	Schedule 80S	Schedule 80S	Schedule 80S
DN	900 Elbow	450 Elbow	Equal tee	900 Elbow	450 Elbow	Equal tee	900 Elbow	450 Elbow	Equal tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91
