Duplex 2205 Pipe Fittings

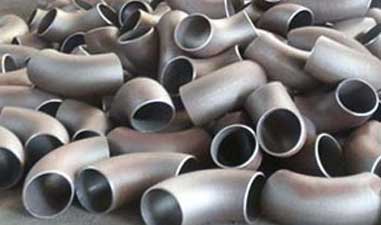

Searching for Duplex 2205 Pipe Fittings in India? Buy ASME SA 815 UNS S32205 Buttweld Elbow at factory price in Mumbai. View Sizes of Duplex Ss 2205 Reducer/ Tee. Supplier of DIN 1.4462 Stub End

Duplex & Super Duplex

On This Page

Duplex 2205 Pipe Fittings Spec Chart Chemical Equation of Duplex Stainless Steel 2205 Tee Mechanical Strength Table of Saf 2205 Fittings Equivalent of ASME SA 815 Duplex End cap UNS S32205 Duplex Pipe Fittings Physical Properties Pressure Rating Chart of 2205 Duplex Stainless Steel Fittings Werkstoff Nr. 1.4462 Fittings Dimensions 2205 Uns S31803 Weld Fittings Weight Chart Dimensions of ANSI B16.9 Duplex Ss 2205 Reducer

Gallery

Duplex 2205 Pipe Fittings in Detail

Technical Data

Full Specifications

›Technical Data

Duplex 2205 Pipe Fittings Spec Chart

Specifications	ASTM A815
size	Seamless Butt Weld Fittings: 1/2" - 10" / Welded Butt Weld Fittings: 1/2" - 48"
Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 Stainless Steel Buttweld Fitting
Dimensions	ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS4504, BS1560, BS10
Type	DN15-DN1200
Connection	Welding
Manufacturing process	Push, Press, Forge, Cast, etc.
Origin & Mills	Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries	Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
Specialized manufacturer of	90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend
Test Certificates	EN 10204/3.1B / Raw Materials Certificate / 100% Radiography Test Report / Third Party Inspection Report, etc
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43
Elbows	Angle : 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D . / Standard: ASME B16.9, ASME B16.28, ASME B16.25, 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, MSS SP-75 JISB2312 JISB2313, DIN2605 JISB2311 BS, GB, ISO
Export to	Spain, Canada, Ireland, Brazil, Dubai, Iran, Thailand, Egypt, Saudi Arabia, Singapore, Indonesia, Ukraine, Korea, Oman, India, USA, Peru, etc
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175	We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Equivalent of ASME SA 815 Duplex End cap

STANDARD	WERKSTOFF NR.	UNS
2205 Duplex	1.4462 / 1.4462	S31803

UNS S32205 Duplex Pipe Fittings Physical Properties

Density (Kg / M3)	Modulus of Elasticity (GPa)	Poisson’s Ratio	Thermal Conductivity (W/moC)	Thermal Capacity (I/KgoC)	Electrical Resistivity
7800	200	0.3	15	500	0.80

Supplier to Asian And other continents of World

col_1	col_2
2205 duplex stainless steel 1/2'' 48" pipe fittings	France, Hong Kong, UAE, Oman
buttweld pipe elbow dn50 SCH 40 duplex 2205	Europe, Norway, Malaysia, United Arab Emirates (UAE)
ANSI B16.9 1/2''-48'' schedule 40 Duplex 2205 stub end	Saudi Arabia (KSA), Malaysia, Singapore, Egypt
Duplex Stainless Steel Seamless 3/4'' SCH10S 90 Degree Pipe Fittings	Turkey, Canada, Dubai, Europe
BW ELBOW 90 DEGREE RL DUPLEX 2205 SCH10 10"	Germany, Iran, Singapore, Chile
Tee, 5" DN125, Sch 40, 2205 Stainless Steel	South Africa, Los Alamos -Mexico, Malaysia, United Kingdom -UK
ASME B16.9 Stainless Steel 2205 Long Radius Elbow	Malaysia, Russia, UAE, Malaysia
Astm A815 saf 2205 3" forged duplex steel eccentric reducer	Colombia, Bangladesh, Finland, Malaysia
ASME B16.9 Butt welding Duplex 2205 15mm Seamless Straight Cross	Malaysia, Malaysia, Philippines, UK
1'' SCH10s 2205 Duplex Stainless Steel Equal Tee	Italy, Poland, Malaysia, Philippines
45 and 90 degree 2205 Long Radius Elbow	Malaysia, Europe, Thailand, Qatar
Duplex 2205 Seamless Reducer	Australia, NY 12203 (USA), China, Sweden
Seamless Elbow Tee Reducer Duplex 2507 Pipe Fittings	Indonesia, UK, Nigeria, Philippines
A815 SR ELBOW duplex 2205 stainless steel ASME B16.9	Japan, Thailand, Malaysia, Czechia
Pipe fittings 2-1/2'' 180 Degree Short Radius SCH40S ANSI B16.9 1.5 D Duplex 2205	Canada, Philippines, Belgium, Dammam -KSA
2205 Duplex stainless steel butt weld Equal reducing tee for machinery	South Korea, Singapore, Singapore, Bahrain
Pipe Fitting UNS S31803 1''sch10s 90Deg LR Steel ELBOW	USA, Romania, Ellington -United States, Netherlands
Duplex Steel S31803, S32205 Butt Weld Fitting	Spain, Mexico, UK, Singapore
DSS 2205 Bw Pipe Fitting Elbow	Taiwan, Kuwait, Brazil, South Africa

›Material Properties

Chemical Equation of Duplex Stainless Steel 2205 Tee

Scroll to see all columns →

C	N	P	Si	Mn	Mo	Fe	Cr	S	Ni
1.0	0.03	0.02	2.0	3.0 – 3.5	22.0 – 23.0	0.03	4.5 – 6.5	0.14 – 0.2	Bal

Mechanical Strength Table of Saf 2205 Fittings

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
7.8 g/cm3	1350 °C (2460 °F)	Psi – 80000 , MPa – 550	Psi – 116000 , MPa – 800	15 %

›Pressure Ratings

Pressure Rating Chart of 2205 Duplex Stainless Steel Fittings

Scroll to see all columns →

NPS / (inch)	Pipe Sch.	Wall / Thk. / (in) /	OD / (inch) /	Temperature	Temperature_2	Temperature_3	Temperature_4	Temperature_5	Temperature_6	Temperature_7	Temperature_8	Temperature_9
NPS / (inch)	Pipe Sch.	Wall / Thk. / (in) /	OD / (inch) /	100	200	300	400	500
NPS / (inch)	Pipe Sch.	Wall / Thk. / (in) /	OD / (inch) /	Allowable Stress (Pressure Rating)	Allowable Stress (Pressure Rating)	Allowable Stress (Pressure Rating)	Allowable Stress (Pressure Rating)	Allowable Stress (Pressure Rating)	Allowable Stress (Pressure Rating)	Allowable Stress (Pressure Rating)	Allowable Stress (Pressure Rating)	Allowable Stress (Pressure Rating)
NPS / (inch)	Pipe Sch.	Wall / Thk. / (in) /	OD / (inch) /	16700	16700	16700	15500	14400
1"	40	0.133	1.315	2205	2205	2205	2047	1902
1"	80	0.179	1.315	3061	3061	3061	2841	2640
1"	160	0.250	1.315	4493	4493	4493	4170	3874
1 1/2"	40	0.145	1.900	1629	1629	1629	1512	1404
1 1/2"	80	0.200	1.900	2303	2303	2303	2138	1986
1 1/2"	160	0.281	1.900	3362	3362	3362	3120	2899
2"	40	0.154	2.375	1371	1371	1371	1272	1182
2"	80	0.218	2.375	1985	1985	1985	1843	1712
2"	160	0.344	2.375	3283	3283	3283	3047	2831
3"	40	0.216	3.500	1301	1301	1301	1208	1122
3"	80	0.300	3.500	1844	1844	1844	1712	1590
3"	160	0.438	3.500	2787	2787	2787	2587	2403
4"	40	0.237	4.500	1102	1102	1102	1023	950
4"	80	0.337	4.500	1596	1596	1596	1482	1377
4"	160	0.531	4.500	2611	2611	2611	2424	2552
5"	40	0.258	5.563	965	965	965	896	832
5"	80	0.375	5.563	1428	1428	1428	1325	1231
5"	160	0.625	5.563	2474	2474	2474	2296	2133
6"	40	0.280	6.625	877	877	877	814	756
6"	80	0.432	6.625	1379	1379	1379	1280	1189
6"	160	0.719	6.625	2382	2382	2382	2211	2054
8"	40	0.322	8.625	771	771	771	716	665
8"	80	0.500	8.625	1218	1218	1218	1131	1050
8"	160	0.906	8.625	2298	2298	2298	2133	1982
10"	40	0.365	10.750	699	699	699	649	603
10"	80	0.594	10.750	1159	1159	1159	1075	999
10"	160	1.125	10.750	2289	2289	2289	2124	1974

›Dimensions & Weight

Werkstoff Nr. 1.4462 Fittings Dimensions

Scroll to see all columns →

NOMINAL PIPE SIZE	ALL FITTINGS	ALL FITTINGS_2	ELBOWS AND TEES	180 DEG RETURN BENDS	180 DEG RETURN BENDS_2	180 DEG RETURN BENDS_3	REDUCERS	CAPS
NPS	O.D. at Bevel (1), (2)	I.D. at End / (1), (3), (4)	Centre -to- End Dimension A, B, C, M	Centre-to- Centre O	Back-to- Face K	Alignment of Ends U	Overall Length H	Overall Length E
½ to 2½	0.06 / -0.03	0.03	0.06	0.25	0.25	0.03	0.06	0.12
3 to 3 ½	0.06	0.06	0.06	0.25	0.25	0.03	0.06	0.12
4	0.06	0.06	0.06	0.25	0.25	0.03	0.06	0.12
5 to 8	0.09 / -0.06	0.06	0.06	0.25	0.25	0.03	0.06	0.25
10 to 18	0.16 / -0.12	0.12	0.09	0.38	0.25	0.06	0.09	0.25
20 to 24	0.25 / -0.19	0.19	0.09	0.38	0.25	0.06	0.09	0.25
26 to 30	0.25 / -0.19	0.19	0.12	…	…	…	0.19	0.38
32 to 48	0.25 / -0.19	0.19	0.19	…	…	…	0.19	0.38

2205 Uns S31803 Weld Fittings Weight Chart

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9	col_10
DN	Schedule 10S	Schedule 10S	Schedule 10S	Schedule 40S	Schedule 40S	Schedule 40S	Schedule 80S	Schedule 80S	Schedule 80S
DN	900 Elbow	450 Elbow	Equal tee	900 Elbow	450 Elbow	Equal tee	900 Elbow	450 Elbow	Equal tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91

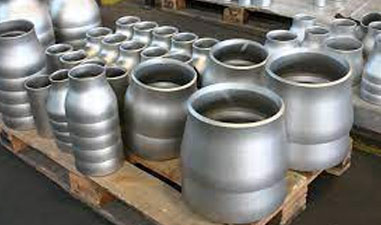

Dimensions of ANSI B16.9 Duplex Ss 2205 Reducer

Nominal / Pipe Size	Outside / Diameter	Outside / Diameter_2	Reducers	Reducers_2
Reduced from / (inches)	(mm)	(inches)	Reduced to / (inches)	Concentric & Eccentric Length / (inches)
1/2	21.3	0.840	1/4	1 1/2
1/2	21.3	0.840	3/8	1 1/2
3/4	26.7	1.050	3/8	2
3/4	26.7	1.050	1/2	2
1	33.4	1.315	3/8	2
1	33.4	1.315	1/2	2
1	33.4	1.315	3/4	2
1 1/4	42.2	1.660	1/2	2
1 1/4	42.2	1.660	3/4	2
1 1/4	42.2	1.660	1	2
1 1/2	48.3	1.900	1/2	2 1/2
1 1/2	48.3	1.900	3/4	2 1/2
1 1/2	48.3	1.900	1	2 1/2
1 1/2	48.3	1.900	1 1/4	2 1/2
2	60.3	2.375	3/4	3
2	60.3	2.375	1	3
2	60.3	2.375	1 1/4	3
2	60.3	2.375	1 1/2	3
2 1/2	73.0	2.875	1	3 1/2
2 1/2	73.0	2.875	1 1/4	3 1/2
2 1/2	73.0	2.875	1 1/2	3 1/2
2 1/2	73.0	2.875	2	3 1/2
3	88.9	3.500	1	3 1/2
3	88.9	3.500	1 1/2	3 1/2
3	88.9	3.500	2	3 1/2
3	88.9	3.500	2 1/2	3 1/2
3 1/2	101.6	4.000	1 1/4	4
3 1/2	101.6	4.000	1 1/2	4
3 1/2	101.6	4.000	2	4
3 1/2	101.6	4.000	2 1/2	4
3 1/2	101.6	4.000	3	4
4	114.3	4.500	1 1/2	4
4	114.3	4.500	2	4
4	114.3	4.500	2 1/2	4
4	114.3	4.500	3	4
4	114.3	4.500	3 1/2	4
5	141.3	5.563	2	5
5	141.3	5.563	2 1/2	5
5	141.3	5.563	3	5
5	141.3	5.563	3 1/2	5
5	141.3	5.563	4	5
6	168.3	6.625	2 1/2	5 1/2
6	168.3	6.625	3	5 1/2
6	168.3	6.625	3 1/2	5 1/2
6	168.3	6.625	4	5 1/2
6	168.3	6.625	5	5 1/2
8	219.1	8.625	3	6
8	219.1	8.625	3 1/2	6
8	219.1	8.625	4	6
8	219.1	8.625	5	6
8	219.1	8.625	6	6
10	273.1	10.750	4	7
10	273.1	10.750	5	7
10	273.1	10.750	6	7
10	273.1	10.750	8	7
12	323.9	12.750	5	8
12	323.9	12.750	6	8
12	323.9	12.750	8	8
12	323.9	12.750	10	8
