Super Duplex 2507 Pipe Fittings

Buy directly Super Duplex 2507 Pipe Fittings manufacturers in India, Buy various types of SAF 2507 Reducer, Tee, Cap, check UNS S32507 Buttweld Elbow, DIN 1.4410 Cross price list and dimensions.

Duplex & Super Duplex

On This Page

Specification Chart of Super Duplex 2507 Pipe Fittings Chemical Equation of SAF 2507 Tee Mechanical Behaviour of UNS S32507 Buttweld Elbow Equivalent of Stainless Steel 2507 End Cap ANSI B16.9 2507 Duplex Stub End Physical Properties Dimensions Standard of Saf 2507 Super Duplex Fittings Stainless Steel Type 2507 Pipe Fittings Sizes And Schedules Dimensions of Uns S32507 Reducer Steel 2507 Buttweld Fittings Weight Chart

Gallery

Super Duplex 2507 Pipe Fittings in Detail

Technical Data

Full Specifications

›Technical Data

Specification Chart of Super Duplex 2507 Pipe Fittings

Specifications	ASTM A815
size	Seamless Butt Weld Fittings: 1/2" - 10" / Welded Butt Weld Fittings: 1/2" - 48"
Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 Stainless Steel Buttweld Fitting
Dimensions	ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS4504, BS1560, BS10
Type	DN15-DN1200
Connection	Welding
Key markets and industries	Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
Specialized manufacturer of	90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43
Elbows	Angle : 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D . / Standard: ASME B16.9, ASME B16.28, ASME B16.25, 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, MSS SP-75 JISB2312 JISB2313, DIN2605 JISB2311 BS, GB, ISO
Manufacturing process	Push, Press, Forge, Cast, etc.
Origin & Mills	Japanese, Indian, USA, Korean, European, Ukraine, Russian
Test Certificates	EN 10204/3.1B / Raw Materials Certificate / 100% Radiography Test Report / Third Party Inspection Report, etc
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Export to	Ireland, Brazil, Dubai, Iran, Spain, Canada, Thailand, Egypt, Saudi Arabia, Singapore, Korea, Oman, Indonesia, Ukraine, India, USA, Peru, etc
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175	We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Equivalent of Stainless Steel 2507 End Cap

col_1	col_2	col_3
STANDARD	UNS	WERKSTOFF NR.
Super Duplex S32750	S32750	1.4410

ANSI B16.9 2507 Duplex Stub End Physical Properties

Density	lb/in3	0.28
Modulus of Elasticity	psi x 106	29
Coefficient of Thermal Expansion / 68-212°F/°F	x10-6/°F	7.2
Thermal Conductivity	Btu/h ft °F	8.7
Heat Capacity	Btu/lb/°F	0.12
Electrical Resistivity	W-in x 10-6	31.5

Stainless Steel Type 2507 Pipe Fittings Sizes And Schedules

col_1	Seamless	Welded
Elbows	Upto 24"	Upto 42"
Tees	Upto 24"	Upto 36"
Reducers	Upto 24"	Upto 48"
End Caps	Upto 24"
Return Bends	Upto 8"
Cross	Upto 8"	Upto 36"
Swage Nipple	Upto 4"
Special Fittings: Piggable Bends, 3D, 5D, 10D etc. Customized Bends, Miter Bends	As per customer drawings and datasheets	As per customer drawings and datasheets
Thickness	Sch 5, Sch 5s, Sch 10, Sch 10s, Sch 20, Sch 30, Sch 40s, Sch 40, Sch STD, Sch 60, Sch 80s, Sch 100, Sch 120, Sch XS, Sch XXS, Sch 160, upto 50mm in case of welded fittings	Sch 5, Sch 5s, Sch 10, Sch 10s, Sch 20, Sch 30, Sch 40s, Sch 40, Sch STD, Sch 60, Sch 80s, Sch 100, Sch 120, Sch XS, Sch XXS, Sch 160, upto 50mm in case of welded fittings

Check Our regular consignments to following Places

col_1	col_2
Super Duplex UNS S32750 ASME B16.9 Fittings 1-48 Inch Stainless Steel Pipe Tee	South Africa, Saudi Arabia (KSA), Kuwait, Brazil
Super Duplex steel 2507 butt welding elbow	Czechia, Germany, Thailand, Malaysia
ASME B16.9 super duplex steel 2507 ASTM A815 90 degree bend pipe	Dammam -KSA, Indonesia, Philippines, Belgium
Super Duplex SCH 80s steel pipe fittings	Philippines, Malaysia, Canada, Singapore
ASTM A815 Super Duplex Steel UNS S32750 1-1/2″ 45″ Elbow	Singapore, South Korea, NY 12203 (USA), Malaysia
2" Elbow Sch40 ASME B16.9 2507 Stainless Steel Elbow	Europe, Japan, Romania, Malaysia
BW butt welding 1" Sch10 Super Duplex Steel Tubing Tee 2507 ANSI B16.9	Philippines, France, Australia, UK, Nigeria
Super Duplex S32750 Butt Weld Pipe Elbow LR SR 45degree	Netherlands, Malaysia, Russia, Dubai
Super Duplex Steel S32750 Butt-Weld Reducer Tee	Malaysia, USA, Bangladesh, Finland
1''sch10s Super Duplex Stainless Steel 90Deg LR Steel ELBOW	Qatar, France, Europe, Thailand
ASME B16.9 A815 Duplex S32750 Elbow	Sweden, Colombia, Malaysia, China
Super Duplex Steel ASTM A815 90 Deg LR Seamless Elbow	Egypt, Spain, Mexico, UK
Super Duplex 2507 1/2″ Tee	Malaysia, Taiwan, Los Alamos -Mexico, Philippines
Super Duplex UNS S32760 2-1/2″ Schedule 10 Stub End	Chile, Italy, Iran, Singapore
A815 S32750 Duplex Butt Weld Pipe Fittings	Oman, Malaysia, Hong Kong, UAE
Tee, 5" DN125, Sch 40, 2507 Super-Duplex Stainless Steel	UK, Canada, Poland, Ellington -United States
A815 S32750 Duplex Butt Weld Pipe Fittings	Bahrain, South Africa, Singapore, Singapore
ASTM A403 schedule 40 Seamless Super Duplex 90 Degree Elbow 1/2"	United Arab Emirates (UAE), Turkey, Norway, Malaysia
EQUAL TEE 2 SCH 40 Super Duplex Pipe Fitting	United Kingdom -UK, Europe, Malaysia, UAE

›Material Properties

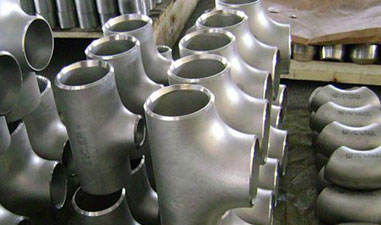

Chemical Equation of SAF 2507 Tee

Scroll to see all columns →

C	N	P	Si	Mn	Mo	Ni	Cr	S	Other
0.030	0.24/0.32	0.035	0.80	1.20	3.0/5.0	6.00/8.00	24.0/26.0	0.020	Cu:0.50

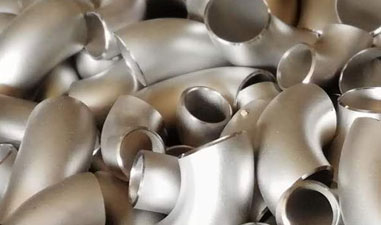

Mechanical Behaviour of UNS S32507 Buttweld Elbow

col_1	col_2	col_3	col_4	col_5
Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
7.8 g/cm3	1350 °C (2460 °F)	Psi - 80000 , MPa - 550	Psi - 116000 , MPa - 800	15 %

›Dimensions & Weight

Dimensions Standard of Saf 2507 Super Duplex Fittings

Scroll to see all columns →

NOMINAL / PIPE / / SIZE	OUTSIDE / DIAMETER	OUTSIDE / DIAMETER_2	90° ELBOWS	90° ELBOWS_2	45° ELBOWS	45° ELBOWS_2	180° RETURNS	180° RETURNS_2
(inches)			Long Radius	Short Radius	Long Radius	Long Radius	Long Radius	Long Radius
	(mm)	(inches)	Center to Face / (inches)	Center to Face / (inches)	Center to Face / (inches)	Radius / (inches)	Center to Center / (inches)	Back to face / (inches)
1/2	21.3	0.840	1 1/2	–	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8	–	7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

Dimensions of Uns S32507 Reducer

Nominal / Pipe Size	Outside / Diameter	Outside / Diameter_2	Reducers	Reducers_2
Reduced from / (inches)	(mm)	(inches)	Reduced to / (inches)	Concentric & Eccentric Length / (inches)
1/2	21.3	0.840	1/4	1 1/2
1/2	21.3	0.840	3/8	1 1/2
3/4	26.7	1.050	3/8	2
3/4	26.7	1.050	1/2	2
1	33.4	1.315	3/8	2
1	33.4	1.315	1/2	2
1	33.4	1.315	3/4	2
1 1/4	42.2	1.660	1/2	2
1 1/4	42.2	1.660	3/4	2
1 1/4	42.2	1.660	1	2
1 1/2	48.3	1.900	1/2	2 1/2
1 1/2	48.3	1.900	3/4	2 1/2
1 1/2	48.3	1.900	1	2 1/2
1 1/2	48.3	1.900	1 1/4	2 1/2
2	60.3	2.375	3/4	3
2	60.3	2.375	1	3
2	60.3	2.375	1 1/4	3
2	60.3	2.375	1 1/2	3
2 1/2	73.0	2.875	1	3 1/2
2 1/2	73.0	2.875	1 1/4	3 1/2
2 1/2	73.0	2.875	1 1/2	3 1/2
2 1/2	73.0	2.875	2	3 1/2
3	88.9	3.500	1	3 1/2
3	88.9	3.500	1 1/2	3 1/2
3	88.9	3.500	2	3 1/2
3	88.9	3.500	2 1/2	3 1/2
3 1/2	101.6	4.000	1 1/4	4
3 1/2	101.6	4.000	1 1/2	4
3 1/2	101.6	4.000	2	4
3 1/2	101.6	4.000	2 1/2	4
3 1/2	101.6	4.000	3	4
4	114.3	4.500	1 1/2	4
4	114.3	4.500	2	4
4	114.3	4.500	2 1/2	4
4	114.3	4.500	3	4
4	114.3	4.500	3 1/2	4
5	141.3	5.563	2	5
5	141.3	5.563	2 1/2	5
5	141.3	5.563	3	5
5	141.3	5.563	3 1/2	5
5	141.3	5.563	4	5
6	168.3	6.625	2 1/2	5 1/2
6	168.3	6.625	3	5 1/2
6	168.3	6.625	3 1/2	5 1/2
6	168.3	6.625	4	5 1/2
6	168.3	6.625	5	5 1/2
8	219.1	8.625	3	6
8	219.1	8.625	3 1/2	6
8	219.1	8.625	4	6
8	219.1	8.625	5	6
8	219.1	8.625	6	6
10	273.1	10.750	4	7
10	273.1	10.750	5	7
10	273.1	10.750	6	7
10	273.1	10.750	8	7
12	323.9	12.750	5	8
12	323.9	12.750	6	8
12	323.9	12.750	8	8
12	323.9	12.750	10	8

Steel 2507 Buttweld Fittings Weight Chart

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9	col_10
DN	Schedule 10S	Schedule 10S	Schedule 10S	Schedule 40S	Schedule 40S	Schedule 40S	Schedule 80S	Schedule 80S	Schedule 80S
DN	900 Elbow	450 Elbow	Equal tee	900 Elbow	450 Elbow	Equal tee	900 Elbow	450 Elbow	Equal tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91
