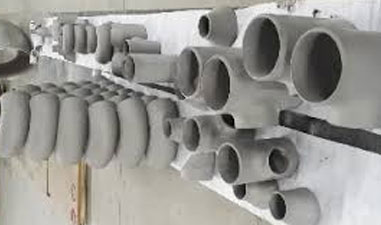

Hastelloy C276 Pipe Fittings

View Dimensions of ASTM B366 UNS N10276 Elbow, Purchase Hastelloy C276 Fittings at Factory Price in India. Manufacturer of Nickel C276 Buttweld Tee With Various Testing and Custom Tolerance.

Nickel Alloys

On This Page

Mechanical Analysis of Nickel C276 Elbow Material Equivalent of Alloy C276 Reducing Tee C276 Hastelloy Fittings Dimensions Weight Chart of Nickel C276 Pipe Fittings Alloy C276 Elbow Temperature Range Nickel Alloy C276 Reducer Dimensions UNS N10276 Buttweld Fittings Pressure Rating Hastelloy C276 Tee Dimension

Gallery

Hastelloy C276 Pipe Fittings in Detail

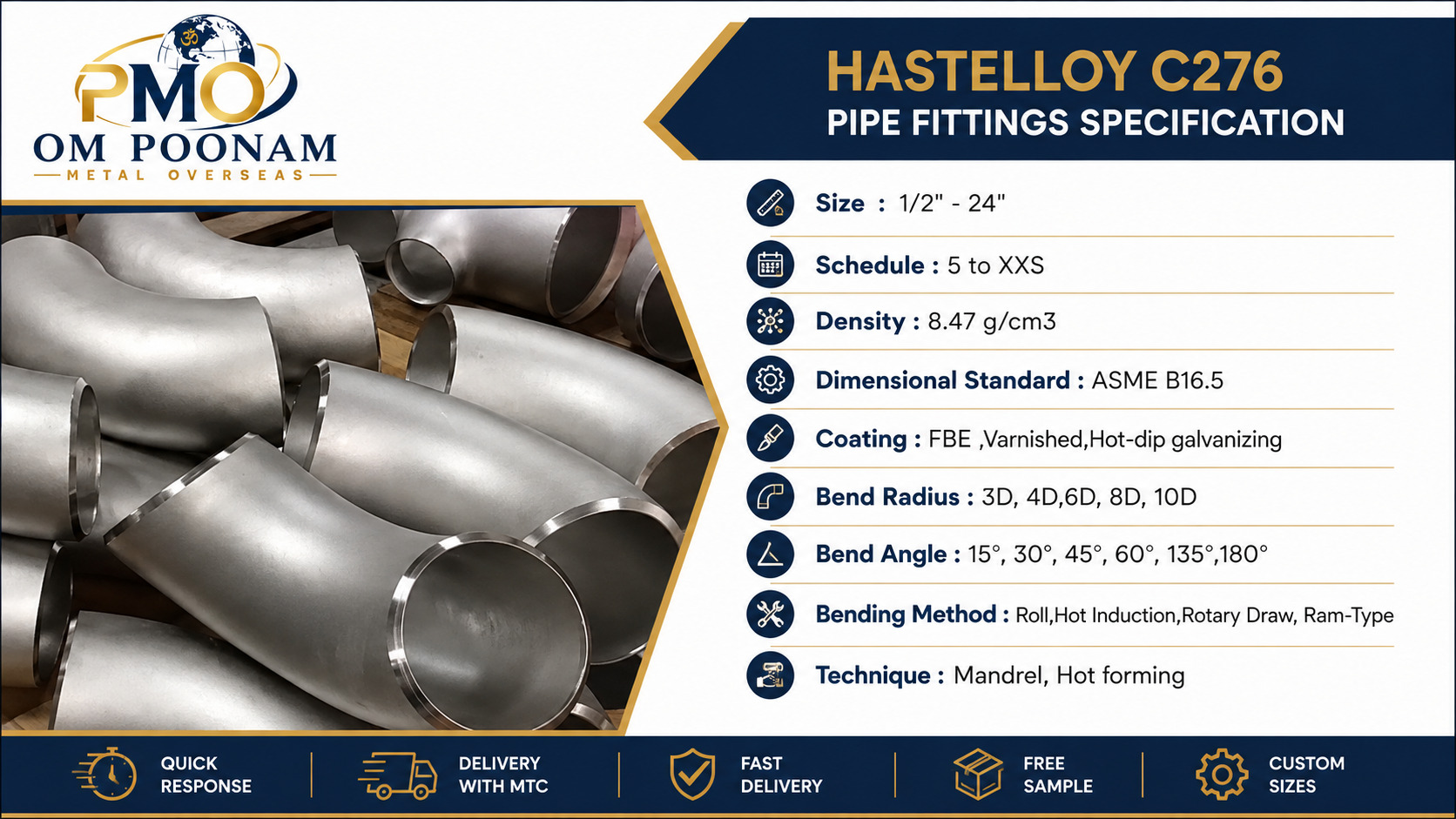

Specification

Features & Applications

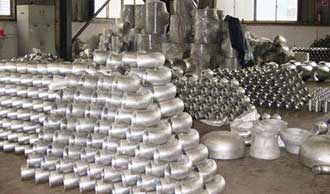

Hastelloy C276 Buttweld Fittings Sizes

Seamless : 1/2" - 24"
Welded : 24 - 96"

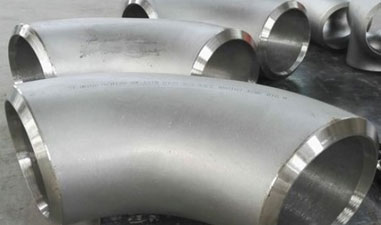

Nickel Alloy C276 Elbow Size

1/2 to 48

Hastelloy 2.4819 Tee Schedule

5 to XXS

DIN 2.4819 Reducer Dimensional Standard

ASME B16.9

Hastelloy Alloy C276 Cap Density

8.47 g/cm3
0.306 lb/in.3

Alloy C276 BW Fittings Melting Range

2470 - 2575 °F
1354 - 1413 °C

UNS N10276 Stub End Coating

FBE coated
Varnished
Anti rust light oiling
PE coating
Hot-dip galvanizing
Back painting

2.4819 Hastelloy C276 Pipe Bend American standard

MSS-SP-43
ANSI / ASME B16.9
MSS-SP-83
ANSI/ ASME B16.25
ANSI/ ASME B16.28
MSS-SP-95

Nickel C276 Cross manufacturing technique

Mandrel
Hot forming

UNS 0276 Buttweld Pipe Fittings JIS standard

JIS B2313
JIS B2312

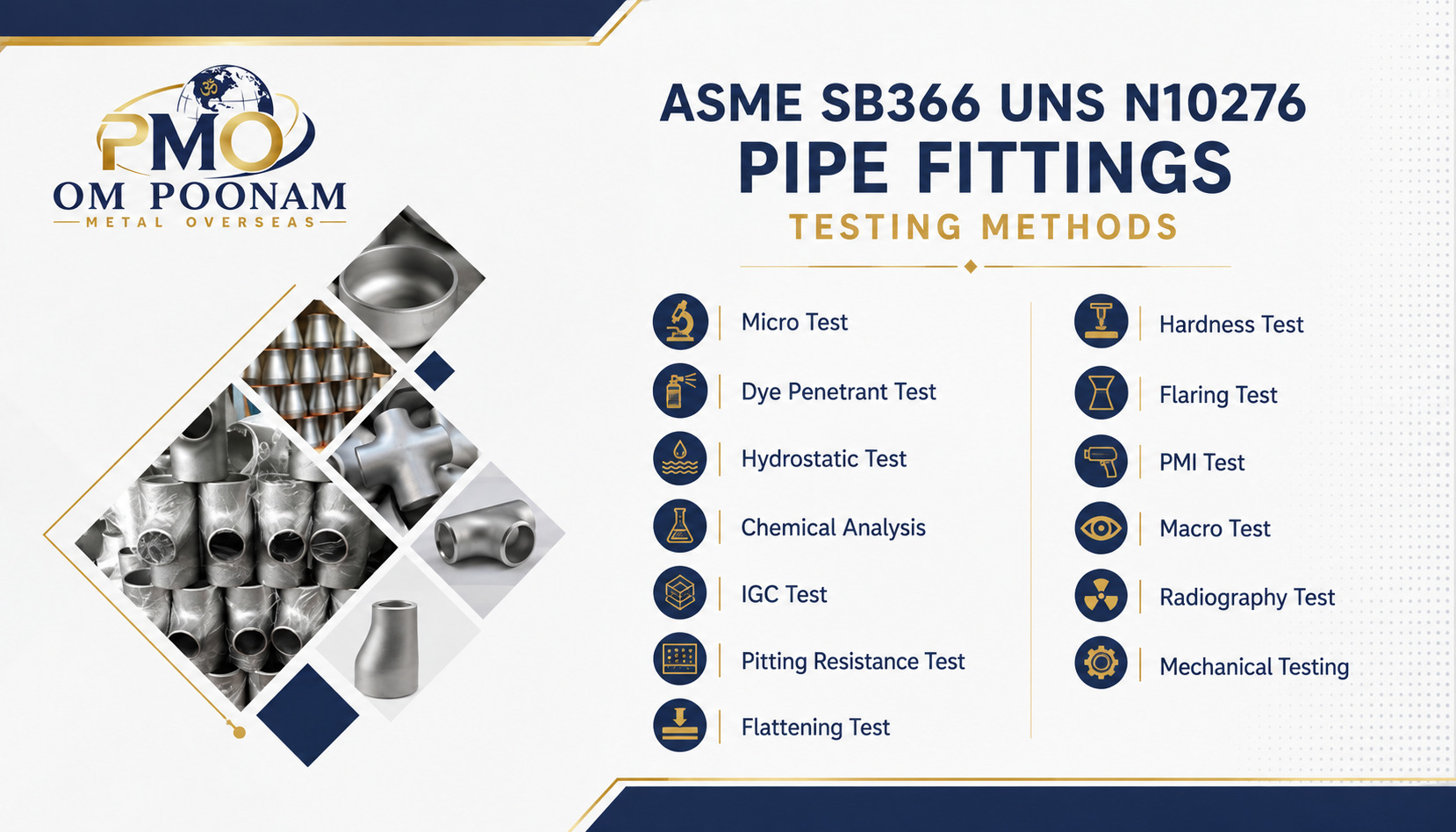

EN 2.4819 Welded Fittings Testing Methods

Magnetic Particle Examination
Hyrdrostatic test
Positive Material Identification
HIC tested
Ultrasonic test

Alloy Hastelloy C276 Bend Radius

Werkstoff NR. 2.4819 Pipe Bend Angle

15°
22.5
30°
45°
60°
90°
135°
180°

Hastelloy C276 Fittings Types

Haynes Alloy C276 Pipe Bend
EN 2.4819 Stub End
C276 Hastelloy Reducer
ASME SB366 N10276 Cross
UNS 0276 Elbow
Nickel C276 Tee
ASTM B366 UNS N10276 Cap

Requirements Meet for Alloy C276 Butt Welded Fittings

NACE MR0103
HIC tested
NACE TM-0284
Sour service
IBR
MTC EN 10204 3.1/ 3.2 certificate
ISO 15156
NORSOK
NACE MR0175

C276 Hastelloy Pipe Bending Method

Roll Bending
Hot Induction Bending
Mandrel Bending
Rotary Draw Bending
Ram-Type Bending

Marking for Haynes Alloy C276 Welded Pipe Fittings

Dimensional standard
Manufacturers name
Grade
Size
Heat number

NW 0276 Concentric Reduce Packaging

Carton Box
Wooden Pallet
Custom
Wooden Cases

Hastelloy C276 Swage Nipple suitable fluids

Air
Gas
Water
Oil
Steam

Hastelloy Alloy C276 Cap and Stub End

DIN 2.4819 Short Stub End
Alloy C276 Lap Joint Stub End
Alloy C276 Collar
2.4819 Hastelloy C276 Butt Welded Hemi-head Pipe Cap
Hastelloy 2.4819 Long Stub End

End types of ANSI B16.9 Hastelloy C276 Tee

Beveled Both Ends
Treaded Both Ends
Plain large end
Treaded large end
Beveled small end
Plain small end
Treaded small end
Plain Both Ends
Beveled large end

ASTM B366 UNS N10276 Elbow Equivalent Standard

UNS : N10276
EN : NiMo16Cr15W
WERKSTOFF NR. : 2.4819
OR : ЭП760
JIS : NW 0276
GOST : ХН65МВУ
DIN 17744

Tensile Strength

790 Mpa

Yield Strength

355 Mpa

Specific Heat

0.102 Btu/lb•°F

Thermal Conductivity

427 W/m•°C

Alloy C-276 Fittings Shear Modulus

79 Gpa

Nickel Alloy C276 Fittings Young's Modulus

205 Gpa

Nickel Alloy C276 Long Radius Elbow Value Added Services

Forging
Rolling
Pickling
Cladding
Bending
Heat Treatment
Polish
Cutting

WPHC276 Buttweld Reducer Application

Off-Shore
Gas Processing
Chemical Equipment
Oil Drilling Companies
Pharmaceuticals
Petrochemicals
Pulp and Paper Industry
Condensers

Available As

Alloy C276 BW Fittings Melting RangeASTM B366 N10276 5d Pipe BendHastelloy C276 L BendASME SB366 UNS N10276 Welded Pipe BendWerkstoff Nr. 2.4819 J BendHastelloy Alloy C276 Short Radius BendDIN 2.4819 Hot Induction BendAlloy C276 Seamless Pipe BendAlloy C276 Piggable Bend2.4819 Hastelloy C276 2.5d Pipe BendHastelloy 2.4819 Mitered Pipe BendNickel Alloy C276 Return BendAlloy Hastelloy C276 22d Pipe BendWnr 2.4819 10d Pipe BendUNS N10276 Long Radius BendNW 0276 3d Pipe BendHaynes Alloy C276 8d ElbowEN 2.4819 Seamless ElbowC276 Hastelloy Welded ElbowASME SB366 N10276 Reducing Elbow180° Short Radius UNS 0276 Elbow45° Short Radius Nickel C276 ElbowASTM B366 UNS N10276 Long Radius Elbow60° ASTM B366 N10276 Elbow180° Hastelloy C276 Elbow180° Long Radius ASME SB366 UNS N10276 Elbow90° Werkstoff Nr. 2.4819 Elbow45° Hastelloy Alloy C276 Elbow45° Long Radius DIN 2.4819 ElbowAlloy C276 5d ElbowAlloy C276 1d Elbow120° 2.4819 Hastelloy C276 Elbow90° Short Radius Hastelloy 2.4819 Elbow30° Nickel Alloy C276 Elbow22.5 Degree Alloy Hastelloy C276 ElbowWnr 2.4819 Short Radius ElbowUNS N10276 1.5d ElbowNW 0276 3d ElbowHaynes Alloy C276 2d Elbow90° Long Radius EN 2.4819 ElbowC276 Hastelloy Buttweld TeeASME SB366 N10276 Lateral TeeUNS 0276 Barred TeeNickel C276 Equal TeeASTM B366 UNS N10276 Straight TeesASTM B366 N10276 Y TeeHastelloy C276 Reducing TeeASME SB366 UNS N10276 Saddle TeeWerkstoff Nr. 2.4819 Reducing Outlet TeesHastelloy Alloy C276 Swept TeeNickel Alloy C276 Straight CrossesAlloy Hastelloy C276 Reducing Outlet CrossesWnr 2.4819 Unequal CrossUNS N10276 Equal CrossW 0276 Eccentric Swage NippleASTM B366 UNS N10276 Concentric Swage NippleASTM B366 N10276 Eccentric ReducerHastelloy C276 Concentric Reducer

Technical Data

Full Specifications

›Material Properties

Mechanical Analysis of Nickel C276 Elbow

Element	Density	Yield Strength (0.2%Offset)	Elongation
Element	8.89 g/cm3	52000 Psi 355 MPa	Elongation
Hastelloy C276	Melting Point	Tensile Strength	40 %
Hastelloy C276	2500 °F 1370 °C	115000 Psi 790 MPa	40 %

›Technical Data

Material Equivalent of Alloy C276 Reducing Tee

Scroll to see all columns →

STANDARD	Europe	North America	WERKSTOFF NR.	OR	Japan	Russia
Hastelloy C276	NiMo16Cr15W	N10276	2.4819	ЭП760	NW 0276	ХН65МВУ

Alloy C276 Elbow Temperature Range

Description	Temperature in °F	Temperature in °C
Hastelloy C276 Fittings	1600°F to 2250°F	872 °C to 1233 °C

›Dimensions & Weight

C276 Hastelloy Fittings Dimensions

Scroll to see all columns →

NPS	OD	OD_2	90° Elbows	90° Elbows_2	45° Elbows	45° Elbows_2	180° Returns	180° Returns_2
NPS	inch	millimeter	SR	LR	LR	LR	LR	LR
NPS	inch	millimeter	Center to Face	Center to Face	Radius	Center to Face	Back to face	Center to Center
NPS	inch	millimeter	inch	inch	inch	inch	inch	inch
1/2	0.84	21.3		1-1/2		5/8	1-7/8	2
3/4	1.05	26.7		1-1/8		7/16	1-11/16	2-1/4
1	1.315	33.4	1	1-1/2		7/8	2-3/16	3
1-1/4	1.66	42.2	1-1/4	1-7/8		1	2-3/4	3-3/4
1 -1/2	1.9	48.3	1-1/2	2-1/4	3	1-1/8	3-1/4	4-1/2
2	2.375	60.3	2	3	4	1-3/8	4-3/16	6
2 1/2	2.875	73	2-1/2	3-3/4	5	1-3/4	5-3/16	7-1/2
3	3.5	88.9	3	4-1/2	6	2	6-1/4	9
3-1/2	4	101.6	3-1/2	5-1/4	7	2-1/4	7-1/4	10-1/2
4	4.5	114.3	4	6	8	2-1/2	8-1/4	12
5	5.563	141.3	5	7-1/2	10	3-1/8	10-5/16	15
6	6.625	168.3	6	9	12	3-3/4	12-5/16	18
8	8.625	219.1	8	12	12	5	16-5/16	24
10	10.75	273.1	10	15	15	6-1/4	20-3/8	30
12	12.75	323.9	12	18	18	7-1/2	24-3/8	36

Weight Chart of Nickel C276 Pipe Fittings

Nominal Pipe Size	Kilogram	LBS
2 - 1½	.59	1.3
2 - 1	.5	1.1
2½ - 2	1.11	2.45
2½ - 1¼	.95	2.1
3 - 2½	1.88	4.15
3 - 1½	1.45	3.2
3½ - 3	2.72	6
3½ - 2	2.04	4.5
4 - 3½	3.72	8.2
4 - 3	3.4	7.5
4 - 2½	4.76	1 .5
4 - 2	2.7	5.95
5 - 4	5.94	13.1
5 - 3½	5.53	12.2
5 - 3	5.17	11.4
5 - 2½	4.76	1 .5
6 - 5	9.39	2 .7
6 - 4	8.35	18.4
6 - 3½	7.85	17.3
6 - 3	7.44	16.4
8 - 6	17.78	39.2
8 - 5	16.1	35.5
8 - 4	14.7	32.4
10 - 8	32.3	71.2
10 - 6	27.76	61.2
10 - 5	25.72	56.7
12 - 10	5 .58	111.5
12 - 8	43.77	96.5
12 - 6	38.42	84.7

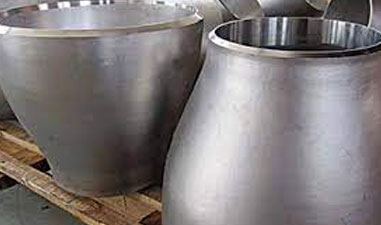

Nickel Alloy C276 Reducer Dimensions

NPS	OD	OD_2	Reducers	Reducers_2
Reduced from in inches	inches	mm	Eccentric & Concentric Length in inches	Reduced to in inches
1/2			1 1/2	3/8
1/2	0.84	21.3	1 1/2	1/4
3/4			2	1/2
3/4	1.05	26.7	2	3/8
1	1.315	33.4	2	3/8
1 1/4			2	3/4
1 1/4	1.66	42.2	2	1/2
1 1/4			2	1
1 1/2	1.9	48.3	2 1/2	1/2
1 1/2			2 1/2	1
1 1/2			2 1/2	1 1/4
2	2.375	60.3	3	3/4
2			3	1 1/4
2 1/2	2.875	73	3 1/2	1
2 1/2			3 1/2	1 1/2
3	3.5	88.9	3 1/2	1
3			3 1/2	2
3 1/2	4	101.6	4	1 1/4
3 1/2			4	2
3 1/2			4	3
4	4.5	114.3	4	1 1/2
4			4	2 1/2
4			4	3 1/2
5	5.563	141.3	5	2
5			5	3
5			5	4
6	6.625	168.3	5 1/2	2 1/2
6			5 1/2	3 1/2
6			5 1/2	5
8	8.625	219.1	6	3
8			6	4
8			6	6
10	10.75	273.1	7	4
10			7	6
12	12.75	323.9	8	5
12			8	8

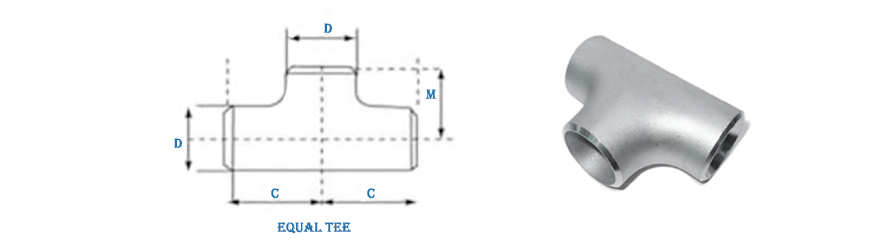

Hastelloy C276 Tee Dimension

Scroll to see all columns →

NPS	NPS_2	1/2	1	1 1/2	2 1/2	3 1/2	5	8	12	16	20	22	24
OD	at bevel	21.3	33.4	48.3	73	101.6	141.3	219.1	323.8	406.4	508	559	610
Center-End	Outlet (M)	25	38	57	76	95	124	178	254	305	381	419	432
Center-End	Run (C)	25	38	57	76	95	124	178	254	305	381	419	432

›Pressure Ratings

UNS N10276 Buttweld Fittings Pressure Rating

Temp. Ratings	Temp. Ratings_2	Pressure Ratings Class	Pressure Ratings Class_2	Pressure Ratings Class_3	Pressure Ratings Class_4
(°C)	(°F)	Class 150#	Class 300#	Class 300#	Class 300#
(°C)	(°F)	Class 150#	2 1/2 - 3 in.	1 1/4 - 2 in.	1/4 - 1 in.
-29 to 66	-20 to 150	300	1000	1500	2000
93	200	265	910	1350	1785
121	250	225	825	1200	1575
149	300	185	735	1050	1360
177	350	150	650	900	1150
204	400		560	750	935
232	450		475	600	725
260	500		385	450	510
288	550		300	300	300
