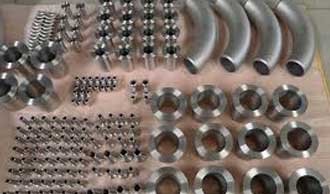

Inconel 600 Pipe Fittings in Detail
Specification
Features & Applications
Nickel Alloy 600 Fittings Size
- Seamless : 1/2" - 24"
- Welded : 24 - 96"
Inconel 600 Elbow Size
- 1/2 to 48
UNS N06600 Buttweld Fittings Tensile Strength
- 95000 psi
- 655 Mpa
Inconel Alloy 600 Seamless Pipe Fittings Yield Strength
- 45000 psi
- 310 Mpa
Nickel Alloy 600 Weldable Pipe Fittings Schedule
- 5 to XXS
UNS Number
- N06600
Werkstoff Nr. 2.4816 Elbow Manufacturing Technique
- Mandrel
- Hot forming
UNS N06600 Tee JIS standard
- JIS B2313
- JIS B2312
AMS 5580 Cap Coating
- Back painting
- FBE coated
- Hot-dip galvanizing
- Anti rust light oiling
- Varnished
- PE coating
EN 2.4816 Stub End American Standard
- ASME B16.25
- ASME B16.9
- MSS-SP-43
- ASME B16.28
- MSS SP-25
WNR 2.4816 Pipe Bend ASTM Standard
- ASTM B366
- ASME SB366
2.4816 Inconel 600 Cross Dimensional Standard
- ASTM, SAE, ASME, DIN, ISO, BS, AMS and EN
Nickel 600 Weldable Pipe Fittings Testing Methods
- Hyrdrostatic test
- Positive Material Identification
- Ultrasonic test
- HIC tested
- Magnetic Particle Examination
UNS 6600 Pipe Bend Radius
- 3D
- 4D
- 5D
- 6D
- 8D
- 10D
Elongation
- 40 %
Requirements Meet for ASTM B366 UNS N06600 BW Fittings
- ISO 15156
- NORSOK
- NACE TM-0284
- IBR
- Sour service
- NACE MR0103
- HIC tested
- NACE MR0175
- MTC EN 10204 3.1/ 3.2 certificate
Alloy 600 Pipe Bending Method
- Ram-Type Bending
- Mandrel Bending
- Hot Induction Bending
- Roll Bending
- Rotary Draw Bending
Dimensional Standard
- ASME B16.9
UNS N06600 Welded Fittings Melting Range
- 2470 - 2575 °F
- 1354 - 1413 °C
Marking for Werkstoff NR. 2.4816 Butt Welding Fittings
- Dimensional standard
- Grade
- Heat number
- Size
- Manufacturers name
600 Inconel End Cap Packaging
- Wooden Pallet
- Carton Box
- Custom
- Wooden Cases
Nickel Alloy 600 Reducer Density
- 8.47 g/cm3
- 0.306 lb/in.3
ASTM B366 N06600 Cross Specific Heat
- 0.103 Btu/lb•°F
2.4816 Inconel 600 Pipe Bend Angle
- 15°
- 22.5
- 30°
- 45°
- 60°
- 90°
- 135°
- 180°

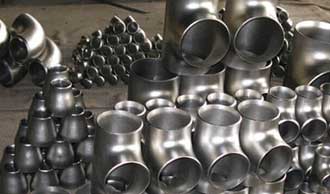

Inconel 600 Pipe Fittings Types

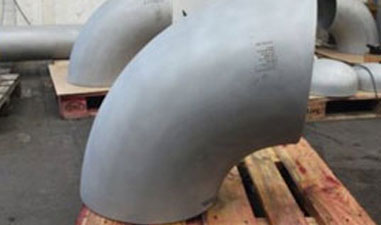

- Nickel Alloy 600 Elbow
- UNS N06600 Reducer
- Inconel 600 Pipe Bend

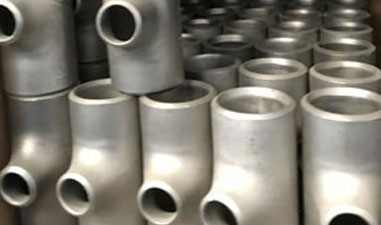

- Werkstoff NR. 2.4816 Tee
- Alloy 600 Stub End

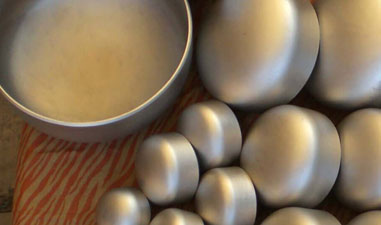

- AMS 5580 Cap
- Inconel Alloy 600 Cross
Inconel 600 Fittings Suitable Fluids
- Air
- Water
- Gas
- Steam
- Oil
End types of Nickel 600 Buttweld Fittings
- Beveled Both Ends
- Treaded Both Ends
- Plain large end
- Treaded large end
- Beveled small end
- Plain small end
- Treaded small end
- Plain Both Ends
- Beveled large end
UNS 6600 Seamless Pipe Fittings Equivalent Standard
- UNS : N06600
- EN : NiCr15Fe
- WERKSTOFF NR. : 2.4816
- GOST : МНЖМц 28-2,5-1,5
- AFNOR : NC15FE11M
- BS : NA 13
- JIS : NCF 600
Thermal Conductivity
- 103 Btu•in/ft2•h•°F
Curie Temperature
- -192°F
Annealed Temperature
- 983 - 1010 °C
Electrical Resistivity
- 620 ohm-circ mil/ft
International Specifications
- BS 3072-3076
- DIN 17742
- DIN 17754
- DIN 17750
Common Trade Names of WNR 2.4816 Cap
- Inconel 600®
- Ferrochronin® 600
- Nickelvac® 600
Value Added Services
- Forging
- Rolling
- Pickling
- Cladding
- Bending
- Heat Treatment
- Polish
- Cutting
Application
- Aerospace
- Oil & Gas
- Chemical Processing
- Power Generation
- Petro Processing
- Marine
Available As
45° ASME SB366 UNS N06600 Elbow180° Long Radius ASTM B366 UNS N06600 Elbow60° UNS 6600 Elbow45° Short Radius 2.4816 Inconel 600 Elbow30° Werkstoff NR. 2.4816 ElbowNickel 600 Long Radius ElbowUNS N06600 1d Elbow120° Inconel Alloy 600 Elbow22.5 Degree AMS 5580 ElbowEN 2.4816 Short Radius Elbow90° ASME SB366 N06600 Elbow90° Long Radius Nickel 600 Elbow45° Long Radius Inconel 600 ElbowWNR 2.4816 3d Elbow180° ASTM B366 N06600 ElbowDIN 2.4816 Reducing ElbowAlloy 600 5d Elbow180° Short Radius WNR 2.4816 ElbowEN 2.4816 Welded ElbowDIN 2.4816 1.5d ElbowAMS 5580 Seamless Elbow2.4816 Inconel 600 2d ElbowWerkstoff NR. 2.4816 8d Elbow90° Short Radius Nickel Alloy 600 ElbowASME SB366 UNS N06600 Straight TeesASTM B366 N06600 Lateral TeeUNS 6600 Buttweld TeeASTM B366 UNS N06600 Barred TeeInconel Alloy 600 Reducing Outlet TeesUNS N06600 Saddle TeeInconel 600 Y TeeNickel Alloy 600 Swept TeeAlloy 600 Reducing TeeASME SB366 N06600 Equal TeeASTM B366 N06600 Seamless Pipe BendNickel 600 Short Radius BendEN 2.4816 5d Pipe BendUNS N06600 10d Pipe BendASTM B366 UNS N06600 Piggable Bend2.4816 Inconel 600 J BendAlloy 600 22d Pipe BendASME SB366 UNS N06600 Mitered Pipe BendInconel 600 Return BendNickel Alloy 600 3d Pipe BendInconel Alloy 600 Long Radius BendASME SB366 N06600 2.5d Pipe BendDIN 2.4816 L BendUNS 6600 Hot Induction BendWNR 2.4816 Welded Pipe BendDIN 2.4816 Butt Welded Hemi-head Pipe CapEN 2.4816 CollarWNR 2.4816 Long Stub EndAMS 5580 Lap Joint Stub EndWerkstoff NR. 2.4816 Short Stub End2.4816 Inconel 600 Straight CrossesNickel 600 Reducing Outlet CrossesASTM B366 N06600 Equal CrossUNS 6600 Unequal CrossASTM B366 UNS N06600 Eccentric Swage NippleASME SB366 N06600 Concentric Swage NippleASME SB366 UNS N06600 Eccentric ReducerInconel 600 Concentric Reducer
Technical Data
Full Specifications
›Material Properties
Mechanical Behaviour of DIN 2.4816 Stub End
| Element | Yield Strength | col_3 | Density | Elongation |
|---|---|---|---|---|
| Element | 45000 Psi 310 MPa | 8.47 g/cm3 | Elongation | |
| Inconel 600 | Tensile Strength | Melting Point | 40 % | |
| Inconel 600 | 95000 Psi 655 MPa | 1413 °C (2580 °F) | 40 % |
›Dimensions & Weight

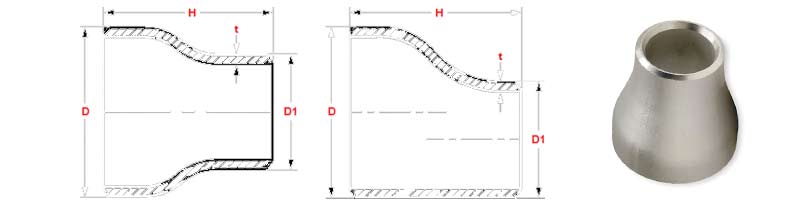

Dimensions of ANSI B16.9 DIN 2.4816 Reducer
| NPS | Length / H | OD / D1 | OD / D |
|---|---|---|---|
| 3/4 - 1/2 | 38 | 21.3 | 26.7 |
| 1 - 3/4 | 51 | 26.7 | 33.4 |
| 1.1/4 - 3/4 | 51 | 26.7 | 42.2 |
| 1.1/2 - 1/2 | 64 | 21.3 | 48.3 |
| 1.1/2 - 1 | 64 | 33.4 | 48.3 |
| 2 - 3/4 | 76 | 26.7 | 60.3 |
| 2 - 1.1/4 | 76 | 42.2 | 60.3 |
| 2.1/2 - 1 | 89 | 33.4 | 73 |
| 2.1/2 - 1.1/2 | 89 | 48.3 | 73 |
| 3 - 1.1/4 | 89 | 42.2 | 88.9 |
| 3 - 2 | 89 | 60.3 | 88.9 |
| 3.1/2 - 1.1/4 | 102 | 42.2 | 101.6 |
| 3.1/2 - 2 | 102 | 60.3 | 101.6 |
| 3.1/2 - 3 | 102 | 88.9 | 101.6 |
| 4 - 2 | 102 | 60.3 | 114.3 |
| 4 - 3 | 102 | 88.9 | 114.3 |
| 5 - 2 | 127 | 60.3 | 141.3 |
| 5 - 3 | 127 | 88.9 | 141.3 |
| 5 - 4 | 127 | 114.3 | 141.3 |
| 6 - 3 | 140 | 88.9 | 168.3 |
| 6 - 4 | 140 | 114.3 | 168.3 |
| 8 - 3.1/2 | 152 | 101.6 | 219.1 |
| 8 - 5 | 152 | 141.3 | 219.1 |
| 10 - 4 | 178 | 114.3 | 273 |
| 10 - 6 | 178 | 168.3 | 273 |
| 12 - 5 | 203 | 141.3 | 323.9 |
| 12 - 8 | 203 | 219.1 | 323.9 |
| 14 - 6 | 330 | 168.3 | 355.6 |
| 14 - 10 | 330 | 273 | 355.6 |
| 16 - 8 | 356 | 219 | 406.4 |
| 16 - 12 | 356 | 323.9 | 406.4 |
| 18 - 10 | 381 | 273 | 457 |
| 18 - 14 | 381 | 355.6 | 457 |
| 20 - 12 | 508 | 323.9 | 508 |
| 20 - 16 | 508 | 406.4 | 508 |
| 22 - 14 | 508 | 355.6 | 559 |
| 22 - 18 | 508 | 457 | 559 |
| 24 - 16 | 508 | 406.4 | 610 |
| 24 - 20 | 508 | 508 | 610 |
| 26 - 18 | 610 | 457 | 660 |
| 26 - 22 | 610 | 559 | 660 |
| 28 - 18 | 610 | 457 | 711 |
| 28 - 24 | 610 | 610 | 711 |
| 30 - 20 | 610 | 508 | 762 |
| 30 - 26 | 610 | 660 | 762 |
| 32 - 24 | 610 | 610 | 813 |
| 36 - 24 | 610 | 610 | 914 |
| 36 - 30 | 610 | 762 | 914 |
| 36 - 34 | 610 | 864 | 914 |
| 38 - 28 | 610 | 711 | 965 |
| 38 - 32 | 610 | 813 | 965 |
| 38 - 36 | 610 | 914 | 965 |
| 40 - 32 | 610 | 813 | 1016 |
Inconel 600 DIN 2.4816 Fittings Dimensions
Scroll to see all columns →
| NPS | (inches) | 1/2 | 1 | 1 1/2 | 2 1/2 | 3 1/2 | 5 | 8 | 12 |
|---|---|---|---|---|---|---|---|---|---|
| OD | (inches) | 0.84 | 1.315 | 1.9 | 2.875 | 4 | 5.563 | 8.625 | 12.75 |
| OD | (mm) | 21.3 | 33.4 | 48.3 | 73 | 101.6 | 141.3 | 219.1 | 323.9 |
| Cross | Center to End in inch | - | 1 1/2 | 2 1/4 | 3 | 3 3/4 | 4 7/8 | 7 | 10 |
| Tee | Center to End in inch | 1 | 1 1/2 | 2 1/4 | 3 | 3 3/4 | 4 7/8 | 7 | 10 |
| Cap | L in inch | 1 | 1 1/2 | 1 1/2 | 1 1/2 | 2 1/2 | 3 | 4 | 6 |
| Stub End | Lap Diameter in inch | 1 3/8 | 2 | 2 7/8 | 4 1/8 | 5 1/2 | 7 5/16 | 10 5/8 | 15 |
| Stub End | Short L in inch | 2 | 2 | 2 | 2 1/2 | 3 | 3 | 4 | 6 |
| Stub End | Long L in inch | 3 | 4 | 4 | 6 | 6 | 8 | 8 | 10 |
ASTM B366 Inconel 600 Buttweld Fittings Weight Chart
Scroll to see all columns →
| DN | DN_2 | 10 | 20 | 32 | 50 | 80 | 100 | 200 | 300 |
|---|---|---|---|---|---|---|---|---|---|
| Sched 10S | 900 Elbow | .03 | .07 | .23 | .5 | 1.25 | 2.1 | 1 .2 | 25.8 |
| Sched 10S | Equal tee | .05 | .13 | .49 | .85 | 1.77 | 3.46 | 15.65 | 39.46 |
| Sched 10S | 450 Elbow | .02 | .03 | .11 | .25 | .63 | 1.08 | 5.33 | 13.62 |
| Sched 40S | 900 Elbow | .03 | .08 | .26 | .7 | 2.2 | 4.47 | 21.54 | 59.42 |
| Sched 40S | Equal tee | .03 | .17 | .59 | 1.28 | 3.31 | 5.27 | 2 .91 | 62.14 |
| Sched 40S | 450 Elbow | .02 | .04 | .17 | .4 | 1.08 | 2.09 | 1 .77 | 29.71 |
| Sched 80S | 900 Elbow | .06 | .11 | .4 | .91 | 2.97 | 6.18 | 33.11 | 79.38 |
| Sched 80S | Equal tee | .09 | .2 | .68 | 1.59 | 4.45 | 7.71 | 28.12 | 83.91 |
| Sched 80S | 450 Elbow | .04 | .05 | .23 | .59 | 1.5 | 2.81 | 16.56 | 39.69 |
›Technical Data
Equivalent of Alloy 600 Reducing Tee
Scroll to see all columns →
| Standard | Europe | North America | Germany | Japan | Russia | British Standard | France |
|---|---|---|---|---|---|---|---|
| 600 | NiCr15Fe | N06600 | 2.4816 | NCF 600 | МНЖМц 28-2,5-1,5 | NA 13 | NC15FE11M |
Standard of Nickel Alloy 600 Fittings
| UNS | N06600 |
|---|---|
| International Specifications | TÜV 305 BS 3072-3076 DIN 17742 AFNOR-NC 15 Fe DIN 17754 WNR 2.4816 DIN 17750 |
| Specifications | ASTM B366 |
