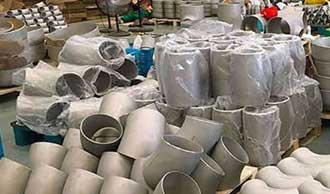

Inconel 625 Pipe Fittings
Check Dimensions of Nickel Alloy 625 Elbow, Manufacturer of Inconel 625 Pipe Fittings in India. Supplier of UNS N06625 Tee / Reducer Stock in Schedule 5s to Xss as Per ASME B16.9 at Affordable Price.
Nickel Alloys
Gallery
Inconel 625 Pipe Fittings in Detail
Specification
Features & Applications
Inconel 625 Pipe Fittings Sizes
- Seamless : 1/2" - 24"
- Welded : 24 - 96"

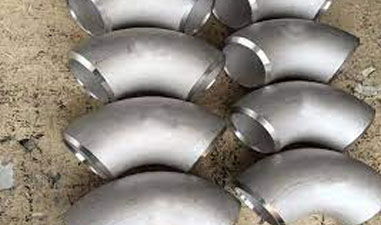

Alloy 625 Elbow Size
- 1/2 to 48
Alloy Inconel 625 Tee UNS
- N06625
Inconel 6625 Reducer Werkstoff nr
- 2.4856
DIN 2.4856 Long Radius Elbow Schedule
- 5 to XXS
Nickel Alloy 625 Seamless Pipe Fittings Service Temperatures
- 982°C / 1800°F
Inconel Alloy 625 Stub End Manufacturing Technique
- Mandrel
- Hot forming
Nickel 625 Welded Pipe Fittings JIS standard
- JIS B2313
- JIS B2312
2.4856 Inconel Eccentric Reducer Coating
- FBE coated
- Varnished
- Anti rust light oiling
- PE coating
- Hot-dip galvanizing
- Back painting
Werkstoff 2.4856 BW Fittings American Standard
- MSS-SP-43
- ANSI / ASME B16.9
- MSS SP-25
- ANSI/ ASME B16.25
- ANSI/ ASME B16.28
ASTM Standard
- ASTM B366
- ASME SB366
Dimensional Standard
- ASTM, SAE, ASME, DIN, ISO, BS, AMS and EN
- ASME B16.9
UNS N06625 Fittings Testing Methods
- Magnetic Particle Examination
- Hyrdrostatic test
- Positive Material Identification
- HIC tested
- Ultrasonic test
AMS 5581 Pipe Bend Radius
- 3D
- 4D
- 5D
- 6D
- 8D
- 10D
Thermal Conductivity
- 9.9 W/(m.K)
Magnetic Permeability
- <1.001
Requirements Meet for WNR 2.4856 Buttweld Fittings
- NACE MR0103
- HIC tested
- NACE TM-0284
- Sour service
- IBR
- MTC EN 10204 3.1/ 3.2 certificate
- ISO 15156
- NORSOK
- NACE MR0175
Nickel 625 Pipe Bending Method
- Roll Bending
- Hot Induction Bending
- Mandrel Bending
- Rotary Draw Bending
- Ram-Type Bending
Density
- 8.44 g/cm3
- 0.305 lb/in.3
Marking for UNS 6625 SR Elbow
- Dimensional standard
- Manufacturers name
- Grade
- Size
- Heat number
Nickelvac® 400 Fittings Packaging
- Carton Box
- Wooden Pallet
- Custom
- Wooden Cases
Hot Forming Temperature Ranges
- 927 to 1177°C
- 1700 to 2150°F
Solution Annealing Temperature Ranges
- 2000 to 2200°F
- 1093 to 1204°C
Inconel 625LCF Pipe Bend Angle
- 15°
- 22.5
- 30°
- 45°
- 60°
- 90°
- 135°
- 180°

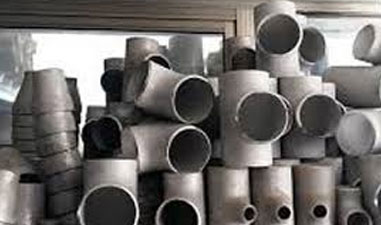

Inconel 625 Fittings Types
- UNS N06625 Pipe Bend
- Inconel 2.4856 Stub End
- Inconel 625lcf Reducer
- Alloy 625 Gr 1 Cross
- Nickel 625 Elbow
- Nickel Alloy 625 Tee
- Inconel 6625 Cap
ASTM B366 N06625 Cross Suitable Fluids
- Air
- Gas
- Water
- Oil
- Steam
End types of Nickel Alloy 625 Elbow
- Beveled Both Ends
- Treaded Both Ends
- Plain large end
- Treaded large end
- Beveled small end
- Plain small end
- Treaded small end
- Plain Both Ends
- Beveled large end
Inconel Alloy 625 Pipe Fittings Equivalent Standard
- UNS : N06625
- EN : NiCr22Mo9Nb
- WERKSTOFF NR. : 2.4856
- GOST : ХН75МБТЮ
- AFNOR : NC22DNB4M
- BS : NA 21
- JIS : NCF 625
Melting Range
- 2350 - 2460 °F
- 1290 - 1350 °C
- 2370 °F - 2460 °F
- 1300 °C - 1350 °C
Tensile Strength
- 135000 Psi
- 930 MPa
Yield Strength
- 75000 psi
- 705 Mpa
Specific heat
- 0.098 Btu/lb/°F
Curie Temperature
- -190 °C
- < -320 °F
Young's Modulus
- 205 x 10 N/MM2
Annealed Temperature
- 871 °C
- 1600 °F
Elastic Modulus
- 207
Electrical Resistivity
- 10.3 nΩ.m
Nonmagnetic / Magnetic
- Nonmagnetic
Common Trade Names of Inconel 625 Fittings
- Inconel 625®
- Altemp® 625
- Chornin® 625
- Nickelvac® 625
- Nicrofer® 6020
- Haynes® 625
ASTM B366 Inconel 625 Fittings Value Added Services
- Forging
- Rolling
- Pickling
- Cladding
- Bending
- Heat Treatment
- Polish
- Cutting
Inconel 625 Buttweld Fittings Application
- Aerospace
- Oil & Gas
- Chemical Processing
- Power Generation
- Petro Processing
- Marine
Available As
Inconel 625 Grade 1 5d Pipe BendAlloy 625 L BendInconel 625 Welded Pipe BendNickel 625 J BendWnr 2.4856 Short Radius BendAlloy 625 Gr 2 Hot Induction BendDin 2.4856 Seamless Pipe BendUNS 6625 Piggable BendInconel 625 Grade 2 2.5d Pipe Bend2.4856 Inconel Mitered Pipe BendAlloy Inconel 625 Return BendWerkstoff Nr. 2.4856 22d Pipe BendAMS 5581 10d Pipe BendInconel Alloy 625 Long Radius BendUNS N06625 3d Pipe BendInconel 2.4856 8d ElbowInconel 625lcf Seamless ElbowAlloy 625 Gr 1 Welded ElbowNickel 625 Reducing Elbow180° Short Radius Nickel Alloy 625 Elbow45° Short Radius Inconel 6625 ElbowInconel 625 Grade 1 Long Radius Elbow60° Alloy 625 Elbow180° Inconel 625 Elbow180° Long Radius Nickel 625 Elbow90° Wnr 2.4856 Elbow45° Alloy 625 Gr 2 Elbow45° Long Radius Din 2.4856 ElbowUNS 6625 5d ElbowInconel 625 Grade 2 1d Elbow120° 2.4856 Inconel Elbow90° Short Radius Alloy Inconel 625 Elbow30° Werkstoff Nr. 2.4856 Elbow22.5 Degree AMS 5581 ElbowInconel Alloy 625 Short Radius ElbowUNS N06625 1.5d ElbowInconel 2.4856 3d ElbowInconel 625lcf 2d Elbow90° Long Radius Alloy 625 Gr 1 ElbowNickel 625 Buttweld TeeNickel Alloy 625 Lateral TeeInconel 6625 Barred TeeInconel 625 Grade 1 Equal TeeAlloy 625 Straight TeesInconel 625 Y TeeNickel 625 Reducing TeeWnr 2.4856 Saddle TeeAlloy 625 Gr 2 Reducing Outlet TeesDin 2.4856 Swept TeeUNS 6625 Short Stub EndInconel 625 Grade 2 Lap Joint Stub End2.4856 Inconel CollarAlloy Inconel 625 Butt Welded Hemi-head Pipe CapWerkstoff Nr. 2.4856 Long Stub EndAMS 5581 Straight CrossesInconel Alloy 625 Reducing Outlet CrossesASTM B366 UNS N06625 Unequal CrossNickel Alloy 625 Equal CrossAlloy 625 Eccentric Swage NippleInconel 625 Concentric Swage NippleAlloy 625 Eccentric ReducerInconel 625 Concentric Reducer
Technical Data
Full Specifications
›Material Properties

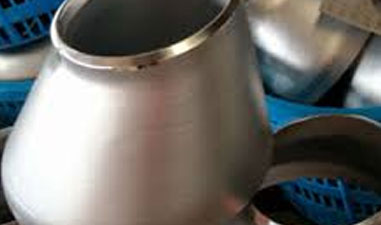

Mechanical Strength of UNS N06625 Reducer
| Element | Tensile Strength | col_3 | Melting Point | Elongation |
|---|---|---|---|---|
| Element | 930 MPa | 1350 °C (2460 °F) | Elongation | |
| Inconel 625 | Yield Strength | Density | 42.5 % | |
| Inconel 625 | 517 MPa | 8.4 g/cm3 | 42.5 % |
›Technical Data
Inconel 625 Reducer Equivalent Material
Scroll to see all columns →
| STANDARD | Europe | Russia | Germany | Japan | North America | France | British Standard |
|---|---|---|---|---|---|---|---|
| Inconel 625 | NiCr23Fe | ХН75МБТЮ | 2.4856 | NCF 625 | N06625 | NC22DNB4MNiCr22Mo9Nb | NA 21 |
Standard Specification of UNS N06625 Fittings
| UNS No | N06625 |
|---|---|
| International Specifications: | WNR. 2.4856 |
| Specifications | ASTM B366 |
ASME SB366 UNS N06625 Buttweld Fittings Sizes
Scroll to see all columns →
| NPS | inch | inch_2 | inch_3 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 5 | 6 | 8 | 10 | 12 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OD | inch | inch | inch | 0.84 | 1.05 | 1.315 | 1.66 | 1.9 | 2.375 | 2.875 | 3.5 | 4 | 4.5 | 5.563 | 6.625 | 8.625 | 10.75 | 12.75 |
| OD | millimeter | millimeter | millimeter | 21.3 | 26.7 | 33.4 | 42.2 | 48.3 | 60.3 | 73 | 88.9 | 101.6 | 114.3 | 141.3 | 168.3 | 219.1 | 273.1 | 323.9 |
| 90° Elbows | SR | Center to Face | inch | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 5 | 6 | 8 | 10 | 12 | ||
| 90° Elbows | LR | Center to Face | inch | 1 1/2 | 1 1/8 | 1 1/2 | 1 7/8 | 2 1/4 | 3 | 3 3/4 | 4 1/2 | 5 1/4 | 6 | 7 1/2 | 9 | 12 | 15 | 18 |
| 45° Elbows | LR | Radius | inch | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 12 | 15 | 18 | ||||
| 45° Elbows | LR | Center to Face | inch | 5/8 | 7/16 | 7/8 | 1 | 1 1/8 | 1 3/8 | 1 3/4 | 2 | 2 1/4 | 2 1/2 | 3 1/8 | 3 3/4 | 5 | 6 1/4 | 7 1/2 |
| 180° Returns | LR | Back to face | inch | 1 7/8 | 1 11/16 | 2 3/16 | 2 3/4 | 3 1/4 | 4 3/16 | 5 3/16 | 6 1/4 | 7 1/4 | 8 1/4 | 10 5/16 | 12 5/16 | 16 5/16 | 20 3/8 | 24 3/8 |
| 180° Returns | LR | Center to Center | inch | 2 | 2 1/4 | 3 | 3 3/4 | 4 1/2 | 6 | 7 1/2 | 9 | 10 1/2 | 12 | 15 | 18 | 24 | 30 | 36 |
Physical Properties oF Alloy 625 Tee
Scroll to see all columns →
| Grade | Density (g/cm3) | Curie Temperature | Thermal Conductivity W.m -1.°K-1 | Permeability (15.9 kA/m) | Elastic Modulus | Electrical Conductivity (IACS @ 20°C) | Specific Heat J.kg-1.°K-1 | Poisson's Ratio @ 20°C | Electrical Resistivity |
|---|---|---|---|---|---|---|---|---|---|
| Grade | Density (g/cm3) | Curie Temperature | Thermal Conductivity W.m -1.°K-1 | Permeability (15.9 kA/m) | Elastic Modulus | Electrical Conductivity (IACS @ 20°C) | (0-100°C) | Poisson's Ratio @ 20°C | Electrical Resistivity |
| 625 | 8.42 | <-320 °F -196 °C | 9.9 | 1.0006 | 207 GPa | 1.3 % | 460 | 0.278 | 10.3 nΩ.m |
›Pressure Ratings
Pressure Rating of NCF 625 Fittings
Scroll to see all columns →
| Pipe Size | Inch | col_3 | 1" | 1"_2 | 1 1/2" | 1 1/2"_2 | 2" | 2"_2 | 3" | 3"_2 | 4" | 4"_2 | 5" | 5"_2 | 6" | 6"_2 | 8" | 8"_2 | 10" | 10"_2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pipe Schedule | 40 | 160 | 40 | 160 | 40 | 160 | 40 | 160 | 40 | 160 | 40 | 160 | 40 | 160 | 40 | 160 | 40 | 160 | ||
| Outside Diameter | Inch | 1.315 | 1.315 | 1.9 | 1.9 | 2.375 | 2.375 | 3.5 | 3.5 | 4.5 | 4.5 | 5.563 | 5.563 | 6.625 | 6.625 | 8.625 | 8.625 | 1 .75 | 1 .75 | |
| Wall Thickness | Inch | .133 | .25 | .145 | .281 | .154 | .344 | .216 | .438 | .237 | .531 | .258 | .625 | .28 | .719 | .322 | .906 | .365 | 1.125 | |
| Temperature (°F) | 100 | 16700 | 2205 | 4493 | 1629 | 3362 | 1371 | 3283 | 1301 | 2787 | 1102 | 2611 | 965 | 2474 | 877 | 2382 | 771 | 2298 | 699 | 2289 |
| 200 | 16700 | 2205 | 4493 | 1629 | 3362 | 1371 | 3283 | 1301 | 2787 | 1102 | 2611 | 965 | 2474 | 877 | 2382 | 771 | 2298 | 699 | 2289 | |
| 300 | 16700 | 2205 | 4493 | 1629 | 3362 | 1371 | 3283 | 1301 | 2787 | 1102 | 2611 | 965 | 2474 | 877 | 2382 | 771 | 2298 | 699 | 2289 | |
| 400 | 15500 | 2047 | 4170 | 1512 | 3120 | 1272 | 3047 | 1208 | 2587 | 1023 | 2424 | 896 | 2296 | 814 | 2211 | 716 | 2133 | 649 | 2124 | |
| 500 | 14400 | 1902 | 3874 | 1404 | 2899 | 1182 | 2831 | 1122 | 2403 | 950 | 2552 | 832 | 2133 | 756 | 2054 | 665 | 1982 | 603 | 1974 | |
| 600 | 13500 | 1783 | 3632 | 1317 | 2717 | 1108 | 2654 | 1052 | 2253 | 891 | 2111 | 780 | 2000 | 709 | 1925 | 623 | 1858 | 565 | 1850 | |
| 650 | 13200 | 1743 | 3552 | 1287 | 2657 | 1083 | 2595 | 1028 | 2203 | 871 | 2064 | 763 | 1955 | 693 | 1883 | 610 | 1817 | 553 | 1809 | |
| 700 | 12900 | 1703 | 3471 | 1258 | 2597 | 1059 | 2536 | 1005 | 2153 | 851 | 2017 | 746 | 1911 | 677 | 1840 | 596 | 1775 | 540 | 1768 | |
| 750 | 12600 | 1664 | 3390 | 1229 | 2536 | 1034 | 2477 | 982 | 2103 | 831 | 1970 | 728 | 1866 | 661 | 1797 | 582 | 1734 | 528 | 1727 |
