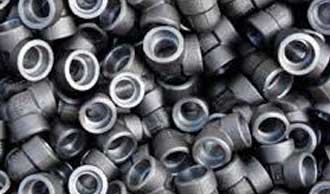

Stainless Steel Socket Weld Fittings Manufacturer in India

Stainless Steel Socket Weld Fittings used for pipe connection in chemical industry. SS SW Elbow/ Tee Manufacturer in India. View Dimensions, Price List & Weight Chart of ASTM A182 SS sch 10 Union

Stainless Steel

On This Page

Specification Format of Stainless Steel Socket Weld Fittings Chemical Structure of SS SW Elbow Mechanical Behaviour of ASME B16.11 SS Union Equivalent of A182 Stainless Steel Plugs SS Socket Weld Tee Dimensions High Pressure Class 3000 Fittings Dimensions Tolerance Chart of 150# ss socket weld fittings Stainless Steel Socket Weld Fitting Pressure Rating

Gallery

Stainless Steel Socket Weld Fittings Manufacturer in India in Detail

Technical Data

Full Specifications

›Finishes & Forms

Specification Format of Stainless Steel Socket Weld Fittings

col_1	col_2
Specification :	Stainless Steel Socket Weld Fittings
Dimensions Class:	3000#, 6000#, 2000#, 9000#
Pressure:	Check Pressure Rating Of Socket, Threaded: 6000 LBS, 3000 LBS, 9000 LBS
Export to	Dubai, Brazil, Ukraine, India, Singapore, Indonesia, Thailand, Korea, Oman, Spain, Canada, USA, Ireland, Iran, Egypt, Saudi Arabia, Peru, etc
Size Chart Of:	1/8” NB to 4” NB (Screwed-Socket)
Forged Type :	BSPT, NPT (Threaded), BSPP.
Mills And Origin :	Russian, USA, Europe, India, Japanese
Connection Type :	Welding

›Material Properties

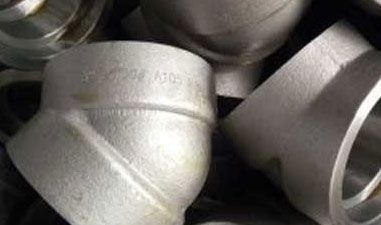

Chemical Structure of SS SW Elbow

Scroll to see all columns →

Grade	Grade_2	C	Mn	Si	P	S	Cr	Mo	Ni	N	Ti	Fe
304	min.						18.0		8.0
304	max.	0.08	2.0	0.75	0.045	0.030	20.0		10.5	0.10
304L	min.						18.0		8.0
304L	max.	0.030	2.0	0.75	0.045	0.030	20.0		12.0	0.10
304H	min.	0.04					18.0		8.0
304H	max.	0.010	2.0	0.75	0.045	0.030	20.0		10.5
SS 310		0.015 max	2 max	0.015 max	0.020 max	0.015 max	24.00 26.00	0.10 max	19.00 21.00	54.7 min
SS 310S		0.08 max	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00	0.75 max	19.00 21.00	53.095 min
SS 310H		0.04 0.10	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00		19.00 21.00	53.885 min
316	min.						16.0	2.03.0	10.0
316	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316L	min.						16.0	2.03.0	10.0
316L	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316TI		0.08 max	10.00 14.00	2.0 max	0.045 max	0.030 max	16.00 18.00	0.75 max	2.00 3.00
317		0.08 max	2 max	1 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00				57.845 min
SS 317L		0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00	11.00 15.00			57.89 min
SS 321		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	5(C+N) 0.70 max
SS 321H		0.04 0.10	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	4(C+N) 0.70 max
347/ 347H		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 20.00		9.0013.00
410	min.						11.5
410	max.	0.15	1.0	1.00	0.040	0.030	13.5		0.75
446	min.						23.0			0.10
446	max.	0.2	1.5	0.75	0.040	0.030	30.0		0.50	0.25
904L	min.						19.0	4.00	23.00	0.10
904L	max.	0.20	2.00	1.00	0.045	0.035	23.0	5.00	28.00	0.25

Mechanical Behaviour of ASME B16.11 SS Union

col_1	col_2	col_3	col_4	col_5	col_6
Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
304/ 304L	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
304H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
310 / 310S / 310H	7.9 g/cm3	1402 °C (2555 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
306/ 316H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
316L	8.0 g/cm3	1399 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
317	7.9 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
321	8.0 g/cm3	1457 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
347	8.0 g/cm3	1454 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
904L	7.95 g/cm3	1350 °C (2460 °F)	Psi 71000 , MPa 490	Psi 32000 , MPa 220	35 %

›Technical Data

Equivalent of A182 Stainless Steel Plugs

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 304	1.4301	S30400	SUS 304	304S31	08Х18Н10	Z7CN18‐09	X5CrNi18-10
SS 304L	1.4306 / 1.4307	S30403	SUS 304L	3304S11	03Х18Н11	Z3CN18‐10	X2CrNi18-9 / X2CrNi19-11
SS 304H	1.4301	S30409	–	–	–	–	–
SS 310	1.4841	S31000	SUS 310	310S24	20Ch25N20S2	–	X15CrNi25-20
SS 310S	1.4845	S31008	SUS 310S	310S16	20Ch23N18	–	X8CrNi25-21
SS 310H	–	S31009	–	–	–	–	–
SS 316	1.4401 / 1.4436	S31600	SUS 316	316S31 / 316S33	–	Z7CND17‐11‐02	X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L	1.4404 / 1.4435	S31603	SUS 316L	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	Z3CND17‐11‐02 / Z3CND18‐14‐03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3
SS 316H	1.4401	S31609	–	–	–	–	–
SS 316Ti	1.4571	S31635	SUS 316Ti	320S31	08Ch17N13M2T	Z6CNDT17‐123	X6CrNiMoTi17-12-2
SS 317	1.4449	S31700	SUS 317	–	–	–	–
SS 317L	1.4438	S31703	SUS 317L	–	–	–	X2CrNiMo18-15-4
SS 321	1.4541	S32100	SUS 321	–	–	–	X6CrNiTi18-10
SS 321H	1.4878	S32109	SUS 321H	–	–	–	X12CrNiTi18-9
SS 347	1.4550	S34700	SUS 347	–	08Ch18N12B	–	X6CrNiNb18-10
SS 347H	1.4961	S34709	SUS 347H	–	–	–	X6CrNiNb18-12
SS 904L	1.4539	N08904	SUS 904L	904S13	STS 317J5L	Z2 NCDU 25-20	X1NiCrMoCu25-20-5

Know Countries Where We Are Supplying For 20 years

col_1	col_2
ASME B16.11 2000# 316L Socket Weld Tee	Canada, Philippines, Malaysia, Singapore
SS316 B16.11 Forged Fitting	Romania, Europe, Japan, Malaysia
Stainless steel Socket Weld 90 degree Elbow	Malaysia, Sweden, Colombia, China
bsp socket welded stainless steel pipe fitting	Los Alamos -Mexico, Malaysia, Taiwan, Philippines
Tee SCH80 Socket weld pipe fitting	NY 12203 (USA), Singapore, South Korea, Malaysia
9000LB B16.11 SS Forged Socket Weld Elbow	Philippines, Dammam -KSA, Indonesia, Belgium
ASME B16.11 Stainless Steel Socket Weld Tee	Europe, Qatar, France, Thailand
Stainless Steel B16.11 Socket Weld Reducer Coupling 3000lb	Thailand, Czechia, Germany, Malaysia
ss304 union fittings	Bangladesh, Malaysia, USA, Finland
stainless steel npt full thread coupling	Kuwait, South Africa, Saudi Arabia (KSA), Brazil
3000 lbs ansi b16.11 socket weld female thread coupling	Singapore, Bahrain, South Africa, Singapore
female union SS304	UK, Philippines, Australia, Nigeria
316 NPT threaded socket weld union	Hong Kong, Oman, Malaysia, UAE
Stainless Steel Socket Welding Fittings Outlet	Iran, Chile, Italy, Singapore
316 socket weld equal tee	Norway, United Arab Emirates (UAE), Turkey, Malaysia
Stainless Steel Socket Half Coupling Fitting	Russia, Netherlands, Malaysia, Dubai
stainless steel socket weld thread pipe fitting four-way cross	Mexico, Egypt, Spain, UK
Stainless Steel High Pressure Union with Socket Welding	Malaysia, United Kingdom -UK, Europe, UAE
ASME B16.11 Stainless Steel Socket Welded Reducing Tee	Poland, UK, Canada, Ellington -United States

›Dimensions & Weight

SS Socket Weld Tee Dimensions

NPS	A	B Max	B Min	C Avg	C Min
1/8	11	11.2	10.8	3.18	3.18
1/4	11	14.6	14.2	3.78	3.3
3/8	13.5	18	17.6	4.01	3.5
1/2	15.5	22.2	21.8	4.67	4.09
3/4	19	27.6	27.2	4.9	4.27
1	22.5	34.3	33.9	5.69	4.98
1-1/4	27	43.1	42.7	6.07	5.28
1-1/2	32	49.2	48.8	6.35	5.54
2	38	61.7	61.2	6.93	6.04
2-1/2	41	74.4	73.9	8.76	7.67
3	57	90.3	89.8	9.52	8.3
4	66.5	115.7	115.2	10.69	9.35

High Pressure Class 3000 Fittings Dimensions

Scroll to see all columns →

(NPS) Normal Pipe Sizes	Socket, Bore Diameter B	Depth of Socket, Minimum	Wall Thickness Minimum	Wall Thickness Minimum_2	Wall Thickness Minimum_3	Wall Thickness Minimum_4	Bore Dia. of Fitting D	Bore Dia. of Fitting D_2	Centre to Bottom of Socket	Centre to Bottom of Socket_2	Centre to Bottom of Socket_3	Centre to Bottom of Socket_4	Laying Lengths	Laying Lengths_2	Tolerances, ±	Tolerances, ±_2	Tolerances, ±_3
(NPS) Normal Pipe Sizes	Socket, Bore Diameter B	Depth of Socket, Minimum	3000#	3000#	6000#	6000#	Bore Dia. of Fitting D	Bore Dia. of Fitting D	90º Elbow, Tees & Pipe Cross	90º Elbow, Tees & Pipe Cross	45º Ell	45º Ell	NPT Couplings	Half / Full Couplings
(NPS) Normal Pipe Sizes	Socket, Bore Diameter B	Depth of Socket, Minimum					Bore Dia. of Fitting D	Bore Dia. of Fitting D	A	A	A	A	E	F	A	E	F
(NPS) Normal Pipe Sizes	Socket, Bore Diameter B	Depth of Socket, Minimum	Sock, C	Body G	Sock C	Body G	3000#	6000#	3000#	6000#	3000#	6000#
1/8”	.420 .430	3/8	.125	.095	.135	.124	.254 .284	.141	7/16	7/16	5/16	5/16	1/4	5/8	.03	.06	.03
1/4	.555 .565	3/8	.130	.119	.158	.145	.349 .379	.235	7/16	17/32	5/16	5/16	1/4	5/8	.03	.06	.03
3/8	.690 .700	3/8	.138	.126	.172	.158	.478 .508	.344	17/32	5/8	5/16	7/16	1/4	11/16	.06	.12	.06
1/2	.855 .865	3/8	.161	.147	.204	.188	.607 .637	.451	5/8	3/4	7/16	1/2	3/8	7/8	.06	.12	.06
3/4	1.065 1.075	1/2	.168	.154	.238	.219	.809 .839	.599	3/4	7/8	1/2	9/16	3/8	15/16	.06	.12	.06
1	1.330 1.340	1/2	.196	.179	.273	.250	1.034 1.064	.800	7/8	1-1/16	9/16	11/16	1/2	1-1/8	.08	.16	.08
1-1/4	1.675 1.685	1/2	.208	.191	.273	.250	1.365 1.395	1.145	1-1/16	1-1/4	11/16	13/16	1/2	1-3/16	.08	.16	.08
1-1/2	1.915 1.925	1/2	.218	.200	.307	.281	1.595 1.625	1.323	1-1/4	1-1/2	13/16	1	1/2	1-1/4	.08	.16	.08
2	2.406 2.416	5/8	.238	.218	.374	.344	2.052 2.082	1.674	1-1/2	1-5/8	1	1-1/8	3/4	1-5/8	.08	.16	.08
2-1/2	2.906 2.921	5/8	.301	.276		.375	2.439 2.499		1-5/8		1-1/8		3/4	1-11/16	.10	.20	.10
3	3.535 3.550	5/8	.327	.300		.438	3.038 3.098		2-1/4		1-1/4		3/4	1-3/4	.10	.20	.10
4	4.545 4.560	3/4	.368	.337		.531	3.996 4.055		2-5/8		1-5/8		3/4	1-7/8	.10	.20	.10

›Tolerances

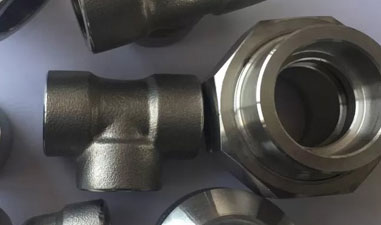

Tolerance Chart of 150# ss socket weld fittings

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
Nominal Pipe Diameter	Nominal Pipe Diameter	All Fittings	All Fittings	90 Deg / 45 Deg Elbow, Lateral Tee, Cross	Coupling	Half Coupling Reducing insert	Union (Socket Or Thread)
Nominal Pipe Diameter	Nominal Pipe Diameter	Socket Bore	Water Way Bore	Center To Bottom of Socket	Laying Lengths	Laying Lengths	Length Assem Nominal
DN	Normal Pipe Size	d1	d2	A H	E	F	L
DN	Normal Pipe Size	d1	d2	A H	E	F	L
6-8	1/8-1/4	–	–	±0.8	±1.5	±0.8	±1.5
6-8	1/8-1/4	–	–	±0.8	±1.5	±0.8	±1.5
10-20	3/8-3/4	+0.3/0	±0.4	±1.5	±3	±1.5	±1.5
10-20	3/8-3/4	+0.3/0	±0.4	±1.5	±3	±1.5	±1.5
25-50	1-2	–	–	±2	±4	±2	±1.5
25-50	1-2	–	–	±2	±4	±2	±1.5
65-100	2 1/2-4	+0.4/0	±0.8	±2.5	±5	±2.5	±1.5
65-100	2 1/2-4	+0.4/0	±0.8	±2.5	±5	±2.5	±1.5

›Pressure Ratings

Stainless Steel Socket Weld Fitting Pressure Rating

Temperature	Temperature_2	Class	Class_2	Class_3	Class_4
Temperature	Temperature	150LB	300LB	300LB	300LB
Temperature	Temperature	150LB	1/4 - 1 in.	1 1/4 - 2 in.	2 1/2 - 3 in.
(oF)	(oC)	150LB	1/4 - 1 in.	1 1/4 - 2 in.	2 1/2 - 3 in.
-20 to 150	-29 to 66	300	2000	1500	1000
200	93	265	1785	1350	910
250	121	225	1575	1200	825
300	149	185	1360	1050	735
350	177	150	1150	900	650
400	204	-	935	750	560
450	232	-	725	600	475
500	260	-	510	450	385
550	288	-	300	300	300
