Stainless Steel Union Fittings Manufacturer in India

Searching a genuine Stainless Steel Union Fittings manufacturers? PED approved supplier of SS Compression Union as per ASME B16.11, check 3/4, 1/4, 1/2 ASTM A182 SS Hammer Union Price list ex Mumbai.

Stainless Steel

On This Page

Specification List of Stainless Steel Union Fittings Composition Chart of ASTM A182 Hammer Union Mechanical Characteristics of Npt SS Union Equivalent Material of SS Barrel Union SS Threaded Union Dimensions Weight Chart of Steel Pipe Union SS Threaded Fittings Union Standards

Gallery

Stainless Steel Union Fittings Manufacturer in India in Detail

Technical Data

Full Specifications

›Technical Data

Specification List of Stainless Steel Union Fittings

col_1	col_2
Dimensions	ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size	1/8″ NB TO 4″ NB
Form	Threaded Union, Forged Threaded Union /
Pressure Ratings	Up to 20,000 psig (1,378 bar)
Temperature Ratings	Up to 1000° F (537° C)
Class	33000 LBS, 6000 LBS, 4500 LBS
Type	Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Types	NPT, ISO/BSP, SAE threads
Value Added Services:	Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Export to	Singapore, Indonesia, Dubai, Brazil, Ukraine, India, Thailand, Korea, Oman, Spain, Canada, USA, Ireland, Iran, Egypt, Saudi Arabia, Peru, etc
Production Grades:	Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
Sizes available	1/16 to 1 in.
Main Types	Pipe nipples, adapter and gaskets, reducing bushing and reducers, couplings, elbows, tees, crosses, union ball joints, caps, and plugs

Equivalent Material of SS Barrel Union

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 304	1.4301	S30400	SUS 304	304S31	08Х18Н10	Z7CN18‐09	X5CrNi18-10
SS 304L	1.4306 / 1.4307	S30403	SUS 304L	3304S11	03Х18Н11	Z3CN18‐10	X2CrNi18-9 / X2CrNi19-11
SS 304H	1.4301	S30409	–	–	–	–	–
SS 310	1.4841	S31000	SUS 310	310S24	20Ch25N20S2	–	X15CrNi25-20
SS 310S	1.4845	S31008	SUS 310S	310S16	20Ch23N18	–	X8CrNi25-21
SS 310H	–	S31009	–	–	–	–	–
SS 316	1.4401 / 1.4436	S31600	SUS 316	316S31 / 316S33	–	Z7CND17‐11‐02	X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L	1.4404 / 1.4435	S31603	SUS 316L	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	Z3CND17‐11‐02 / Z3CND18‐14‐03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3
SS 316H	1.4401	S31609	–	–	–	–	–
SS 316Ti	1.4571	S31635	SUS 316Ti	320S31	08Ch17N13M2T	Z6CNDT17‐123	X6CrNiMoTi17-12-2
SS 317	1.4449	S31700	SUS 317	–	–	–	–
SS 317L	1.4438	S31703	SUS 317L	–	–	–	X2CrNiMo18-15-4
SS 321	1.4541	S32100	SUS 321	–	–	–	X6CrNiTi18-10
SS 321H	1.4878	S32109	SUS 321H	–	–	–	X12CrNiTi18-9
SS 347	1.4550	S34700	SUS 347	–	08Ch18N12B	–	X6CrNiNb18-10
SS 347H	1.4961	S34709	SUS 347H	–	–	–	X6CrNiNb18-12
SS 904L	1.4539	N08904	SUS 904L	904S13	STS 317J5L	Z2 NCDU 25-20	X1NiCrMoCu25-20-5

SS Threaded Fittings Union Standards

col_1	col_2
ASME B16.11 Threaded Union:	ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
EN:	EN10253-1, EN10253-2
DIN:	DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

We have Delivery strength of upto 10 Ton

col_1	col_2
Stainless Steel Compression double Ferrule Union	Indonesia, Dammam -KSA, Philippines, Belgium
stainless steel union male	France, Qatar, Europe, Thailand
3/4 ss union	Germany, Czechia, Thailand, Malaysia
stainless steel ss 304 1/2" OD union	USA, Malaysia, Bangladesh, Finland
Stainless Steel Double Ferrule Equal Union	Saudi Arabia (KSA), South Africa, Kuwait, Brazil
Sanitary Stainless Steel 304 Union	South Africa, Bahrain, Singapore, Singapore
1/4 ss union	Australia, Philippines, UK, Nigeria
Cast Stainless Steel Threaded Union	Malaysia, Oman, Hong Kong, UAE
316 stainless steel union npt	Italy, Chile, Iran, Singapore
Sanitary Stainless Steel Food Grade Union	Turkey, United Arab Emirates (UAE), Norway, Malaysia
steel pipe union	Malaysia, Netherlands, Russia, Dubai
SS304 1"-6" stainless steel RJT hexagon nut union	Spain, Egypt, Mexico, UK
Stainless Steel Pipe Fitting Union 1/2 Inch NPT	Europe, United Kingdom -UK, Malaysia, UAE
stainless steel butt welding hammer union	Canada, UK, Poland, Ellington -United States
Stainless Steel High Pressure Union	Malaysia, Philippines, Canada, Singapore
Stainless steel 201 Union	Japan, Europe, Romania, Malaysia
stainless steel sanitary union for sanitary food beverage industry	Colombia, Sweden, Malaysia, China
stainless steel male union	Taiwan, Malaysia, Los Alamos -Mexico, Philippines
Stainless Steel 4-Way NPT Union	South Korea, Singapore, NY 12203 (USA), Malaysia

›Material Properties

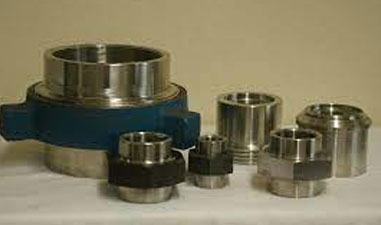

Composition Chart of ASTM A182 Hammer Union

Scroll to see all columns →

Grade	Grade_2	C	Mn	Si	P	S	Cr	Mo	Ni	N	Ti	Fe
304	min.						18.0		8.0
304	max.	0.08	2.0	0.75	0.045	0.030	20.0		10.5	0.10
304L	min.						18.0		8.0
304L	max.	0.030	2.0	0.75	0.045	0.030	20.0		12.0	0.10
304H	min.	0.04					18.0		8.0
304H	max.	0.010	2.0	0.75	0.045	0.030	20.0		10.5
SS 310		0.015 max	2 max	0.015 max	0.020 max	0.015 max	24.00 26.00	0.10 max	19.00 21.00	54.7 min
SS 310S		0.08 max	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00	0.75 max	19.00 21.00	53.095 min
SS 310H		0.04 0.10	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00		19.00 21.00	53.885 min
316	min.						16.0	2.03.0	10.0
316	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316L	min.						16.0	2.03.0	10.0
316L	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316TI		0.08 max	10.00 14.00	2.0 max	0.045 max	0.030 max	16.00 18.00	0.75 max	2.00 3.00
317		0.08 max	2 max	1 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00				57.845 min
SS 317L		0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00	11.00 15.00			57.89 min
SS 321		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	5(C+N) 0.70 max
SS 321H		0.04 0.10	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	4(C+N) 0.70 max
347/ 347H		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 20.00		9.0013.00
410	min.						11.5
410	max.	0.15	1.0	1.00	0.040	0.030	13.5		0.75
446	min.						23.0			0.10
446	max.	0.2	1.5	0.75	0.040	0.030	30.0		0.50	0.25
904L	min.						19.0	4.00	23.00	0.10
904L	max.	0.20	2.00	1.00	0.045	0.035	23.0	5.00	28.00	0.25

Mechanical Characteristics of Npt SS Union

col_1	col_2	col_3	col_4	col_5	col_6
Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
304/ 304L	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
304H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
310 / 310S / 310H	7.9 g/cm3	1402 °C (2555 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
306/ 316H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
316L	8.0 g/cm3	1399 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
317	7.9 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
321	8.0 g/cm3	1457 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
347	8.0 g/cm3	1454 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
904L	7.95 g/cm3	1350 °C (2460 °F)	Psi 71000 , MPa 490	Psi 32000 , MPa 220	35 %

›Dimensions & Weight

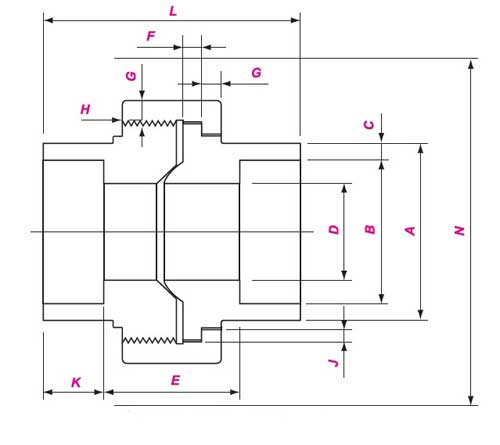

SS Threaded Union Dimensions

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9	col_10	col_11	col_12	col_13	col_14
Nominal Size	Nominal Size	Pipe End	Socket Bore Dia	Socket Wall	Water Way Bore	Laying Length	Male Flange	Nut	THRD Per lnch	Bearing	Depth of Cocket	Length Assem	Clear Assem Nut
DN	NPS	A	B	C	D	E	F	G	H	J	K	L	N
6	1/8	21.8	10.9	3.2	6.1	20.7	3.2	3.2	16	1.2	9.7	41.4	51
8	1/4	21.8	14.3	3.3	8.5	20.7	3.2	3.2	16	1.2	9.7	41.4	51
10	3/8	25.9	17.7	3.5	11.8	23.8	3.4	3.4	14	1.4	9.7	46	56
15	1/2	31.2	21.9	4.1	15	23.8	3.7	3.7	14	1.5	9.7	49	59
20	3/4	37.1	27.3	4.3	20.2	28.6	4.1	4.1	11	1.7	12.7	56.9	66
25	1	45.5	34	5	25.9	30.2	4.6	4.4	11	1.9	12.7	62	79
32	1 1/4	54.9	42.8	5.3	34.3	36.6	5.3	5.2	10	2.1	12.7	71.1	94
40	1 1/2	61.5	48.9	5.5	40.1	38.1	5.8	5.6	10	2.3	12.7	76.5	112
50	2	75.2	61.2	6	51.7	41.4	6.6	6.4	10	2.7	15.7	86.1	132
65	2 1/2	91.7	73.9	7.7	61.2	56.9	7.5	7.1	8	3.1	15.7	102.4	150
80	3	109.2	89.9	8.3	76.4	58.7	8.3	8	8	3.5	15.7	109	176

Weight Chart of Steel Pipe Union

col_1	col_2	col_3
Nominal Size	Nominal Size	Approx. Weight/kg
DN	NPS	Class 3000
6	1/8	0.06
8	1/4	0.06
10	3/8	0.08
15	1/2	0.14
20	3/4	0.2
25	1	0.28
32	1 1/4	0.48
40	1 1/2	0.52
50	2	1
65	2 1/2	1.6
80	3	1.8
