ASME B16.9 Equal Tee

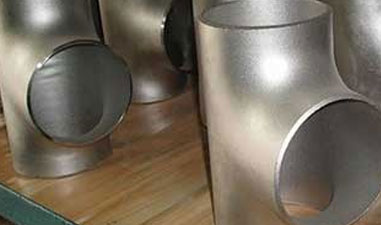

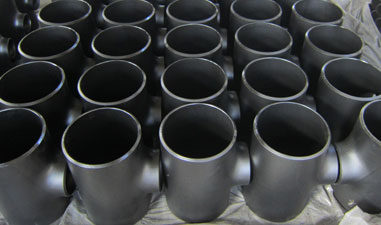

ASME B16.9 Equal Tee Manufacturer In India, Carbon Steel Buttweld Reducing Tee In Mumbai, View Online Price Of ANSI B16.9 Barred Tee, Refer SS 45 Degree Lateral Tee Dimensions, Schedule Chart.

Types of Fititngs

On This Page

Specification List of ASME B16.9 Equal Tee Buttweld Equal Tee Dimensions Chart MS Reducing Tee Dimensions Table Dimensions Table of ASME B16.9 Lateral Tee Carbon Steel Reducing Tee Weight in Kg Weights Ductile Iron Straight Tees Schedule 160 Dimensional Tolerances Of Asme B16.9 Straight Tees Dn600 Reducing Tee Material

Gallery

ASME B16.9 Equal Tee in Detail

Technical Data

Full Specifications

›Technical Data

Specification List of ASME B16.9 Equal Tee

col_1	col_2
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Outside Diameter	Seamless Pipe Tee ( 1/2"～24"), ERW / Welded / Fabricated Pipe Tee (1/2"～48")
Types	Equal Tees, Reducing Tees
Export to	Iran, Ukraine, USA, Spain, India, Saudi Arabia, Egypt, Ireland, Brazil, Indonesia, Korea, Oman, Dubai, Singapore, Canada, Thailand, Peru, etc
Wall Thickness	3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Value Added Services	Electro Polish, Sand Blasting, Hot Dipped Galvanizing, Epoxy & FBE Coating, Threading, Soldering

Dn600 Reducing Tee Material

col_1	col_2
Stainless Steel	ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel	ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Duplex Steel	ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy	ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
Low Temperature Carbon Steel	ASTM A420 WPL3, A420 WPL6
Alloy Steel	ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Check our Delivery strength before order

col_1	col_2
ASME B16.9 SCH40 Tee	Colombia, Bangladesh, Finland, Malaysia
Weld ASME B16.9 Stainless Steel Equal Tee	Saudi Arabia (KSA), Malaysia, Singapore, Egypt
ASME B16.9 Reducer Tee	Germany, Iran, Singapore, Chile
Ductile Iron Equal Tee	USA, Romania, Ellington -United States, Netherlands
3/4 Inch Equal Tee	South Africa, Los Alamos -Mexico, Malaysia, United Kingdom -UK
Aluminium Equal Tee	Taiwan, Kuwait, Brazil, South Africa
22mm Equal Tee	Malaysia, Europe, Thailand, Qatar
10 Inch Equal Tee	Malaysia, Malaysia, Philippines, UK
Grooved Equal Tee	Spain, Mexico, UK, Singapore
8 inch butt welded carbon steel reducing tee	Canada, Philippines, Belgium, Dammam -KSA
Dn150 Equal Tee	South Korea, Singapore, Singapore, Bahrain
Barred Tee BW A860GR WPHY 60 ASME B16.9	Europe, Norway, Malaysia, United Arab Emirates (UAE)
ASME B16.9 Butt Welding Straight Tee	Japan, Thailand, Malaysia, Czechia
1/2"-48" Carbon Steel Equal Tee Reducing	Malaysia, Russia, UAE, Malaysia
ASME B16.9 Seamless Sch40 Sch80 Reducing Tee	Indonesia, UK, Nigeria, Philippines
seamless sch40 steel equal tee	Italy, Poland, Malaysia, Philippines
cs pipe tee ASME B16.9	France, Hong Kong, UAE, Oman
8 INCH SCH40 BW Seamless ASME B16.9 Gr.WP A815 S32205 Equal Tee	Australia, NY 12203 (USA), China, Sweden
45 degree y branch lateral tee	Turkey, Canada, Dubai, Europe

›Dimensions & Weight

Buttweld Equal Tee Dimensions Chart

Nominal Pipe Size	Outside diameter / at bevel	Center-to-End	Center-to-End_2
Nominal Pipe Size	Outside diameter / at bevel	Run (C)	Outlet(M)
1/2"	21.3	25	25
3/4"	26.7	29	29
1"	33.4	38	38
1 1/4"	42.2	48	48
1 1/2"	48.3	57	57
2"	60.3	64	64
2 1/2"	73.0	76	76
3"	88.9	86	86
3 1/2"	101.6	95	95
4"	114.3	105	105
5"	141.3	124	124
6"	168.3	143	143
8"	219.1	178	178
10"	273.0	216	216
12"	323.8	254	254
14"	355.6	279	279
16"	406.4	305	305
18"	457.0	343	343
20"	508.0	381	381
22"	559.0	419	419
24"	610.0	432	432

MS Reducing Tee Dimensions Table

Nominal Pipe Size	Nominal Pipe Size_2	Outside diameter / at bevel	Outside diameter / at bevel_2	Center-to-End	Center-to-End_2
Run	Outlet	Run	Outlet	Run (C)	Outlet (M)
1/2"	1/4" / 3/8"	21.3	13.7 / 17.3	25	25
3/4"	3/8" / 1/2"	26.7	17.3 / 21.3	29	29
1"	1/2" / 3/4"	33.4	21.3 / 26.7	38	38
1 1/4"	1/2" / 3/4" / 1"	42.2	21.3 / 26.7 / 33.4	48	48
1 1/2"	1/2" / 3/4" / 1" / 1 1/4"	48.3	21.3 / 26.7 / 33.4 / 42.2	57	57
2"	3/4" / 1" / 1 1/4" / 1 1/2"	60.3	26.7 / 33.4 / 42.2 / 48.3	64	44 / 51 / 57 / 60
2 1/2"	1" / 1 1/4" / 1 1/2" / 2"	73.0	33.4 / 42.2 / 48.3 / 60.3	76	57 / 64 / 67 / 70
3"	1 1/4" / 1 1/2" / 2" / 2 1/2"	88.9	42.2 / 48.3 / 60.3 / 73.0	86	70 / 73 / 76 / 83
3 1/2"	1 1/2" / 2" / 2 1/2" / 3"	101.6	48.3 / 60.3 / 73.0 / 88.9	95	79 / 83 / 89 / 92
4"	1 1/2" / 2" / 2 1/2" / 3" / 3 1/2"	114.3	48.3 / 60.3 / 73.0 / 88.9 / 101.6	105	86 / 89 / 95 / 98 / 102
5"	2" / 2 1/2" / 3" / 3 1/2" / 4"	141.3	60.3 / 73.0 / 88.9 / 101.6 / 114.3	124	105 / 108 / 111 / 114 / 117
6"	2 1/2" / 3" / 3 1/2" / 4" / 5	168.3	73.0 / 88.9 / 101.6 / 114.3 / 141.3	143	121 / 124 / 127 / 130 / 137
8"	3 1/2" / 4" / 5" / 6"	219.1	101.6 / 114.3 / 141.3 / 168.3	178	152 / 156 / 162 / 168
10"	4" / 5" / 6" / 8"	273.0	114.3 / 141.3 / 168.3 / 219.1	216	184 / 191 / 194 / 203
12"	5" / 6" / 8" / 10"	323.8	141.3 / 168.3 / 219.1 / 273.0	254	216 / 219 / 229 / 241
14"	6" / 8" / 10" / 12"	355.6	168.3 / 219.1 / 273.0 / 323.8	279	238 / 248 / 257 / 270
16"	6" / 8" / 10" / 12" / 14"	406.4	168.3 / 219.1 / 273.0 / 323.8 / 355.6	305	264 / 273 / 283 / 295 / 305
18"	8" / 10" / 12" / 14" / 16"	457.0	219.1 / 273.0 / 323.8 / 355.6 / 406.4	343	298 / 308 / 321 / 330 / 330
20"	8" / 10" / 12" / 14" / 16" / 18"	508.0	219.1 / 273.0 / 323.8 / 355.6 / 406.4 / 457.0	381	324 / 333 / 346 / 356 / 356 / 368
22"	10" / 12" / 14" / 16" / 18" / 20"	559.0	273.0 / 323.8 / 355.6 / 406.4 / 457.0 / 508.0	419	359 / 371 / 381 / 381 / 394 / 406
24"	10" / 12" / 14" / 16" / 18" / 20" / 22"	610.0	273.0 / 323.8 / 355.6 / 406.4 / 457.0 / 508.0 / 559.0	432	384 / 397 / 406 / 406 / 419 / 432 / 432

Dimensions Table of ASME B16.9 Lateral Tee

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9	col_10	col_11	col_12
Nominal / Pipe Size	TYPE	Outside / Diameter OD	STD	STD	STD	STD	X – S	X – S	X – S	X – S	NPS
Nominal / Pipe Size	TYPE	Outside / Diameter OD	E & L /	D /	T /	ID /	E & L /	D /	T /	ID	NPS
1 / 1¼ / 1½	B / B / B	1.315 / 1.660 / 1.900	5.75 / 6.25 / 7.00	1.75 / 1.75 / 2.00	0.133 / 0.140 / 0.145	1.049 / 1.380 / 1.610	6.50 / 7.25 / 8.50	2.00 / 2.25 / 2.50	0.179 / 0.191 / 0.200	0.957 / 1.278 / 1.500	1 / 1¼ / 1½
2 / 2½ / 3	A/B / B / B	2.375 / 2.875 / 3.500	8.00 / 9.50 / 10.00	2.50 / 2.50 / 3.00	0.154 / 0.203 / 0.216	2.067 / 2.469 / 3.068	8.00 / *9.00 / 10.50 / 11.00	2.50 / 2.50 / 3.00	0.128 / 0.276 / 0.300	1.939 / 2.323 / 2.900	2 / 2½ / 3
3½ / 4 / 5	B / A/B / B	4.000 / 4.500 / 5.562	11.50 / 12.00 / 13.50	3.00 / 3.00 / 3.50	0.226 / 0.237 / 0.258	3.548 / 4.026 / 5.047	12.50 / 12.00 / *13.50 / 15.00	3.00 / 3.00 / 3.50	0.318 / 0.337 / 0.375	3.364 / 3.826 / 4.813	3½ / 4 / 5
6 / 8 / 10	A/B / B / B	6.625 / 8.625 / 10.750	14.50 / 17.50 / 20.50	3.50 / 4.50 / 5.00	0.280 / 0.322 / 0.365	6.065 / 7.981 / 10.020	14.50 / *17.50 / 20.50 / 24.00	3.50 / *4.00 / 5.00 / 5.50	0.432 / 0.500 / 0.500	5.761 / 7.625 / 9.750	6 / 8 / 10
12 / 14 / 16	B / B / B	12.750 / 14.000 / 16.000	24.50 / 27.00 / 30.00	5.50 / 6.00 / 6.50	0.375 / 0.375 / 0.375	12.000 / 13.250 / 15.250	27.50 / 31.00 / 34.50	6.00 / 6.50 / 7.50	0.500 / 0.500 / 0.500	11.750 / 13.000 / 15.000	12 / 14 / 16
18 / 20 / 24	B / B / B	18.000 / 20.000 / 24.000	32.00 / 35.00 / 40.50	7.00 / 8.00 / 9.00	0.375 / 0.375 / 0.375	17.250 / 19.250 / 23.250	37.50 / 40.50 / 47.50	8.00 / 8.50 / 10.00	0.500 / 0.500 / 0.500	17.000 / 19.000 / 23.000	18 / 20 / 24

Carbon Steel Reducing Tee Weight in Kg

col_1	col_2	col_3	col_4	col_5
Sch STD	Sch STD	Sch STD	Sch XS	Sch XS
NPS	LBS	KG	LBS	KG
1/2	0.35	0.16	0.45	0.2
3/4	0.45	0.2	0.6	0.27
1	0.75	0.34	0.88	0.4
1.1/4	1.3	0.59	1.6	0.73
1.1/2	2	0.91	2.25	1.02
2	3.5	1.59	4	1.81
2.1/2	6	2.72	7	3.18
3	7	3.18	8.5	3.86
3.1/2	9	4.08	12	5.44
4	12	5.44	15.8	7.17
5	21	9.53	26	11.79
6	34	15.42	40	18.14
8	55	24.95	75	34.02
10	85	38.56	105	47.63
12	120	54.43	160	72.57
14	165	74.84	240	108.86
16	195	88.45	280	127.01
18	249	112.94	332	150.59
20	342	155.13	480	217.72
22	414	187.79	550	249.48
24	528	239.5	610	276.69
26	770	349.27	875	396.89
30	1060	480.81	1200	544.31
36	1490	675.85	1700	771.11
NPS	LBS	KG	LBS	KG

Weights Ductile Iron Straight Tees Schedule 160

NPS	LBS	KG
1/2	0.36	0.16
3/4	0.58	0.26
1	1	0.45
1.1/4	2	0.91
1.1/2	3	1.36
2	5	2.27
2.1/2	8	3.63
3	10	4.54
3.1/2	–	–
4	25	11.34
5	55	24.95
6	62	28.12
8	110	49.9
10	260	117.93
12	480	217.72
NPS	LBS	KG

Dimensional Tolerances Of Asme B16.9 Straight Tees

Scroll to see all columns →

NOMINAL PIPE SIZE	ALL FITTINGS	ALL FITTINGS_2	ALL FITTINGS_3	ELBOWS AND TEES	180 DEG RETURN BENDS	180 DEG RETURN BENDS_2	180 DEG RETURN BENDS_3	REDUCERS	CAPS
NPS	O.D. at Bevel (1), (2)	I.D. at End / (1), (3), (4)	Wall Thickness (3)	Centre-to-End Dimension A,B,C,M	Centre-to-Centre O	Back-to-Face K	Alignment of Ends U	Overall Length H	Overall Length E
½ to 2½	0.06 / -0.03	0.03	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
3 to 3 ½	0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
4	0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
5 to 8	0.09 / -0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.25
10 to 18	0.16 / -0.12	0.12	Not less than 87.5% of nominal thickness	0.09	0.38	0.25	0.06	0.09	0.25
20 to 24	0.25 / -0.19	0.19	Not less than 87.5% of nominal thickness	0.09	0.38	0.25	0.06	0.09	0.25
26 to 30	0.25 / -0.19	0.19	Not less than 87.5% of nominal thickness	0.12	…	…	…	0.19	0.38
32 to 48	0.25 / -0.19	0.19	Not less than 87.5% of nominal thickness	0.19	…	…	…	0.19	0.38
