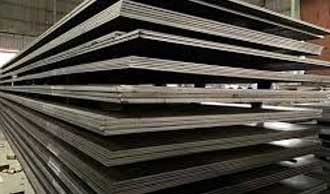

IS 2062 Grade B Plate

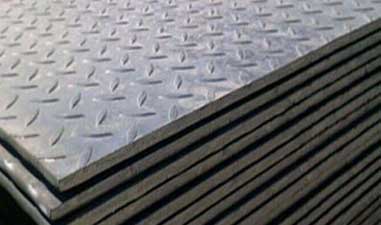

We are ISO Approved Supplier of IS 2062 Grade B Plate, Check Dimensions & Sizes of Mild Steel E250 Sheet/ Coil/ Strip. Contact us to get the Is 2062 Grade B Steel Chequer Plate detailed price list

Carbon Steel

On This Page

Specification List of IS 2062 Grade B Plate IS 2062 Grade B Perforated Sheets Sizes Hr Is 2062 Gr.b Steel Plates Thickness Tensile And Yield Strength of IS 2062 Grade B Diamond Plates Is 2062 E250 Br Chemical Composition Is 2062 E250 Br Equivalent Material Is 2062 Grade B Mechanical Properties IS 2062 Grade B Plate Sizes Chart IS 2062 Gr.B Tin Plates Mild Steel E250 Sheet HS code Applications of IS 2062 GR.B MS Coil Welding Material of Is 2062 E250 Grade B Plate Laser Cutting of Is 2062 Grade B Steel Plate

Gallery

IS 2062 Grade B Plate in Detail

Specification

Features & Applications

Applications of IS 2062 GR.B MS Coil

Plumbing
Heating
Chemical Processing and Food Processing Plants
General Purpose Applications
Paper & Pulp Industry
Fabrication Industry
Water Supply Systems

Technical Data

Full Specifications

›Technical Data

Specification List of IS 2062 Grade B Plate

col_1	col_2
Specifications	ASTM A283, A516 / ASME SA283, SA516
Thickness	3/16″ to 24″
grade	517 GR. 60 / 70, IS 2062, IS 2002
Width & Length	1 tO 200 millimeter thickness in 1000 to 3000 mm width x 5000 mm / 2500 mm / 10000 mm
Export to	Spain, Thailand, Oman, Dubai, Brazil, Singapore, Canada, India, Saudi Arabia, Ukraine, Ireland, Indonesia, Korea, Iran, Egypt, USA, Peru, etc
Surface	BA, hair line, NO.1, 2B, 2D, sand blast, NO.4, NO.8, 8K, embossed, mirror, Brush, checkered, etching, etc
Finish	Hot rolled plate (HR), Cold rolled sheet (CR)
Form	Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip etc.

IS 2062 Grade B Perforated Sheets Sizes

Hole Dia mm	Hole Centres mm	O/A	Finish	Tck mm	Full Sheet Size mm
0.75	1.5	23%	2B	0.6	2000 x 1000
1	2	23%	2B	1.0	2000 x 1000
1.5	2.6	30%	2B	1.0	2000 x 1000
2	3.5	30%	2B	1.0	2000 x 1000
2	3.5	30%	2B	1.0	2000 x 1000
3	5	33%	2B	1.0	2000 x 1000
4	5.6	46%	2B	1.0	2000 x 1000
5	8	35%	2B	1.0	2000 x 1000
6	8	51%	2B	1.0	2000 x 1000
8	10	58%	2B	1,0	2000 x 1000

Hr Is 2062 Gr.b Steel Plates Thickness

Scroll to see all columns →

Thicknes(MM)	Width (MM) 1600	1800	2000	2200	2500	2800	3000	3200
8					6300 9300 12500
10					6300 9300 12500
12			6300 9300 12500		6300 8000 12500	7100 10000
14				9300	5600 6300 7100 9000 9300 12500	5000 5600 6300 7100 8000 9000 12500
16			7100 9300 9000 9300 12500	5600 7100 9000 9300 12500	5000 6300 8000 9000 12500	5600 7100 8000 10000
18		5600 7100 9300	5600 6300 7100 8000 9000 9300 12500	5000 6300 8000 9000 12500	5600 7100 8000 10000	5000 6300 9000 9300 10000
20	5600 7100 9300	5000 5600 6300 7100 9000 9300 12500	5000 5600 6300 8000 9000 12500	5600 7100 8000 10000	5000 6300 9000 9300 10000	5600 8000 9000 9300
22	5000 5600 6300 7100 9000 9300	5000 5600 6300 8000 9000 12500	5600 7100 8000 10000	5000 6300 7100 9300 10000	5600 6300 8000 9000 9300	5000 5600 7100 8000 9300
25	5000 5600 6300 8000 12500	5000 5600 7100 10000	5000 6300 9000 9300 10000	5600 6300 8000 9000 9300	5000 5600 7100 8000	6300 7100 12500	6300 12500	5600 6300 12500
28	5000 5600 7100 10000	5000 6300 9000 9300 10000	5600 8000 9000 9300	5000 5600 7100 8000	6300 7100 12500	5600 6300 10000 12500	5600 6300 10000 12500	5000 5600 9300 10000
32	5000 5600 9000 9300 10000	5000 6500 8000 9000	5000 7100 8000	5000 6300 7100 12500	5600 6300 12500	5000 5600 9300 10000	5000 9000 9300 10000	5000 8000 9000 10000
36	5000 5600 8000 9000	5000 7100 8000	6300 7100 12500	5600 6300 12500	5000 5600 9300 10000	5000 8000 9000 9300	8000 9000 9300	7100 8000 9000
40	5000 7100 8000	6300 7100 12500	5600 6300 12500	5000 5600 10000	5000 9000 9300 10000	7100 8000 9000 93000 10000	7100 8000	6300 7100 8000
45	6300 7100 12500	5600 6300 12500	5000 5600 10000	5000 9300 10000	8000 9000 9300	7100 8000	6300 7100	6300 7100
50	5600 6300 12500	5000 6500 9300 10000	5000 9000 9300 10000	8000 9000 9300	7100 8000	6300 7100	5600 6300 7100	5600 6300
56	5000 5600 9300 10000	5000 9300 10000	8000 9000 9300	7100 8000	6300 7100	5600 6300	5000 5600	5000 5600
63	4500 5000 9000 9300 10000	8000 9300	7100 8000	6300 7100	5600 6300	5000 5600	4500 5000	4500 5000
75	7100 8000	6300 7100	5600 6300	5000 5600	4500 5000	4500 5000	4500
80	6300 7100 8000	5600 6300 7100	5000 5600 6300	4500 5000 5600	4500 5000
90	6300	5600 6300	5000 5600	5000
100	5000 5600 6300	5000 5600	5000
110	5000 5600	5000
120	4500 5000

Tensile And Yield Strength of IS 2062 Grade B Diamond Plates

Scroll to see all columns →

Standards	Chemical composition (maximum)	Chemical composition (maximum)_2	Chemical composition (maximum)_3	Chemical composition (maximum)_4	Mechanical Properties	Mechanical Properties_2	Mechanical Properties_3	Mechanical Properties_4
	C %	Mn %	S %	P %	Tensile / Strength / Min. Mpa	Yield / Strength / Min. Mpa	% Elongation / guage / length / 5.65 So	Nb+V+T
IS-2062 Gr A (SK)	0.23	1.5	0.050	0.050	410	240	23	0.20
IS-2062 Gr B (SK)	0.20	1.5	0.045	0.045	410	240	23	.
SAIL-MA 300	0.25	1.5	0.055	0.055	440-560	300	20	Maximum / for all
SAIL-MA 300 HI	0.20	1.5	0.040	0.040	440-560	300	21	Maximum / for all
SAIL-MA 350	0.25	1.5	0.040	0.040	490-610	350	20	Maximum / for all
SAIL-MA 350 HI	0.20	1.5	0.040	0.040	540-660	410	19	.
SAIL-MA 410	0.25	1.5	0.040	0.040	540-660	410	20	.

Is 2062 E250 Br Equivalent Material

STANDARD	WERKSTOFF NR.	UNS
MS IS 2062 GR.A	–	–

IS 2062 Grade B Plate Sizes Chart

Gauge Width and Length	Weight per Sheet	Weight per Sq. Ft.
7 (.1874") x 48 x 120 mm	314.8	7.871
11 (.120") x 36 x 120 mm	151.2	5.040
10 (.135") x 48 x 120 mm	226.8	5.670
11 (.120") x 48 x 96 mm	161.3	5.040
11 (.120") x 48 x 144 mm	241.9	5.040
11 (.120") x 48 x 120 mm	201.6	5.040
11 (.120") x 60 x 96 mm	252.0	5.040
12 (.105") x 48 x 120 mm	176.4	4.410
12 (.105") x 36 x 120 mm	132.3	4.410
12 (.105") x 60 x 120 mm	220.5	4.410
14 (.075") x 48 x 120 mm	126.0	3.150
14 (.075") x 36 x 120 mm	94.50	3.150
16 (.060") x 36 x 120 mm	75.60	2.520
16 (.060") x 48 x 120 mm	100.8	2.520
16 (.060") x 48 x 96 mm	80.64	2.520
16 (.060") x 60 x 120 mm	126.0	2.520
18 (.048") x 48 x 120 mm	80.64	2.016
18 (.048") x 36 x 120 mm	60.48	2.016
20 (.036") x 36 x 120 mm	45.36	1.512
22 (.030") x 36 x 120 mm	37.80	1.260
20 (.036") x 48 x 120 mm	60.48	1.512
22 (.030") x 48 x 96 mm	40.32	1.260
24 (.024") x 36 x 120 mm	30.24	1.008
22 (.030") x 48 x 120 mm	50.40	1.260
24 (.024") x 48 x 120 mm	40.32	1.008
26 (.018") x 48 x 120 mm	30.24	.7560
26 (.018") x 36 x 120 mm	22.68	.7560
28 (.015") x 36 x 120 mm	18.90	.6300

IS 2062 Gr.B Tin Plates

Code	Nominal coating wt in gm/m2 Per surface	Nominal coating wt in gm/m2 Total both surface	Min average coating mass in gm/m2	col_5	col_6
E2.8/2.8	2.8	5.6	4.9

IS 2062 Gr.B Tin Plates

Oil can
0.28 x 895/905/935 x 660 - Body size for edible oil
0.28 x 895/905/935 x 710 - Body size for cashew nut containers
0.28 x 765 x 510 - End size
Temper and Hardness
Temper : CA (57)
Hardness : 57 , +/-4 HR(30T)

Mild Steel E250 Sheet HS code

HS Code	Unit
72084010	KGS

Welding Material of Is 2062 E250 Grade B Plate

Steel Type	Thickness of thk part ,mm	Welding Process	Min temp 0 C
Mild and medium tensile steel	Upto 19	MMA with low hydrogen electrode, Submerged arc, Gas metal arc, Cored wire	None
Mild and medium tensile steel	20-38	MMA with low hydrogen electrode, Submerged arc, Gas metal arc, Cored wire	10
Mild and medium tensile steel	39-64	MMA with low hydrogen electrode, Submerged arc, Gas metal arc, Cored wire	66
Mild and medium tensile steel	Over 64	MMA with low hydrogen electrode, Submerged arc, Gas metal arc, Cored wire	107
Mild Steel	Upto 19	MMA with electrodes other than low hydrogen type	None
Mild Steel	20-38	MMA with electrodes other than low hydrogen type	66
Mild Steel	39-64	MMA with electrodes other than low hydrogen type	107
Mild Steel	Over 64	MMA with electrodes other than low hydrogen type	150

Laser Cutting of Is 2062 Grade B Steel Plate

col_1	col_2
Product name	Laser Cutting Service
Size	Standard
Material	Mild steel (M S).
Thickness	Up to 25 mm
Usage	For Industrial

Check Our Material Dispatch In The Following Countries

col_1	col_2
hot rolled carbon steel IS 2062 steel plate	UAE, Hong Kong, Malaysia, Oman
Gr.a Mild Steel Is 2062 Plate	UK, Mexico, Spain, Egypt
Ms Gr.a Is 2062 Cold Rolled Plate	UAE, Malaysia, Europe, United Kingdom -UK
IS 2026 Gr A Structural Carbon Steel Plate	Malaysia, Thailand, Germany, Czechia
6mm hot rolled is 2062 carbon steel plate	Brazil, Kuwait, Saudi Arabia (KSA), South Africa
Is 2062 Ms Gr.a Chequered Plate	Singapore, Singapore, South Africa, Bahrain
GR.B IS 2062 Mild Steel Plate 2B Finish	Nigeria, UK, Australia, Philippines
High Strength IS 2026 Carbon Structural Steel Plate	Philippines, Los Alamos -Mexico, Taiwan, Malaysia
IS 2062 Ms Gr.A Chequered Plate	Malaysia, NY 12203 (USA), South Korea, Singapore
Mild Steel Is 2062 Gr.b Cr Plates	Finland, Bangladesh, USA, Malaysia
6mm Mild Steel Is 2062 Plate 18 guezz 1.25 mm	Malaysia, Norway, Turkey, United Arab Emirates (UAE)
IS 2062 15mm thick mild steel plate	Dubai, Russia, Malaysia, Netherlands
8 inch Is 2062 Gr B Plates	Belgium, Philippines, Indonesia, Dammam -KSA
IS 2062 checkered, embossed, carbon steel plate	Singapore, Canada, Malaysia, Philippines

›Material Properties

Is 2062 E250 Br Chemical Composition

Scroll to see all columns →

Element	C	Mn	S	P	Si	Nb+V+Ti	C.E. Value
E-250 Gr-A	0.23 max	1.50 max	0.050 max	0.050 max	0.40 max	-	0.42 max
E-250 Gr-B	0.22 max	1.50 max	0.045 max	0.045 max	0.40 max	-	0.41 max
E-250 Gr-C	0.20 max	1.50 max	0.040 max	0.040 max	0.40 max	-	0.39 max
E-300	0.20 max	1.30 max	0.045 max	0.045 max	0.45 max	0.25 max	0.40 max
E-350	0.20 max	1.50 max	0.045 max	0.045 max	0.45 max	0.25 max	0.42 max
E-410	0.20 max	1.60 max	0.045 max	0.045 max	0.45 max	0.25 max	0.44 max
E-450 Gr-D	0.22 max	1.60 max	0.045 max	0.045 max	0.45 max	0.25 max	0.46 max
E-450 Gr-E	0.22 max	1.80 max	0.045 max	0.045 max	0.45 max	0.25 max	0.48 max

Is 2062 Grade B Mechanical Properties

Scroll to see all columns →

Element	Tensile StrengthMin, Mpa	Yield Stress (<20 mm)	Yield Stress (20-40 mm)	Yield Stress (>40 mm)	% Elongation at gauge length 5.65 √Ѕo	Bend Test (min)
Carbon Steel IS 2062	410	250	240	230	23 min	3t* (*t is 3 times thickness)
