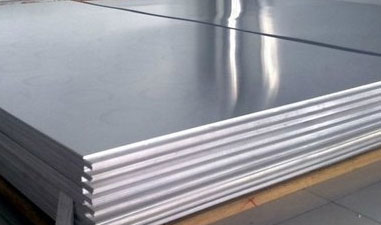

Monel 400 Plate

Monel 400 Plate

View Sizes and Weight of ASTM B127 UNS N04400 Strip. Monel 400 Plate Supplier in India. Ready Stock of Monel 400 Sheet Thickness Range 0.1 to 5 MM With MTC EN 10204 3.1/3.2.

Nickel Alloys

On This Page

Gallery

Monel 400 Plate in Detail

Specification

Features & Applications

ASTM B127 Monel 400 Coil Size

  • Thickness : 0.1 to 5 mm
  • Width : 0.5 to 1.2 m

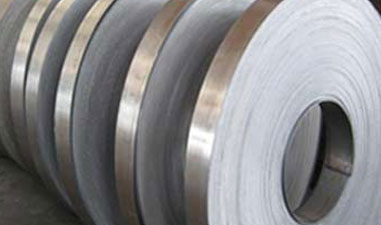

Monel 400 Strip Size

  • Thickness : 0.05 to 3 mm
  • Width : 5 to 200 mm

Nickel Alloy 400 Sheet Thickness

  • 0.1 to 5 mm

Monel 400 Sheet Width

  • 0.5 to 1 m

Density

  • 8.80 g/cm3
  • 0.318 lb/in.3

Melting Range

  • 2370 °F - 2460 °F
  • 1300 °C - 1350 °C

Werkstoff NR.2.4360 Sheet Length

  • 0.7 to 6 m

Monel 400 Plate Thickness Tolerance

  • 2.5 to 100 mm

UNS

  • N04400

ASTM B127 UNS N04400 Plate Width

  • 0.05 to 2 m

Monel Alloy 400 Plate length

  • 0.1 to 6 m

ASME SB127 Monel 400 Rolling Plate Equivalent Standard

  • British Standard : NA 13
  • Europe : NiCu30Fe
  • France : NU-30M
  • Japan : NW 4400
  • GOST : МНЖМц 28-2,5-1,5

AMS 4544 Foil Tempers

  • Annealed
  • 1/2 Hard
  • Full Hard
  • 3/4 Hard

DIN 2.4360 Shim Stock International Specifications

  • BS 3072NA1
  • QQ-N-281
  • BS 3073NA13
  • DIN 17750
  • AMS 4544

Specific Heat

  • 427 J/kg-°K
  • 0.102 BTU/lb-°F

WNR 2.4360 Rolling Plate Dimensional Standard

  • DIN
  • GB
  • ASTM
  • EN
  • JIS
  • SUS

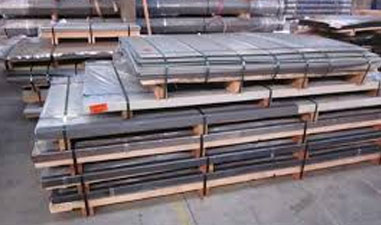

Monel 400 Sheet Types

  • Strip
  • Annealed plate
  • Foils
  • Clad plate
  • Shim sheet
  • Rolls
  • Plate
  • Coil

Modulus of Elasticity

  • 12.8 µm/m.°C

Modulus of rigidity

  • 182 GPa
  • 26.4 x 103 ksi

ASTM B127 N04400 Annealed Plate Manufacturing methods

  • Cold Rolled
  • Forged
  • Hot Rolled

Classes for Surface Finish

  • A : Finest
  • B: Slightly Less Fine
  • C : Most Basic

Certification of Monel 400 Strips

  • Third Party Inspection Report
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • EN 10204 3.1and 3.2
  • Certificate of Origin legalized

Alloy 400 Sheet Packaging

  • Steel Strips Bundled
  • Bubble wraps
  • Customized Pallets
  • Wooden Pallets

UNS N04400 Plate Welding Method

  • SMAW
  • GMAW
  • PLASMA
  • GTAW
  • SAW

BS 3073NA13 Hot Rolled Plate Finish

  • Brushed
  • Mirror
  • Matte
  • Glossy
  • Sandblasted
  • Electroless nickel plating

UNS 6625 Rolling Sheets Testing Methods

  • Mechanical test
  • Non destructive test pmi test
  • Chemical test
  • Destructive test
  • Flaring Test
  • Third party inspection test
  • Visual inspection test
  • Nabl approved lab test

QQ-N-281 Hot Rolled Plate Hardness Type

  • Hard
  • Soft
  • Quarter Hard
  • Spring Hard
  • Half Hard

BS 3072NA1 Cold Rolled Plate Cutting Methods

  • Waterjet cutting
  • Oxy-propane flame cutting
  • Laser cutting
  • Plasma cutting

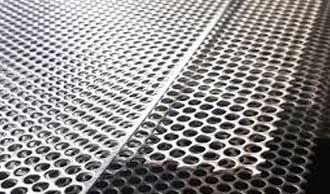

Documentation We Offered for Monel 400 Perforated Plate

  • Copy of Invoice
  • Copy of Packing List
  • MTC
  • Country of Origin

Alloy 400 Annealed Plate Thermal Conductivity

  • 22.0 W/m-°K
  • 150 BTU/hr/ft2/ft/°F

Common Trade Names

  • Monel 400®
  • Nicorros® 400
  • Nickelvac® 400

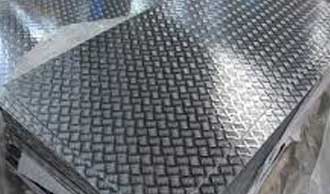

Monel Alloy 400 Chequered Plate Tensile Strength

  • 80000 psi
  • 550 Mpa

AMS 4544 Slitting Coil Yield Strength

  • 35000 psi
  • 240 MPa

Werkstoff NR.2.4360 Thin Strips Application

  • Marine engineering
  • Industrial heat exchangers
  • Chlorinated solvents
  • Chemical processing equipment
  • Deaerating heaters
  • Crude petroleum stills

Nickel Alloy 400 Shims Value Added Services

  • Cutting to Length
  • Welding
  • Polishing
  • Edge Preparation
  • Sawing
  • Bending
  • Mechanical Processing
  • Shearing
  • Blanking
  • Slitting

Hardness

  • 223 BHN

Annealed Temperature Ranges

  • 570 to 610°F
  • 300 to 320°C

Monel Alloy 400 profile Hot Forming Temperatures

  • 649 - 1177 °C
  • 1200 - 2150 °F

AMS 4544 Blank Corrosion Rate

  • 22 mpy
  • 0.56 mm/a

BS 3072NA1 Circle Electrical Resistivity

  • 307 Microhm-in
  • 0.511 Microhm-cm

BS 3073NA13 Flat Curie Temperature

  • 70 - 120 °F
  • 21 - 49 °C

WNR 2.4360 Perforated Sheet Poisson’s Ratio

  • 0.32

2b Finish Nickel Alloy 400 Flat Shim Elongation

  • 40 %

Technical Data

Full Specifications

›Material Properties

Mechanical Strength Table of 2.4360 Monel 400 Hot Rolled Sheet

ElementMelting Pointcol_3Tensile StrengthElongation
Element2460 °F / 1350 °C–80000 Psi / 550 MPaElongation
Monel 400DensityYield Strength40 %
Monel 4008.8 g/cm335000 Psi / 240 MPa40 %
›Technical Data

Equivalent Material of ASTM B127 Alloy 400 Foil

Scroll to see all columns →

STANDARDWERKSTOFF NR.North AmericaJapanBritish StandardRussiaFranceEurope
Monel 4002.4360N04400NW 4400NA 13МНЖМц 28-2,5-1,5NU-30MNiCu30Fe

2.4360 Monel 400 Foil Density

Density
8.8 g/cc

400 Monel Polished Plates Thermal Properties

Scroll to see all columns →

TemperatureTemperature_2Thermal ConductivityThermal Conductivity_2Mean Linear ExpansionMean Linear Expansion_2Electrical ResistivityElectrical Resistivity_2Specific HeatSpecific Heat_2
°C°FW/m•°CBtu- in/h/ftµm/m•°Cin/in/°F x 10- 6micro-ohm.mohm- circ mil/ftJ/kg•°CBtu/lb/°F
- 200- 320360205
- 180- 30016.511311.16.12230.05
- 130- 20018.213011.46.43200.078
- 70- 10019.813912.1- 6.73780.088
2170221510.5113074270.102
1002002416714.27.70.5373324450.105
20040026.919315.28.60.5593374590.11
30060030.121515.78.80.5743464700.114
40080033.423816.18.90.587355
500100036.523816.39.10.603367
600120039.428716.69.30.62379
700140042.4311179.60.639391
800160045.5d335d17.49.80.658403
900180048.8d360d17.710.0d0.675415
1000200018.1d10.3d0.692427

Room-Temperature Tensile Properties of Nickel Alloy 400 Strip

Scroll to see all columns →

col_1col_2col_3col_4col_5col_6col_7col_8
Hot - Rolled, Annealed60 - 76110 - 14050 - 35193 - 34570 - 8528 - 50482 - 586
Hot - Rolled, As - Rolled70 - 96125 - 21545 - 30276 - 51775 - 9540 - 75517 - 655
SheetSheetSheetSheetSheetSheetSheetSheet
Cold - Rolled, Hard93 min.a-15 - 2621 - 758100 - 12090 - 110690 - 827
Annealed65 - 80-45 - 35207 - 31070 - 8530 - 45482 - 586
Strip, Cold - RolledStrip, Cold - RolledStrip, Cold - RolledStrip, Cold - RolledStrip, Cold - RolledStrip, Cold - RolledStrip, Cold - RolledStrip, Cold - Rolled
Spring Temper98 min.a-15 - 2621 - 896100 - 14090 - 130690 - 965
Annealed68 max.a-55 - 35172 - 31070 - 8525 - 45482 - 586

Monel Alloy 400 Hot Rolled Plate Tear Tests

Scroll to see all columns →

Temperature °FTemperature °F_2Room41300-320-238-184
Max. Load lbMax. Load lb3234041300478004200039000
Reduction of Thickness %Reduction of Thickness %5745465150
Corrected Energy Values ft-lbInitiation715676899795649
Corrected Energy Values ft-lbPropagation20082138280224082402
Corrected Energy Values ft-lbTotal27232814370132033051

Shear Strength of Alloy 400 Strips

TemperShear Strength, ksiThickness, inHardness, RbTensile Strength, ksiRatio Shear Strength/ Tensile Strength
Cold-Rolled, Annealed49.50.0296076.80.65
Hot-Rolled, Annealed48.750.04265730.67

Monel Alloy 400 Plate Sizes

Sizes in inchSizes in millimeter
3/164.8
1/46.3
3/89.5
1/212.7
5/815.9
3/419
125.4
1 1/431.8
1 1/238.1
1 3/444.5
250.8
2 1/263.5
376.2

DIN 2.4360 Plate Thickness

Dimension in millimeterKilogram P/Meter2
.5 X 1000 X 20004.5
.7 X 1219 X 30486.3
.9 X 1219 X 30488.1
1.2 X 1219 X 30481 .8
1.6 X 1200 X 304814.4
2.0 X 1219 X 304818
3 X 1200 X 300027
3.18 X VARIOUS ANN28.6
›Dimensions & Weight

ASTM B127 UNS N04400 Plate Weight per Unit

Thickness in inchesDensity in gram/cm³Weight / unit area in kilogram/meter²
3/168.7242.184176
1/48.7256.245568
3/88.7285.0714216
1/28.72113.1942056
5/88.72137.8016416
3/48.72165.221356
7/88.72192.6410704
18.72220.0607848
1 1/48.72274.9002136
1 1/28.72330.442712
1 3/48.72385.9852104
28.72440.8246392
2 1/48.72495.664068
2 1/28.72551.2065664
2 3/48.72606.0459952
38.72661.5884936
›Tolerances

Monel 400 plate Thickness Tolerance

ProductMonel 400 hot rolled plateASTM B127 UNS N04400 hot rolled sheetAlloy 400 cold rolled sheetNickel Alloy 400 cold rolled strip
Thickness, T3/16" 4.76 mm and over0.018” ≤ T ≤ 0.250” 0.46mm ≤ T ≤ 6.4 mm0.018” ≤ T ≤ 0.250” 0.46mm ≤ T ≤ 6.4 mm0.005” ≤ T ≤ 0.250” 0.46mm ≤ T ≤ 6.4 mm
