Mild Steel Plate

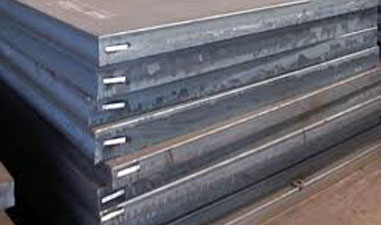

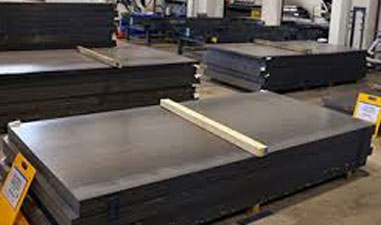

Stockist and supplier of Mild Steel Plate in India, Buy Black MS Cold Rolled Plate online and save cost, ask for Free sample of Hot Rolled MS Plate, View dimensions of Flat Mild Steel Plate.
Gallery
Mild Steel Plate in Detail
Technical Data
Full Specifications
›Technical Data
Specification List of Mild Steel Plate
| col_1 | col_2 |
|---|---|
| Specifications | Mild Steel |
| Width & Length | 1 mm TO 200 mm THK in 1000 mm to 3000 mm width x 2500 mm / 5000 mm / 10000 mm |
| Surface | NO.1, NO.4, NO.8, 8K, mirror, checkered, 2B, 2D, BA, embossed, hair line, sand blast, Brush, etching, etc |
| Thickness | 3/16″ to 24″ |
| Export to | Ireland, Brazil, Singapore, Iran, Oman, Dubai, Ukraine, Spain, Thailand, Egypt, Canada, India, Saudi Arabia, Indonesia, Korea, USA, Peru, etc |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR) |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip etc. |
Size Range of Hot Rolled Mild Steel Plate
| col_1 | col_2 | col_3 | col_4 | col_5 |
|---|---|---|---|---|
| Sr. No. | Material | Size | Thickness | Specification |
| 1. | Mild Steel | 1220 mm x 4880 mm / 1500 mm x 6300 mm / 2000 mm x 10000mm / 2500 mm x 10000mm | 1 mm / To 150 mm | IS 2062 |
| 2. | GI | 1220 mm x 2440 mm 1220 mm x 6000 mm / 1500 mm x 6300 mm | 1 mm / To 20 mm | DIN, BS, IS / EN Series |
Check Our Material Dispatch In The Following Countries
| col_1 | col_2 |
|---|---|
| Mild Steel Plate Hot Rolled | Nigeria, Philippines, Australia, UK |
| Cold rolled mild steel coil | UAE, United Kingdom -UK, Europe, Malaysia |
| annealing mild steel sheet | Finland, Malaysia, USA, Bangladesh |
| mild steel checker plate , 2mm thick | Singapore, Philippines, Malaysia, Canada |
| Hot rolled Q235 mild Carbon Steel Plate | Ellington -United States, UK, Canada, Poland |
| 10mm thick hot rolled ms steel plate | Malaysia, United Arab Emirates (UAE), Turkey, Norway |
| ASTM A283 Grade C Mild Carbon Steel Plate | Singapore, Bahrain, South Africa, Singapore |
| 20mm Mild Steel Ship Building Hot Rolled Plate | Belgium, Dammam -KSA, Indonesia, Philippines |
| S275jr Hot Rolled Mild Steel Plate for Building Material | Malaysia, Europe, Japan, Romania |
| 4x8 MS Alloy iron sheet | Thailand, Qatar, France, Europe |
| hot rolled black mild plates | China, Sweden, Colombia, Malaysia |
| Thick Mild Steel Chequered Plate | Malaysia, Czechia, Germany, Thailand |
| MS Checkered Coils | Brazil, South Africa, Saudi Arabia (KSA), Kuwait |
| mild steel plate 9mm wear resistant | UAE, Oman, Malaysia, Hong Kong |
| 16 gauge 10mm thick mild steel sheet | UK, Egypt, Spain, Mexico |
| 3mm mild steel checker plate | Malaysia, Singapore, South Korea, NY 12203 (USA) |
| 1500mm mild hot rolled steel plate | Singapore, Chile, Italy, Iran |
| 2mm mild steel plate | Philippines, Malaysia, Taiwan, Los Alamos -Mexico |
| 12mm mild steel sheet plate | Dubai, Netherlands, Malaysia, Russia |
›Material Properties
Chemical Structure of MS plate
| Element | Content |
|---|---|
| Phosphorous, P | ≤ 0.040 % |
| Sulfur, S | ≤ 0.050 % |
| Carbon, C | 0.14 – 0.20 % |
| Iron, Fe | 98.81 – 99.26 % (as remainder) |
| Manganese, Mn | 0.60 – 0.90 % |
Mechanical Analysis of Mild Steel Diamond Plate
| Mechanical Properties | Metric | Imperial |
|---|---|---|
| Hardness, Brinell | 126 | 126 |
| Hardness, Knoop (Converted from Brinell hardness) | 145 | 145 |
| Hardness, Rockwell B (Converted from Brinell hardness) | 71 | 71 |
| Tensile Strength, Yield | 370 MPa | 53700 psi |
| Hardness, Vickers (Converted from Brinell hardness) | 131 | 131 |
| Poissons Ratio (Typical For Steel) | 0.290 | 0.290 |
| Machinability (Based on AISI 1212 steel. as 100% machinability) | 70 % | 70 % |
| Bulk Modulus (Typical for steel) | 140 GPa | 20300 ksi |
| Tensile Strength, Ultimate | 440 MPa | 63800 psi |
| Elongation at Break (In 50 mm) | 15.0 % | 15.0 % |
| Reduction of Area | 40.0 % | 40.0 % |
| Modulus of Elasticity (Typical for steel) | 205 GPa | 29700 ksi |
| Shear Modulus (Typical for steel) | 80.0 GPa | 11600 ksi |
›Dimensions & Weight
Metric Dimensions
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed | 0.25–8.0 | max. 2032 |
| 2D – Cold rolled, heat treated, pickled | 0.4–6.35 | max. 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled | 0.4–8.0 | max. 2032 |
| 2R – Cold rolled, bright annealed | 0.25–3.5 | max. 1524 |
| 2H – Work hardened | 0.4–6.35 | max. 1524 |
| Polished, brushed | 0.5–4.0 | max. 1524 |
Imperial Dimensions
| Surface finish | Gauge (in) | Width (in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed | 10–24 | max. 72* |
| 2D – Cold rolled, heat treated, pickled | 12–24 | max. 60 |
| BA Mexinox only | 18–28 | max. 48 |
| Polished (not brushed) | 11–24 | max. 60 |
| Temper rolled Mexinox only | 13–29 | max. 48 |
